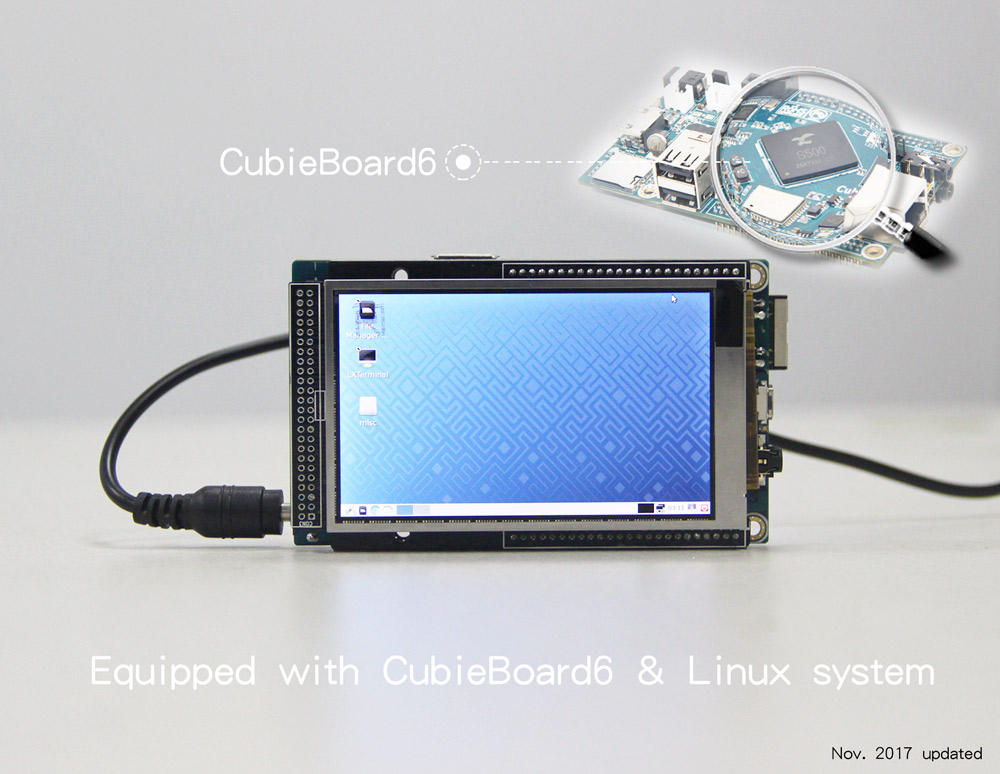

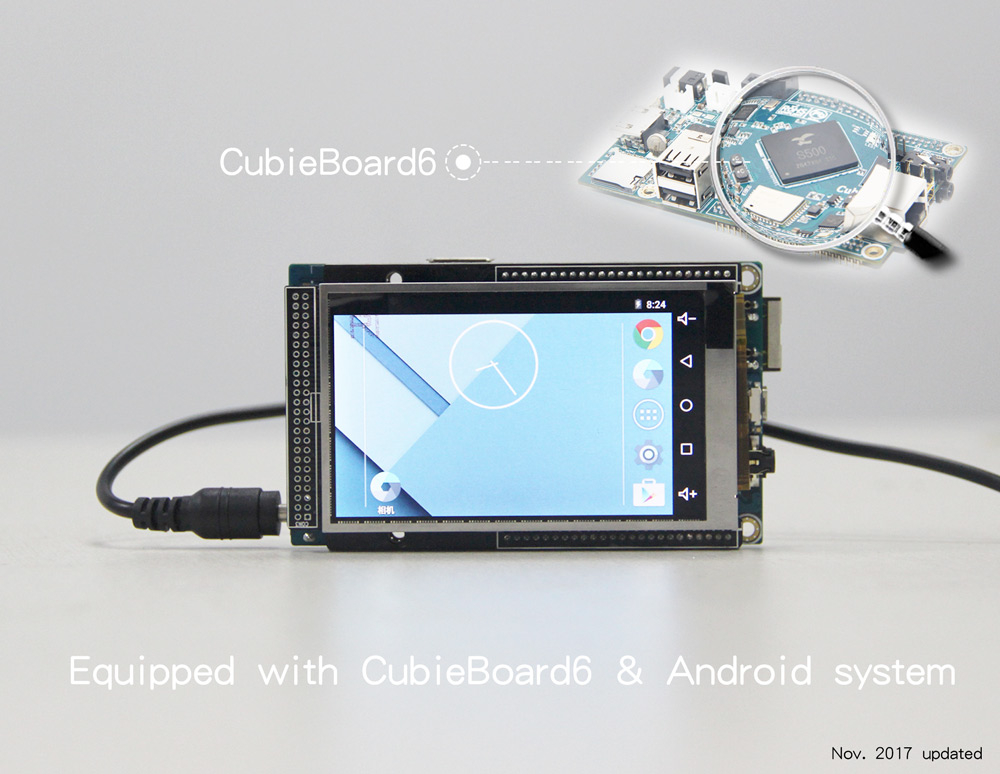

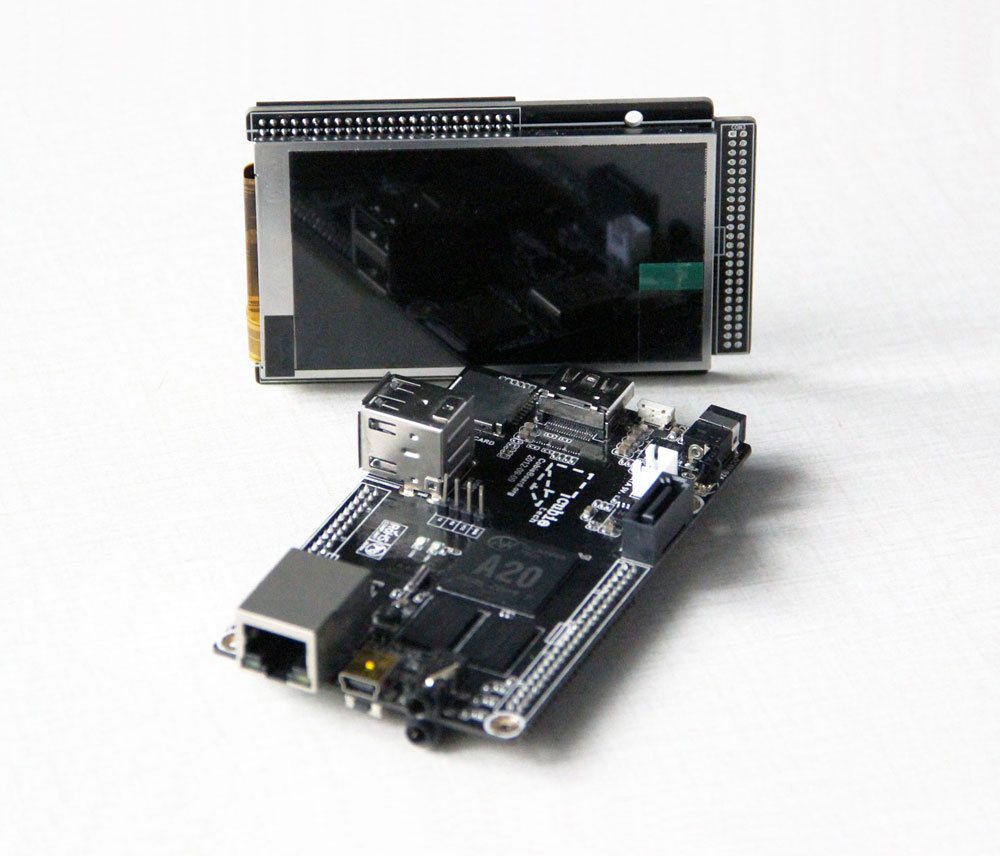

Cubiescreen is made by Ybmaker team specially for cubieboard2/cubieboard1 open source hardware. It is a very tiny and cute accessory / add-on board for CubieBoards. It can be used with CubieBoard1 and CubieBoard2, and also can be used with CubieBoard6 in the future. When we saw it for the first time, it really flashed our eyes.

Product Information

Name:      Cubiescreen for CubieBoard1, CubieBoard2
Property:   Software open source, Hardware open, Production materials closed
Owner:      Ybmaker Team
Target:      Developer, Geek, Maker, Scholar, Student…

Product Introduction

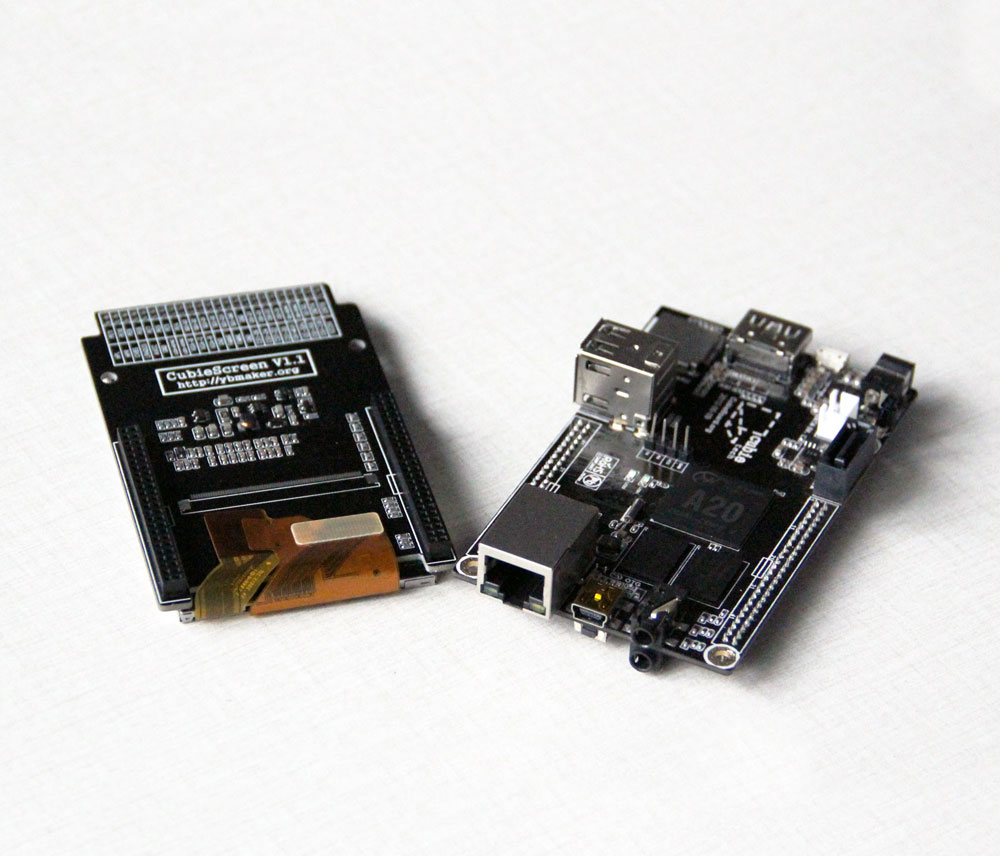

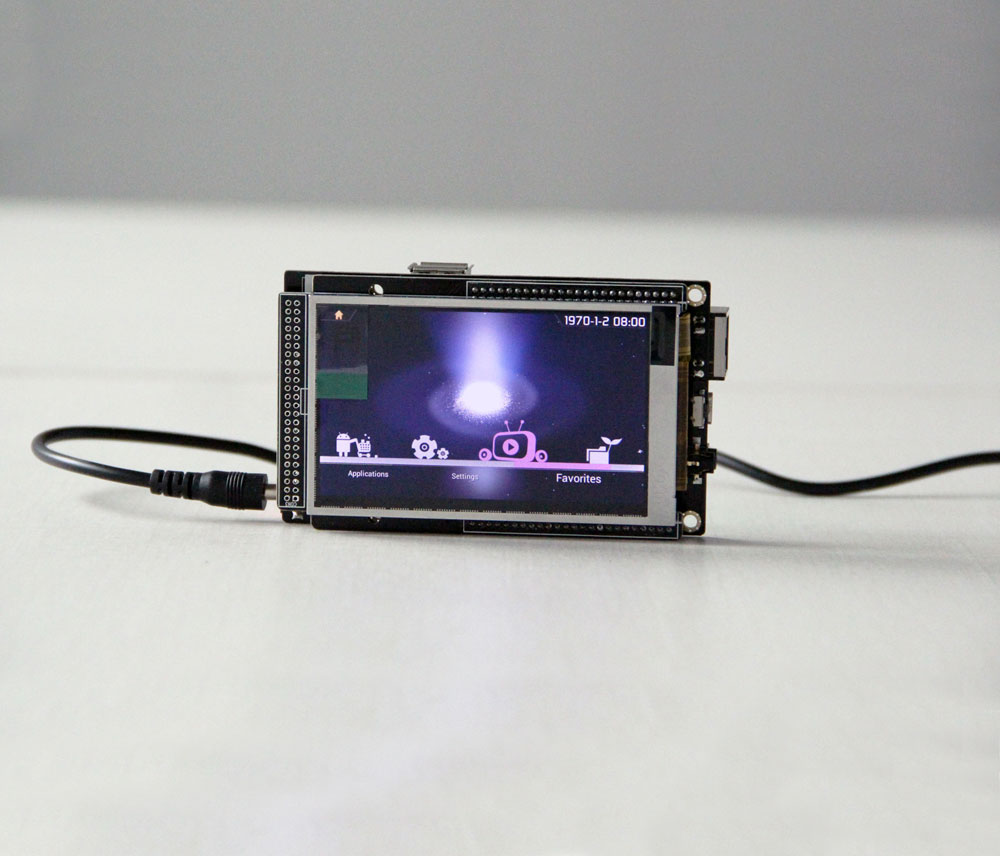

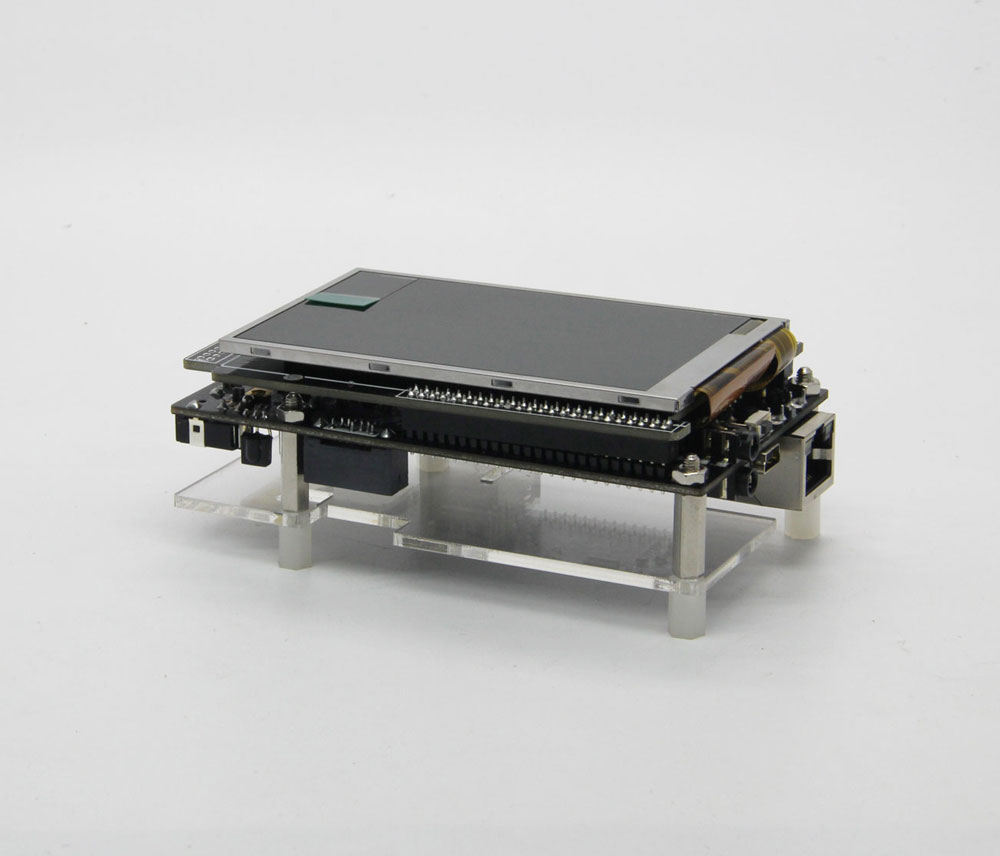

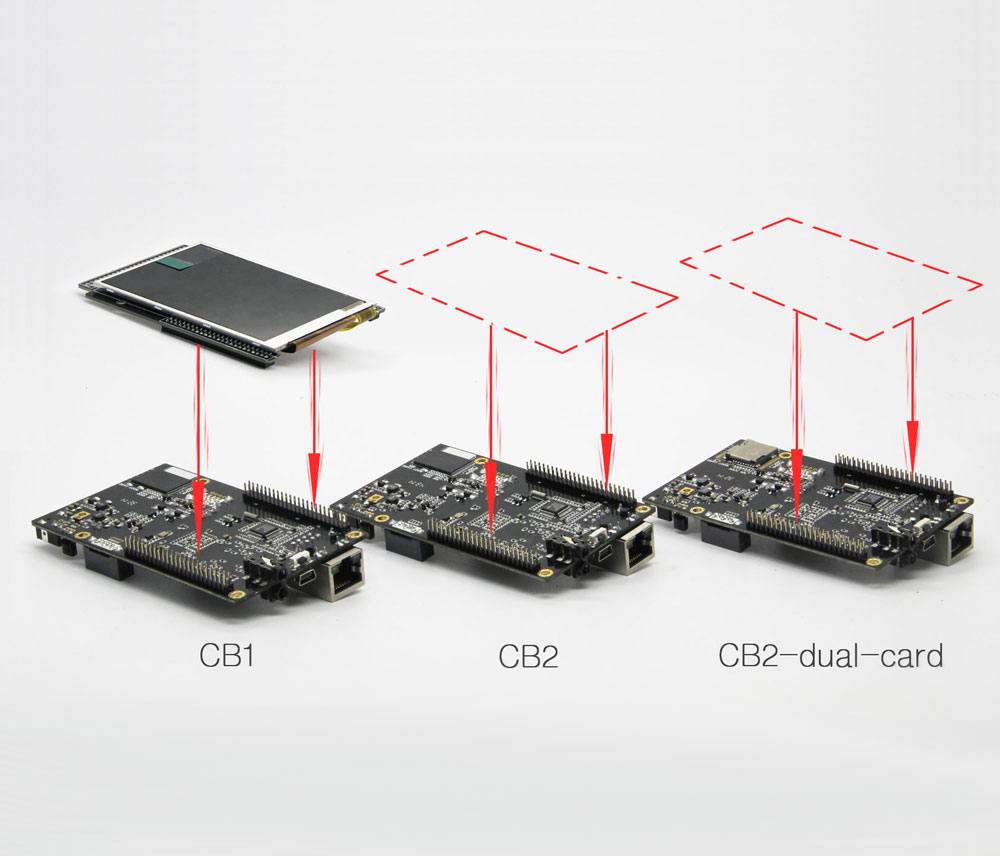

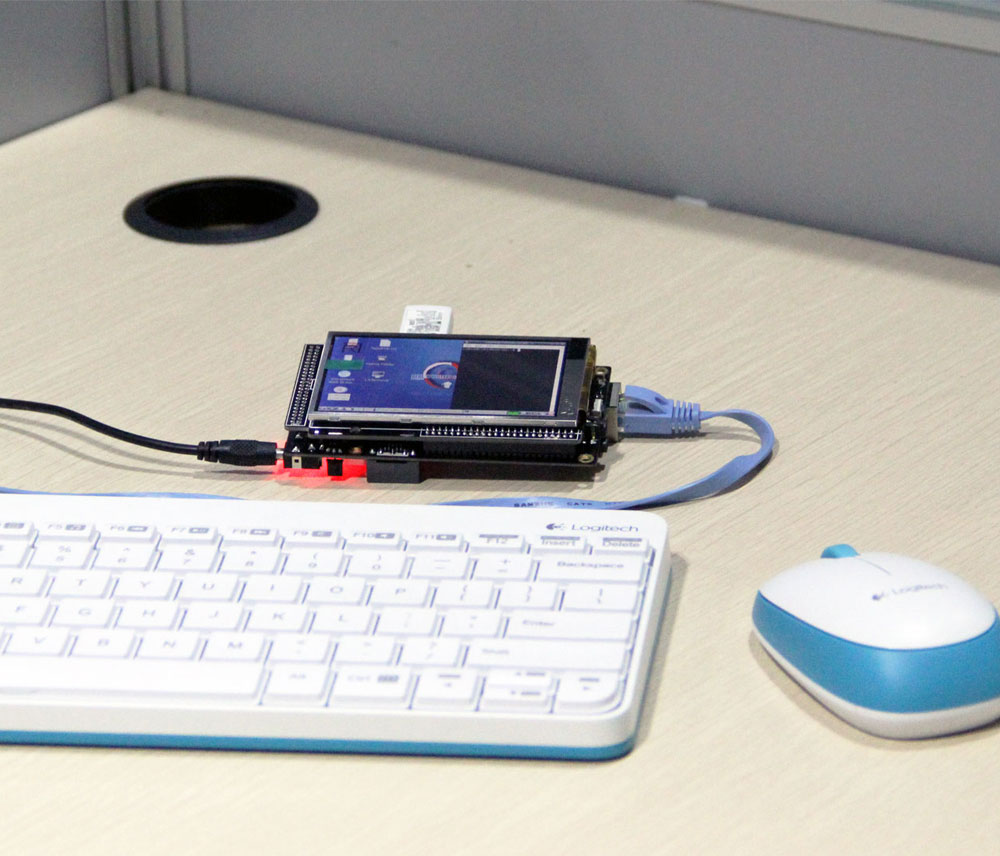

This board consists of a 2 layers PCB, a piece of 3.5 inch, 800*400 resolutions LCD module comes with touch panel. Both of them form a complete product that very easy to use. When it is used with Cubieboard1/2, you just need to plug it into Cubieboard via 96 pin expansion header.  So that it immediately become the all-in-one tiny computer with display.

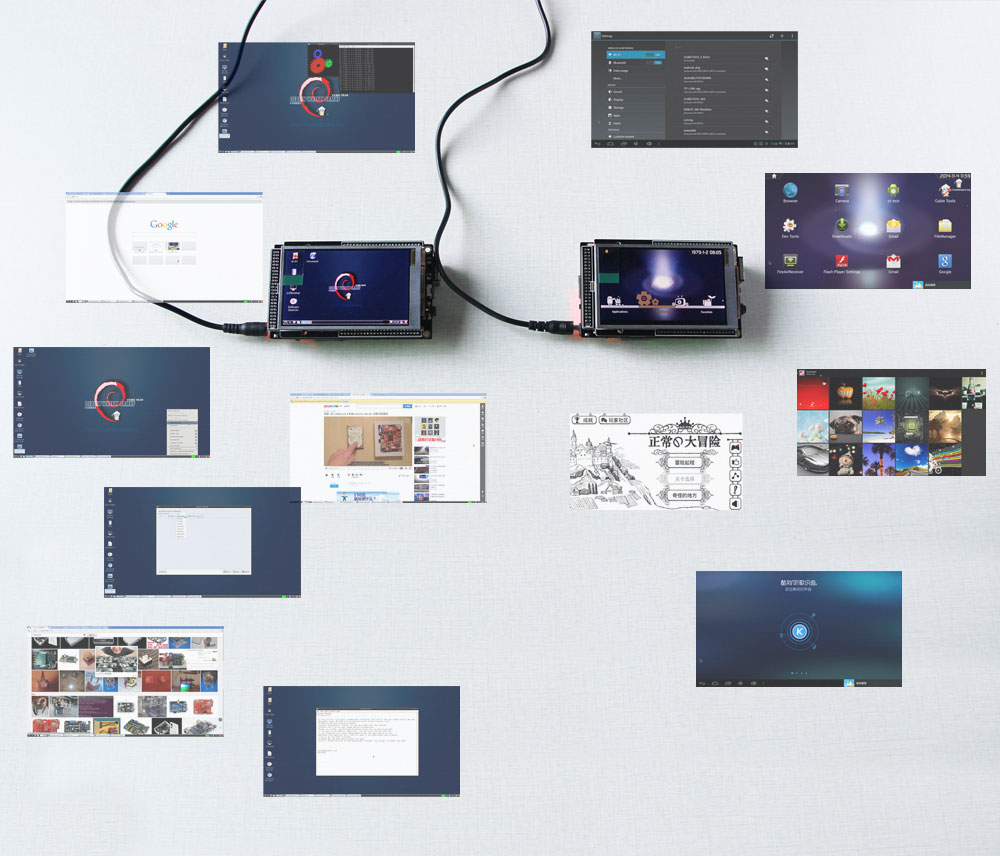

The Ybmaker team and Cubieboard team supplied some Android and Linux demonstration images/ROM. We also supply the source code and user guide for you to do it yourselves.


Product Features

1. LCD size:      3.5 inch
2. LCD resolutions:      800*480

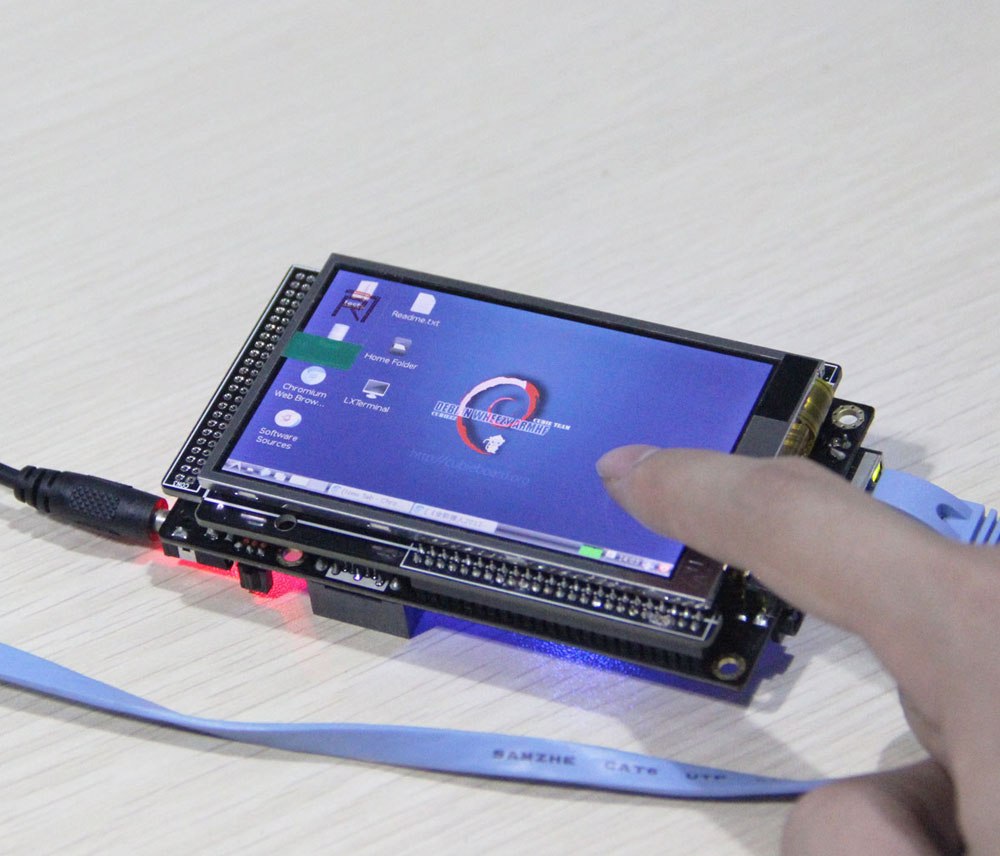

3. Touch panel:      Capacitive Touch
4. Others:      Some expansion rest pins for experiment and test


Other Specifications

Operating Temperature:      -10℃~55℃
Environment Friendly:   RoHS
Packing Weight:      100g

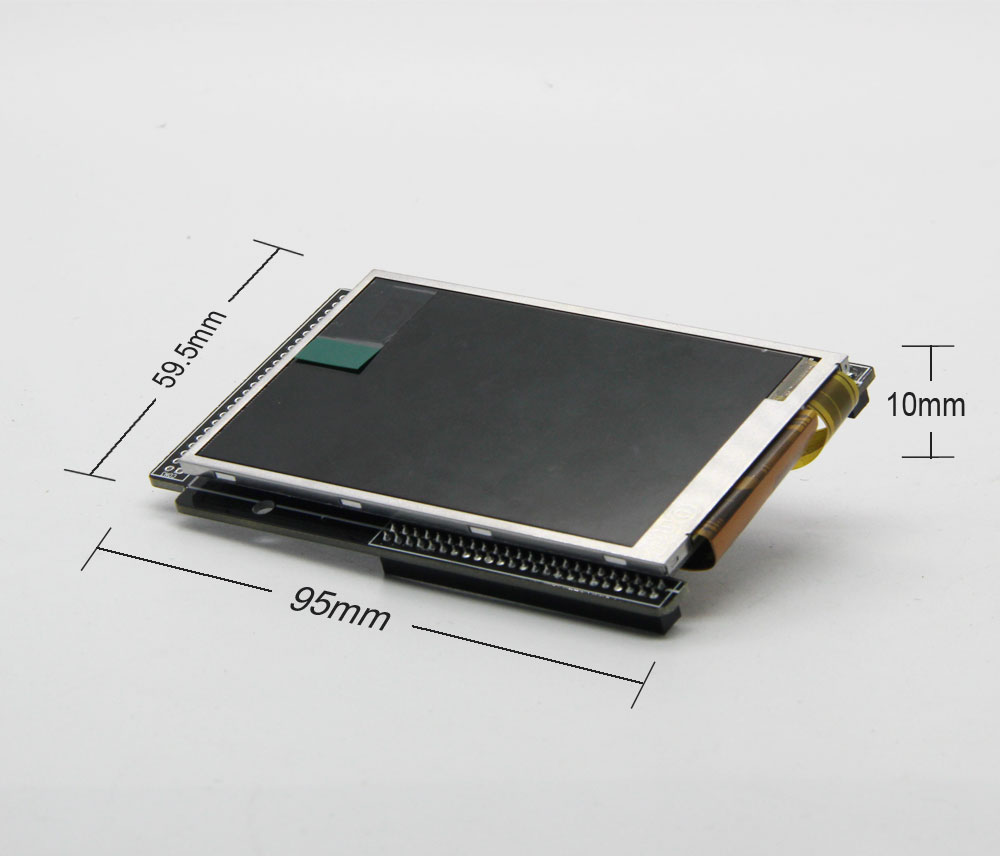

Product size:      95mm*59.5mm*10mm

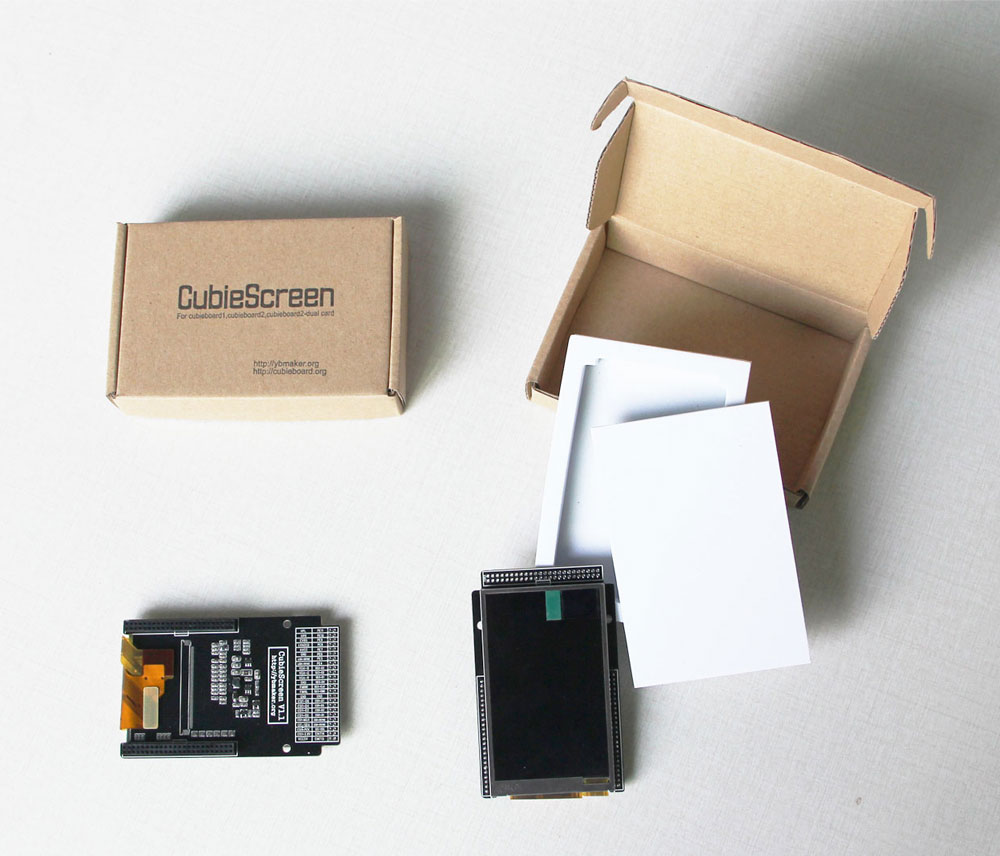

Packing:      Environmental protection small carton


Development Materials

Technical Website:      http://ybmaker.org/
Resources and Materials 1:     http://ybmaker.org/cubiescreen/
Resources and Materials 2:     http://dl.cubieboard.org/addon/Cubiescreen/
Resources and Materials 2:     https://pan.baidu.com/s/1bppHqwf#list/path=%2FCubie_Download_CN%2FAdd-On%2FCubieScreen&parentPath=%2F
Distribution contacts:      sales@cubietech.com
Technical contacts:      support@cubietech.com
Distributor:      http://cubieboard.org/buy/

CubieScreen Download Main Entrance:

link:  http://cubieboard.org/download/

Enter the download server, then choose the related folder:

Root folder -> Add-On -> CubieScreen
