BLE Module: CMBLE-1103

Category:

CMBLE-1103-21
CMBLE-1103-22
CMBLE-1103-23
CMBLE-1103-24
CMBLE-1103-25
CMBLE-1103-26
CMBLE-1103-27

CMBLE-1103-1
CMBLE-1103-2
CMBLE-1103-3
CMBLE-1103-4
CMBLE-1103-5
CMBLE-1103-6
CMBLE-1103-7

Overview

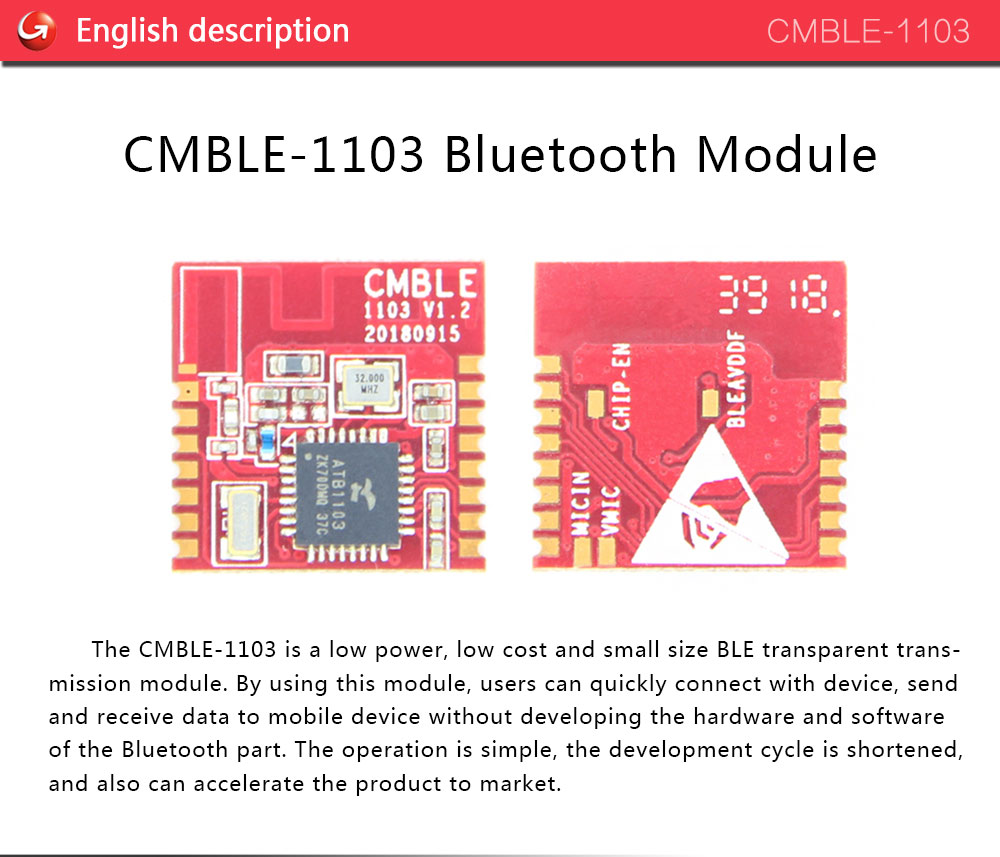

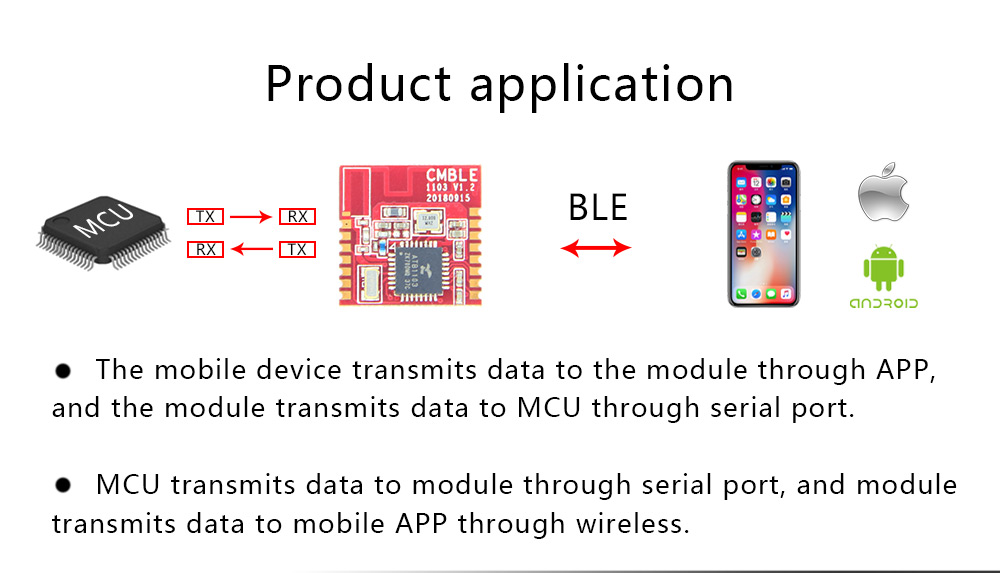

The CMBLE-1103 Bluetooth module is a Bluetooth V4.2 transparent transmission module,designed and developed based on the Zhuhai Actions’ BLE SOC chip ATB1103 OR ATB1103L. Users can use this module to quickly connect with mobile devices ,send and receive data without developing the hardware and software of the Bluetooth part. Users can also use AT command to configure the communication parameters . In order to meet the needs of customers, we can customize the software based on the standard firmware of the module to help customers save development investment costs.

Product Information
Name: CMBLE-1103
Property: Not open source
Owner: CubieTech Limited
System: Zephyr
Target:OEM, ODM…

Product Introduction

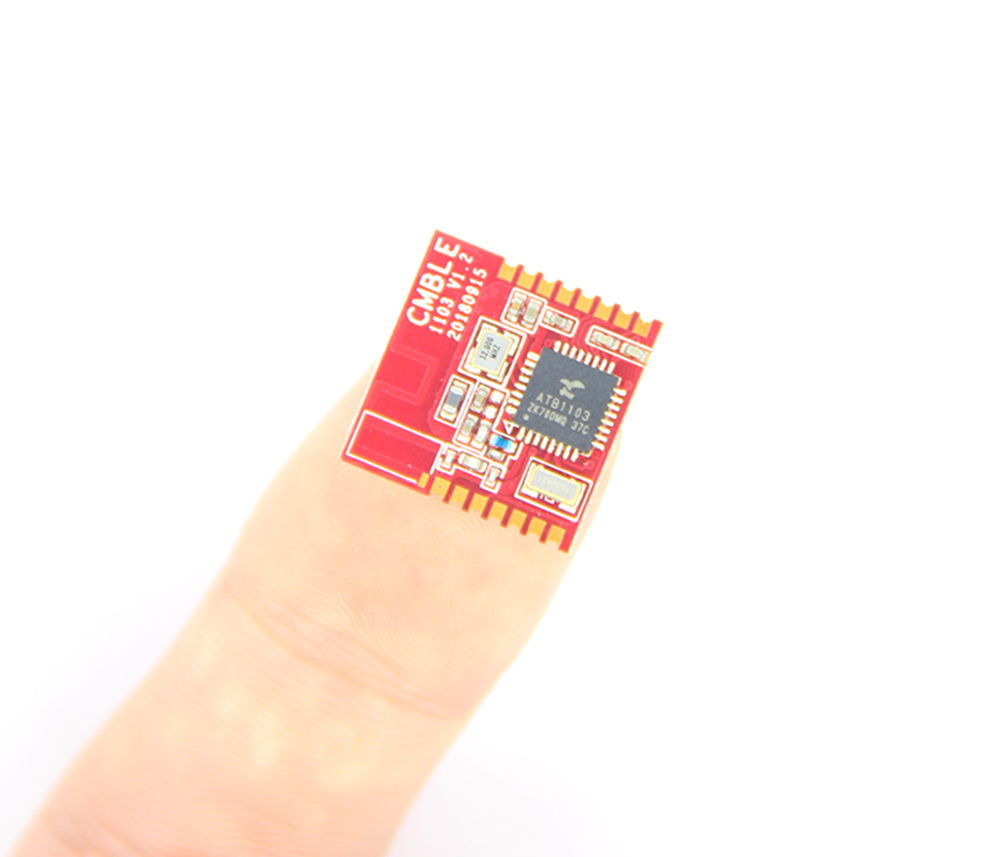

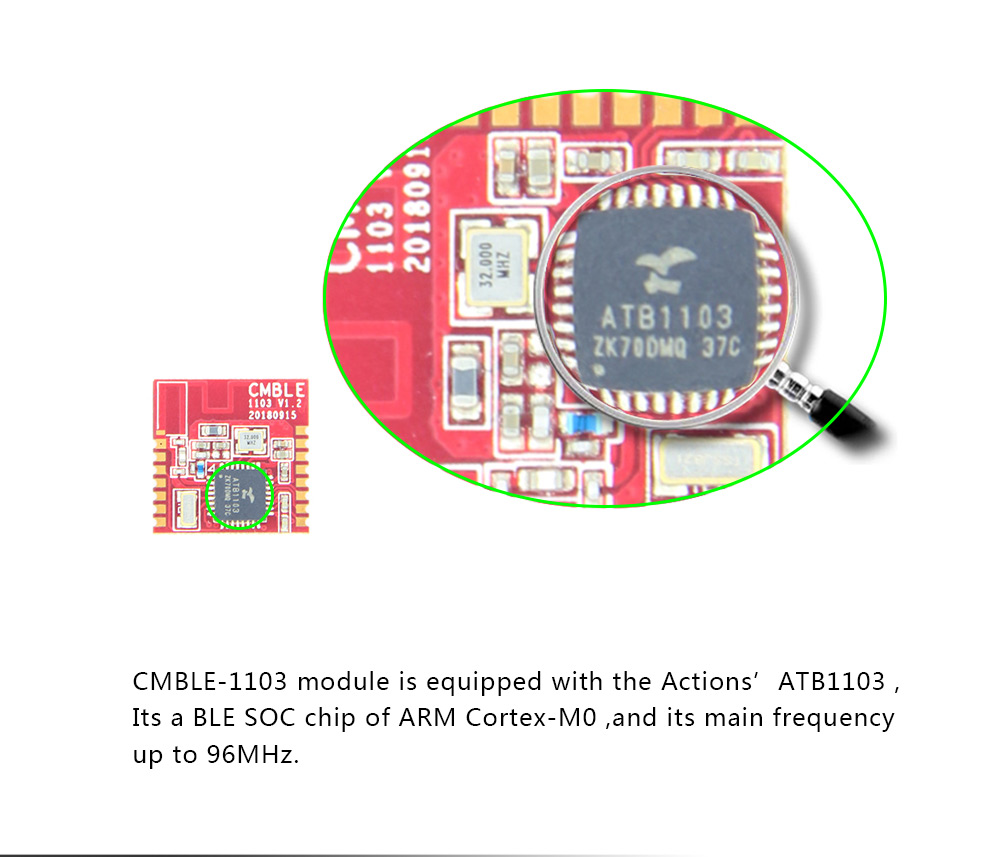

The CMBLE-1103 module is based on the Zhuhai Actions’chip ATB1103 to design. The ATB1103 is a BLE SOC that supports the BT V4.2 version protocol. Integrated with low-power Bluetooth physical layer, securely encrypted link layer, host controller interface and ARM Cortex-M0 MCU clocked at up to 96MHz. The CMBLE-1103 module has 19 PINs, including 9 input PINs, 6 output PIN pins, 4 power supplies and ground related PIN. The module contains 2 PWM output PINs, 1 ADC sampling PIN . When the Bluetooth module is connected to the Bluetooth host (Bluetooth 4.0 device), the Bluetooth host sends the corresponding command to drive module ADC or PWM function . The voltage collected by the ADC cannot be higher than the supply voltage. 1 MIC data input PIN can be used by the customer based on this module for secondary development. 1 BLEVDDF power input PIN, when the customer has higher power consumption requirements, external power supply through the PIN, the power supply range is 1.0-1.6V.

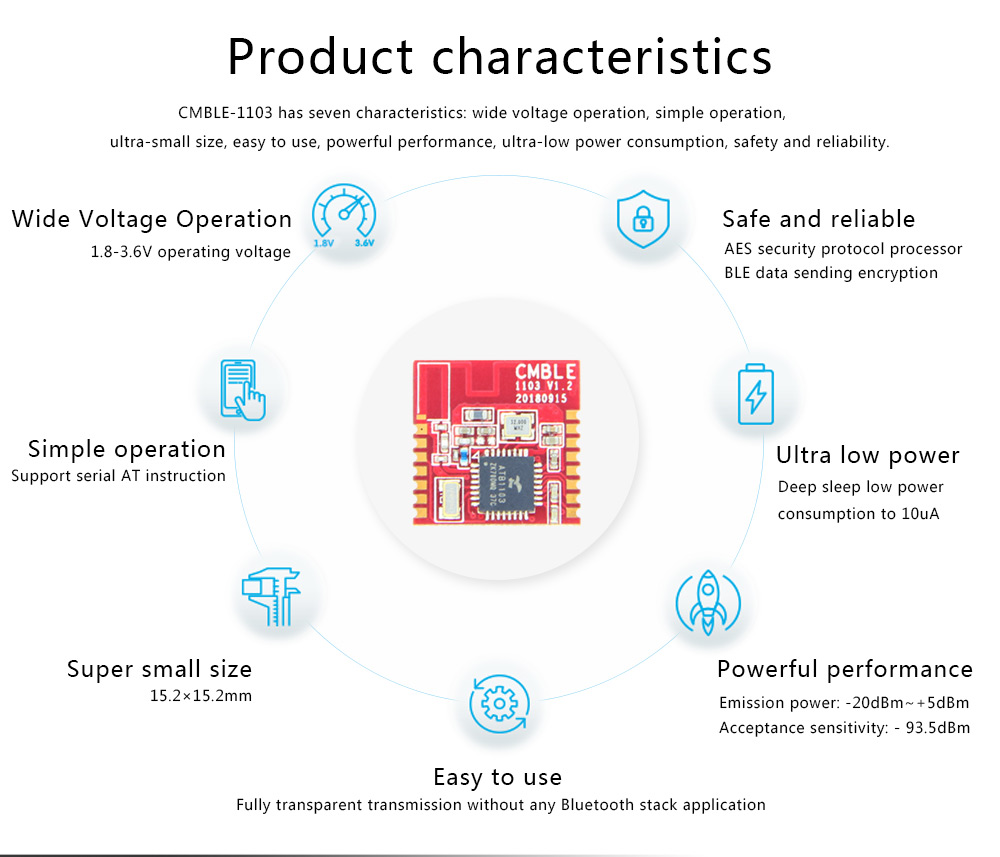

Product Features

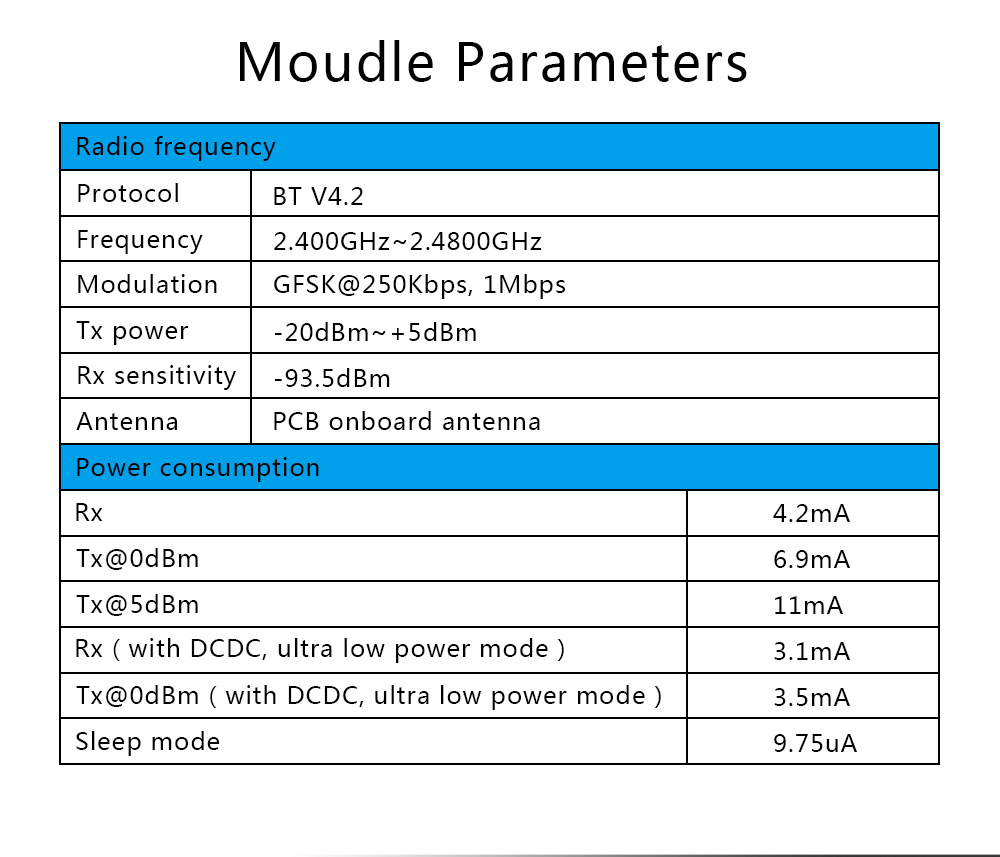

1. SOC: Actions SOC ATB1103,ARM Cortex-M0 MCU up to 96MHz.
2. BT: Complies with Bluetooth ® Low Energy Core Specification V4.2.
3. Frequency: 2.4000GHz~2.4800GHz
4. Modulation: GFSK@250Kbps,1Mbps
5. Tx Power: -20dBm~+5dBm
6. Rx Sensitive: -93.5dBm
7. Antenna:PCB antenna
8. Sleep Power:9.75uA
9. Power Supply:1.8-3.6V

Other Specifications
Operating Temperature: -40℃~85℃

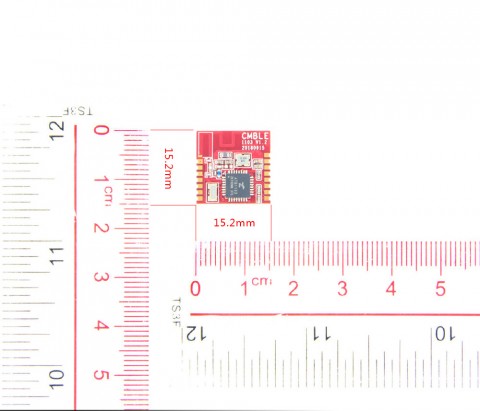

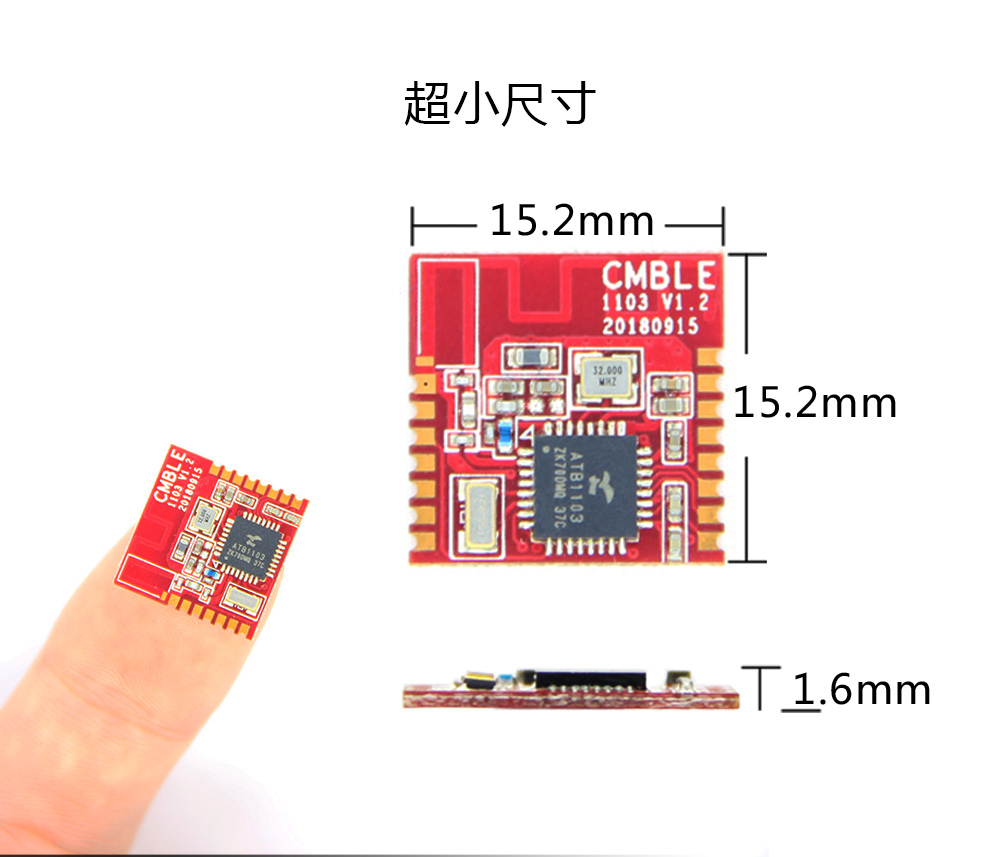

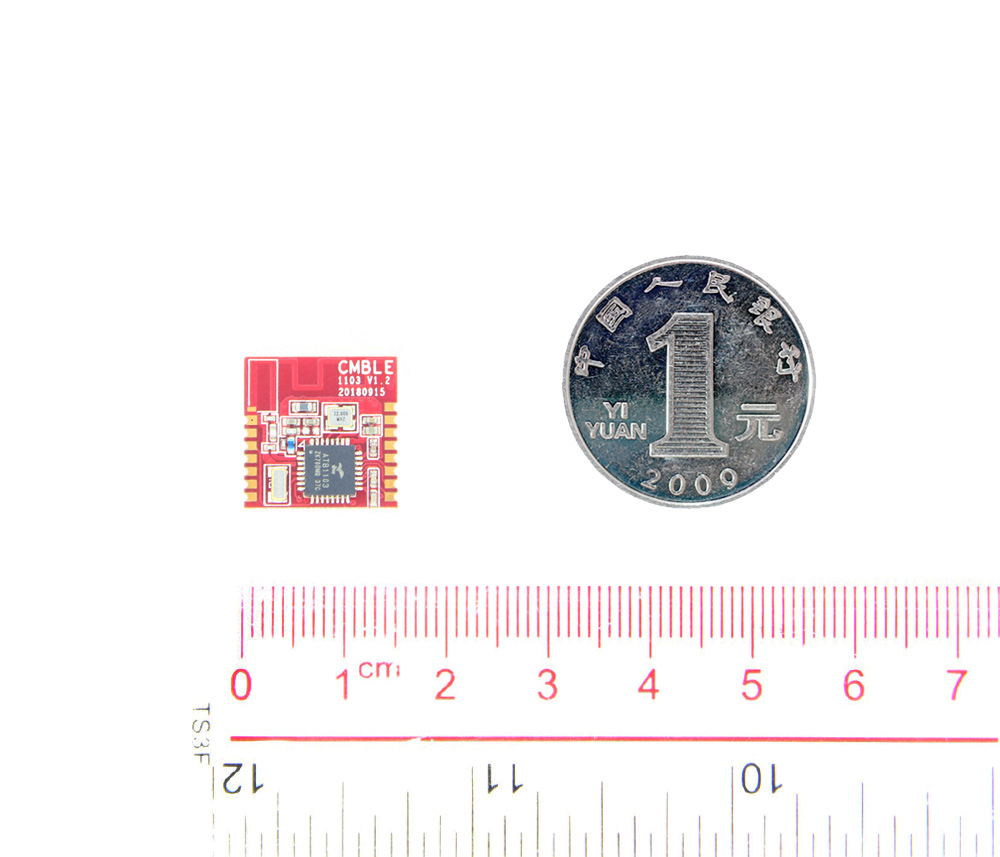

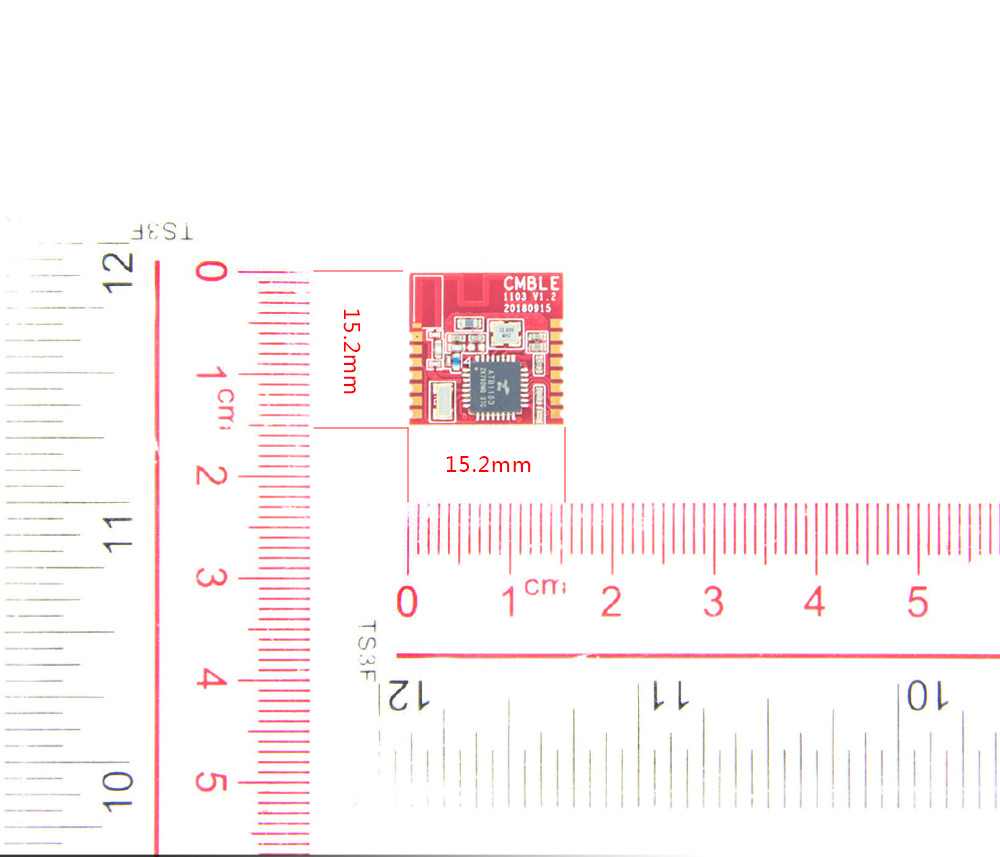

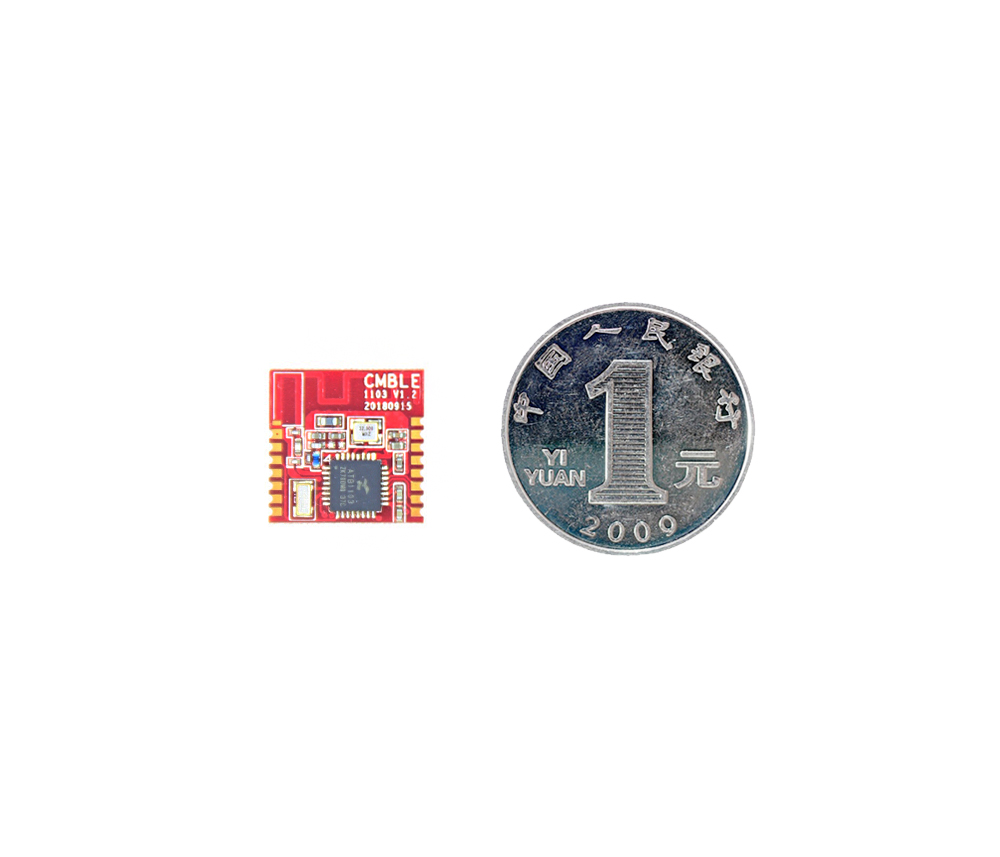

Board Size: 15.2mm*15.2mm
PIN: 19PINs totally 9 input PINs, and 6 output PINs

———Chinese/中文—–—–

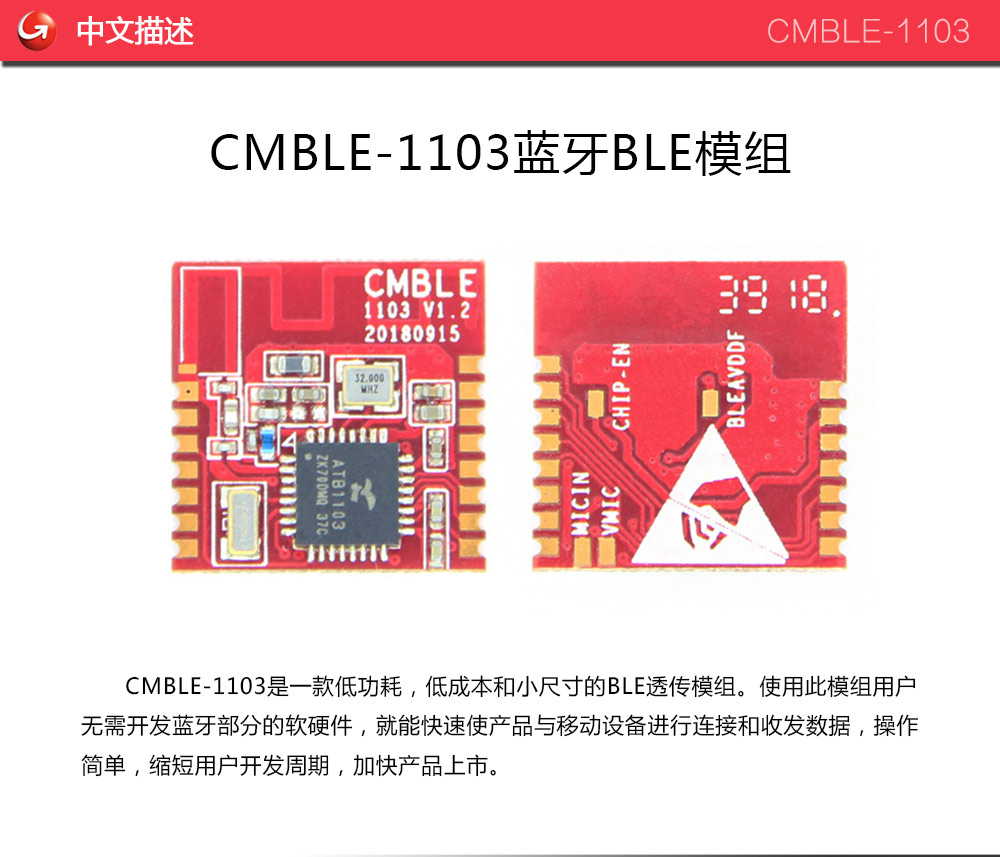

概述
CMBLE-1103 蓝牙模组是一款蓝牙 V4.2 透传模组,基于珠海炬芯的 BLE SOC 芯片 ATB1103 所设计开发。用户使用此模组无需开发蓝牙部分的软硬件,就能快速的使产品与移动设备进行连接和收发数据。模组的通讯参数支持 AT 指令模式,通过 AT 指令配置参数。为了满足客户的更多需求,我们可以在模组标准固件基础上进行软件定制,帮助客户节省开发投入成本。

产品信息
名称:CMBLE-1103
开放性:软件开源,模组硬件不开源
所有者:方糖电子
系统:Zephyr
目标客户:开发者,制造商…

产品介绍

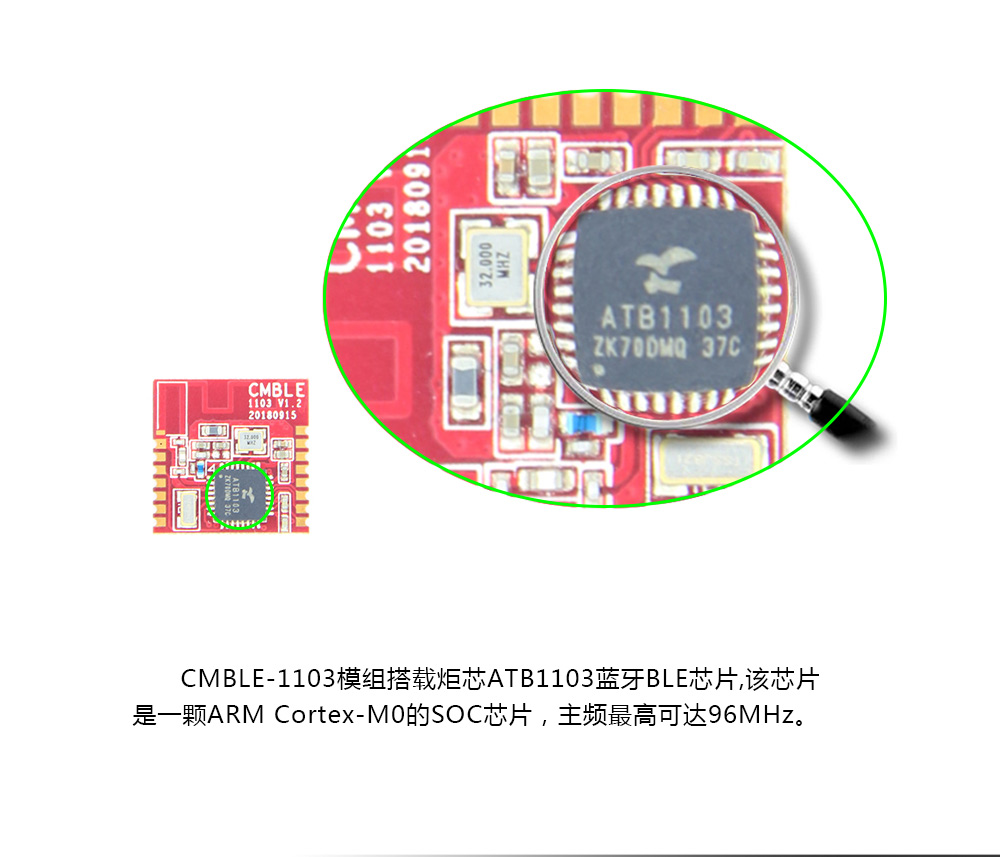

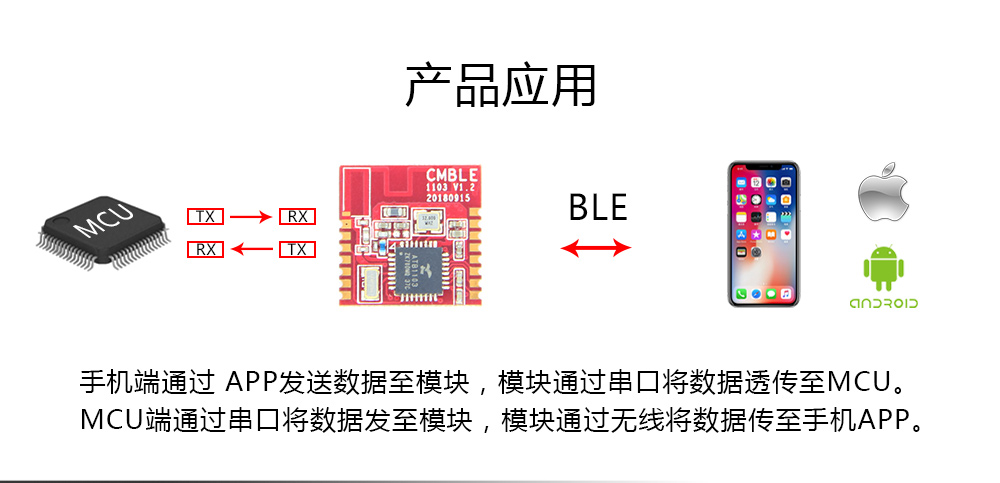

CMBLE-1103模组是基于珠海炬芯ATB1103芯片所设计。ATB1103是一颗BLE SOC,支持BT V4.2版本协议。集成有低功耗蓝牙的物理层,带有安全加密的链路层,主机控制器接口和主频高达96MHz的ARM Cortex-M0的MCU。CMBLE-1103模组共有19PIN,包含9个外部输入PIN,6个内部输出PIN脚4个电源、地相关PIN。模组含有2路PWM输出PIN,1路ADC采集,当蓝牙模组连接上蓝牙主机(蓝牙 4.0 设备)之后,由蓝牙主机发送相应命令驱动模组的 ADC 以及 PWM 功能。ADC 采集的电压不能高过电源电压。1路MIC数据输入PIN,客户基于此模组进行二次开发时可以使用。1路BLEVDDF电源输入PIN,当客户有更高功耗要求时通过该PIN进行外部供电,供电范围1.0-1.6V。

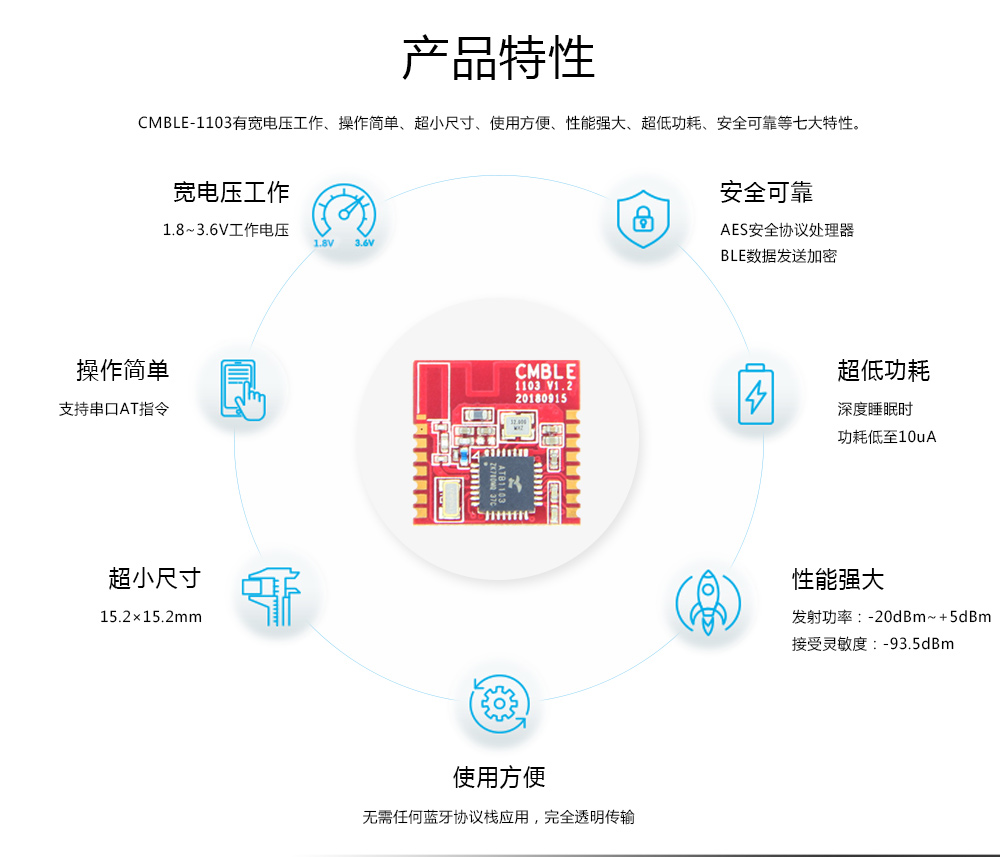

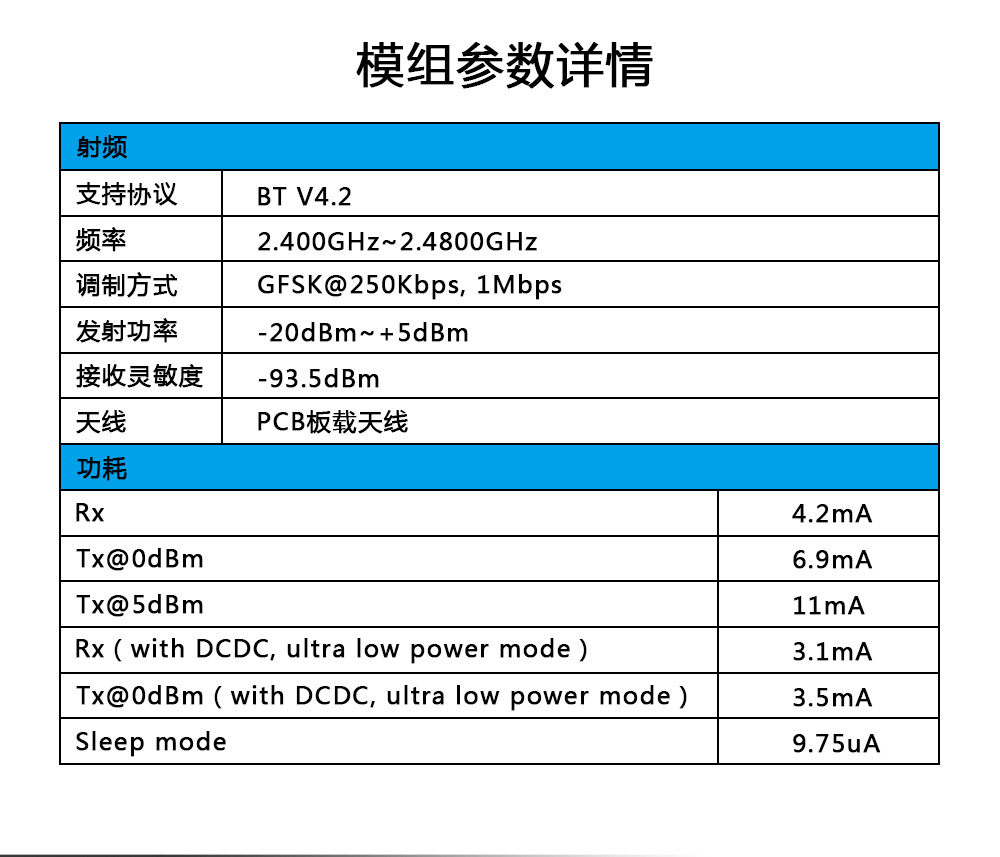

产品规格
1.主控:珠海炬芯ATB1103,ARM Cortex-M0,主频最高96MHz
2.蓝牙:BT V4.2
3.频率:2.4000GHz~2.4800GHz
4.调制方式:GFSK@250Kbps,1Mbps
5.发射功率:-20dBm~+5dBm
6.接收灵敏度:-93.5dBm
7.天线:PCB 板载天线
8.休眠功耗:9.75uA
9.供电:1.8-3.6V

其他规格
工作温度:-40℃~85℃

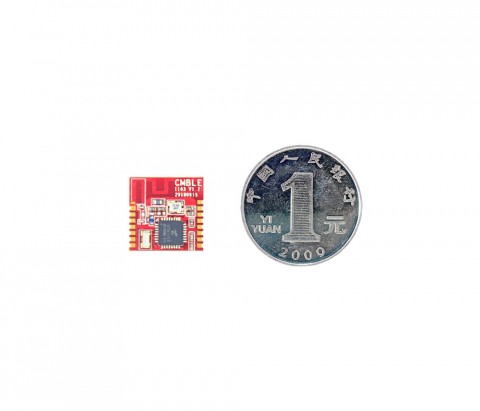

板子尺寸:15.2X15.2mm
模组引脚:模组共19 个PIN。包括9个输入PIN,6个输出PIN
