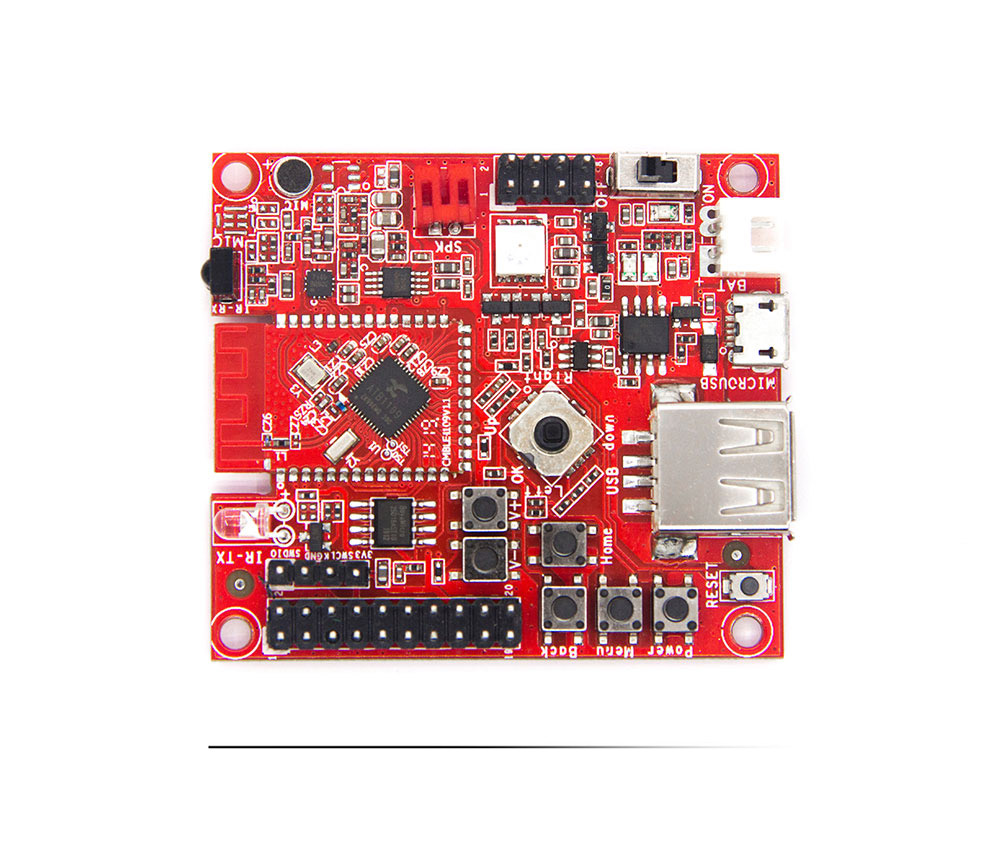

The CubieBLE1 is a Bluetooth Low-Power (BLE) development board based on the Actions Semiconductor’s BLE SOC chip – ATB1109 . With the advent of the IOT era, product interconnection and low power consumption are becoming more and more intense. BLE as one of the main solutions, is occupying more and more market share. Based on this requirement, Cubietech Limited has released a professional BLE development board which named CubieBLE1. Compared with the CubieBLE-1103/ 1109 board, the CubieBLE1 mainly adds Mesh presentation function and voice output function. The development board fully expands the ATB1109 chip’s function to help developers quickly evaluate and verify products, build prototypes, and accelerate project landing.

The chip ATB1109 on the CubieBLE1 board can reach a maximum CPU frequency of 96MHz. The memory capacity chip built-in 48KB RAM and 160KB ROM, on the development board also has 2MB NOR Flash. The interface functions of the development board are very rich, in order to meet the intelligent requirements of product voice input, a voice input  &output interface module is designed on the development board.

The CubieBLE1 development board runs the Zephyr system. The Zephyr project is a small and extensible real-time operating system (RTOS) released in collaboration with the Linux foundation. It is licensed under the License Apache2.0 protocol and is highly open source, especially for resource-limited hardware systems. The Zephyr system is small enough to run on a system with only 8KB of memory. The Zephyr system is designed specifically for small IoT devices, and its modular design makes it possible to meet the needs of all devices no matter which architecture is used to create IoT solutions.

Product Information
Name:CubieBLE1
Property: Software open source, Hardware open
Owner:CubieTech Limited
System:Zephyr
Target:Developers, Geeks, Makers, Scholars, Students, Terminal Users, Start-up Companies…

Product Introduction

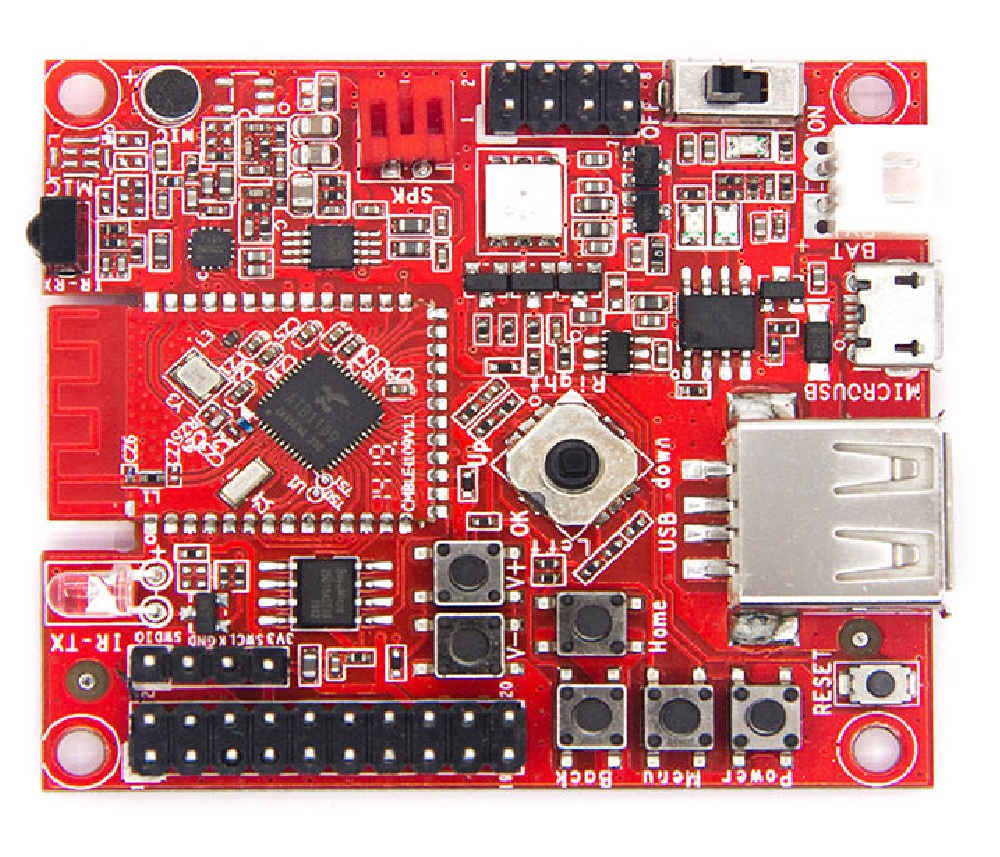

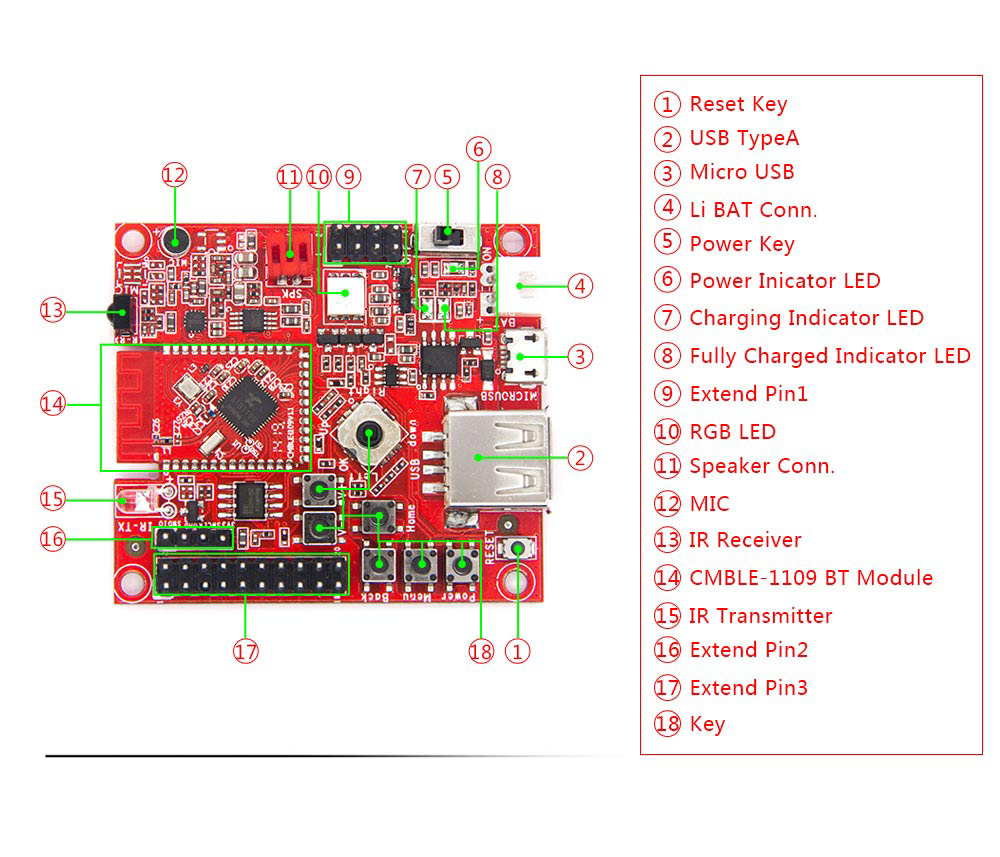

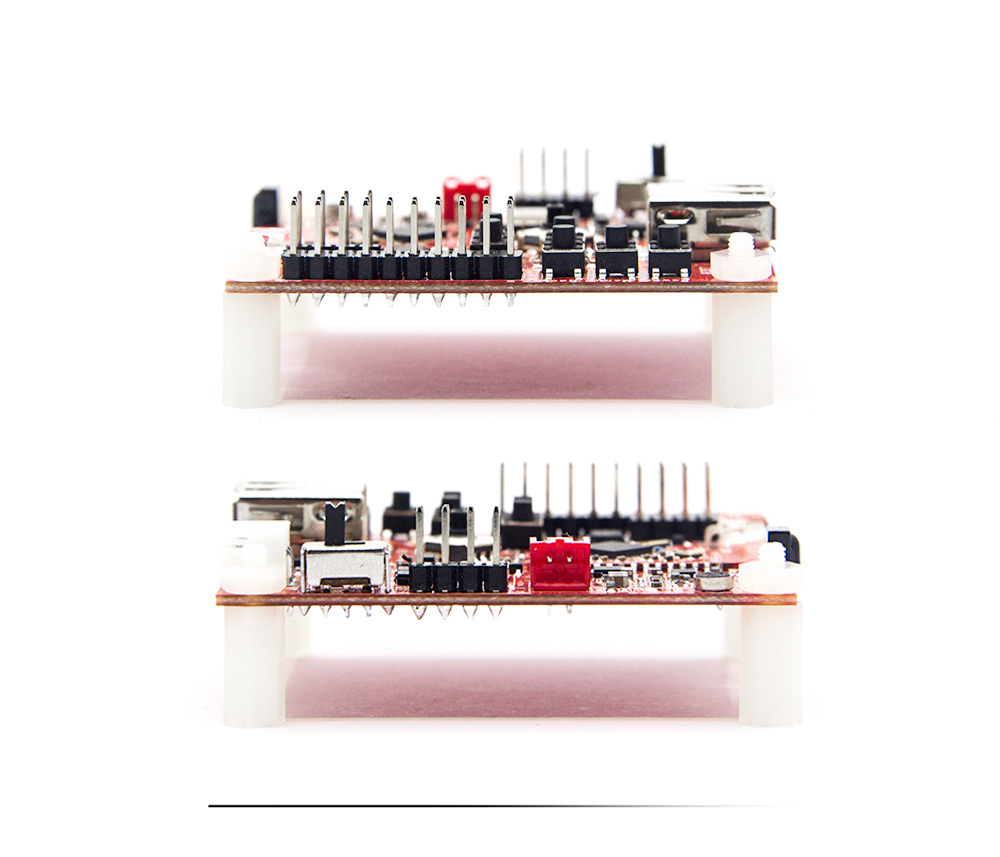

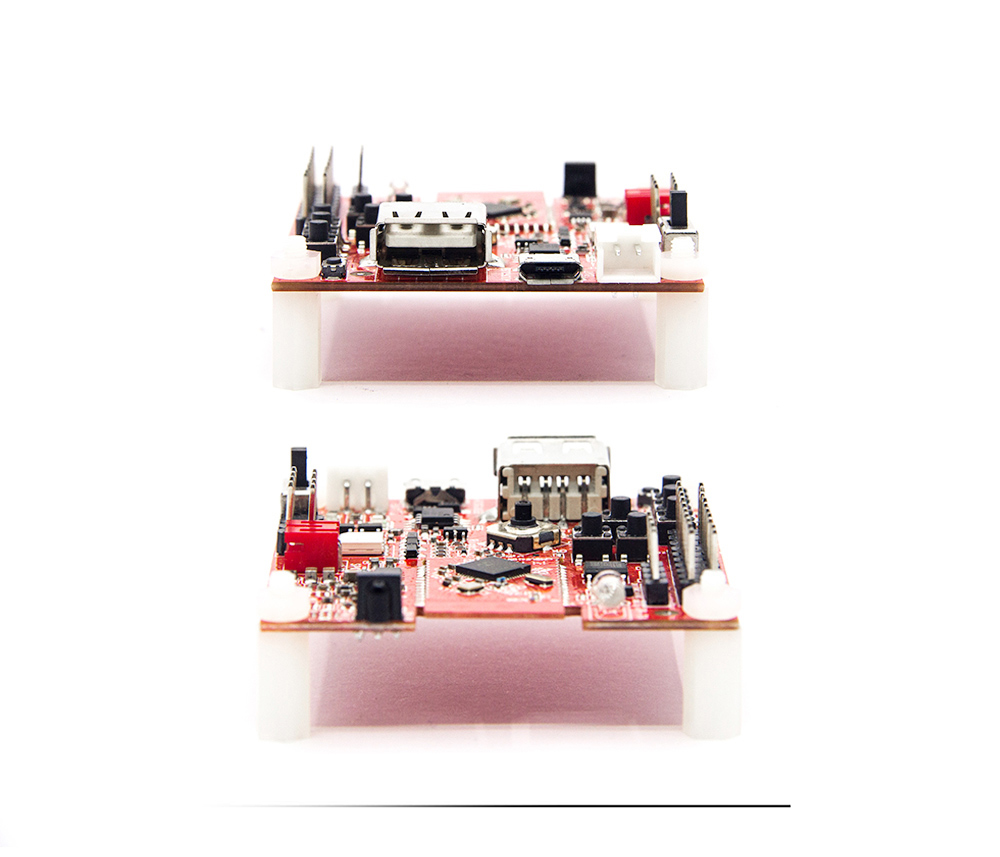

The CubieBLE1 development board is based on the ATB1109 chip of ZhuHai Actions technology. The ATB1109 is a BLE SOC that supports the BlueTooth V5.0 version protocol. Integrated with low-power Bluetooth physical layer, securely encrypted link layer, host controller interface and ARM Cortex-M0 MCU clocked at up to 96MHz. The CubieBLE1 is a development board for the full-feature extension of the ATB1109 chip.  The function modules on the board also include: button operation module, LED light module, ADC detection module, infrared transceiver module, voice input/output module, and also have rich interfaces: 1*SPI,2*UART,1*I2C,5*PWM,IRC RX/TX,ADC,GPIO, which is convenient for users to expand other functions.

Product Features

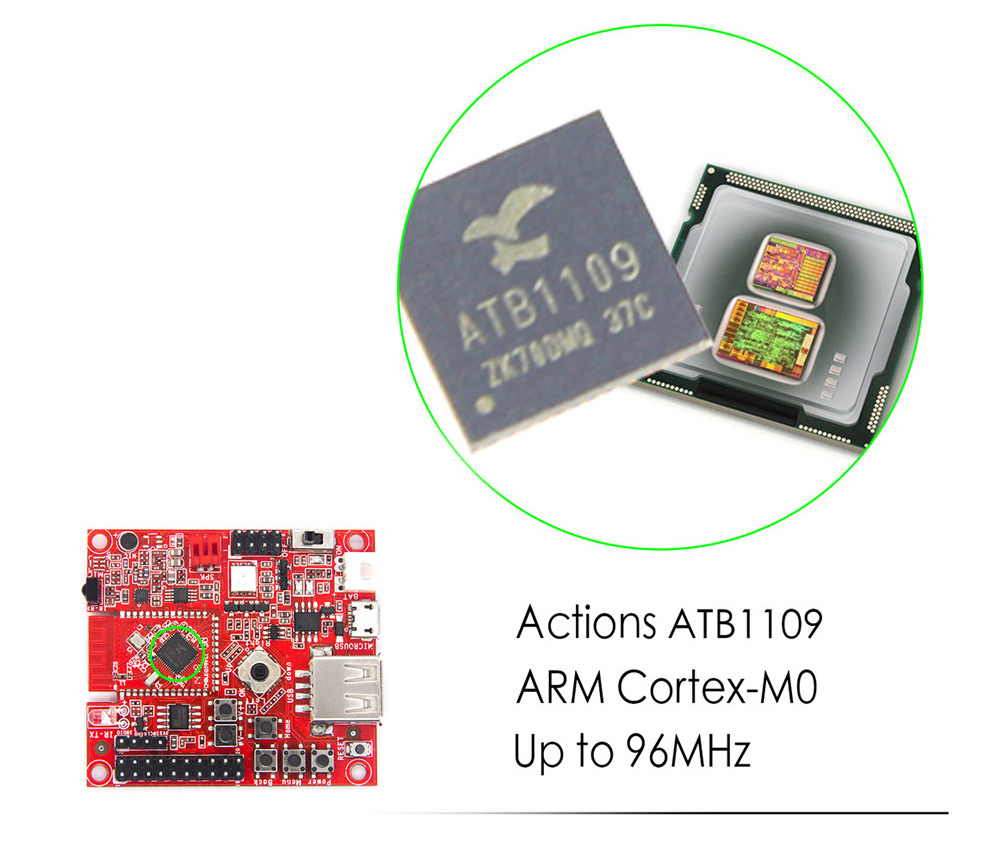

SOC: Actions SOC ATB1109,ARM Cortex-M0 MCU up to 96MHz.
BT: Complies with Bluetooth ® Low Energy Core Specification V5.0.
Storage: Built-in 48K RAM and 160K ROM in ATB1109+SPI NOR flash.

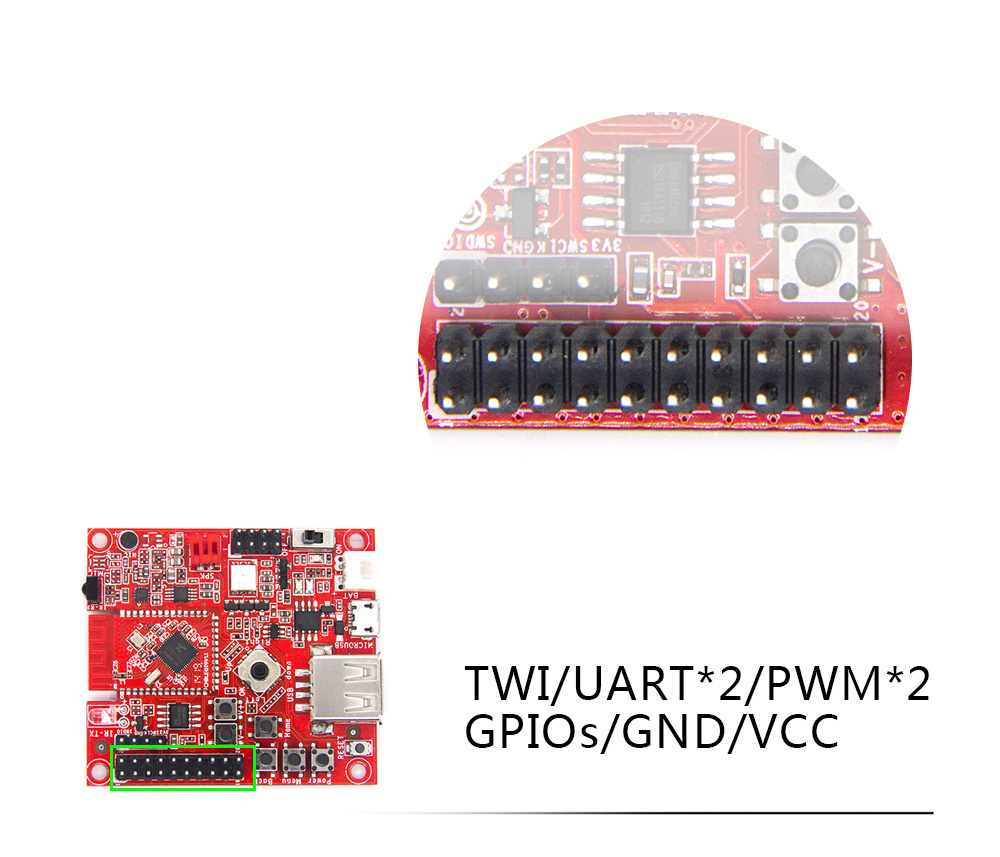

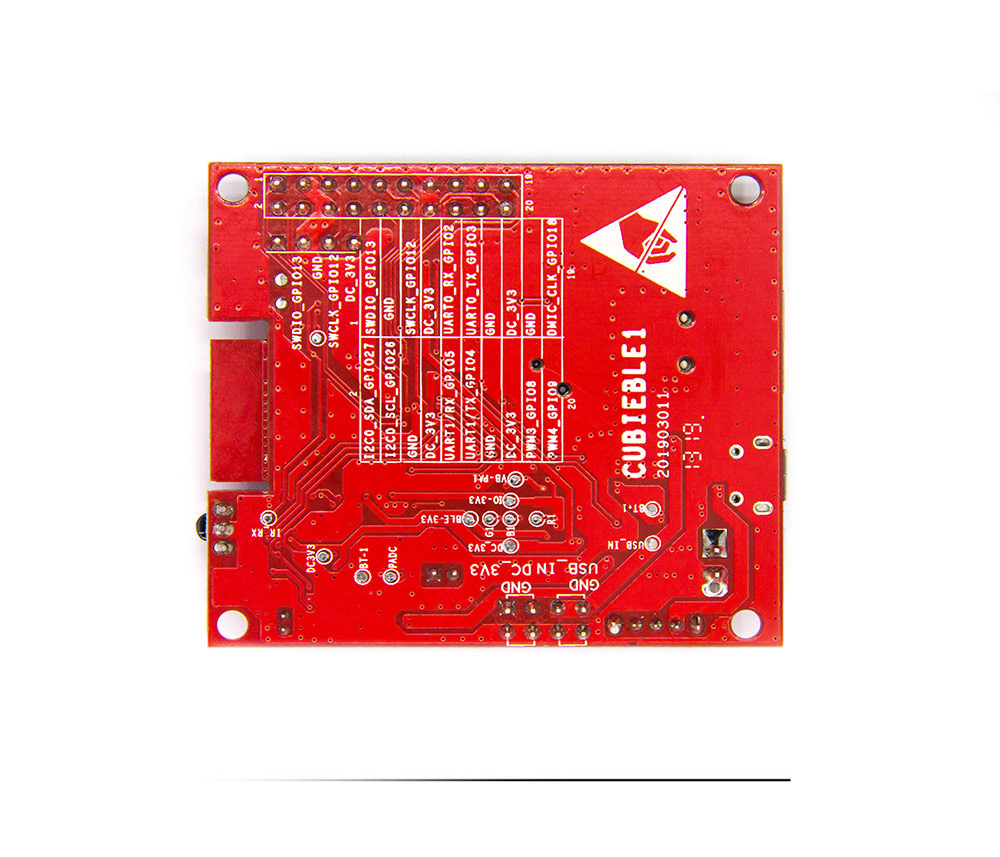

Peripheral: 1*SPI,2*UART,1*I2C,5*PWM,IRC RX/TX.

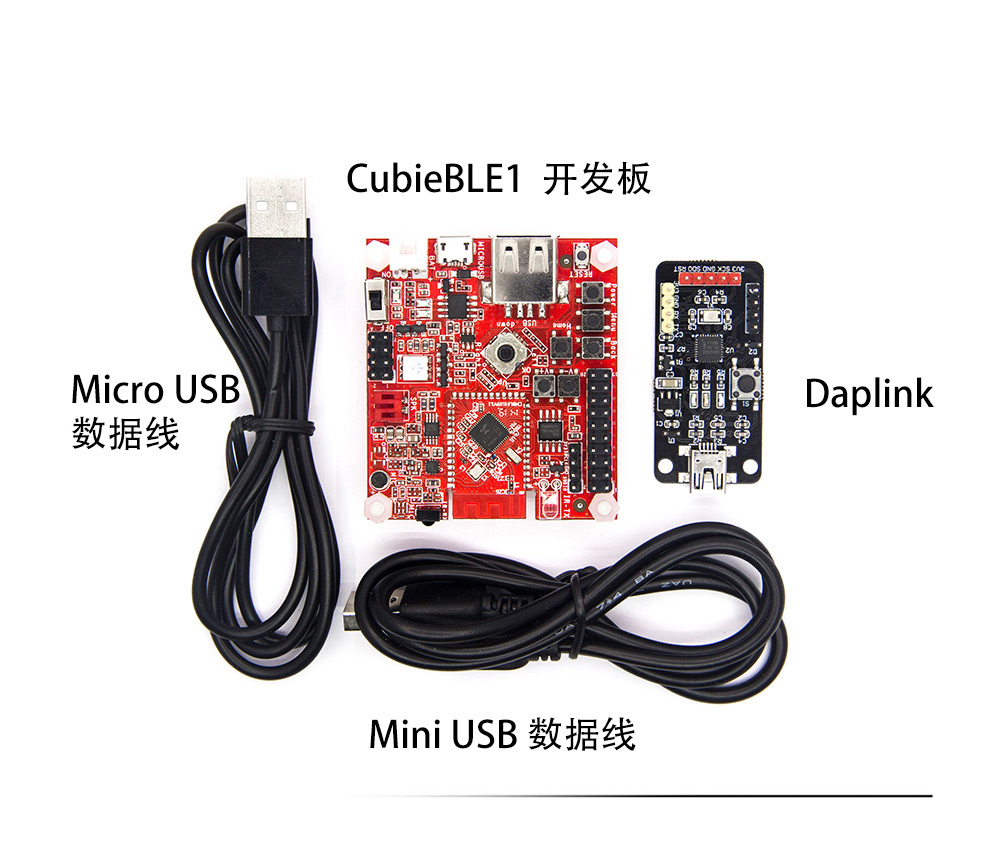

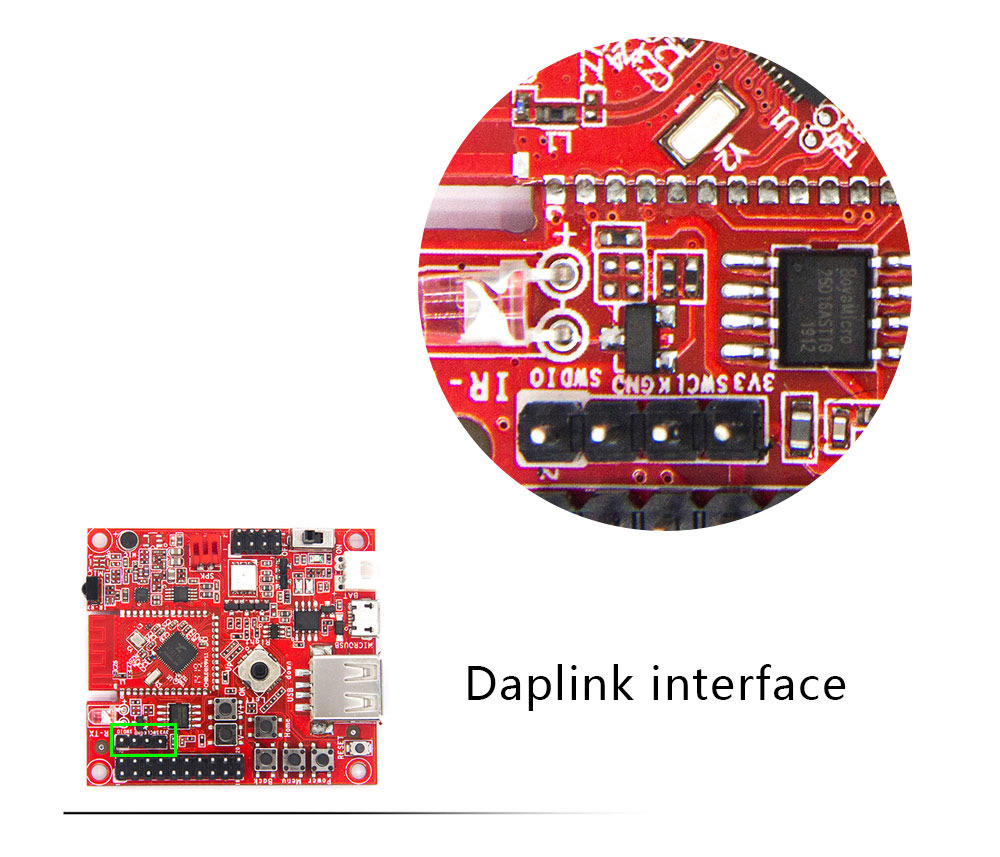

Debug: Daplink.

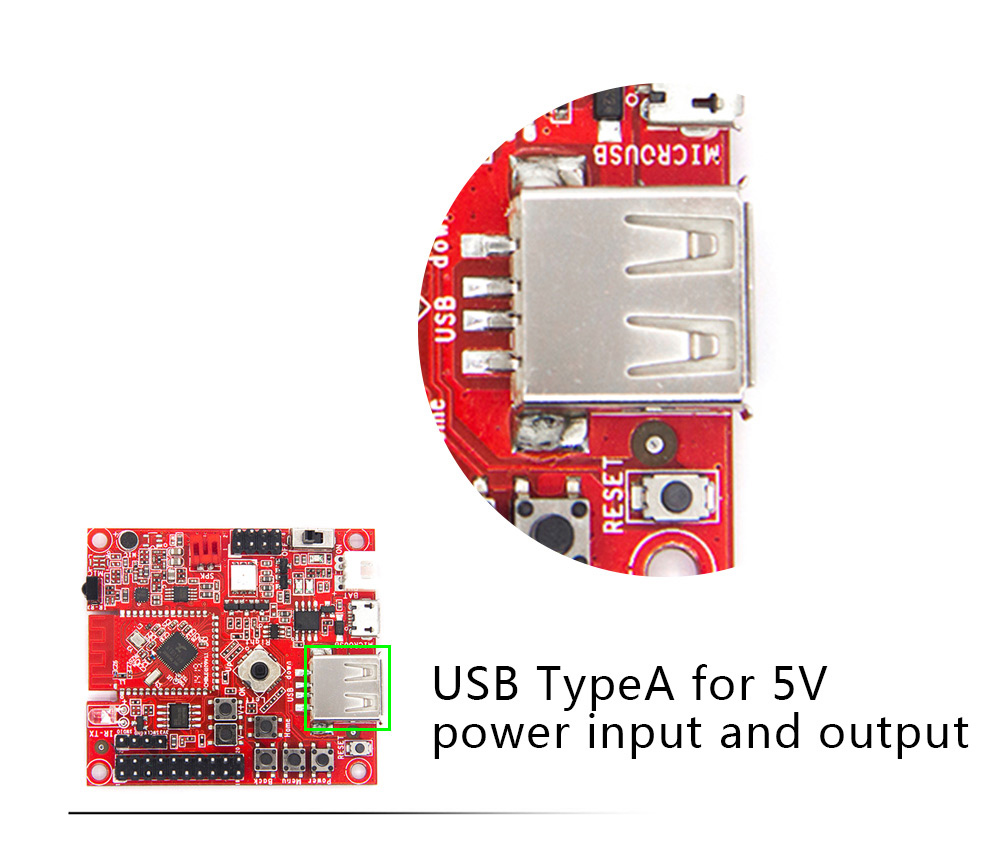

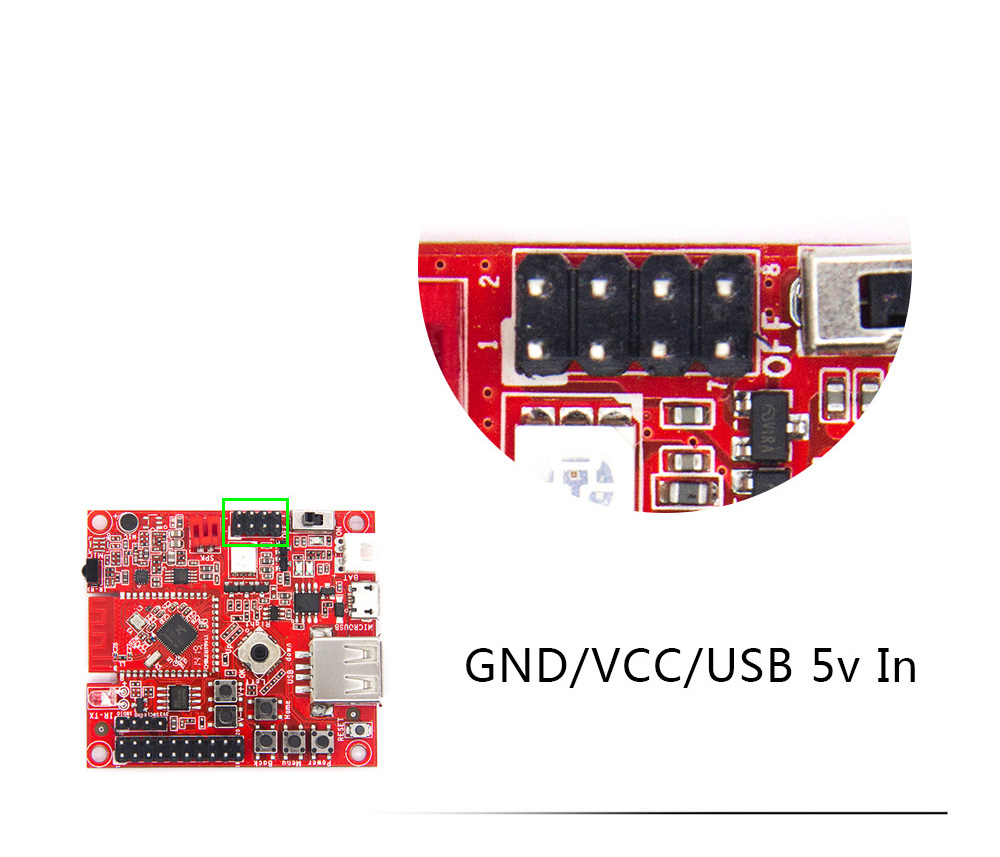

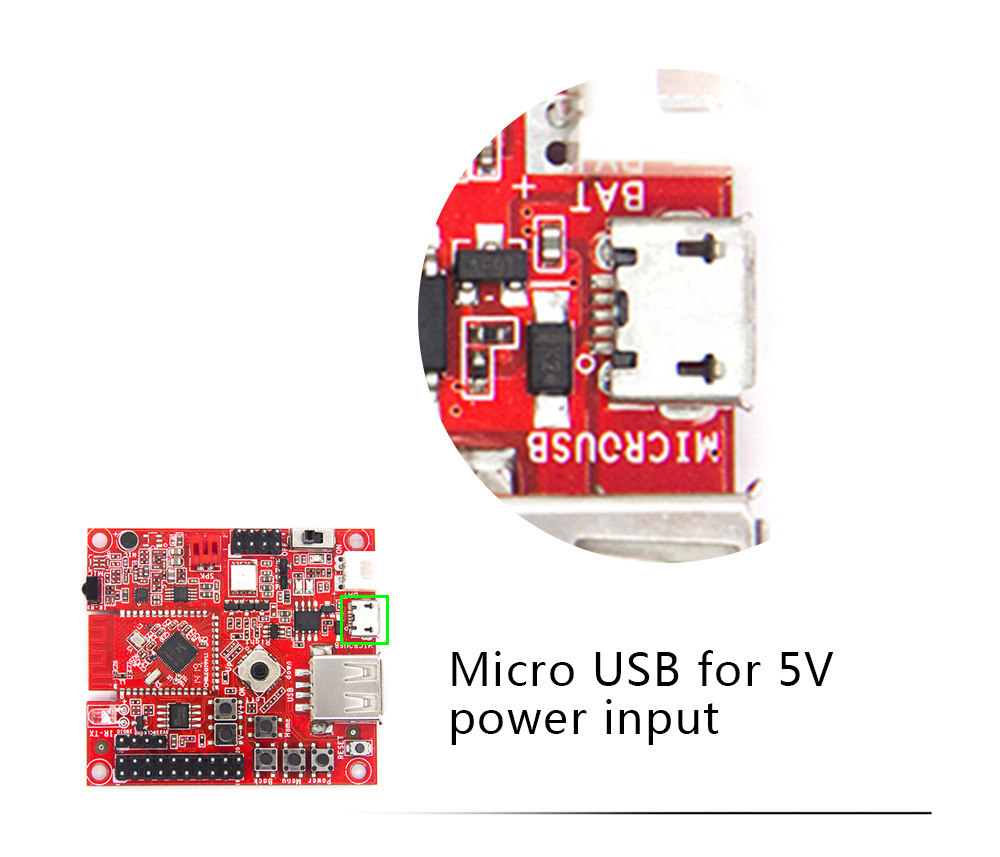

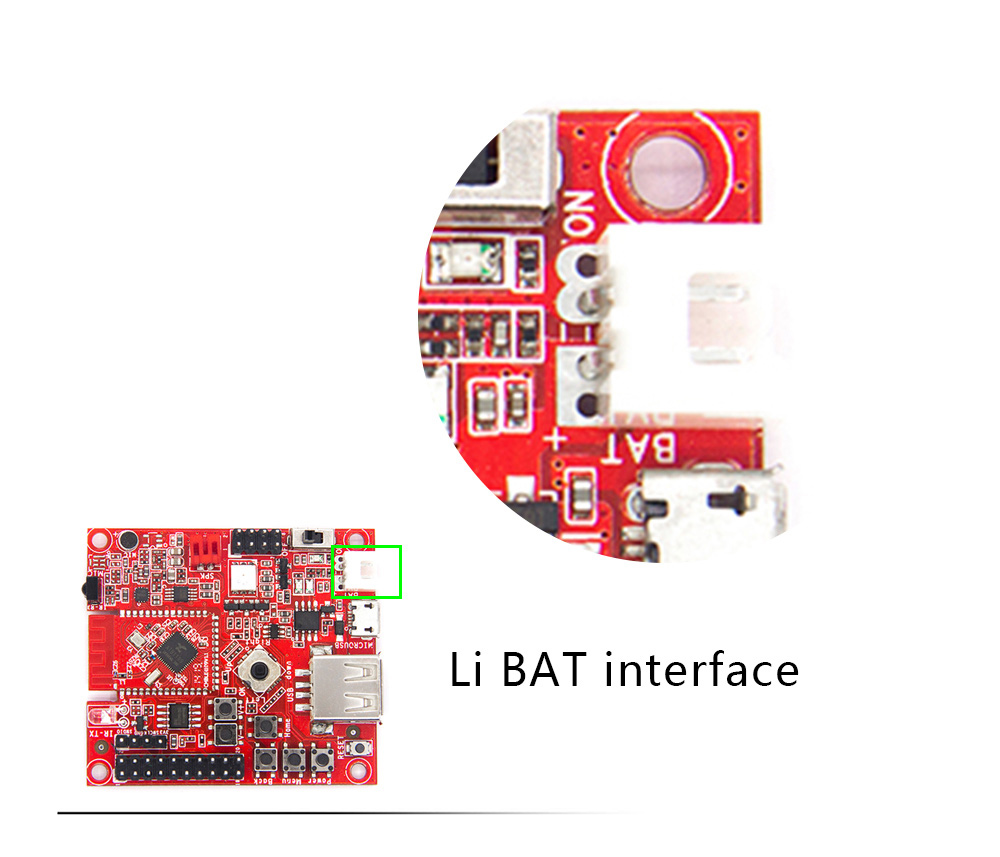

Power: Support 5V USB and 3.7V Li-Battery.

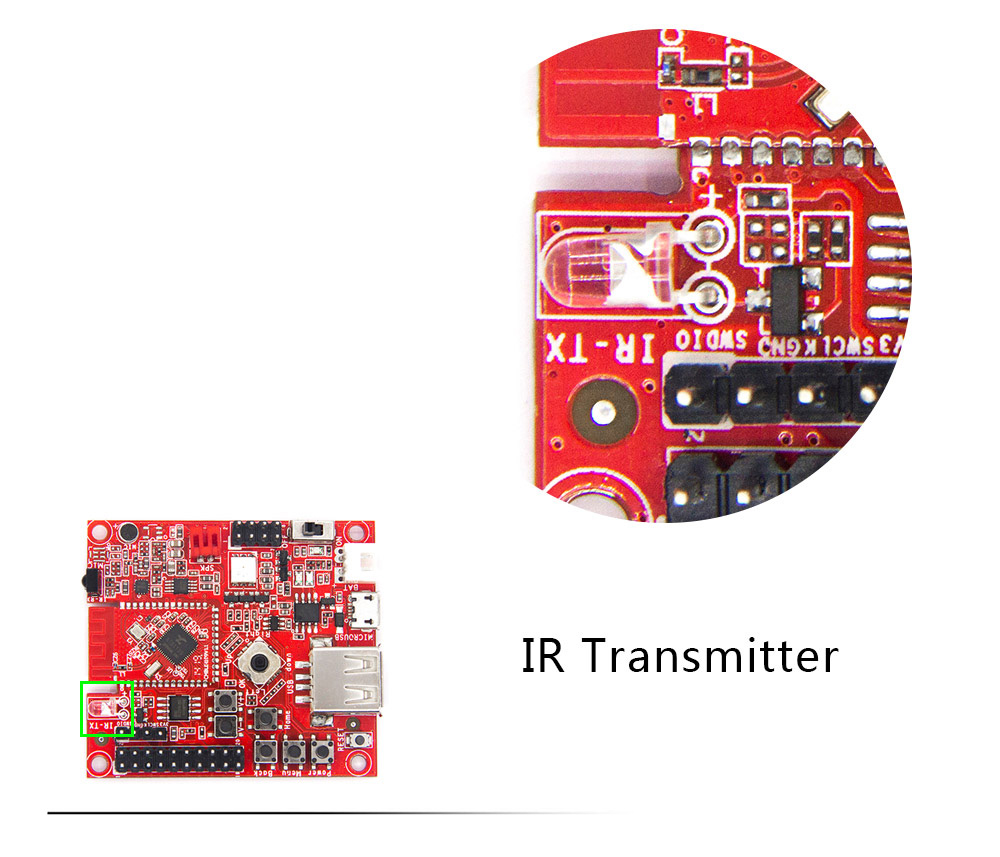

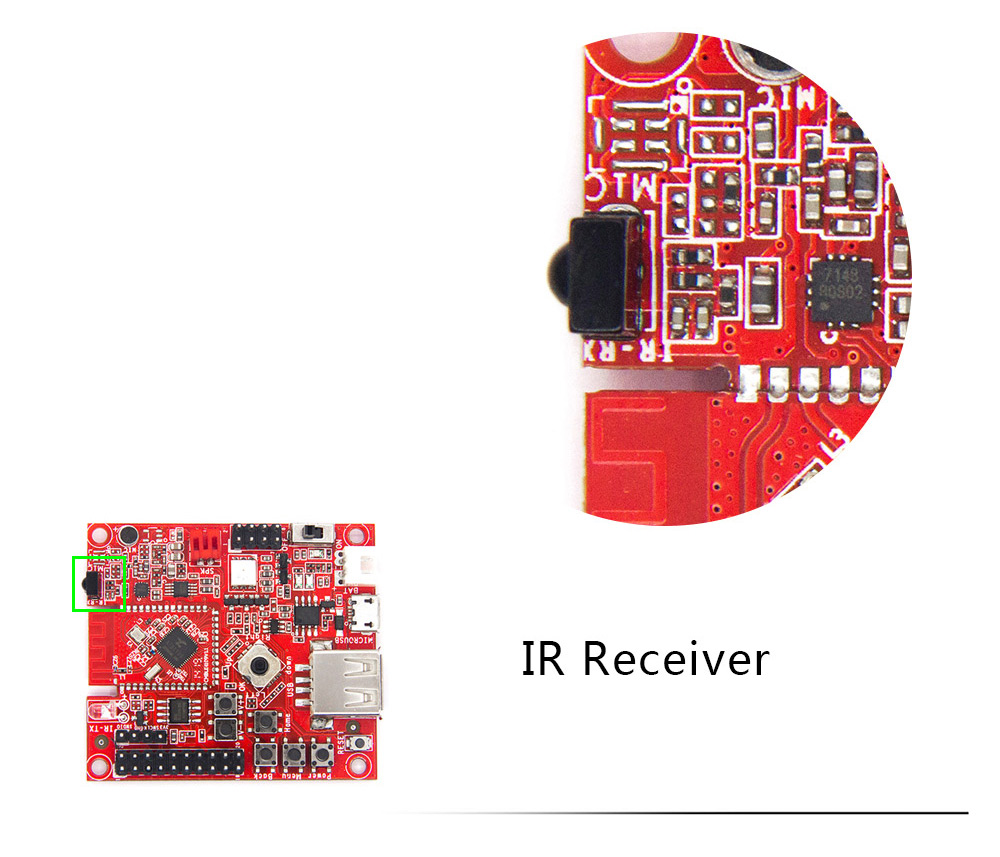

IR: Support IR send and receive.

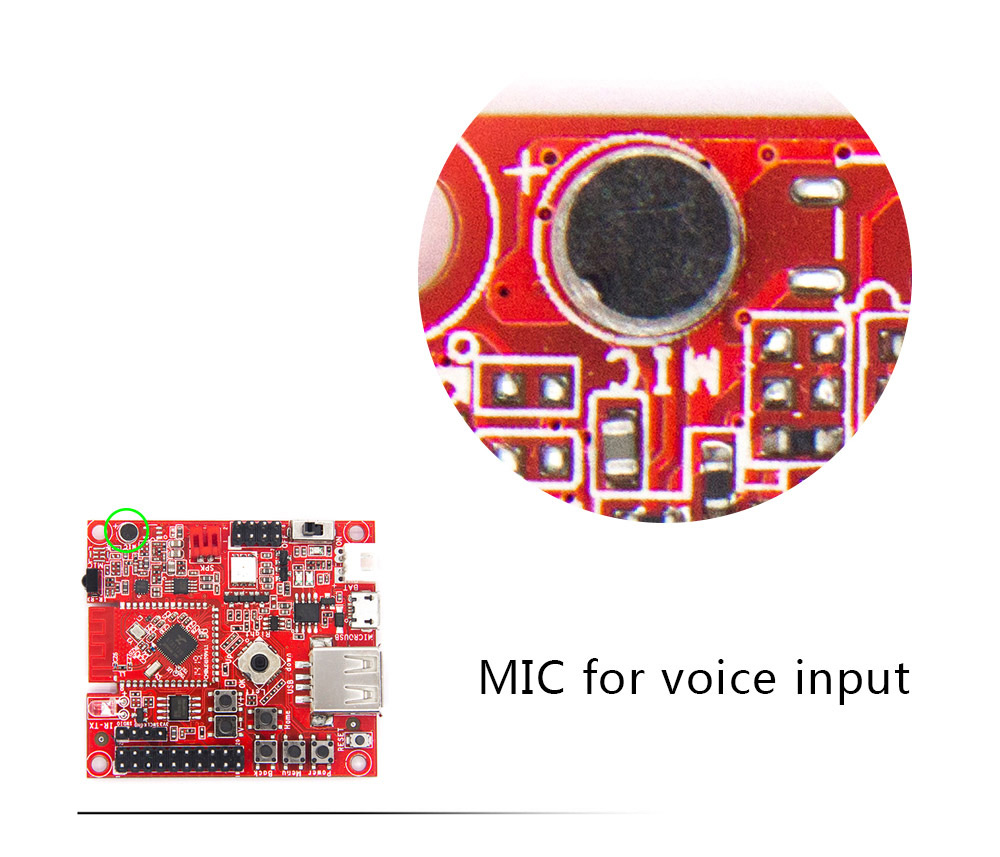

MIC: Support DMIC&AMIC.
Spearker: Support I2S DAC output and PA.

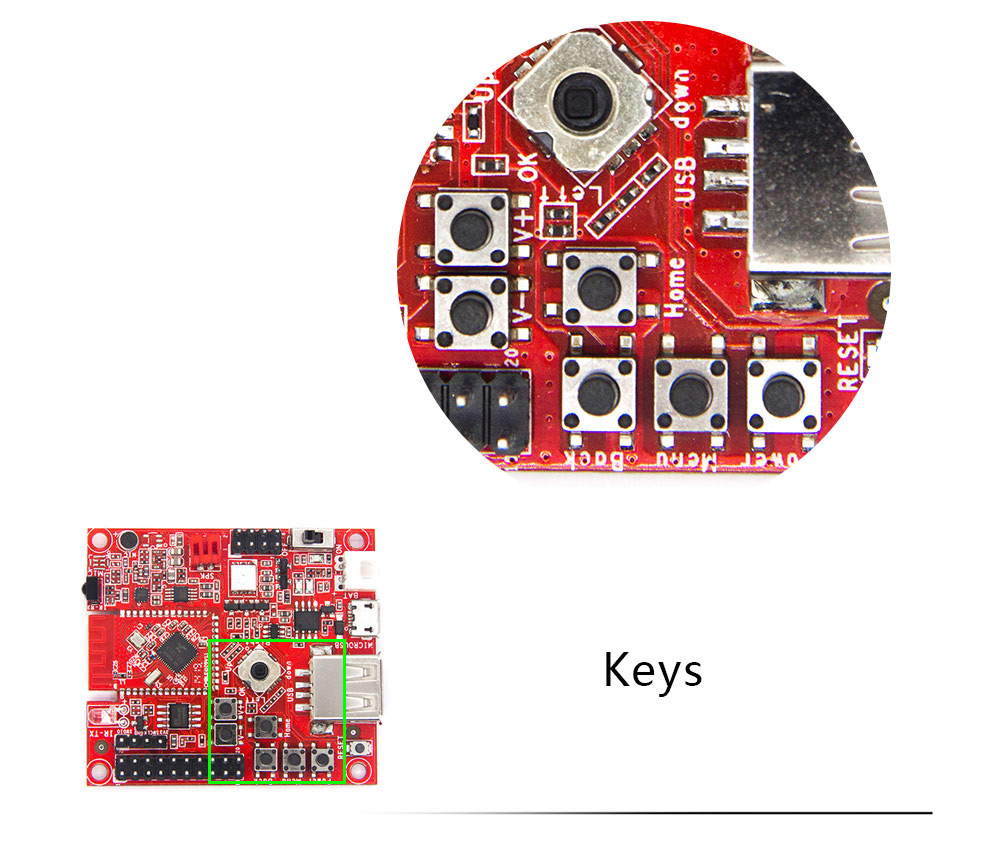

Key: 8*key.

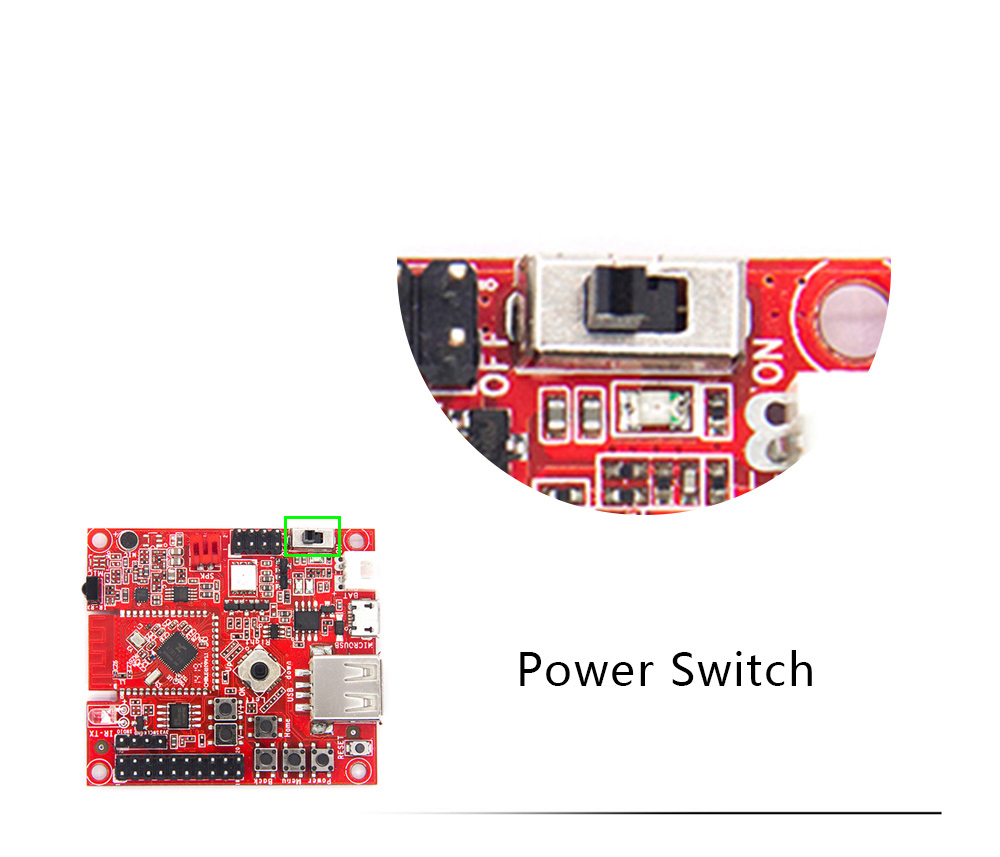

Switch: 1*Power switch.

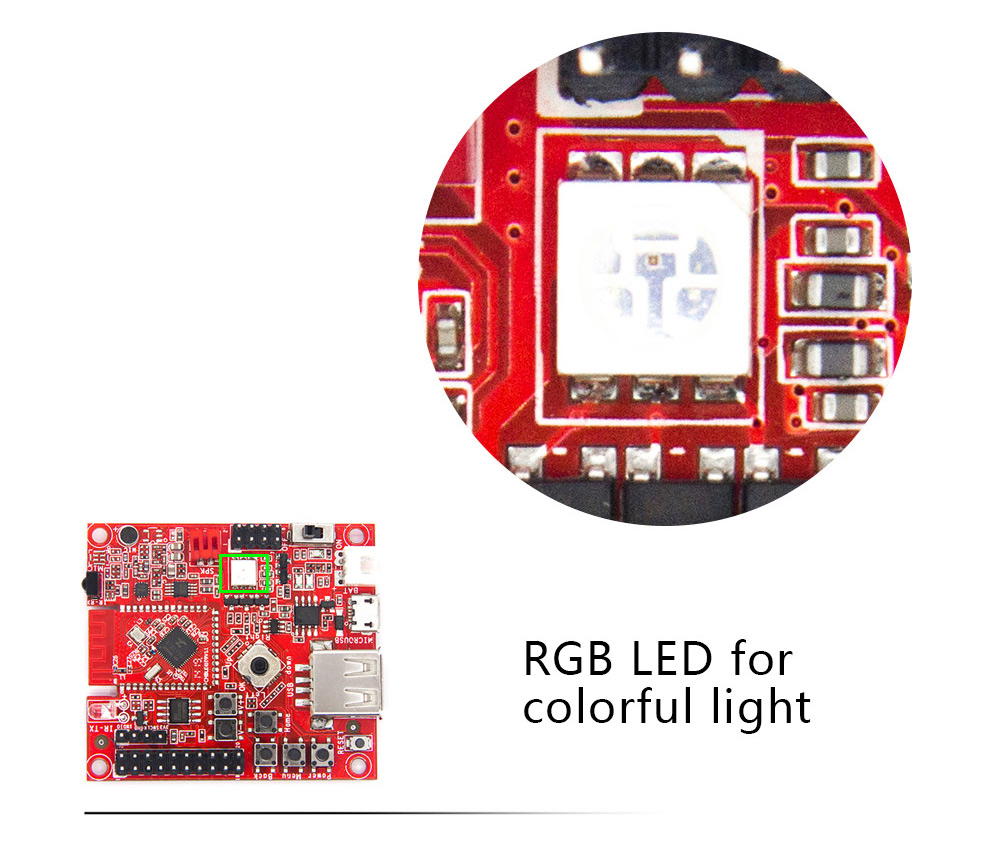

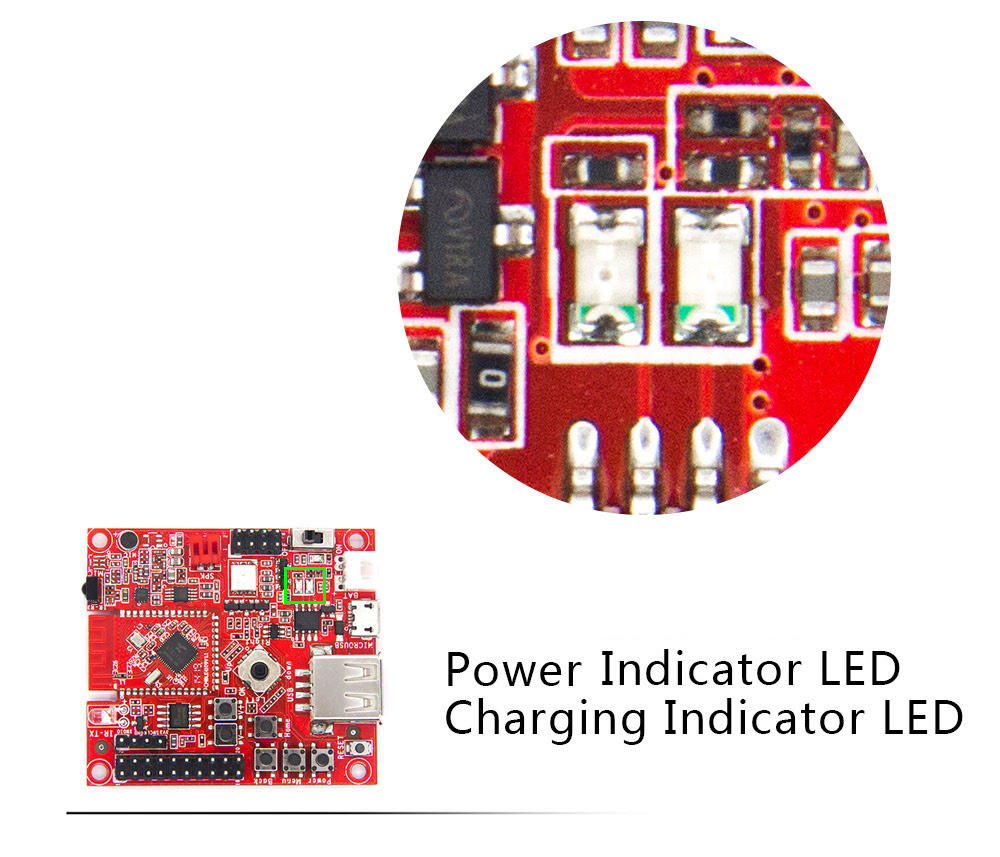

LED: 1*power indicator LED,2*charger indicator.

Other Specification
Operating Temperature:  -40℃~85℃
Environment Friendly:  RoHS

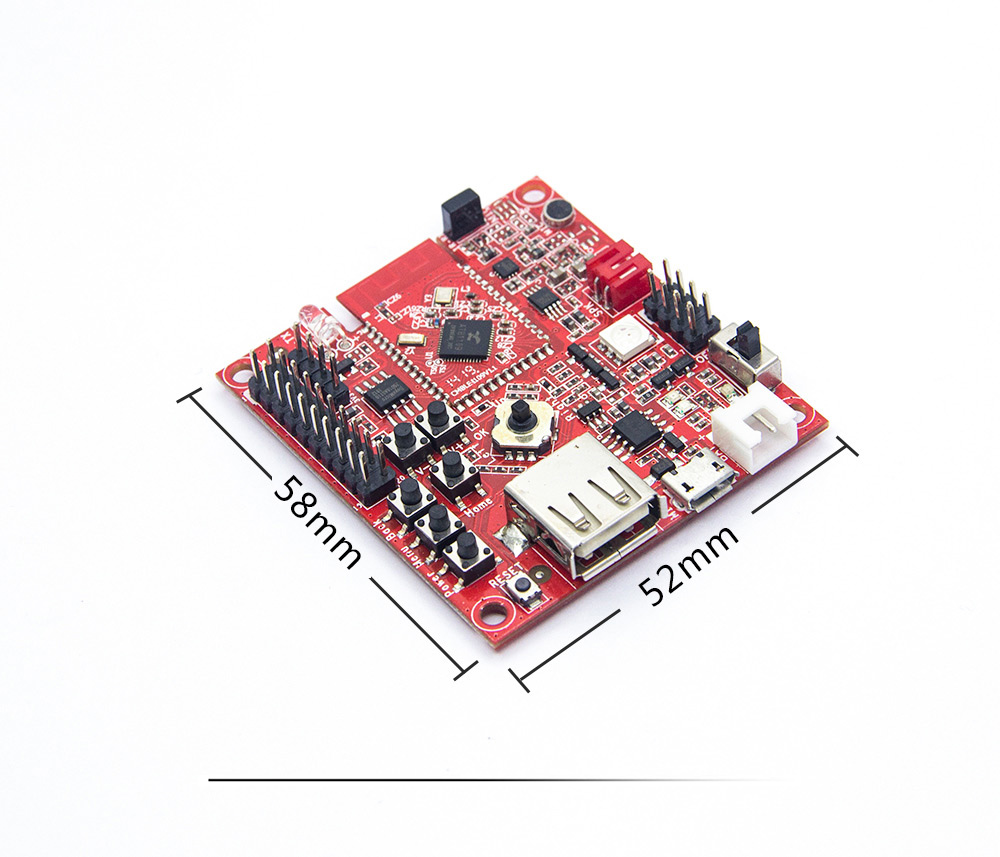

Board Size:  58mm*52mm*10mm
Radio Standard:  Fcc & CE compatible
Packing Weight: 200g

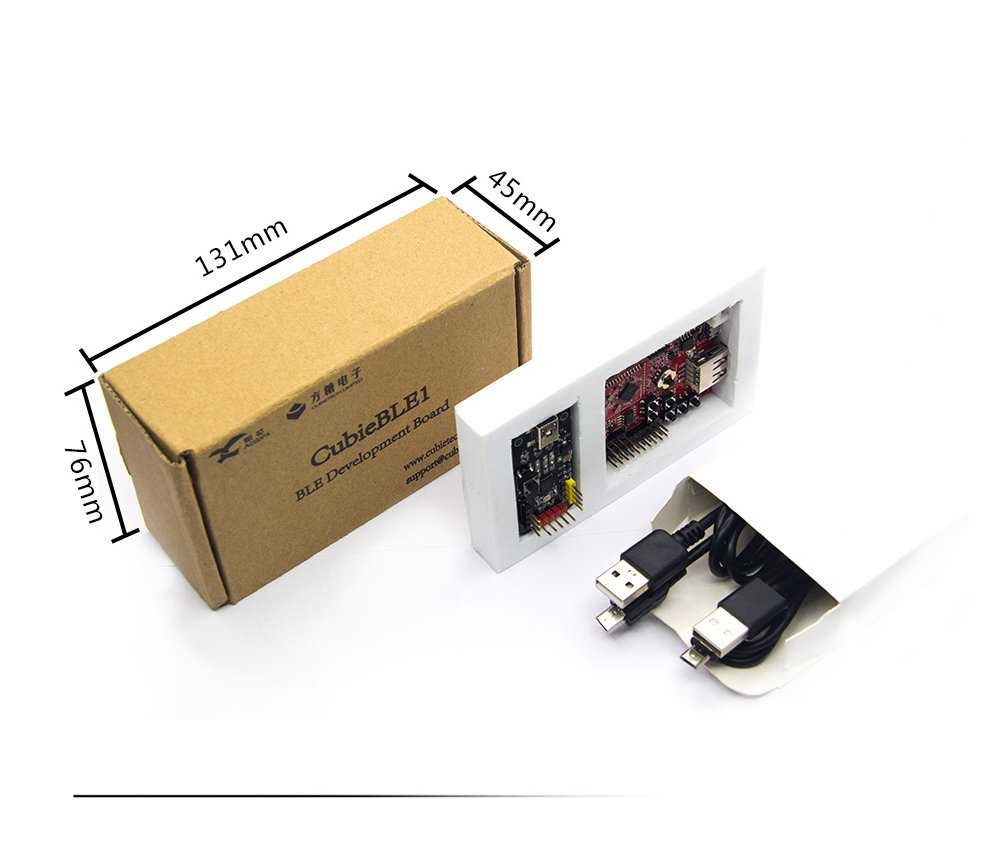

Packing Size:  131mm*76mm*45 mm

———Chinese/中文—–—–

概述
CubieBLE1是一款(BLE)低功耗蓝牙开发板,是基于珠海炬芯科技ATB1109 BLE SOC芯片开发的。随着IOT时代的来临,产品的互联互通和低功耗需求越来越强烈,BLE作为其中一种主要的解决方案,正在占领越来越多的市场份额。基于此需求,方糖电子发布了专业的BLE开发板——CubieBLE1。与CubieBLE-1103/1109这两款BLE开发板相比较,该款开发板主要增加了Mesh演示功能和语音输出功能。开发板对ATB1109芯片进行全功能扩展,可以帮助开发者快速的进行产品评估、验证,搭建方案原型,加速项目的落地。

CubieBLE1开发板搭载的芯片ATB1109 MCU主频最高可以达到96MHz,存储容量方面芯片内置48KB RAM和160KB ROM,在开发板上还外挂有2MB的NOR Flash。开发板的接口功能丰富,为满足产品语音交互的智能化需求,在开发板上设计有语音输入和输出电路模块。

CubieBLE1开发板运行Zephyr系统。Zephyr项目是基于Linux基金会合作发布的一款小型且可扩展的实时操作系统(RTOS),采用License Apache2.0协议许可,高度开源,尤其适用于资源受限的硬件系统。Zephyr系统很小可在仅有8KB内存的系统上运行。Zephyr系统专为小型物联网设备所设计,它的模块化设计使得不论是采用哪个架构创建物联网方案,都能满足所有设备的需求。

产品信息
名称:CubieBLE1
开放性:软件开源,硬件开源
所有者:CubieTech Limited
系统:Zephyr
目标客户:开发者,极客,制造商,学者,学生…

产品介绍
CubieBLE1开发板是基于珠海炬芯ATB1109芯片所设计。ATB1109是一颗BLE SOC,支持BlueTooth V5.0版本协议。集成有低功耗蓝牙的物理层,带有安全加密的链路层,主机控制器接口和主频高达96MHz的ARM Cortex-M0的MCU。CubieBLE1是ATB1109芯片全功能扩展的一个开发板。板上的功能模块还包括:按键操作模块、LED灯模块、ADC检测模块、红外收发模块、语音接收模块,语音输出模块、电池接口模块。同时还拥有丰富的接口:1*SPI、2*UART、1*I2C、5*PWM、IRC RX/TX、ADC、GPIO,用户可以应用这些接口来扩展其它功能。

产品规格
SOC: Actions SOC ATB1109,ARM Cortex-M0 MCU up to 96MHz.
BT: Complies with Bluetooth ® Low Energy Core Specification V5.0.
Storage: Built-in 48K RAM and 160K ROM in ATB1109+SPI NOR flash.
Peripheral:1*SPI、2*UART、1*I2C、5*PWM、IRC RX/TX.
Debug: Daplink.
Power:Support 5V USB and 3.7V Li-Battery.
IR: Support IR send and receive.
MIC: Support DMIC&AMIC.
Spearker:Support I2S DAC output and PA.
Key: 8*key.
Switch: 1*Power switch.
LED: 1*power indicator LED,2*charger indicator.

其他规格
工作温度: -40℃~85℃
环境标准: RoHS
板子尺寸: 58mm*52mm*10mm
辐射标准: Fcc & CE compatible
包装重量: 200g
包装尺寸: 131mm*76mm*45mm

开发资料
云盘下载链接:https://pan.baidu.com/s/1uawPr0Jao2HgWFLZCLzHAg#list/path=%2FIOT_%E8%93%9D%E7%89%99BLE%2F%E5%BC%80%E5%8F%91%E6%9D%BF
