The CubieBLE-1109 is a Bluetooth low-power (BLE) development board based on the Actions Semiconductor’s BLE SOC chip – ATB1109 . It’s the first BLE development board for the Cubietech Limited. With the advent of the IOT era, product interconnection and low power consumption are becoming more and more intense. BLE as one of the main solutions, is occupying more and more market share. Based on this demand, the Cubietech Limited has released a professional BLE development board CubieBLE-1109. This development board fully expands the ATB1109 chip to help developers quickly evaluate and verify products, build prototypes, and accelerate terminal products landing.

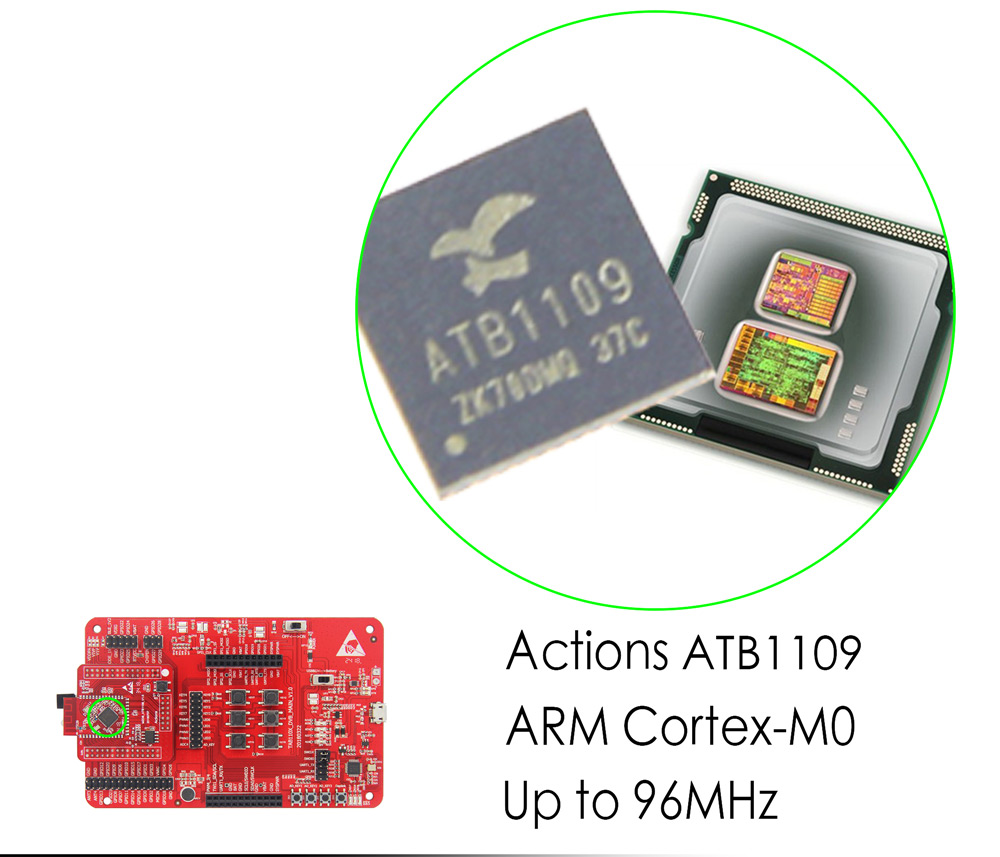

The mian chip ATB1109 on the CubieBLE-1109 development board adopts Cortex-M0 core, can reach a maximum frequency of 96MHz. The memory capacity chip built-in 48KB RAM and 160KB ROM, on the development board also has 1MB NOR Flash. The interfaces and functions of the development board are very rich. In order to meet the requirements of product intelligent voice input, a voice input sensor and ADC are built on the development board.

The CubieBLE-1109 development board can runs the Zephyr system in the default SDK. The Zephyr project is a small and extensible real-time operating system (RTOS) released in collaboration with the Linux foundation. It is licensed under the License Apache2.0 protocol and is highly open source, especially for resource-limited hardware systems. The Zephyr system is small enough to run on a system with only 8KB of memory. The Zephyr system is designed specifically for small IoT devices, and its modular design makes it possible to meet the requirements of many devices no matter which architecture is used to create IoT solutions.

Product Information

Name: CubieBLE-1109
Property: Software open source, Hardware open
Owner: CubieTech Limited
System: Zephyr
Target: Developers, Geeks, Makers, Scholars, Students, Terminal Users, Start-up Companies…

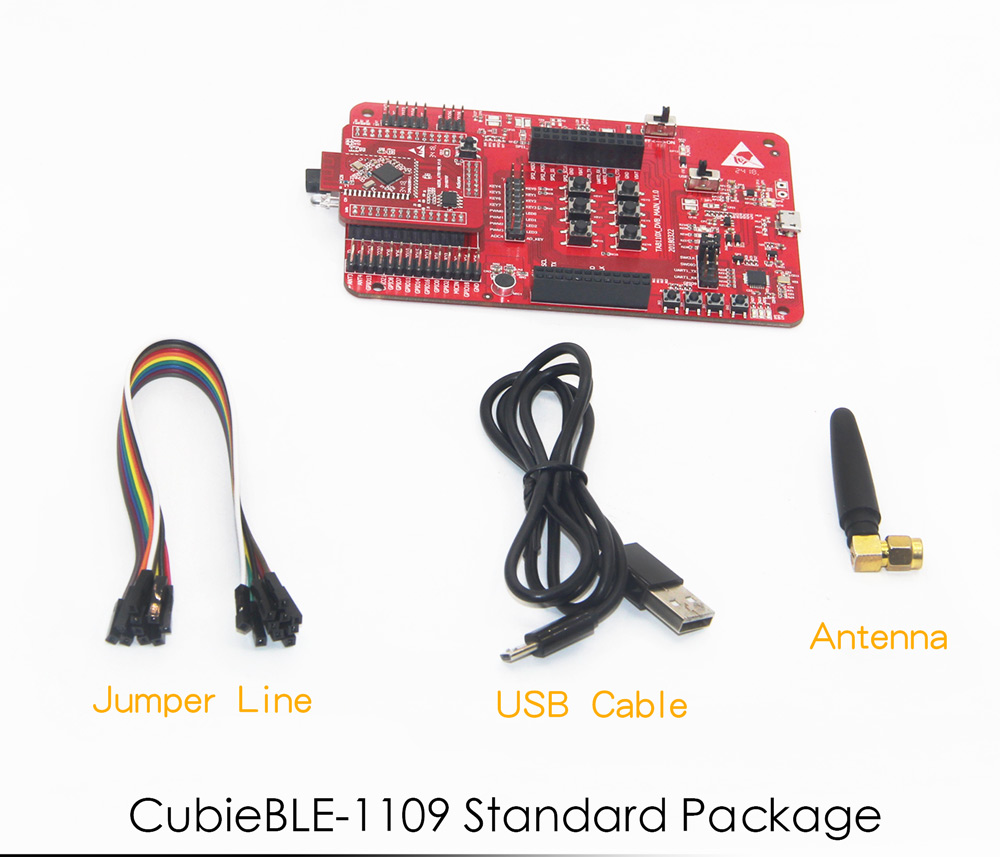

Product Introduction

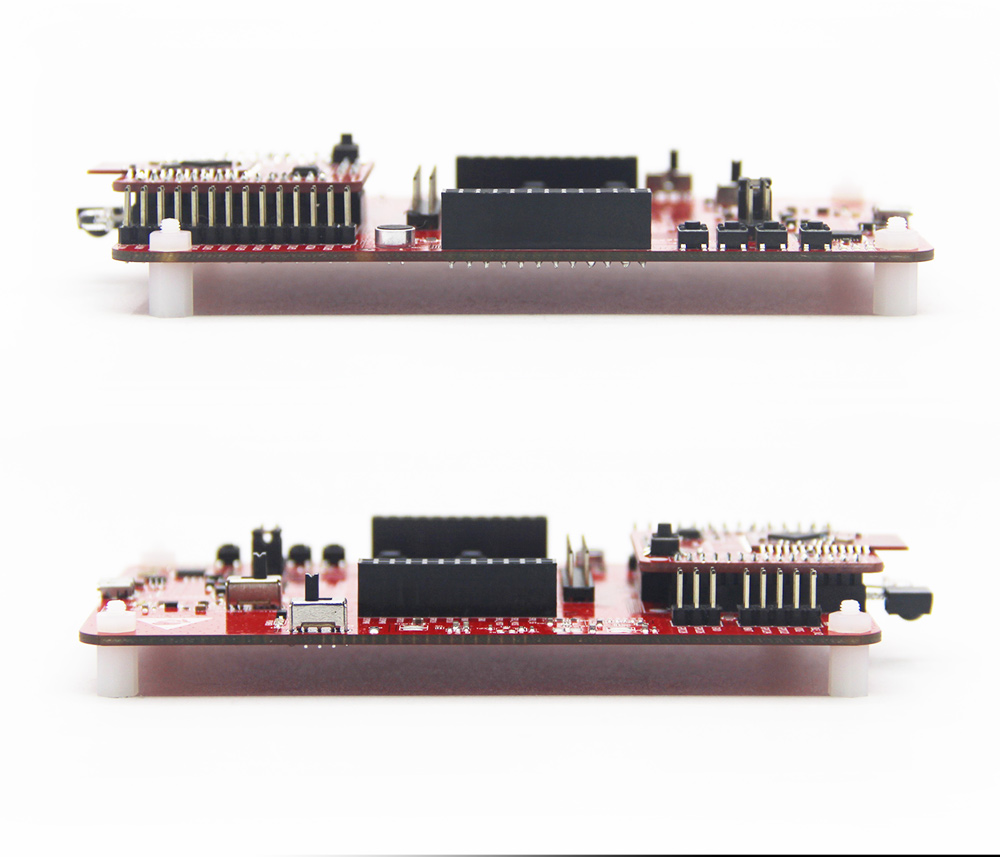

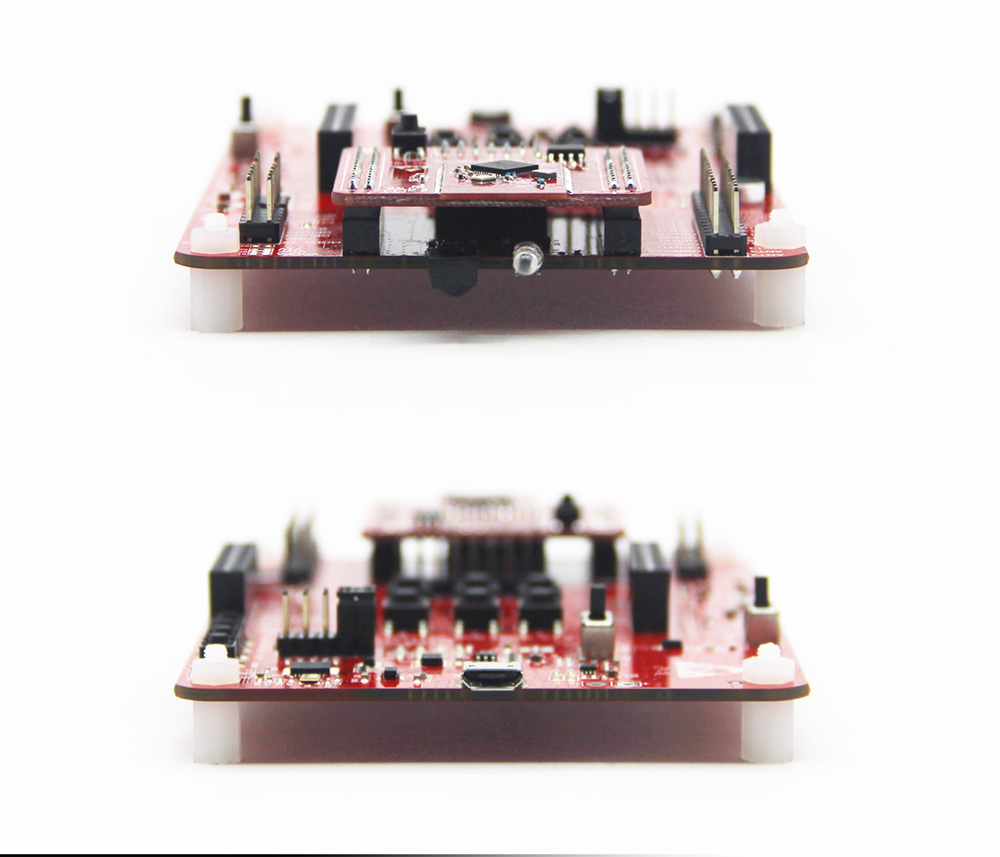

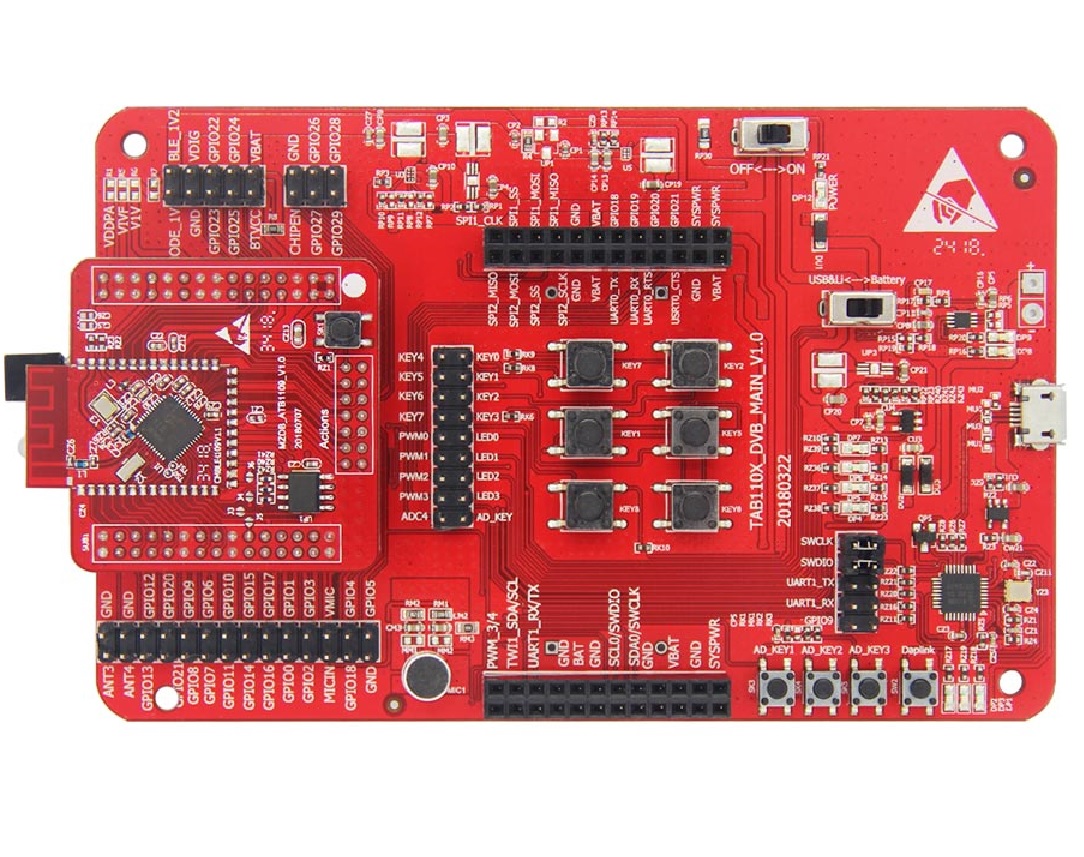

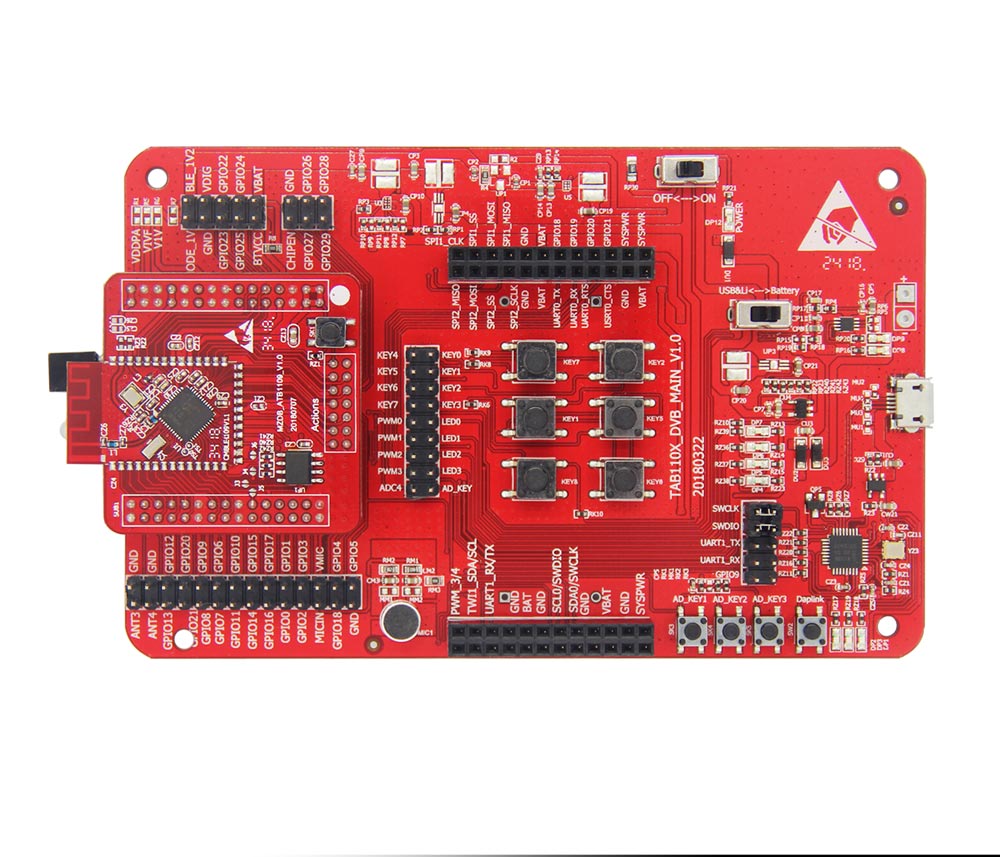

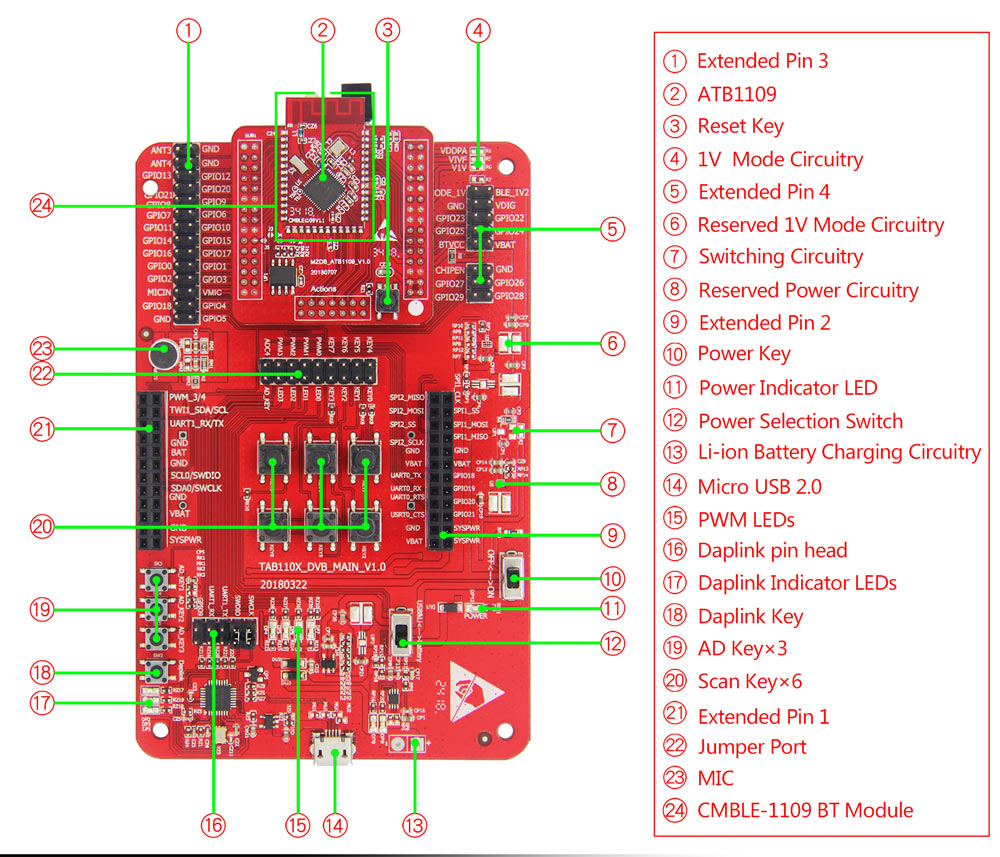

The CubieBLE-1109 development board is based on the ATB1109 chip from Actions technology. The ATB1109 is a BLE SOC that supports the BT V4.2 version protocol. Integrated with low-power Bluetooth physical layer, securely encrypted link layer, host controller interface and ARM Cortex-M0 MCU clocked at up to 96MHz. The CubieBLE-1109 is a development board for the full-feature extension of the ATB1109 chip. At the same time, for the convenience of user debugging, the debugging simulation function is integrated on the development board for simulation debugging and printing. The function modules on the board also include: button operation module, LED light module, ADC detection module, infrared transceiver module, voice receiving module, and also have rich interfaces: 3*SPI, 3*UART, 2*TWI, 5*PWM I2S RX/TX, IRC RX/TX, ADC, GPIO, which is convenient for users to expand other functions.

Product Features

1. SOC: Actions SOC ATB1109,ARM Cortex-M0 MCU up to 96MHz.
2. BT: Complies with Bluetooth ® Low Energy Core Specification V4.2.
3. Storage: Built-in 48K RAM and 160K ROM in ATB1109+SPI NOR flash.

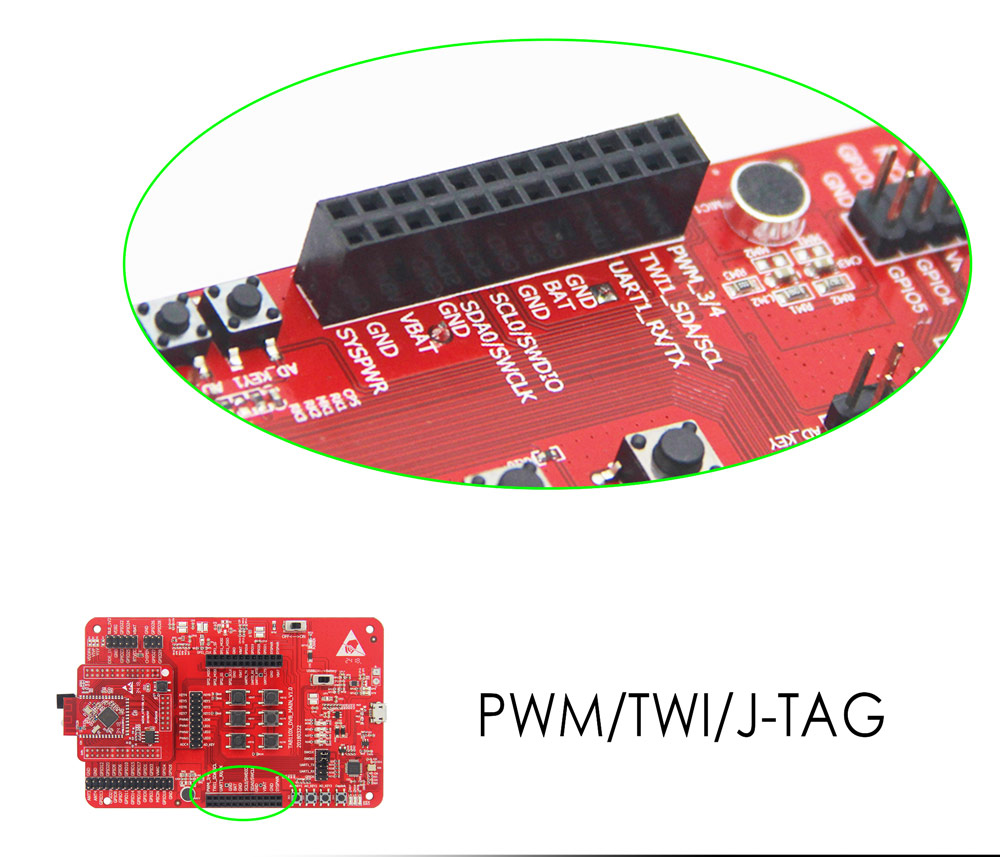

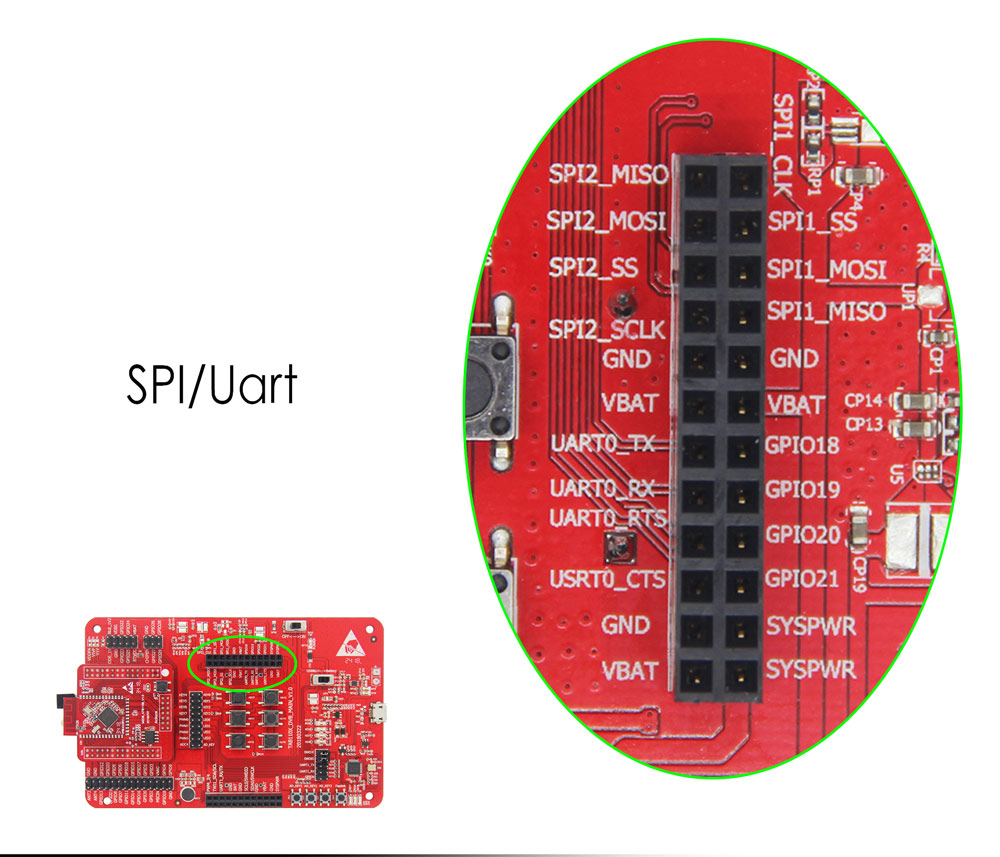

4. Peripheral: TWI*2, SPI*3, UART*3, PWM*5, I2S TX & RX, IRC TX & RX.

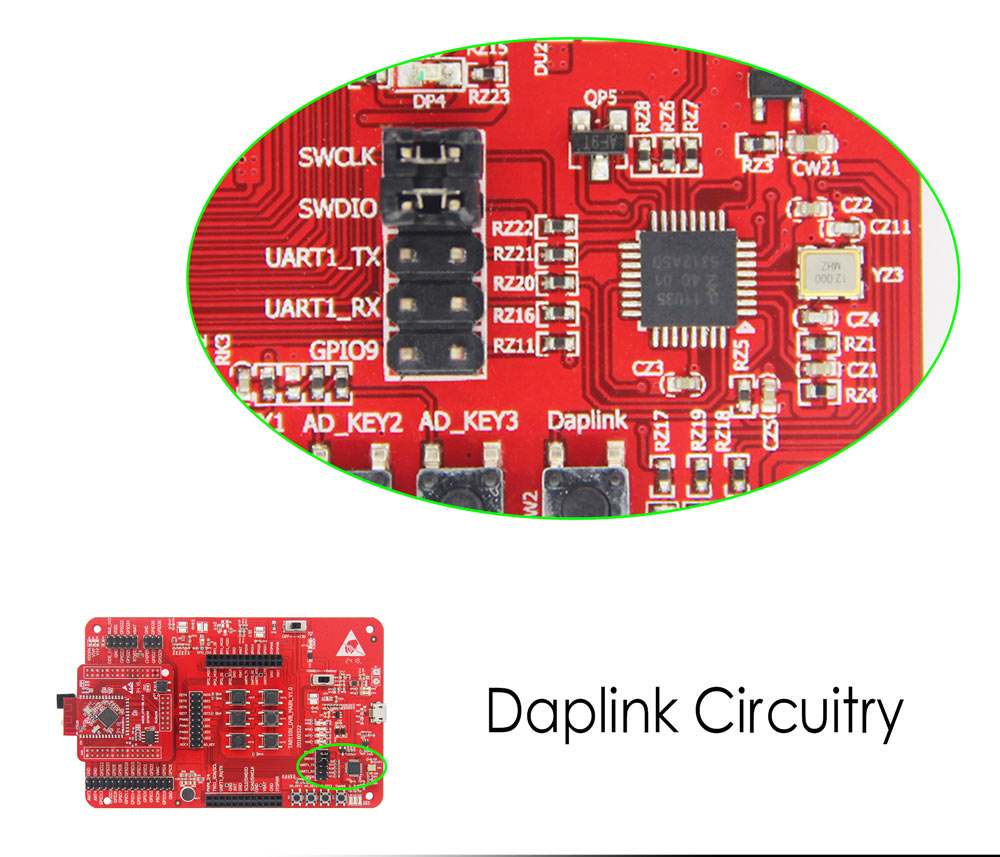

5. Debug: Daplink.

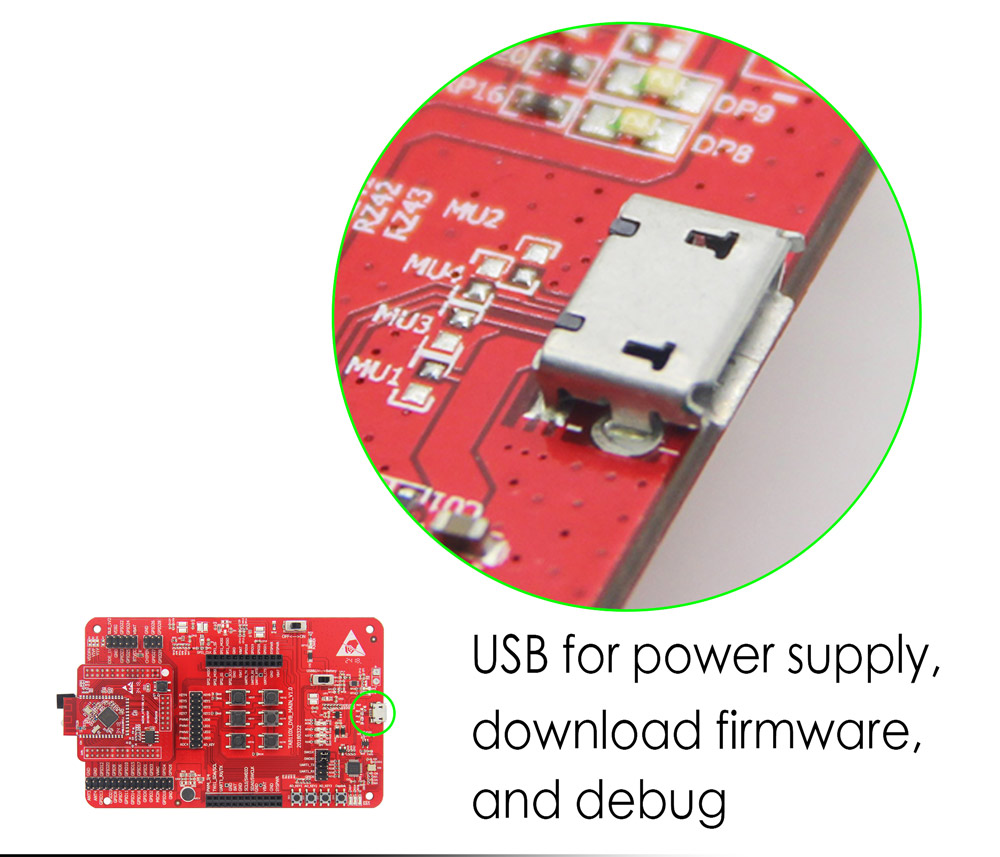

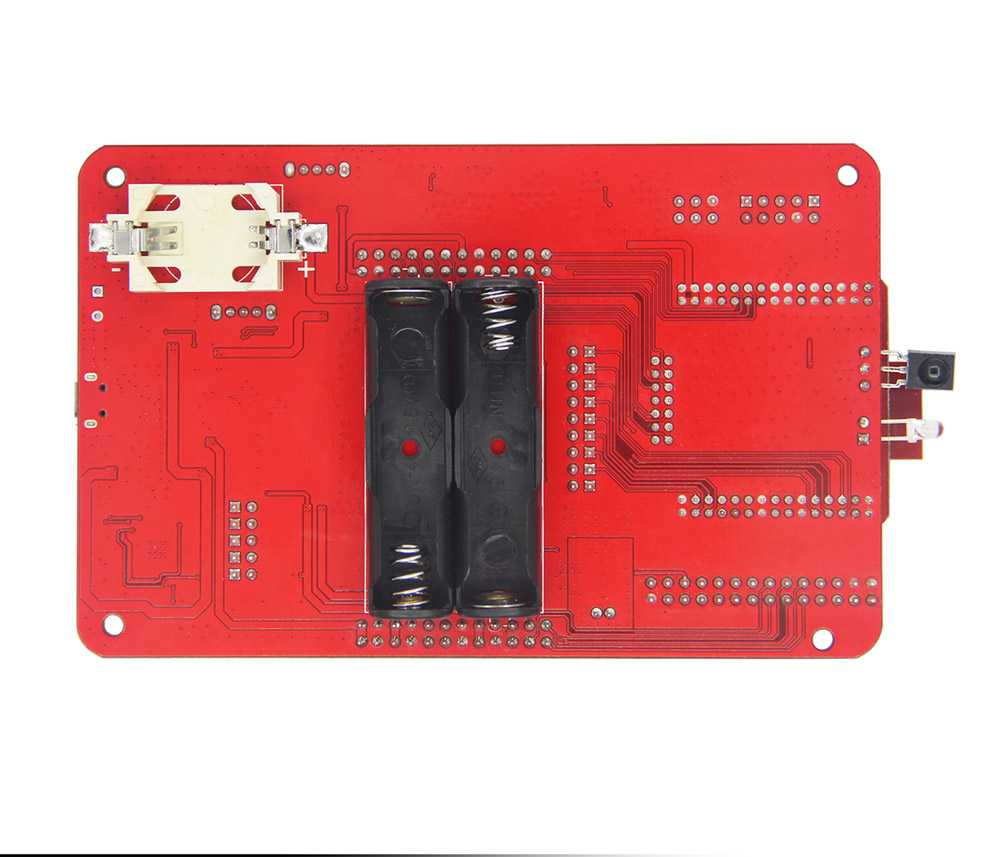

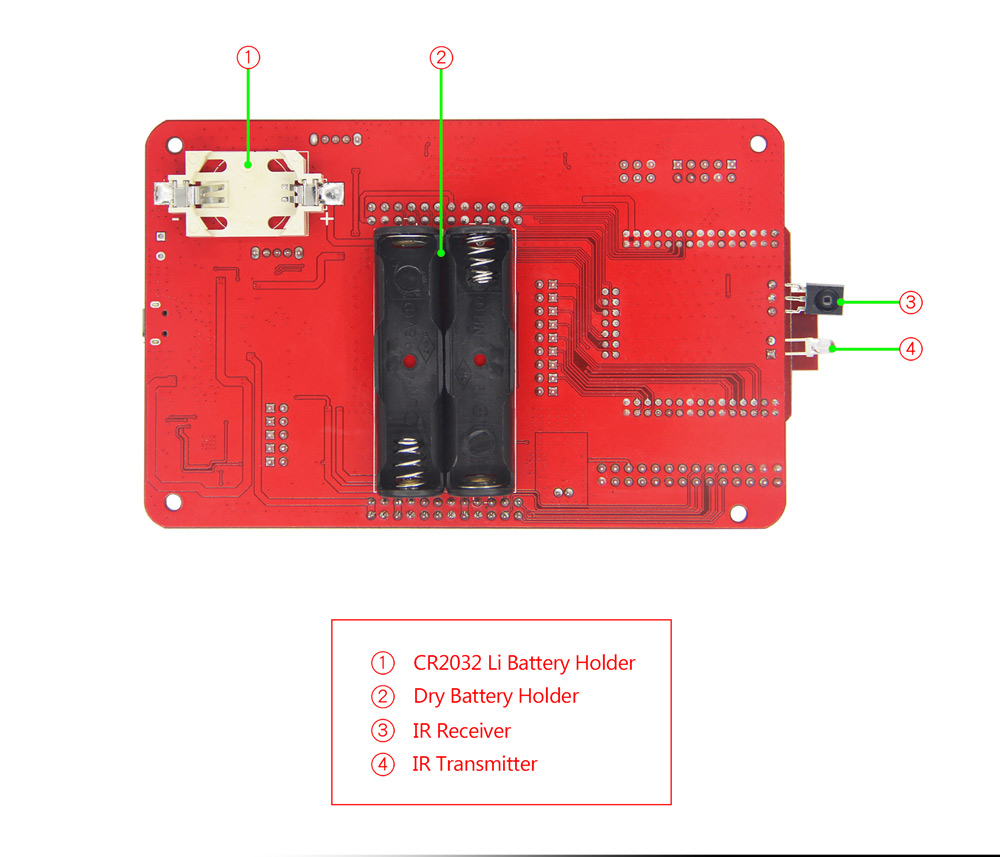

6. Power: External power supply by USB, Li-Battery,7# Dry Cell, Button Cell CR2032.

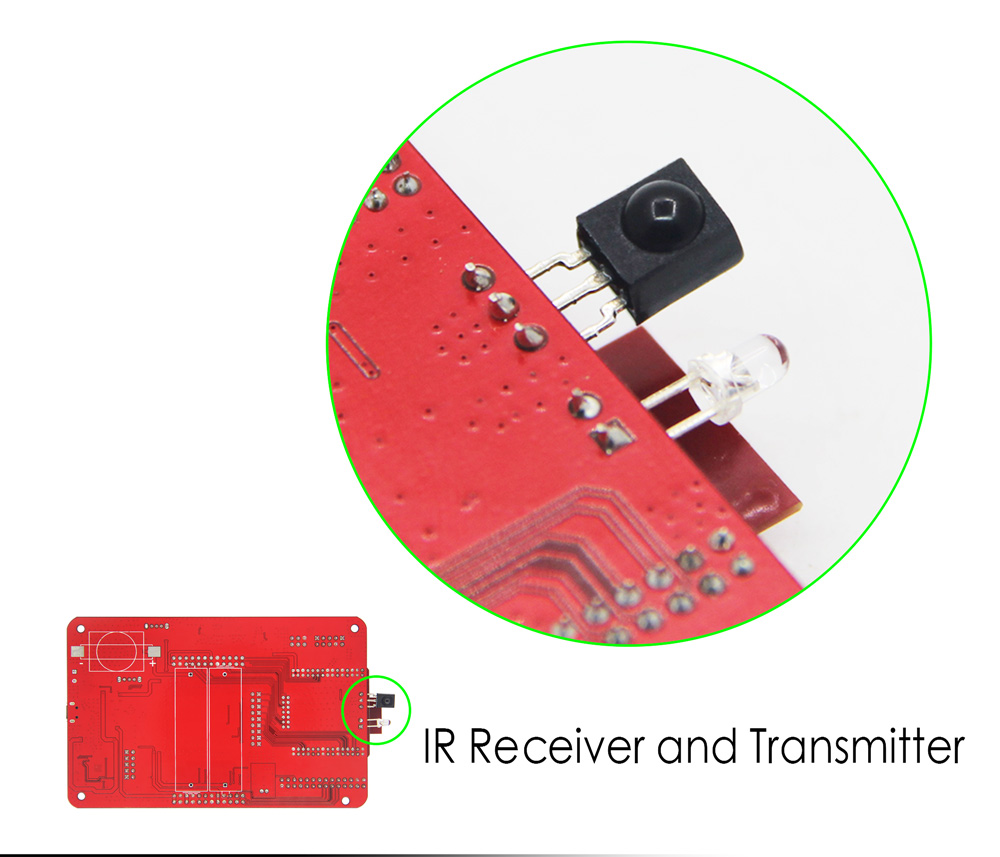

7. IR: Support IR send and receive.

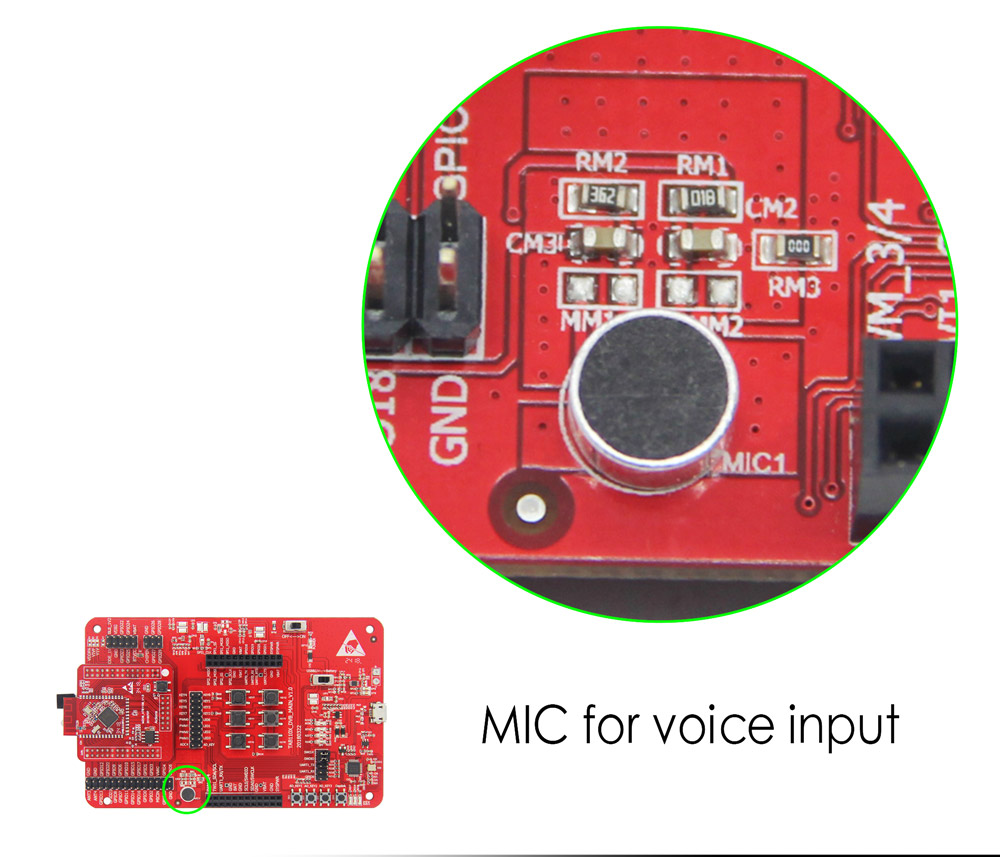

8. MIC: Support DMIC&AMIC.
9. Key: 3*ADC key, 1*Upgrade key, 6*Scan key, Reset key.
10. Switch: 1*Power switch, 1*Power Select switch.
11. LED: 1*Daplink indicator LED, 4*PWM indicator LED, 1*power indicator LED.

Other Specifications

Operating Temperature:  -20℃~70℃
Environment Friendly:  RoHS

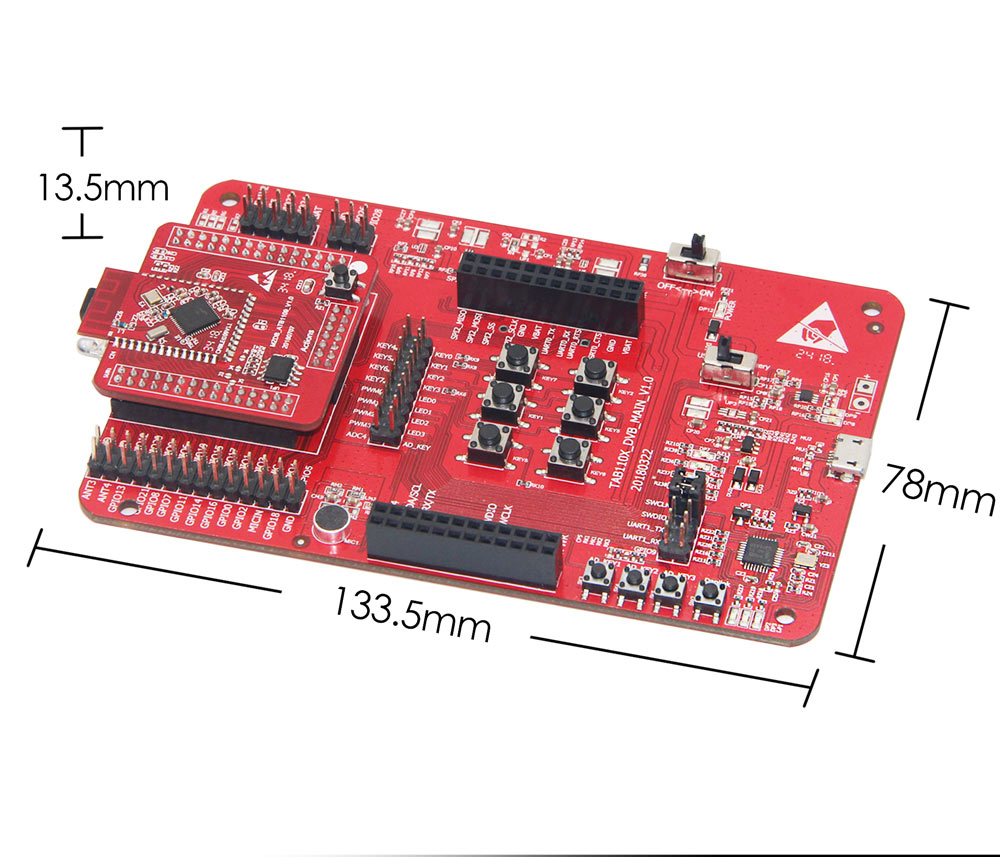

Board Size:  133.5mm*78mm*13.5mm
Radio Standard:  Fcc & CE compatible
Packing Weight:  145g
Packing Size:  233mm*102mm*30mm

Development Materials

Download Link from China (Click Here)

Development Materials is Open

Download Link in China (Click Here)
