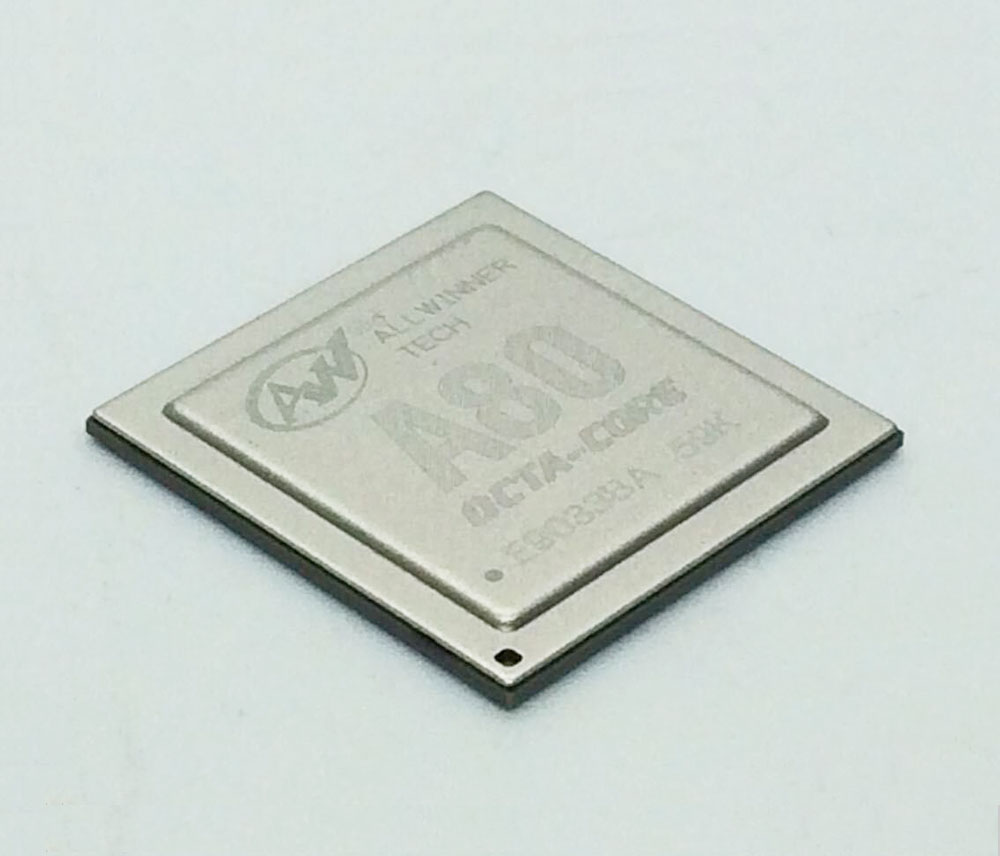

Allwinner A80 Chipset


cubieboard-a80-1 cubieboard-a80-2 cubieboard-a80-3 cubieboard-a80-4 cubieboard-a80-5 cubieboard-a80-6 cubieboard-a80-7 cubieboard-a80-8 cubieboard-a80-9 cubieboard-a80-10 cubieboard-a80-11 cubieboard-a80-12 cubieboard-a80-13 cubieboard-a80-14 cubieboard-a80-15 cubieboard-a80-16 cubieboard-a80-17 cubieboard-a80-18 cubieboard-a80-19

Product Introduction

Allwinner’s latest flagship UltraOcta A80 application processor is a revolutionary advance in mobile processor technology. The A80 packs octa-core big.LITTLE CortexTM-A15/7 architecture in a 28nm process to deliver an outstanding combination of both computing power and efficiency.

Fast, smooth, and fluid graphics drive the user experience on premium devices. A80 features the lightning-fast PowerVR 64-core G6230 GPU from Imagination Technologies, delivering industry-leading graphics performance and enabling console-class performance even on the most graphics-intensive games. In addition to superior graphics performance, the A80 excels in multimedia with an advanced HawkViewTM ISP supporting cameras up to 16M, innovative video engine technology with 4Kx2K video encoding/decoding, high resolution displays up to 2560×1600, advanced HD DRM support, and low power LTE connectivity.

Application usage is extremely diverse on tablets and smartphones: users listen to music, watch movies, browse the web, share photos, play games, send emails, and more. Each application requires different levels of processing power, and that means different applications run more efficiently on different cores. To deliver optimal efficiency, the Allwinner A80 features all-new CoolFlexTM technology that enables devices to seamlessly run different applications on different CPU cores – saving power by giving applications just the right amount of juice that they need.

Product Information

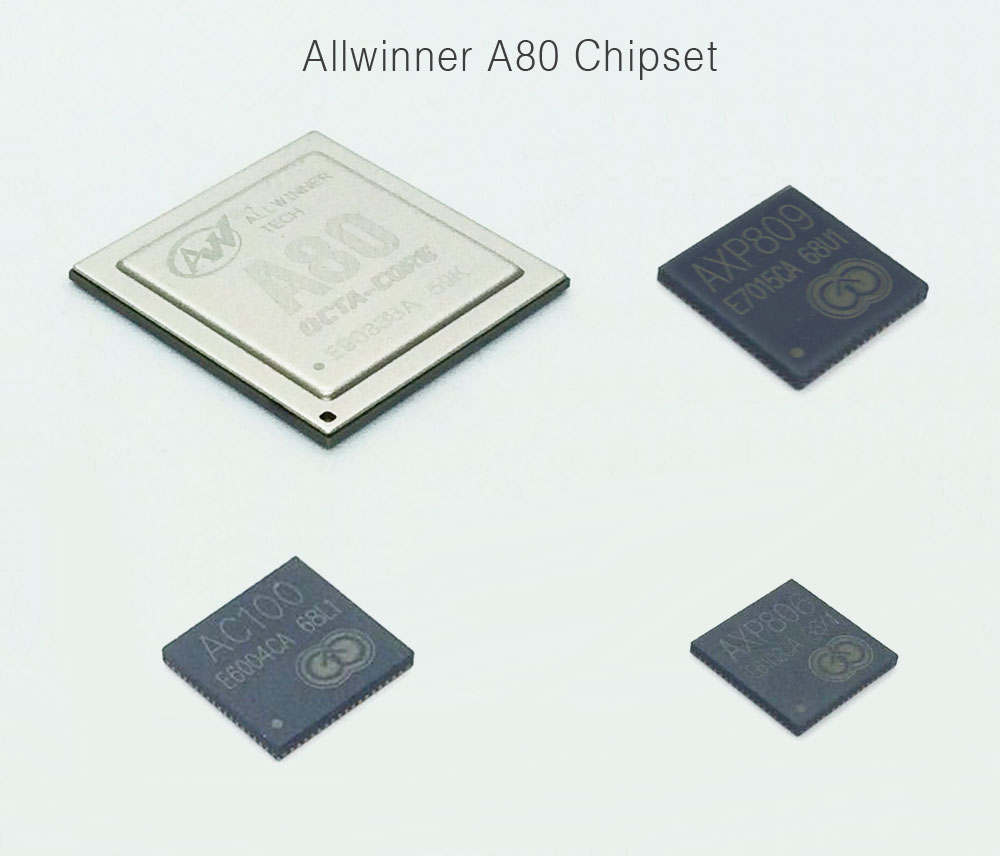

Name:       A80+AXP806+AXP809 chipset
Property:    Software open source
Owner:     Allwinner Technology
Target:     Manufacturer

Product Features

· Octa-core big.LITTLE Cortex-A15/7
· 64-core IMG PowerVR G6230
· Supports UHD H.264/VP8 4Kx2K@30fps video playback
· Supports multi-format FHD video decoding, including MPEG 1/2/4, H.263, H.264. WMV9/VC-1, etc
· Supports H.265/VP9 1080p@30fps video playback
· Supports H.264 HP/VP8 4Kx2K@30fps video capture
· Supports 3840×1080@30fps 3D decoding, BD/SBS/TAB/FP supported
· Supports 3840×1080@30fps 3D encoding
· Supports RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
· Supports dual-channel LVDS 1920×1080@60fps
· Supports RGB LCD 2048×1536@60fps
· Supports 4-lane MIPI DSI 1920×1200@60fps
· Supports 4-lane eDP 2560×1600@60fps
· Supports HDMI 4K output
· Integrated parallel and MIPI I/F sensor
· Supports 5M/8M/12M/16M CMOS sensor
· Supports 8/10/12-bit YUV/Bayer sensor
· Supports dual-channel DDR3/DDR3L/LPDDR3/LPDDR2, up to 8GB
· Supports Raw NAND with 72-bit ECC
· Supports eMMC V4.5

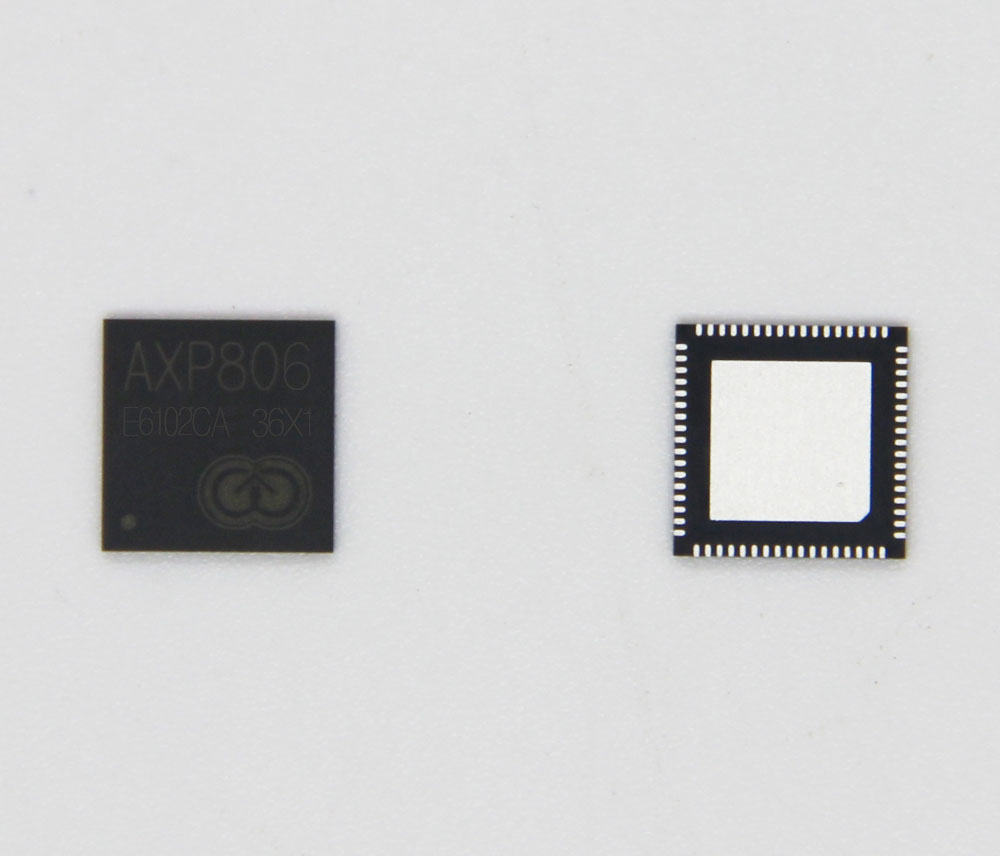

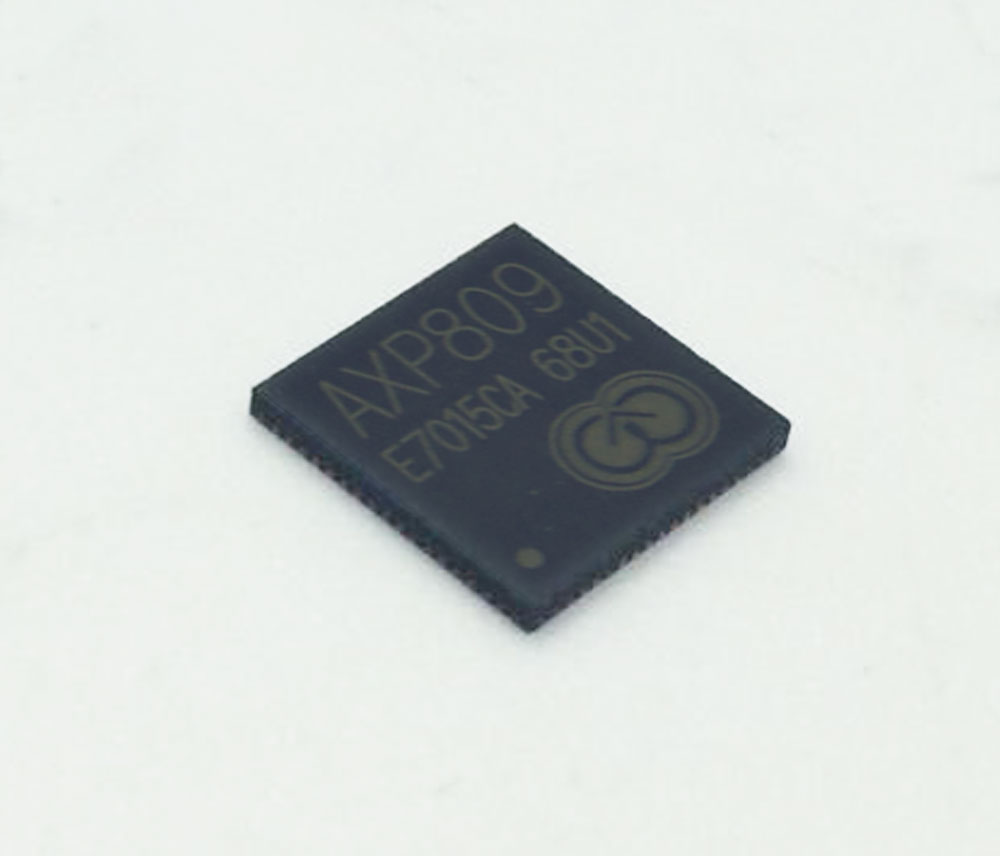

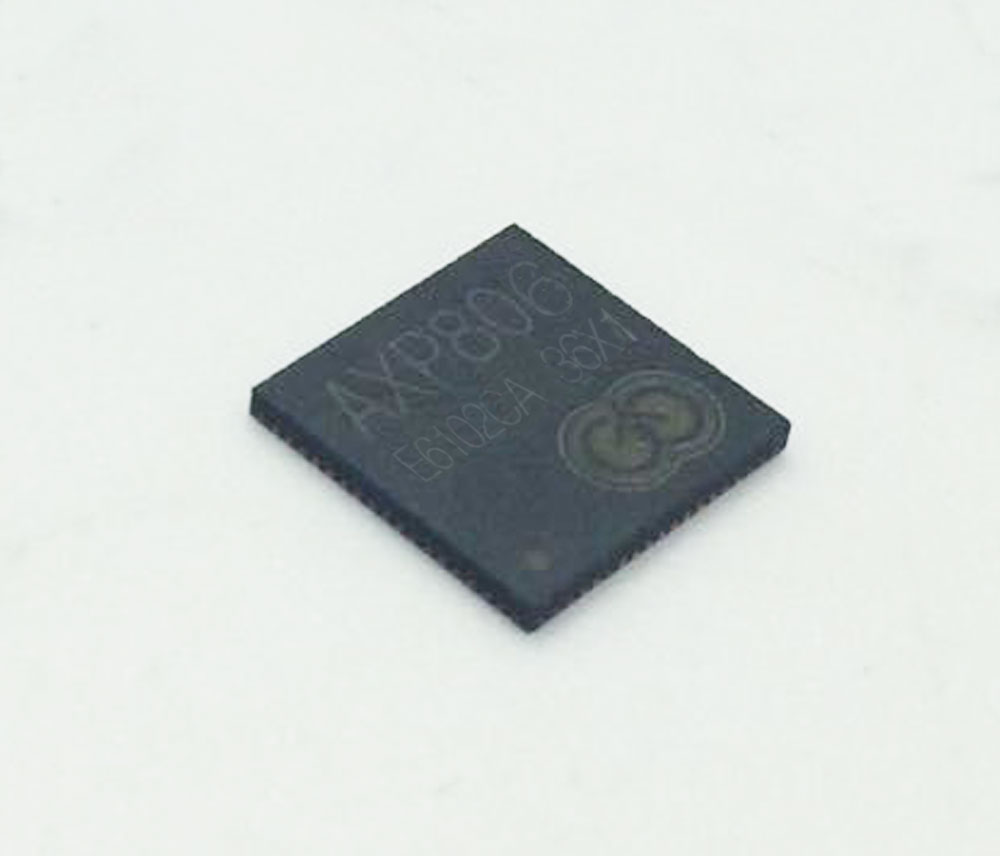

· PMICAXP806 and AXP809
· 2x USB Host, USB 3.0/2.0 Dual-Role (host/device)
· Ethernet MAC
· 4x SPI, 7x TWI, 7x UART
· 4x SD/MMC

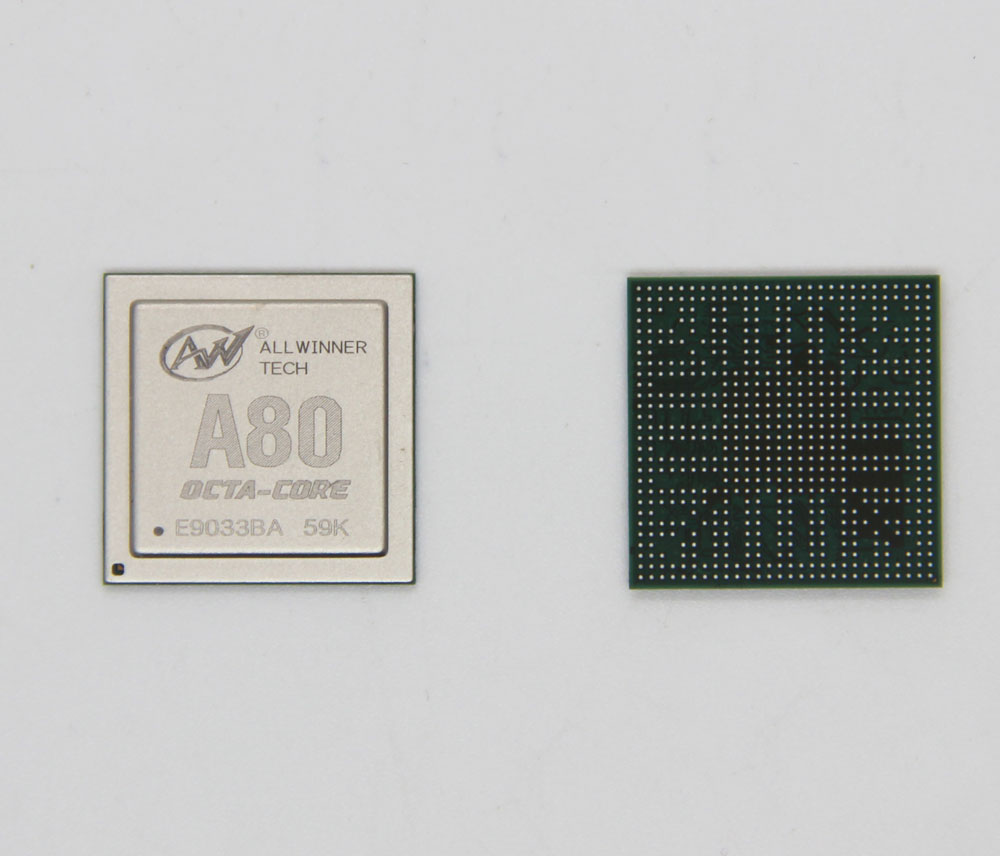

· PackageFCBGA 636 balls, 0.65mm ball pitch, 19mm x 19mm
· 28nm HPM

Product Applications

Tablet, Android Box, Notebook, Smart TV, All-In-One, Digital Signage

Other Specifications

Operating Temperature:  -20℃~70℃
Environment Friendly:   RoHS

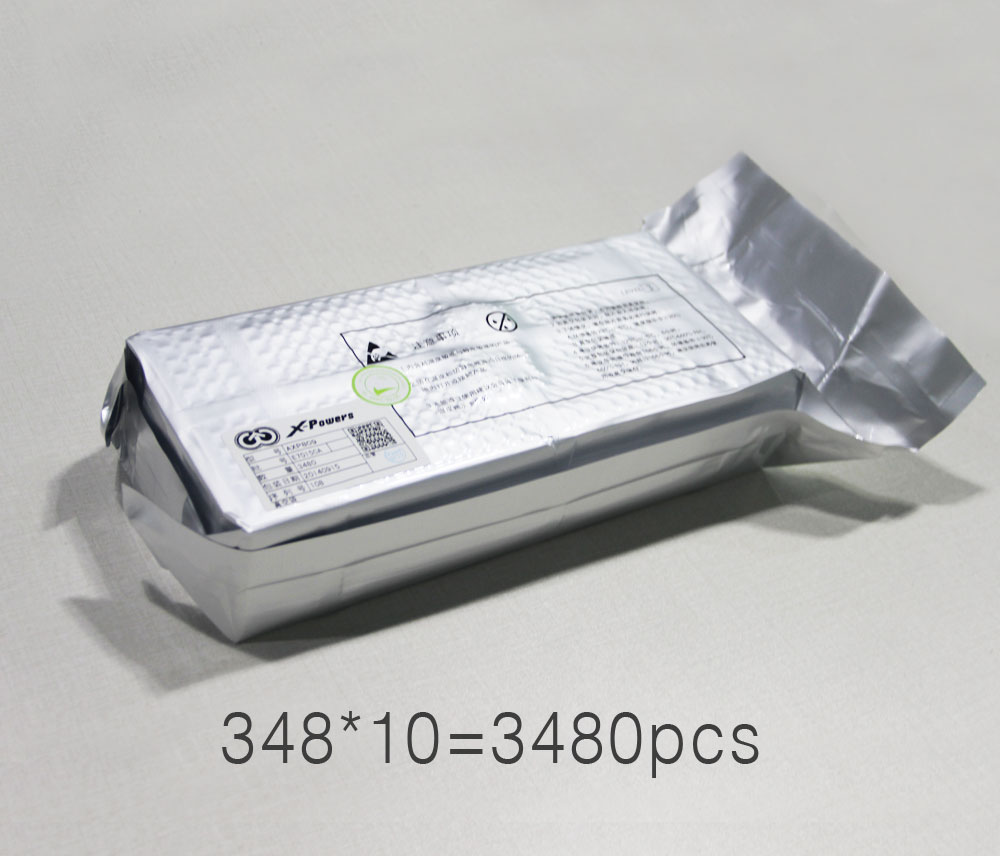

Packing Weight:  590g
Packing Size:  162mm*150mm*77mm
