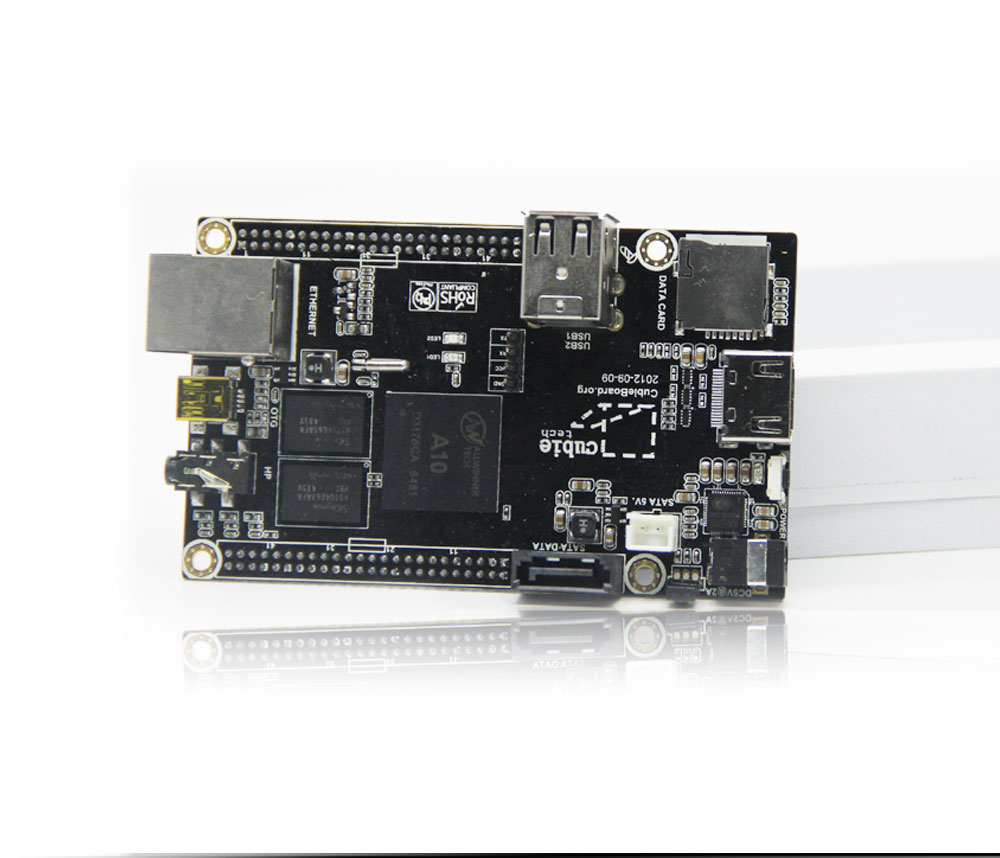

Cubieboard1 is the first generation Cubieboard open source hardware from Cubieteam. The main chipset Allwinner A10 is a low cost, high integration with rich  interfaces SOC platform adopted with ARM Cortex A8 CPU and Mali400 GPU. Cubieboard1 is open source hardware targets in developers, geeks, makers and software staffs that focus on embedded technology. Because of the low cost main chip, rich interfaces and extended pins, and good open source software ecosystem, It has given rise to lots of creative projects and new products. With the passage of time, more and more expansion boards, subboards, modules, and development tools are available.

Thanks to the community and the creative teams all over the world, Cubieboard is now a grand open source hardware ecosystem.

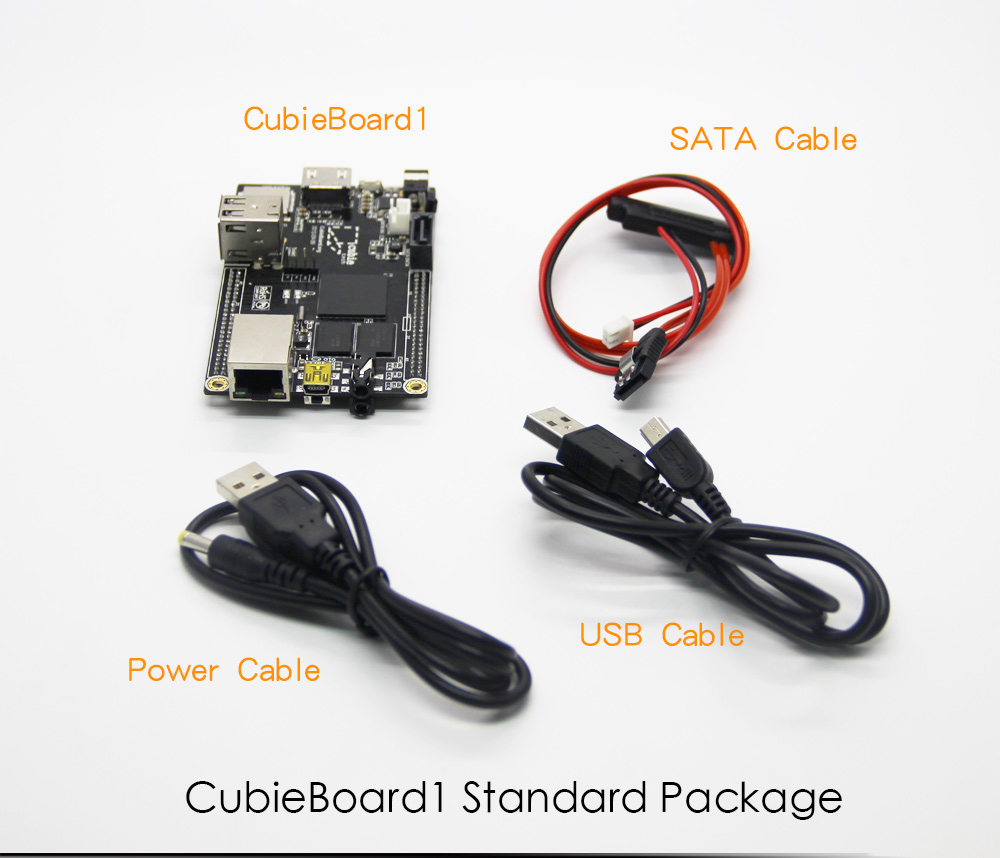

Product Information

Name:  Cubieboard1, CB1 for short
Property:Software open source, Hardware open, Production materials closed
Owner:  CubieTech Limited

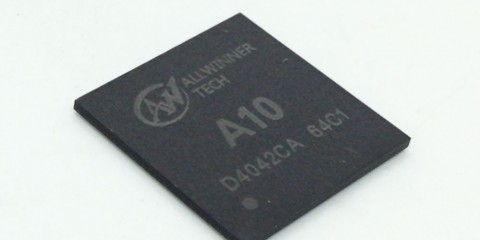

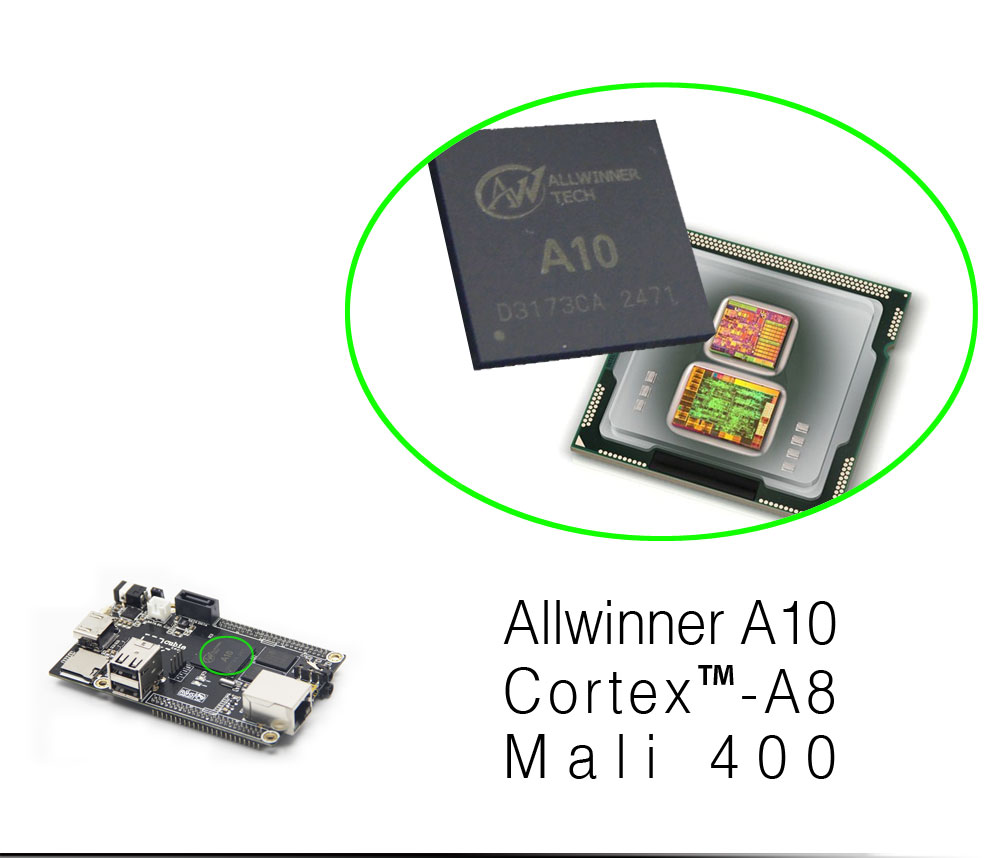

Chipset:  Allwinner technology A10, ARM architecture Cortex-A8 CPU, Mali 400 GPU

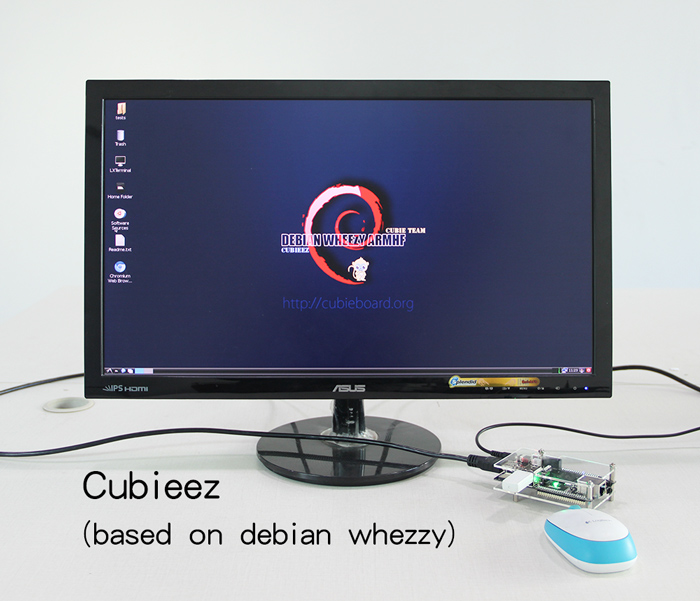

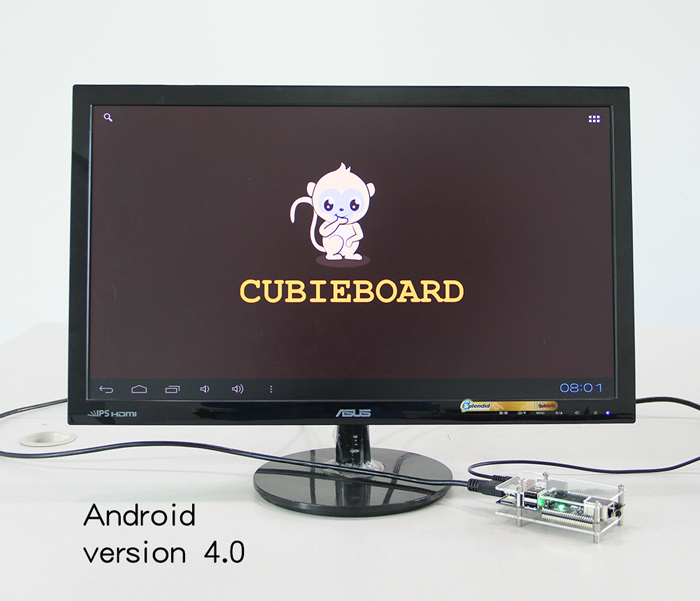

System:  Android, Debian, Ubuntu and many other open source distribution…
Target:  Developer, Geek, Maker, Scholar, Student, even the real product application.

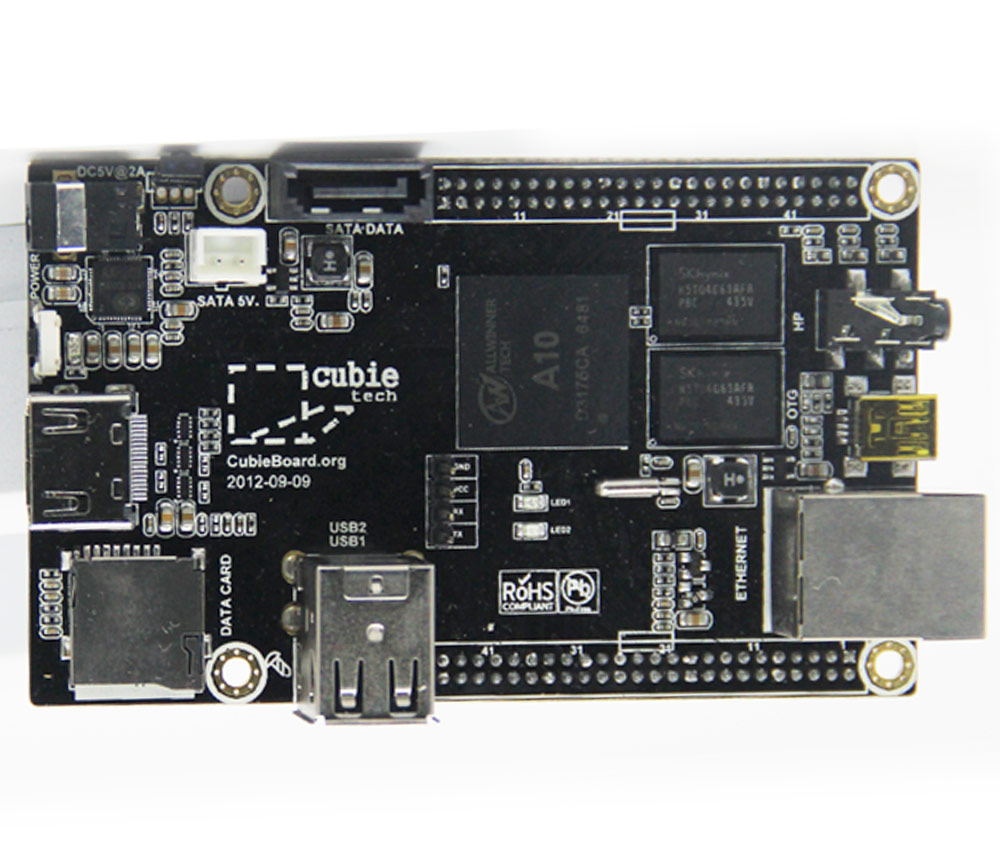

Product Introduction

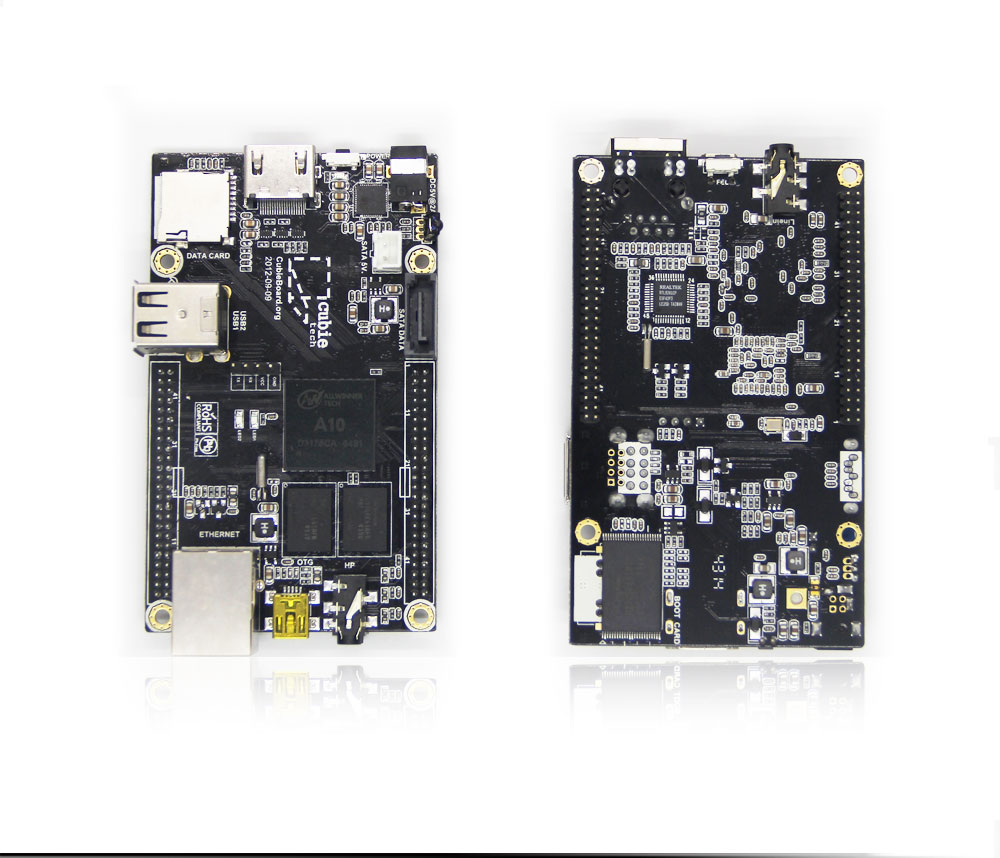

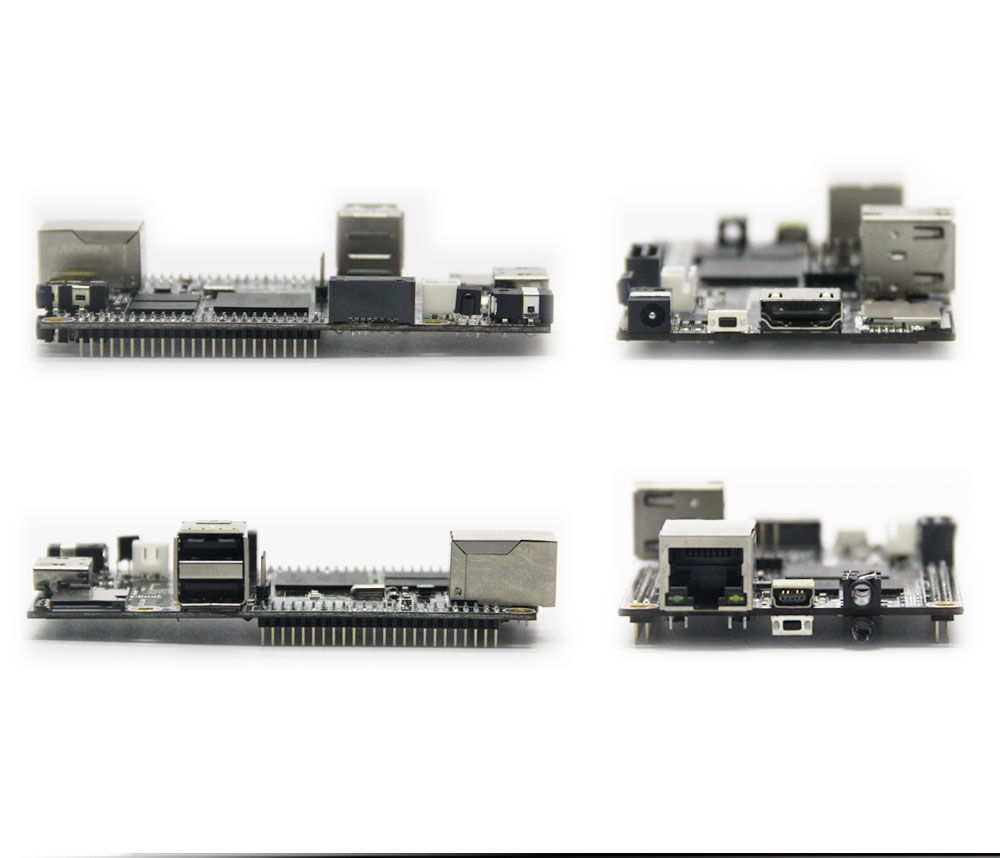

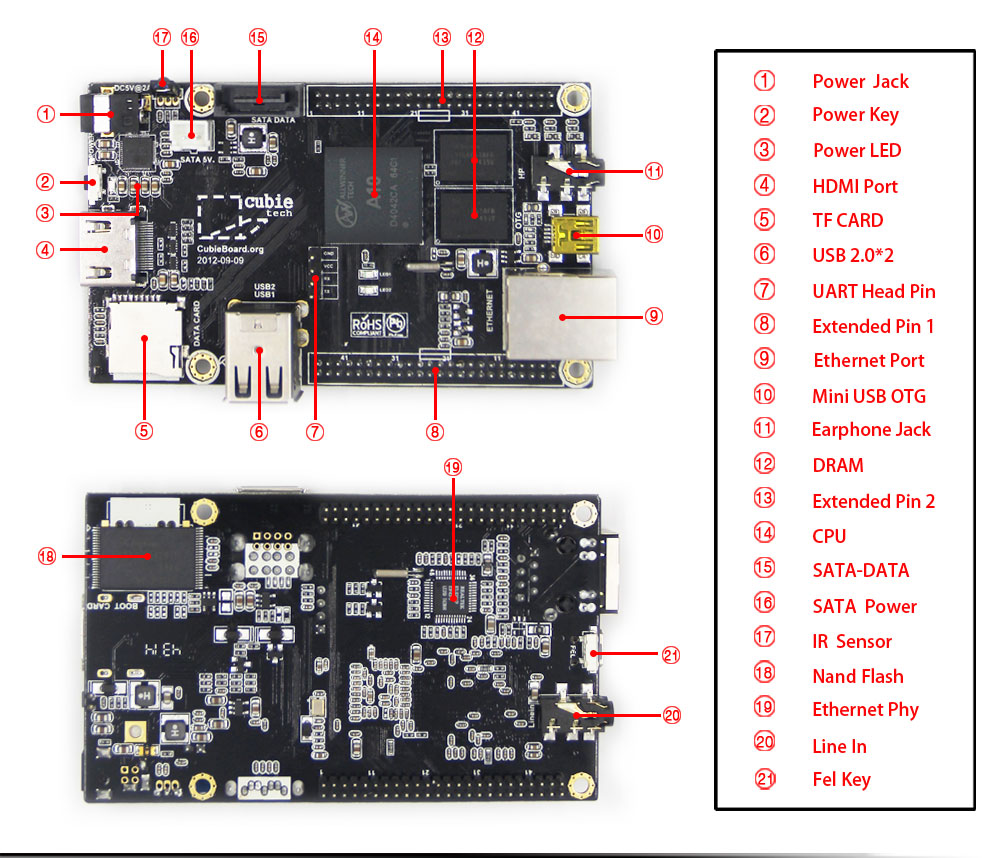

Cubieboard1 is the first generation product of Cubieboard series from Cubietech Limited. Cubieboard is open source hardware that targets developers, geeks, makers…It’s not only for development, but also can be used in various areas as core-board or controller board. Cubieboard1 integrates the most commonly used interfaces like the desktop PC but with such a small size board. There are RJ45, 2 USB, HDMI, USB OTG, Audio input and output, SATA port, Micro SD card slot, Infrared remote sensor on the board. In most cases, the interfaces are rich enough for software staffs. You only need to a 5V@2.5A power adapter to power it. HDMI display is needed to watch the system interface, but it’s not required anyway. You can use keyboard and/or mouse to control the system, connect ethernet cable to access network. This is the most simple situation to use it in my opinion.

If you want to take part in the development, some small tools and accessories would be needed. We usually use USB-UART cable to monitor the system running state and input some instructions. We would use USB cable to reflash the image. If you want to make system boot media, a micro SD card and USB card reader are needed as well. If you want to simulate the CPU, the JTAG subboard or TFcard board would be useful to connect the JTAG pins with the simulator.

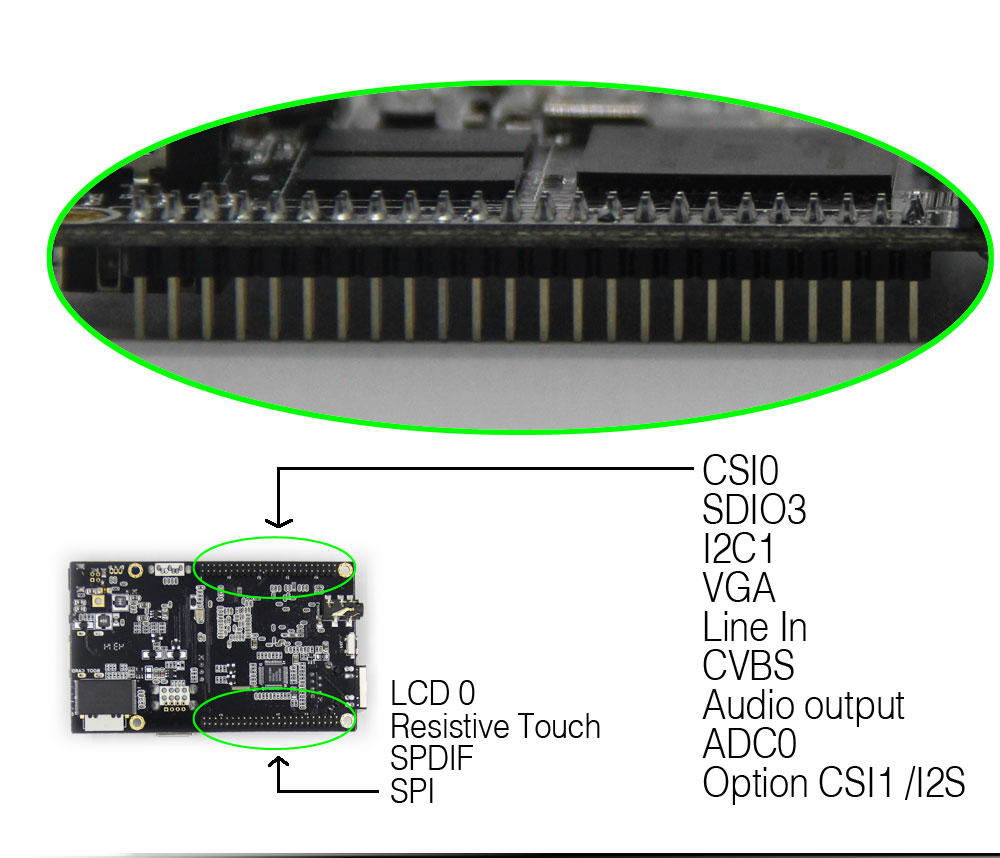

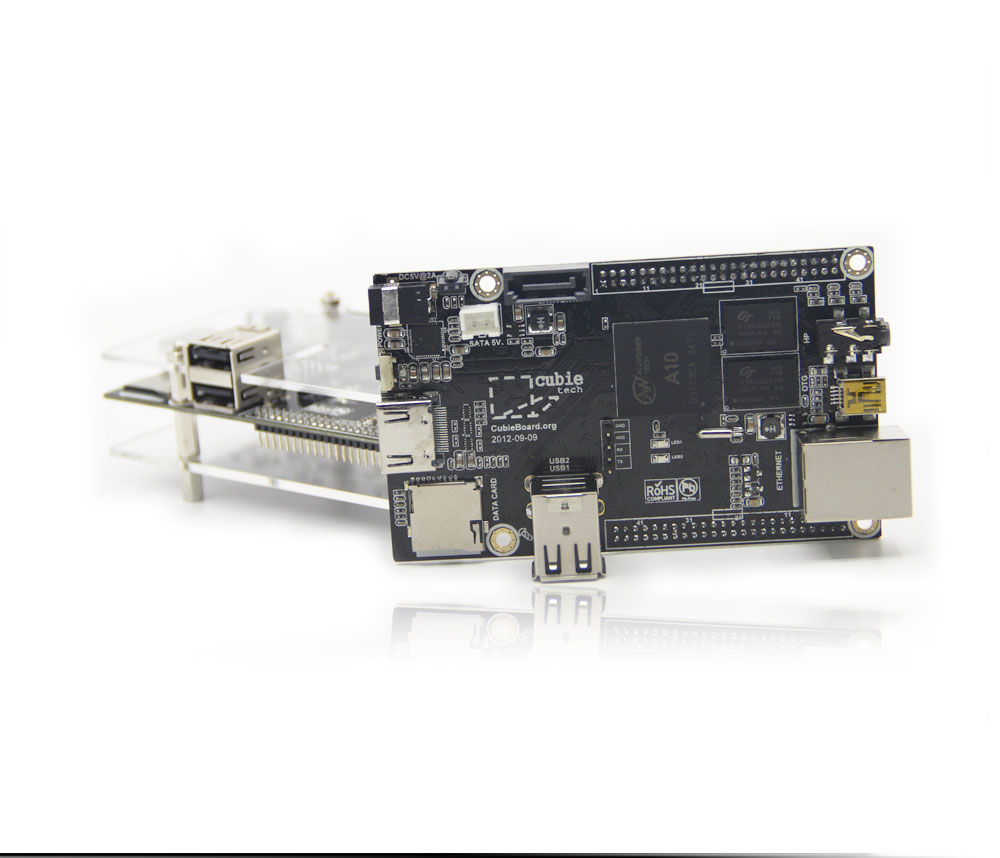

Cubieboard1 can also be used directly into some electronics products as controller board or core board thanks to its rich extended pins. There are 96 pins expansion header which is 2mm pitch on the board. We can change the header’s direction before the shipment if you have this application requirement. In addition, USB host port and power in connector can also be replaced by 2.0mm pitch pin headers. We think Cubieboard1 already provides very large application opportunity for makers and startup team in product development stage.

Beside above simple introduction, more and more expansion boards and tools come out, please keep an eye to the related products and news on cubieboard.org website.

Product Features

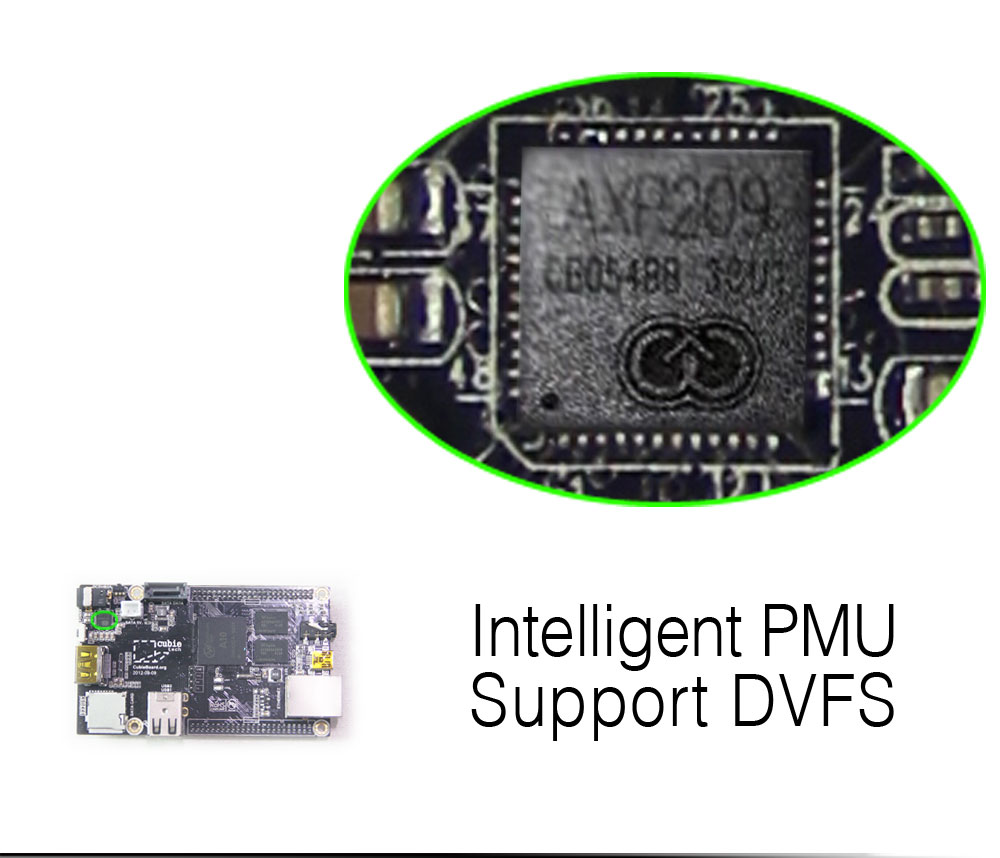

1. SOC:   AllWinner SOC A10, ARM® Cortex™-A8,1GHz, ARM® Mali 400 complies with OpenGL ES 2.0/1.1

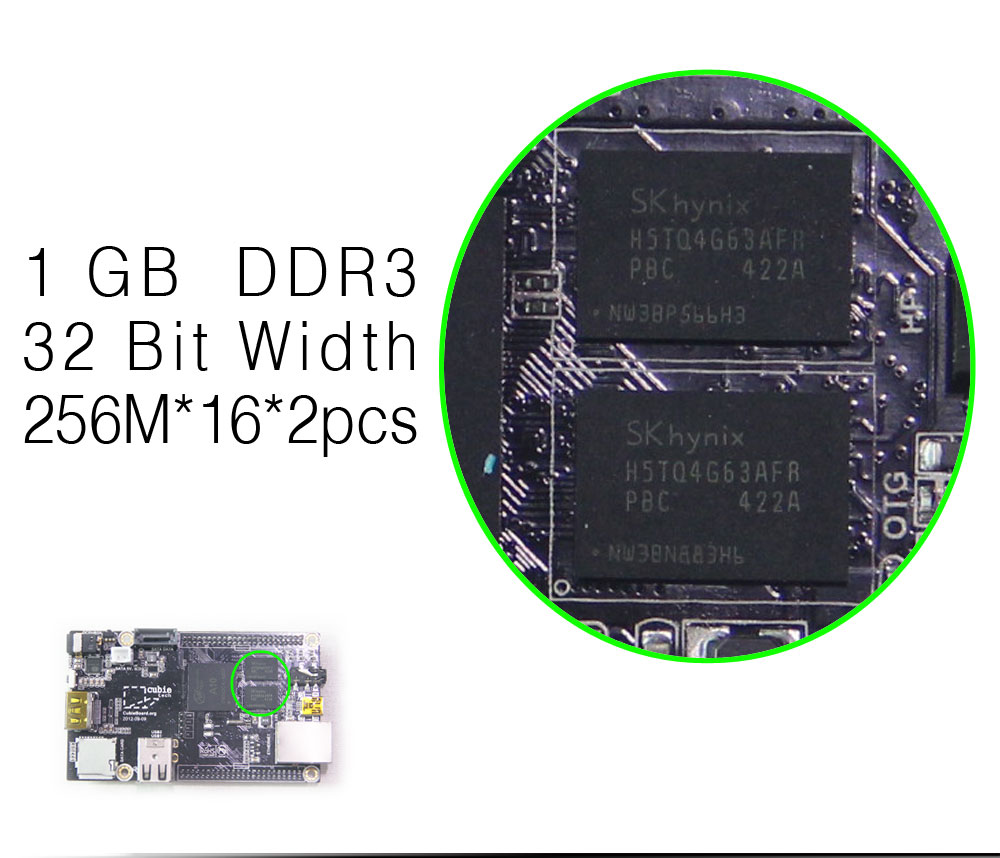

2. Memory:   1GB DDR3@480MHz (960MTPS)
3. Storage:   NAND Flash, 4GB default, support TSD flash with SDIO interface
4. TF Card:   Micro SD card slot, up to 32GB

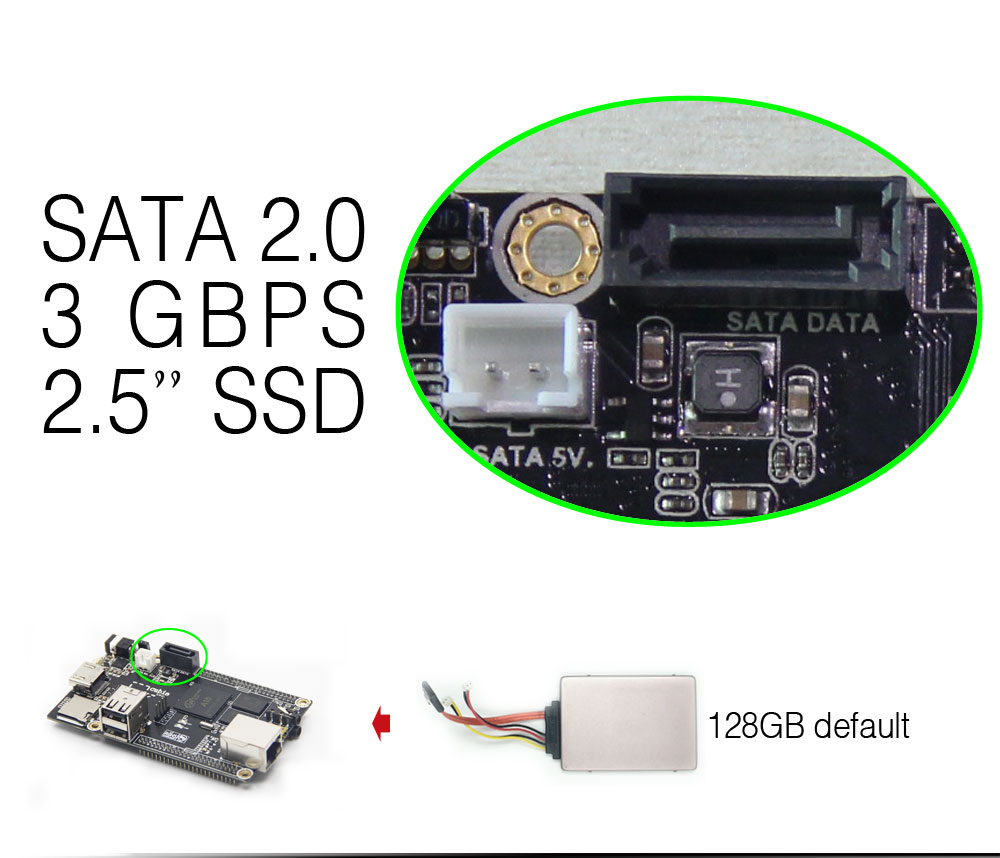

5. SATA:  Support 2.5 inch HDD/SSD up to 2TB

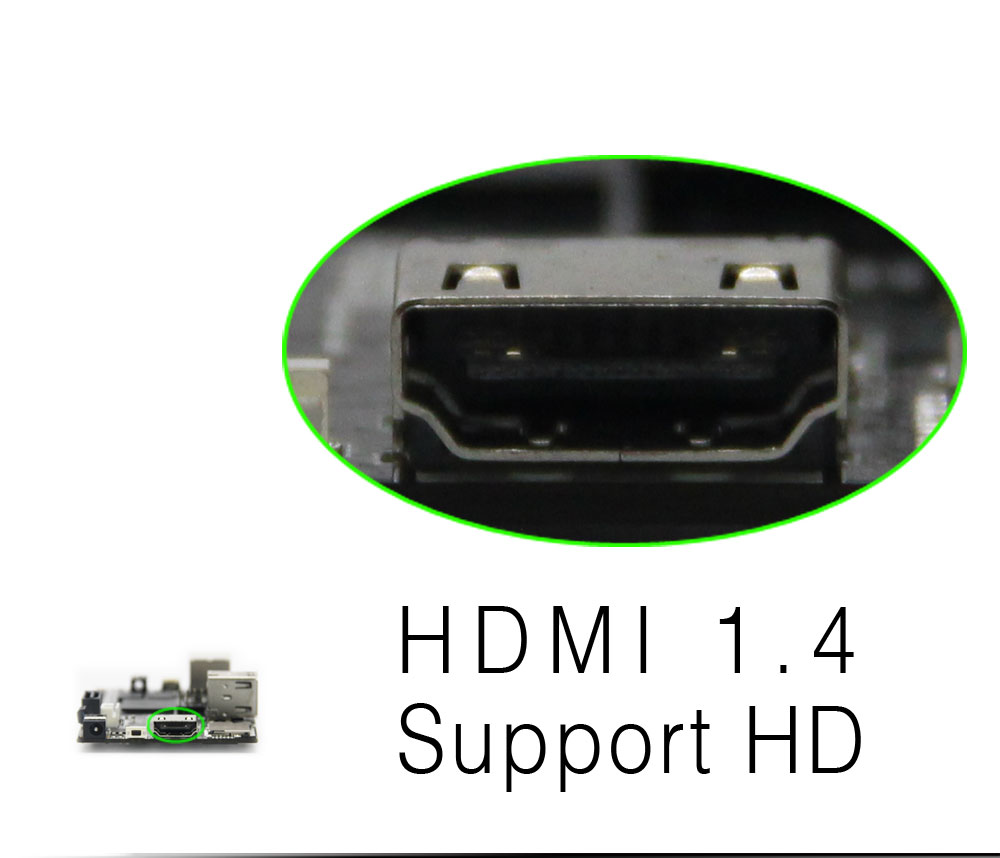

6. Display:  HDMI Port A, HDMI V1.4a, support 1080P@60Hz resolution output

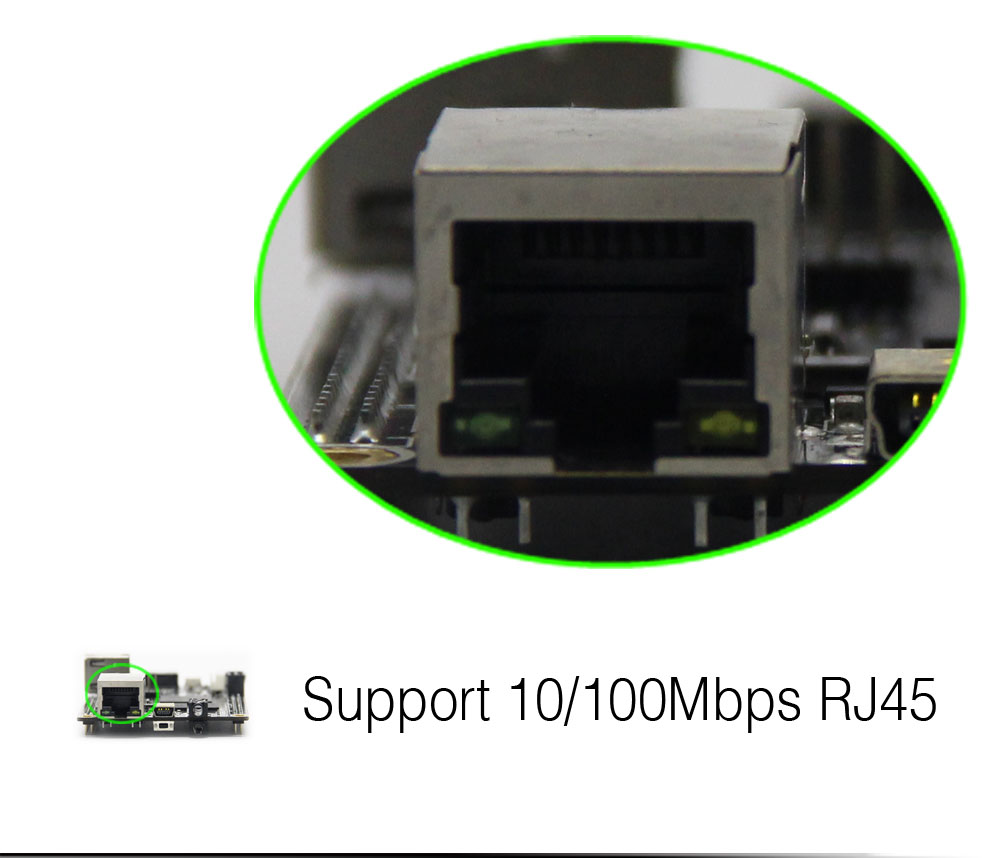

7. Ethernet:  10M/100M RJ45
8. IR:   Infrared remote receiver Philips standard
9. Audio:   Support 3.5 headphone jack for Audio output, Support 3.5 jack for Line-In
10. Power:   DCIN 5V@2.5A power, Support USB power input
11. Keys:   Power key, Uboot key for reflashing the ROM
12. LEDs:   Power Led x 1, User Led x 2
13. Extended:   I2C, SPI, RGB/LVDS for LCD, CSI/TS for camera, FM-IN, ADC, CVBS output, VGA, SPDIF-OUT, RTP, and some more

Other Specifications

Operating Temperature:  -20℃~70℃
Environment Friendly:  RoHS
Radio Standard:   Fcc & CE compatible

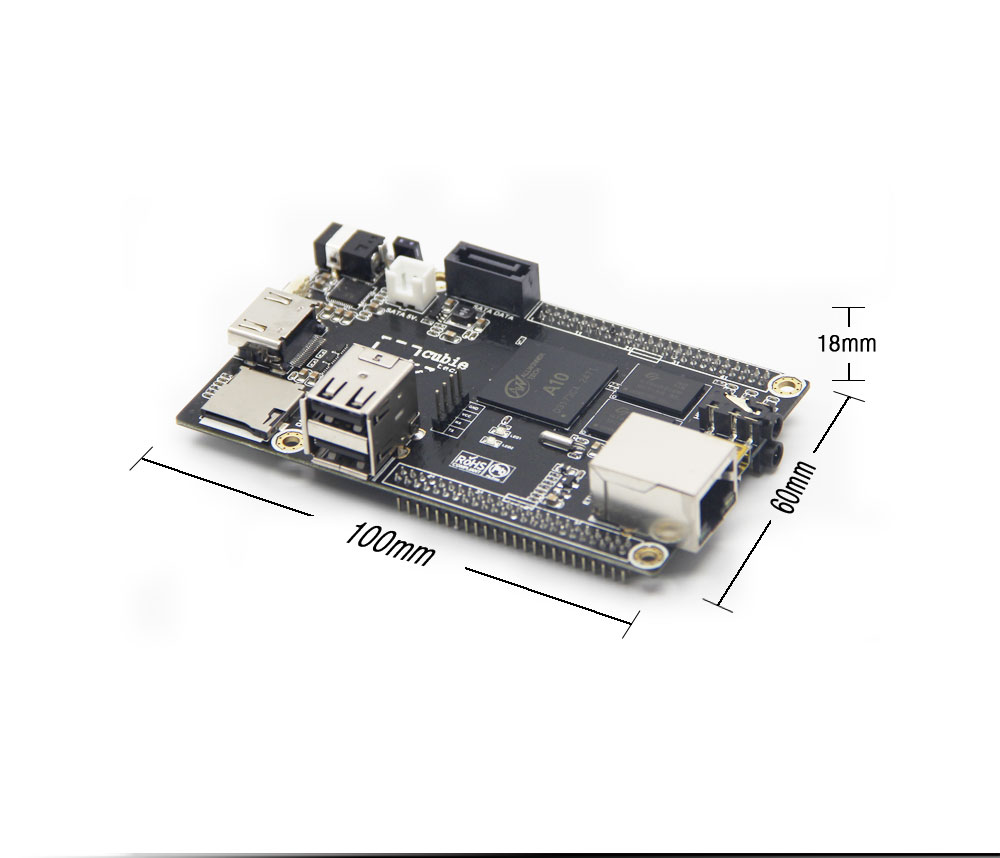

Board Size:   100mm*60mm*18mm
Power Input:  5V@2.5A

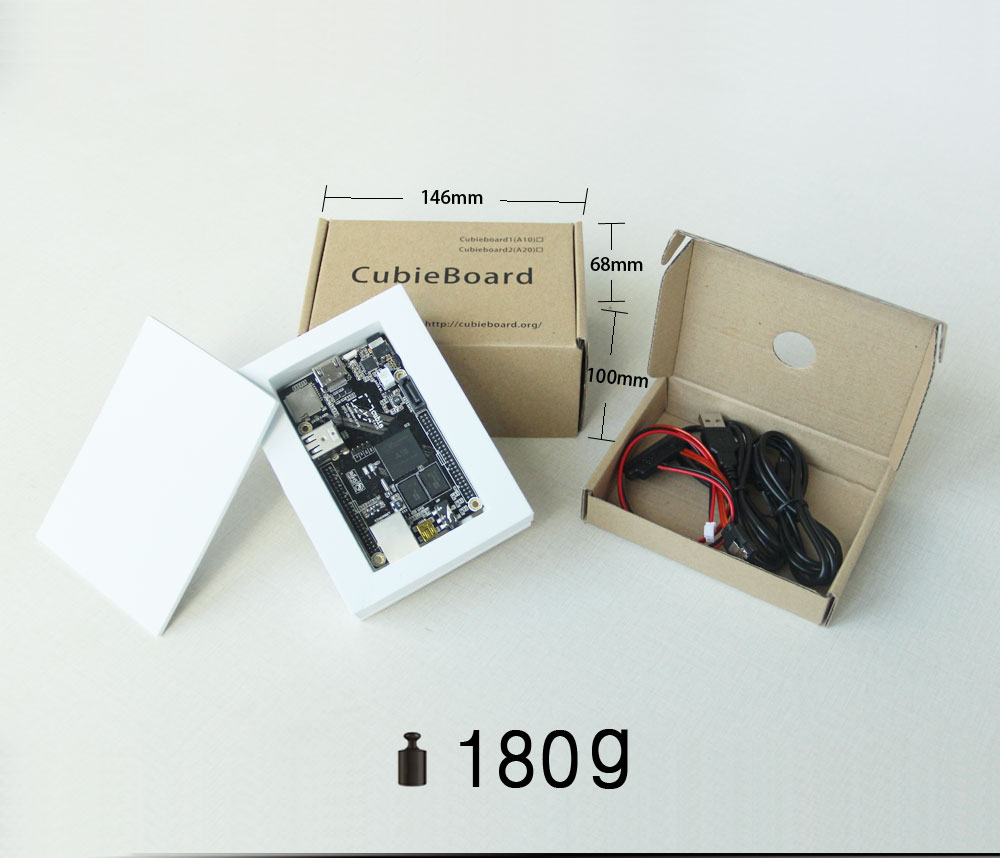

Packing Weight:   180g
Packing Size:   146mm*100mm*68mm

Development Materials

Technical Website:   http://cubieboard.org/
Resources and Materials:   http://cubieboard.org/model/cb1/
Distribution contacts:   sales@cubietech.com
Technical contacts:    support@cubietech.com
Distributors:    http://cubieboard.org/buy/
