SSD MLC 120GB

Category:

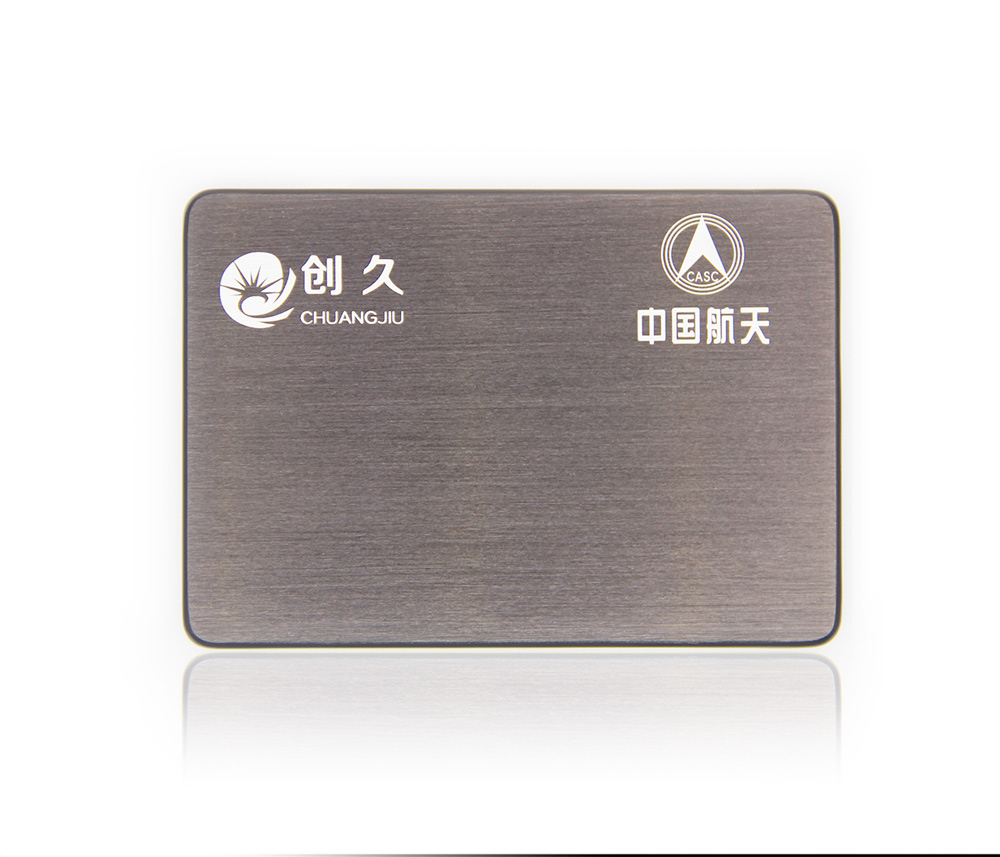

SSD MLC 128GB-1
cubieboard-ssd-2
cubieboard-ssd-3
cubieboard-ssd-4
cubieboard-ssd-5
cubieboard-ssd-6
cubieboard-ssd-7
cubieboard-ssd-8

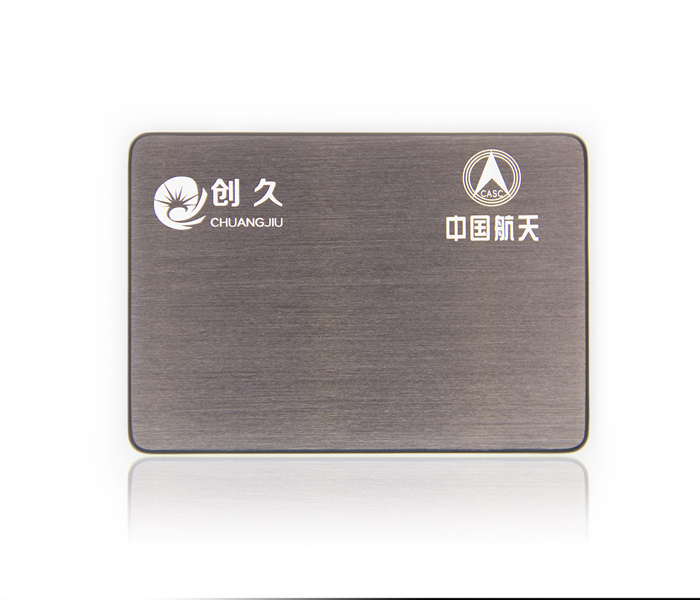

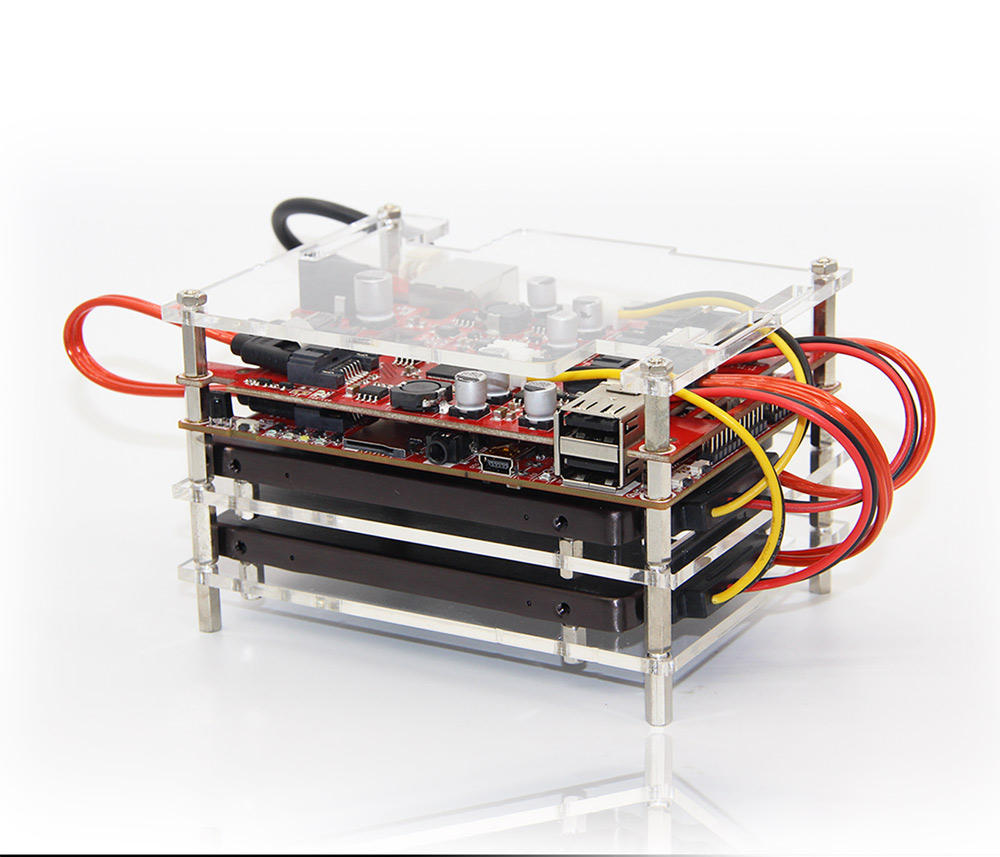

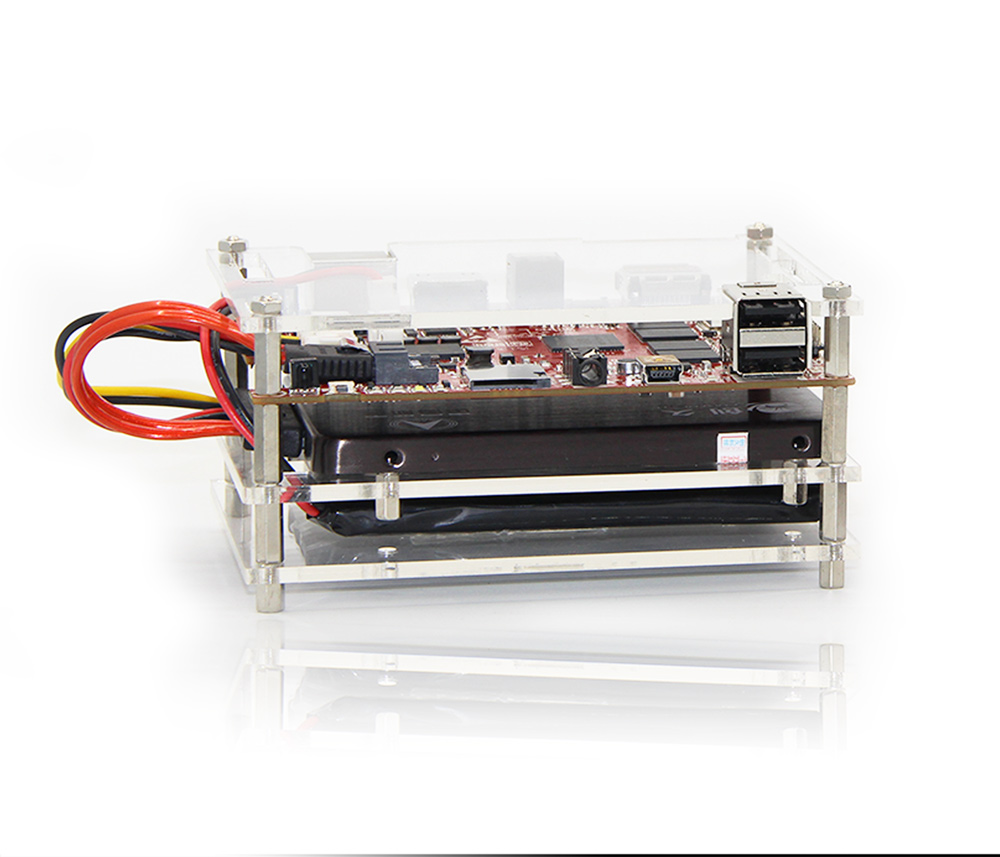

This SSD MLC 128GB part is made by MLC process NAND Flash SSD, so that can be used in a variety of scenes that require higher reading and writing times. It was tested strictly in CubieBoard sieres products and passed very long time aging test.

Usually, the big brand of SSD products can also work well in CubieBoard, but the price would be very high. Through our team’s mass batch customization, it will help you to save some costs.

Product Information

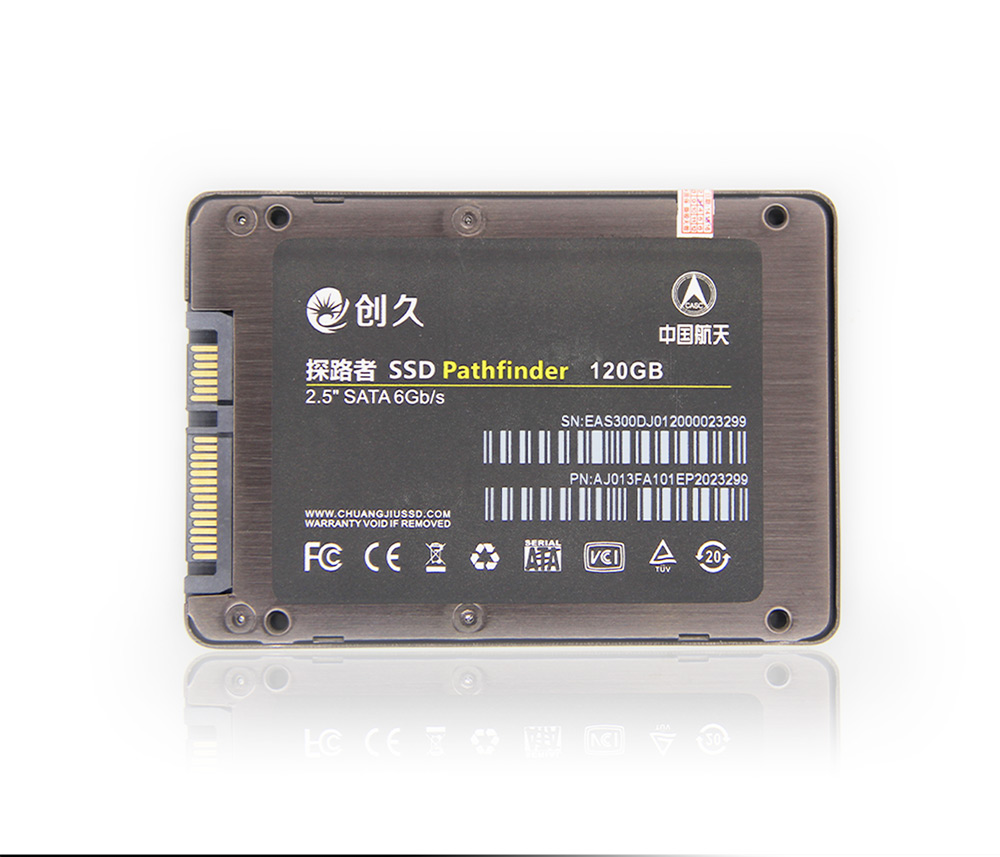

Name:   SSD MLC 128GB

Property:  Closed Product

Owner:   ChuangJiu Limited

Target:    Developer, Geek, Maker, Scholar, Student…

Product Features

1. Actual Capacity:  120GB

2. Master control Chip :  JMF608

3. Nand Flash:   29F32B08MCMFx4

4. Firmware Version:      r1.00.090.005

5. SATA performance:   SSD read speed 470MB/s; SSD write speed 100MB/s; 4k random read speed 15MB/s; 4k random write speed 40MB/s

Other Specification

Operating Temperature:  -20℃~70℃

Environment Friendly:   RoHS

Radio Standard:    Fcc & CE &CCC

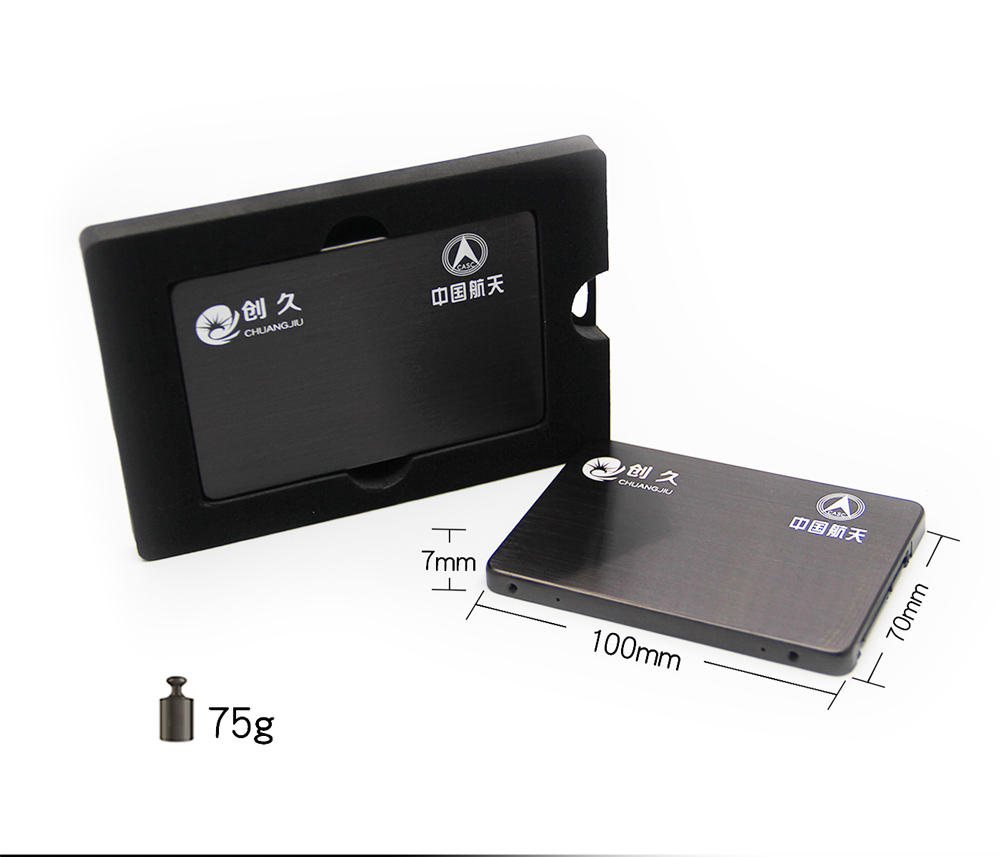

Packing Weight:    75g

Packing Size:    100mm*70mm*7mm

Development Materials

Technical Website:    http://cubieboard.org/

Distribution contacts:    sales@cubietech.com

Technical contacts:    support@cubietech.com
