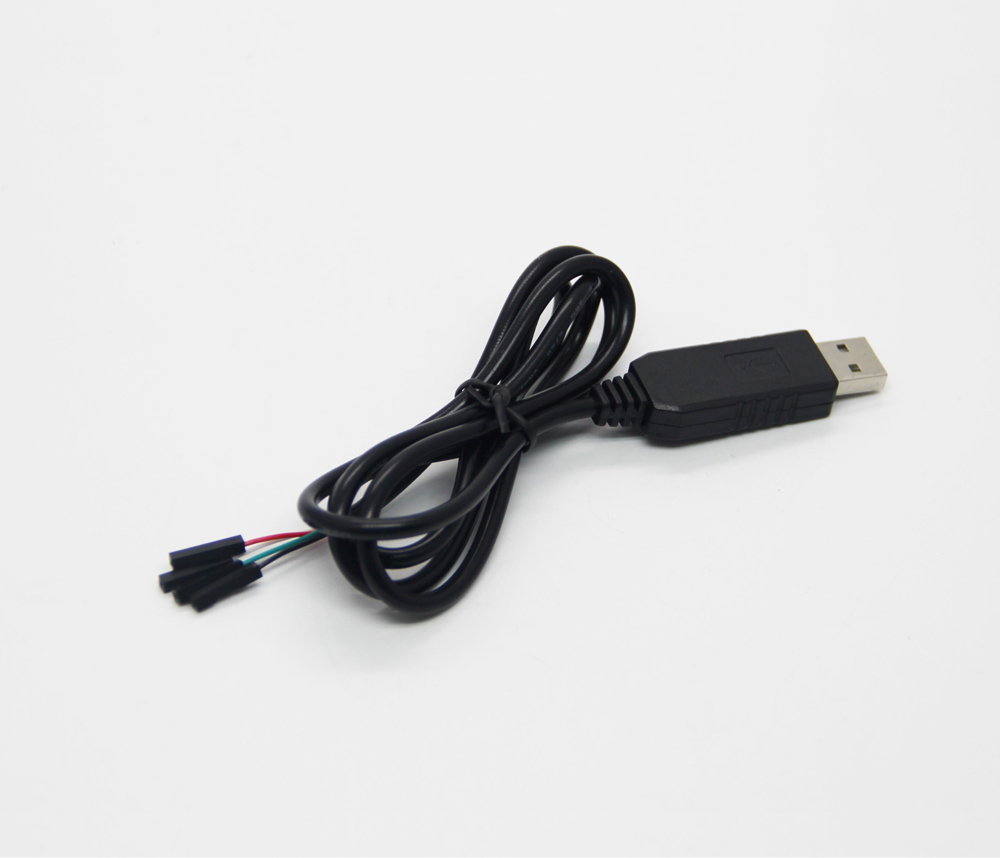

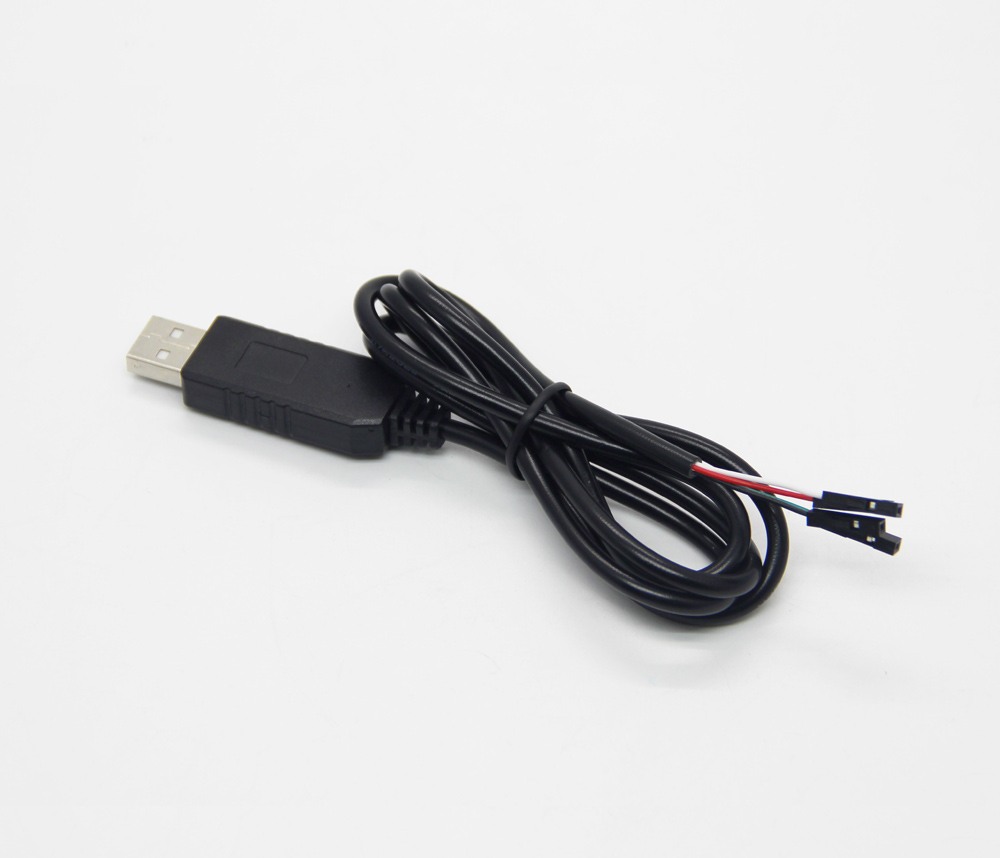

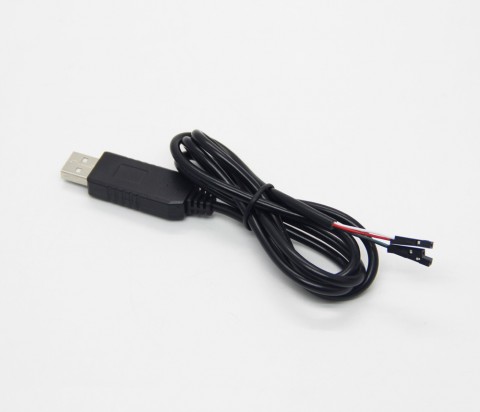

USB UART Cable, usually called USB serial port cable, that is a very common debugging tool in embedded system software development. The tool can redirect a serial console to your PC and you can use any command via it. The terminal can obtain lots of printed information, so that can easily monitoring and debug your Cubieboards or any other embedded boards.

Product Information
Name:          USB UART Cable
Property:   Software open source, Hardware closed, Production materials closed
Owner:         CubieTech Limited
Solution:       PL-2303HX
Target:         Developer, Geek, Maker, Scholar, Student…

Product Introduction

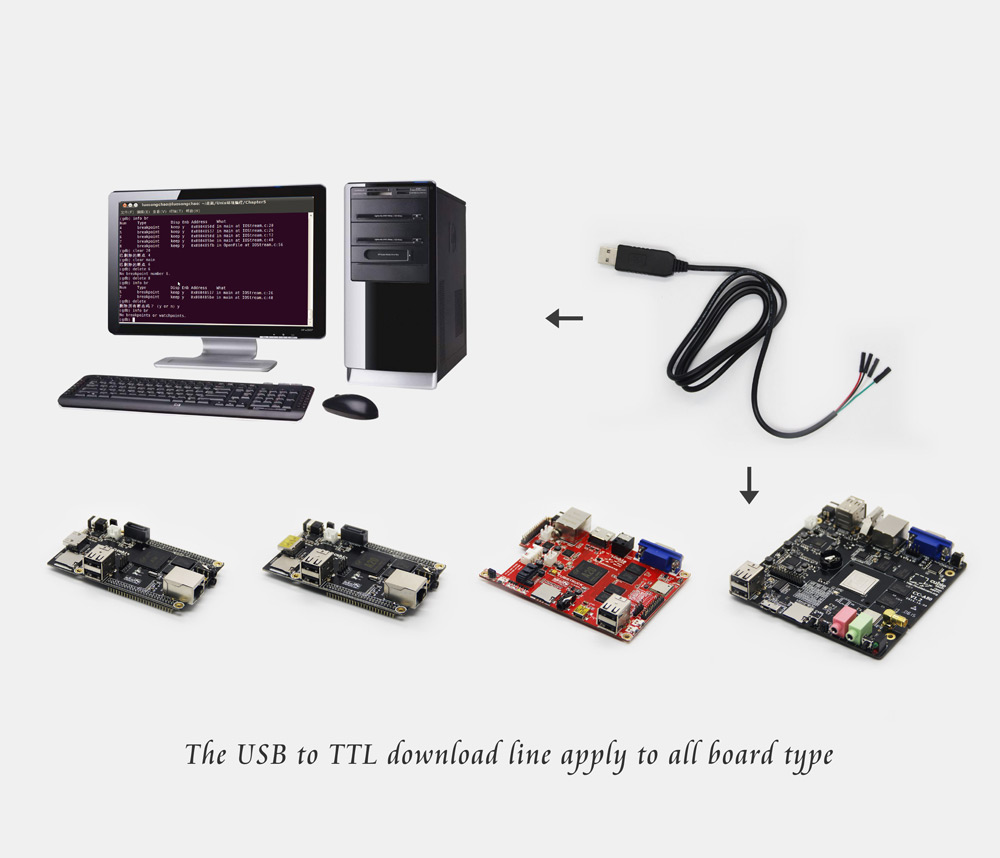

USB UART Cable is common used development tool. It’s not unique tool of Cuieboard. In order to make it easy to use in Cubieboard, we made some documents for the beginners. You just need to try to install the driver and application program on your PC. And learn how to set the UART parameters in the application program.

Product Features

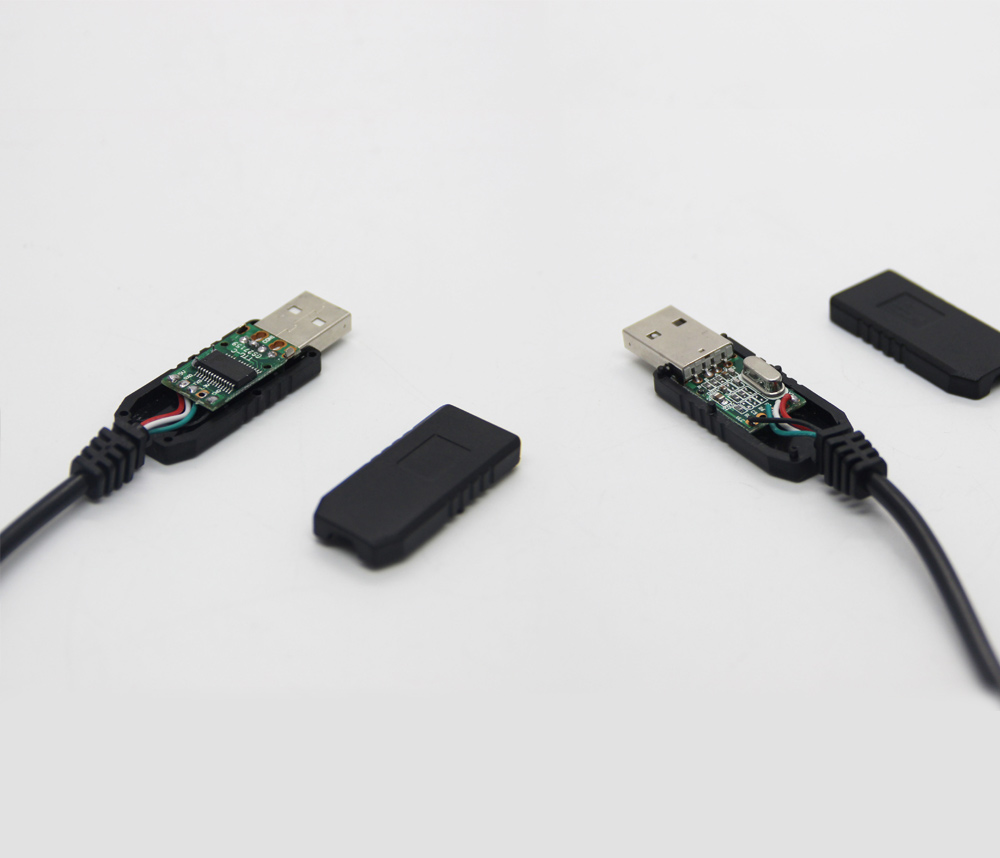

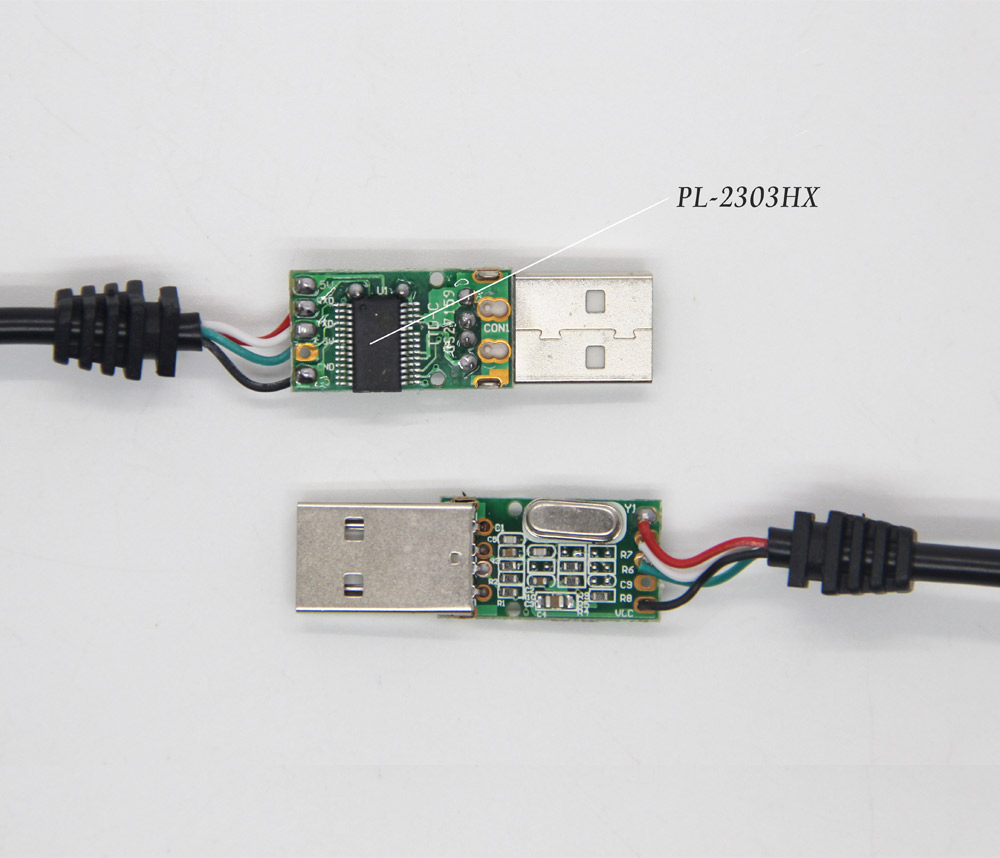

1. Solution:    PL-2303HX
2. USB:          USB male Type A

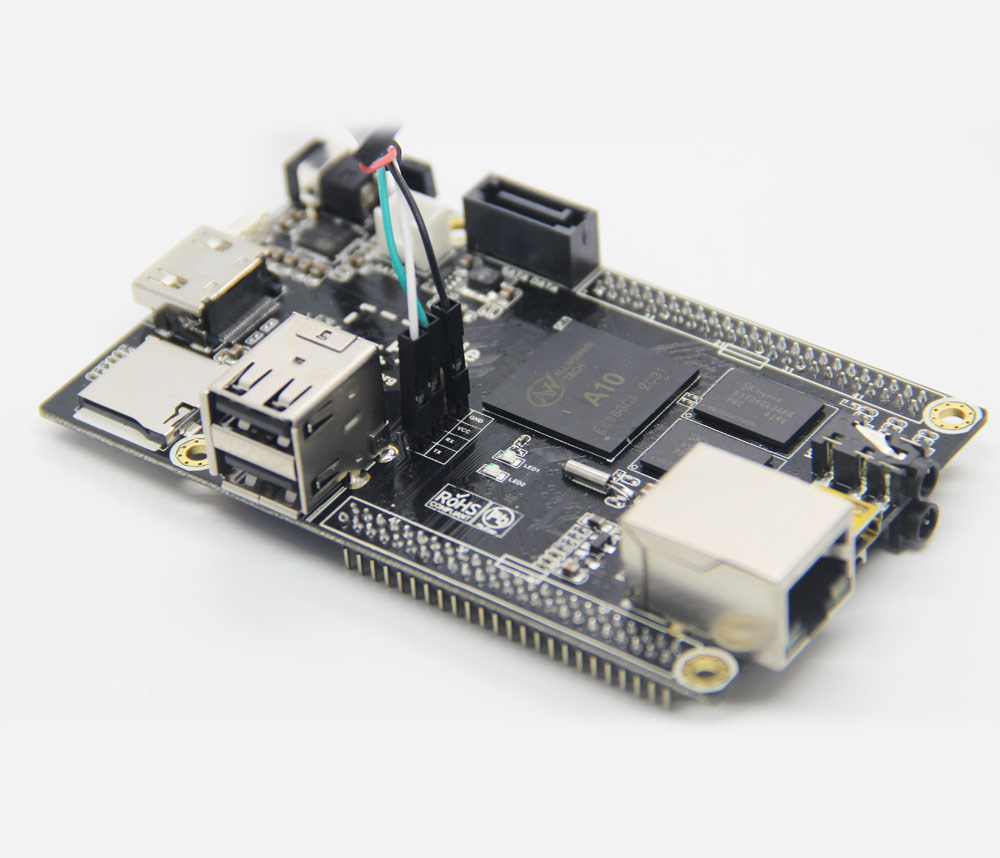

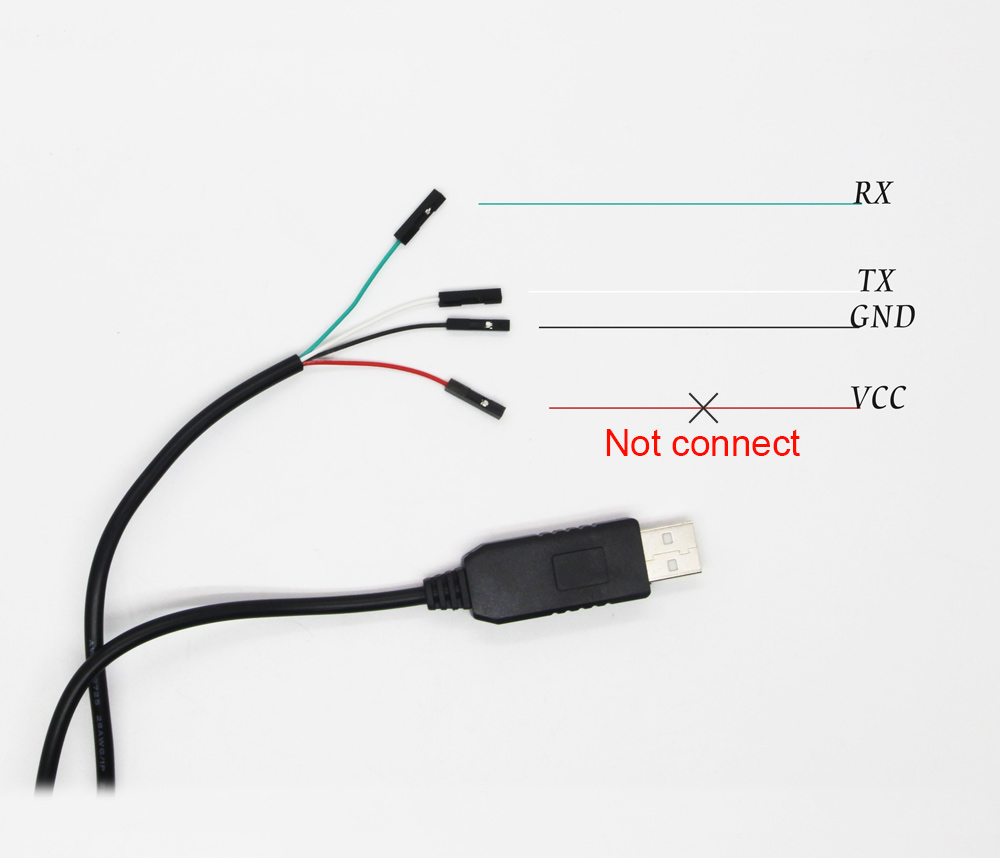

3. Cable:        TX(white), RX(Green), GND(Black), VCC(Red) (Don’t connect VCC with Cubieboard)

Other Specifications
Operating Temperature:      -20℃~70℃
Environment Friendly:         RoHS
Radio Standard:                  Fcc & CE compatible

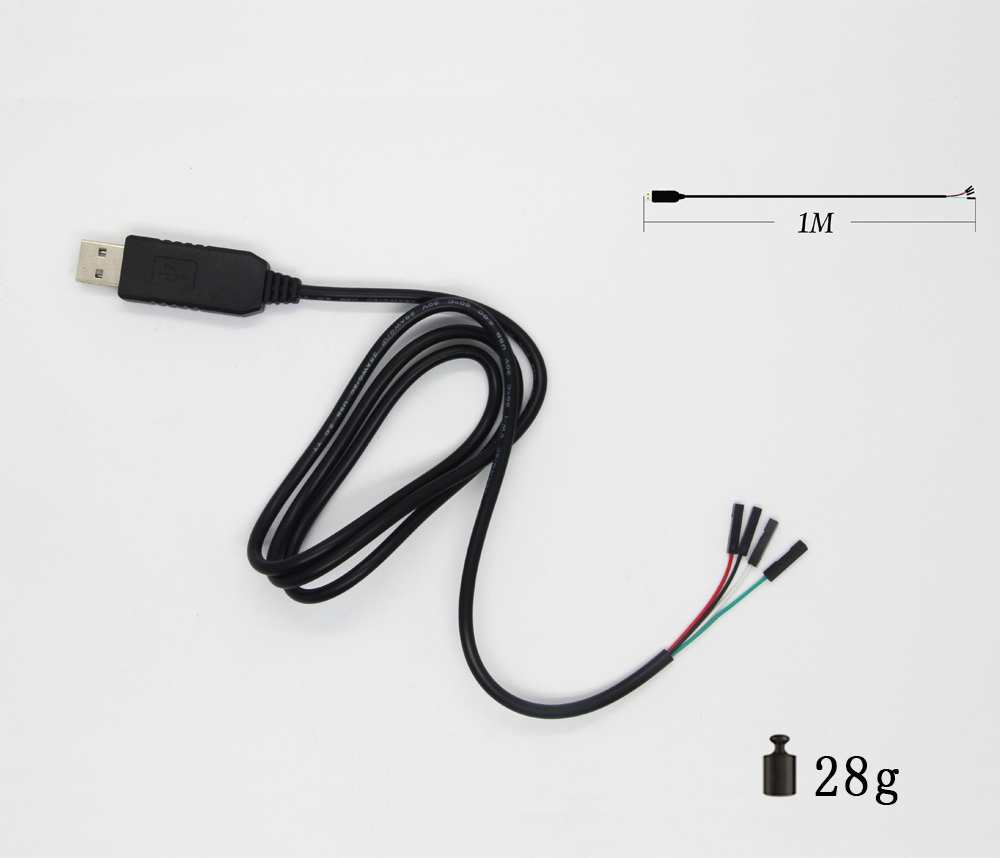

Packing Weight:                  50g
Cable length:                      100cm

Development Materials

Technical Website:               http://cubieboard.org/
Resources and Materials:      http://dl.cubieboard.org/tools/Usb-Uart-Cable/
Distribution contacts:           sales@cubietech.com
Technical contacts:              support@cubietech.com
Distributors:                         http://cubieboard.org/buy/
