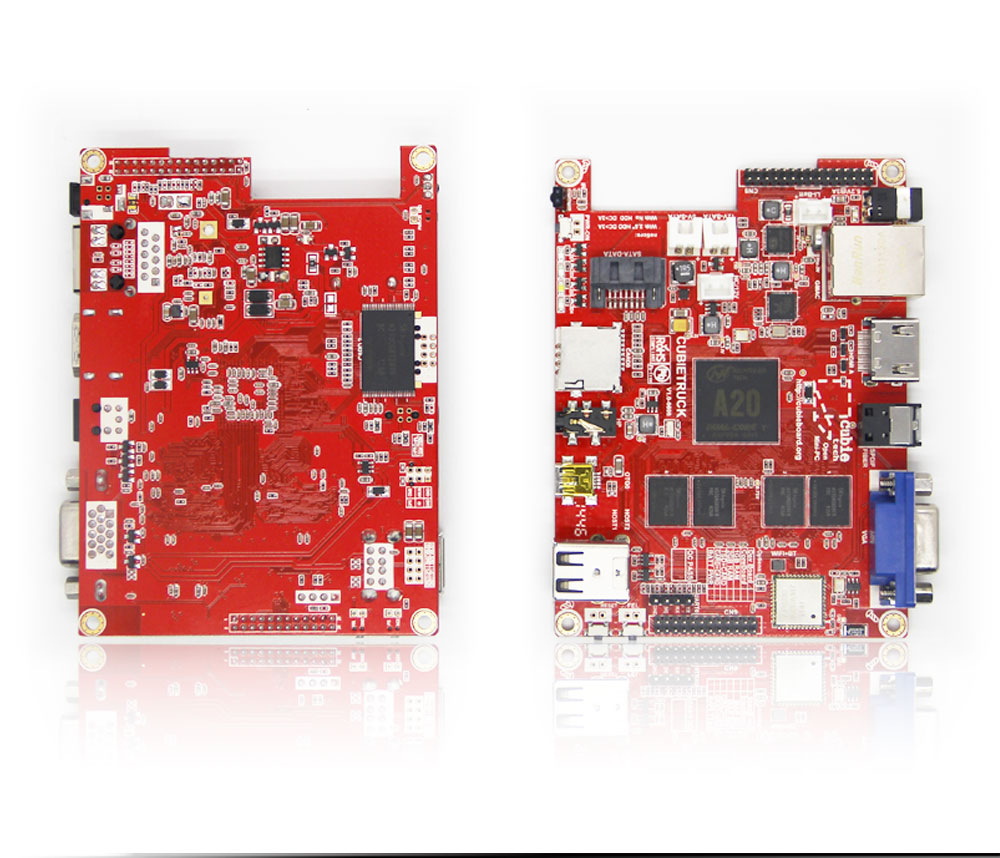

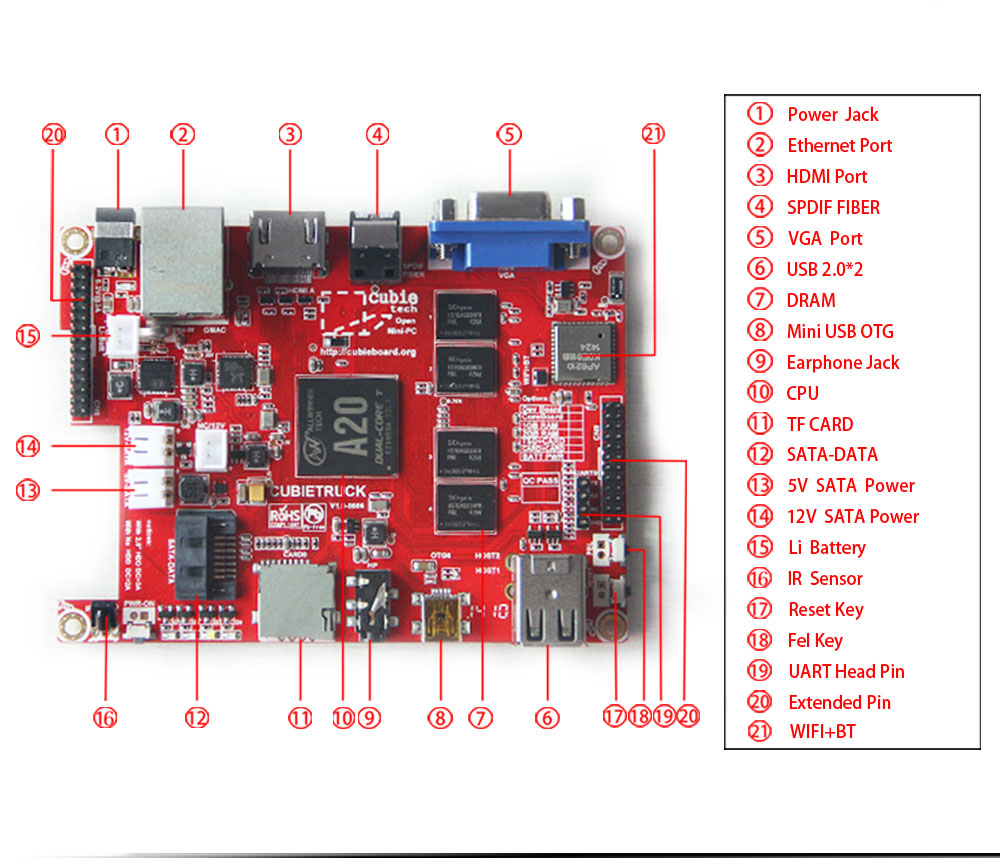

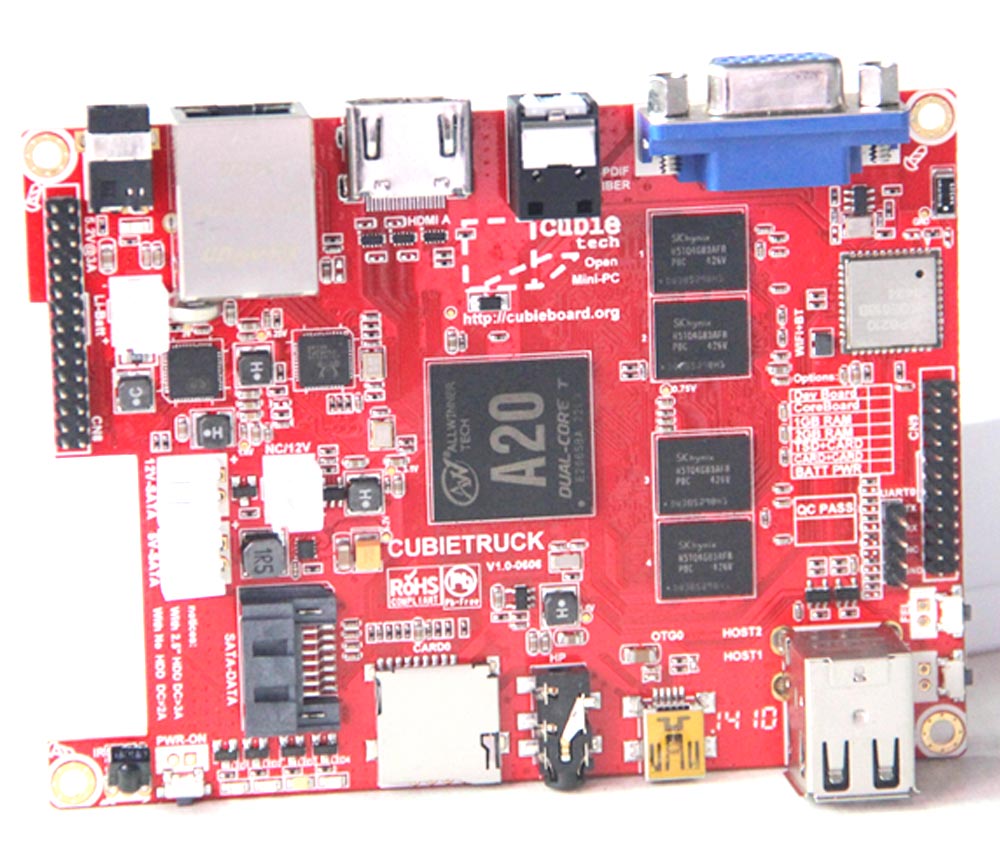

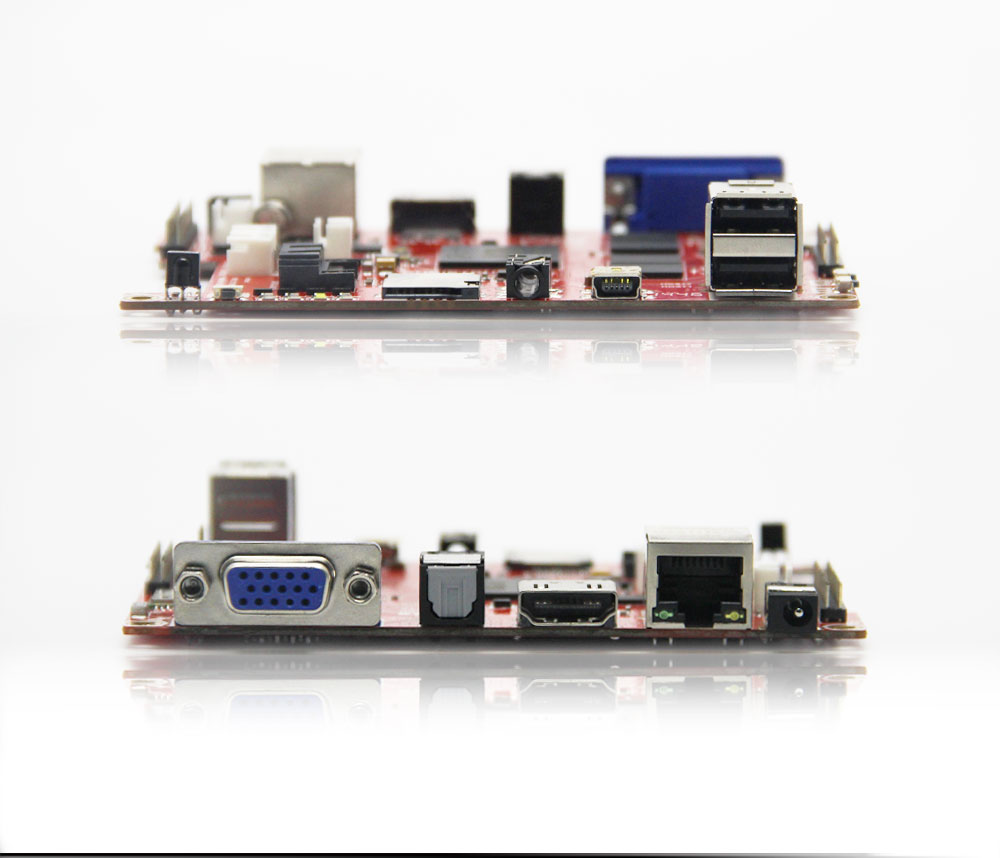

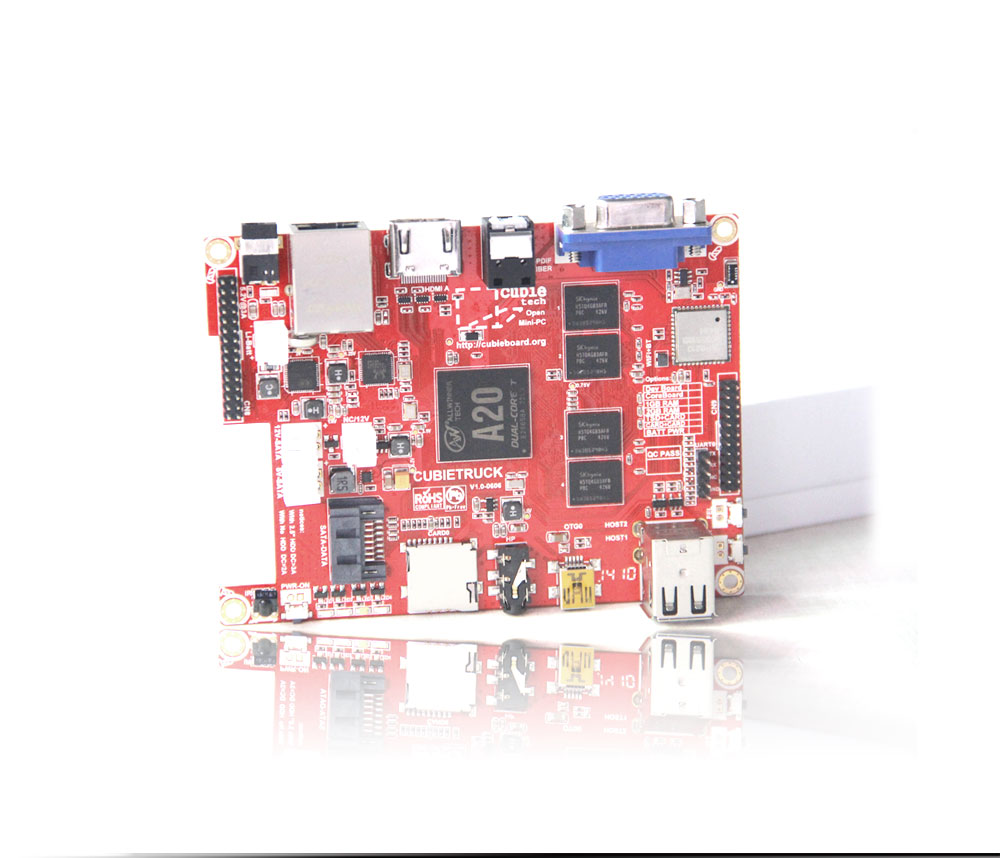

CubieBoard3  which is also named CubieTruck is open source Mini PC or development board especially targets Android household entertainment area and Linux low power mini PC. It has 2 USB host ports, 1 USB OTG port, 1 earphone port, a micro SD card slot, VGA and HDMI display port, optical SPDIF port for HD audio, a 100/1000M RJ45 port, a IR receiver sensor. It has a on board ceramic antenna for WIFI and Bluetooth. It also includes 3 keys for power On/Off, Reset and Reflash the ROM/image. And 4 user Leds are available for indicating some system information.

It is a famous open source hardware. Many open source organizations will support Cubieboard3, such as Android, Unbuntu, Fedora, Dabian, openWrt and so on…

Product Information

Name: Cubieboard3, CB3 for short, Also named CubieTruck as MiniPc
Property: Software open source, Hardware open, Production materials closed
Owner: CubieTech Limited
Chipset: Allwinner technology A20, Arm architecture Cortex-A7 dual core

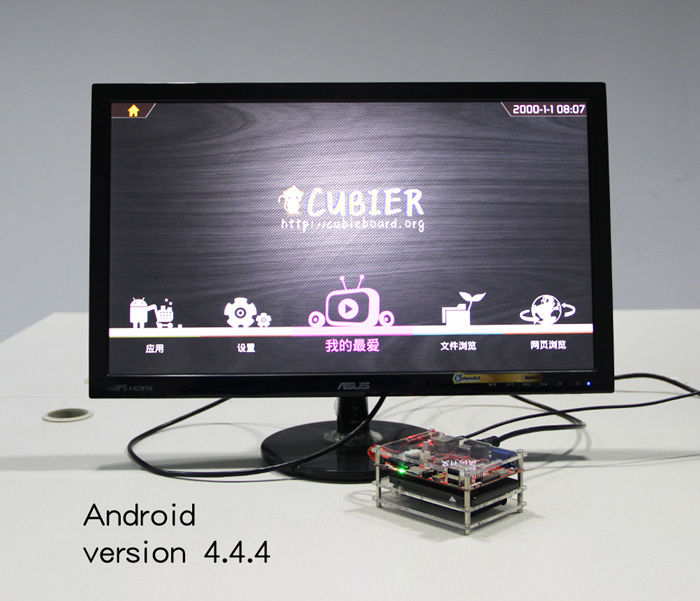

System: Android, Debian, Ubuntu and many other open source distribution…
Target: Developer, Geek, Maker, Scholar, Student…

Product Introduction

Cubieboard3 is the 3rd generation product of Cubieboard series from Cubietech Limited. CubieBoard is open source hardware which targets Developer, Geek, Maker…It’s a new PCB model adopted with Allwinner A20 main chip just like Cubieboard2. But it is enhanced with some features, such as 2GB DDR3 memory, VGA display port on-board, 100M/1000M RJ45, WIFI+BT on-board, support Li- Po battery and RTC battery, SPDIF audio interface.

It’s not only for development, but also can used in various areas like other MiniPc products. Thanks to its rich interfaces, low costs, and good open source support ambient, more and more developers can benefit based on it and would like to do lots of promotion work for it.

It’s famous open source hardware, Cubietech official team will continually maintain Android, Debian, Debian Server operating systems. Many other open source distributions would support it as well.

Linux kenel mainline stream supports it as standard device. We are pleased to participate the community and promote them growing continuously…

Product Features

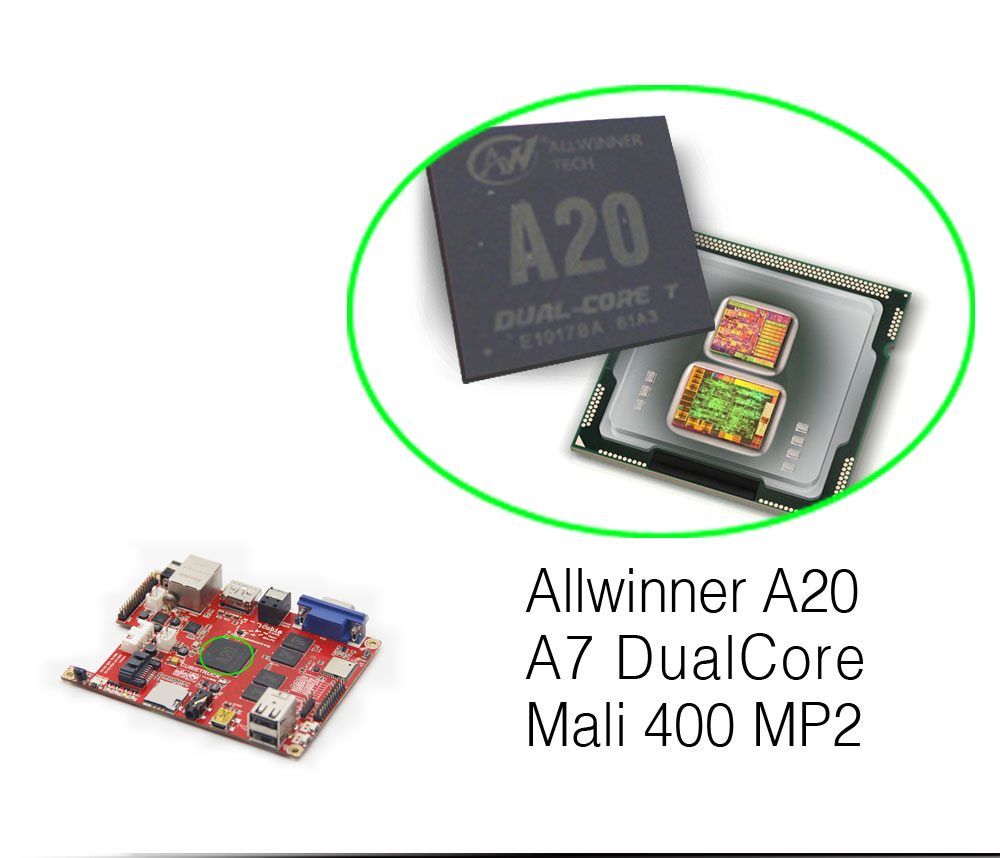

1. AllWinner SOC A20,ARM® Cortex™-A7 Dual-Core,ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1

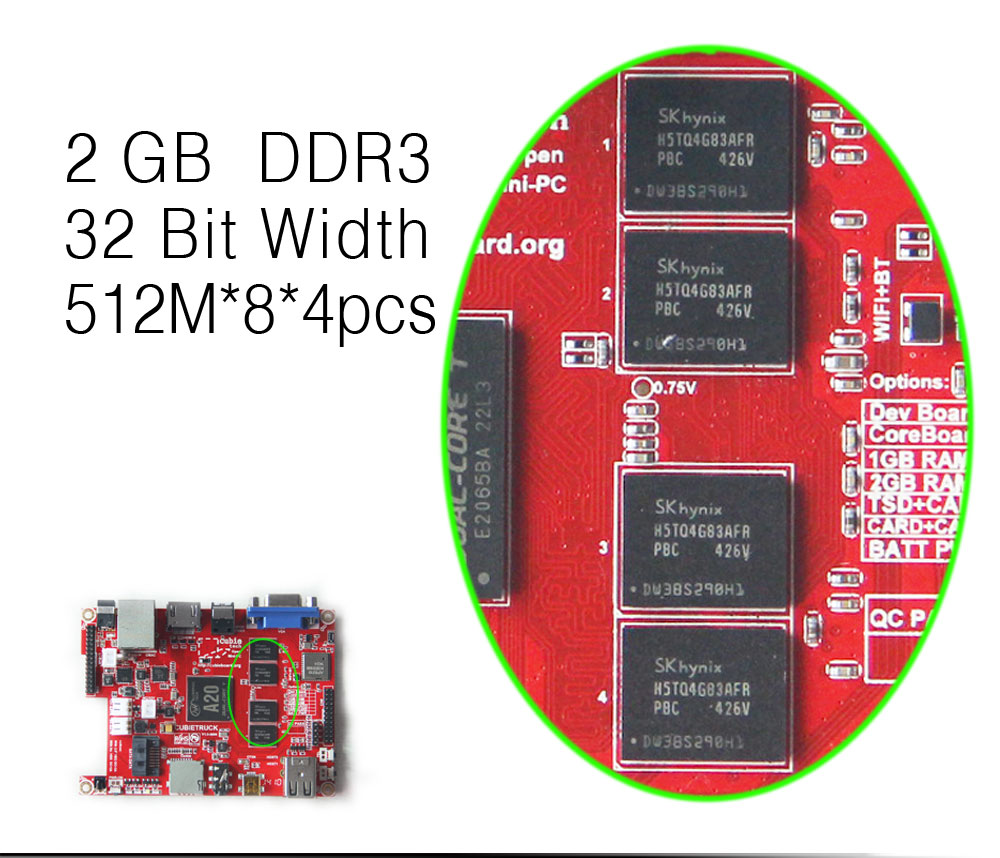

2. 1GB/2GB DDR3@480MHz (960MTPS),

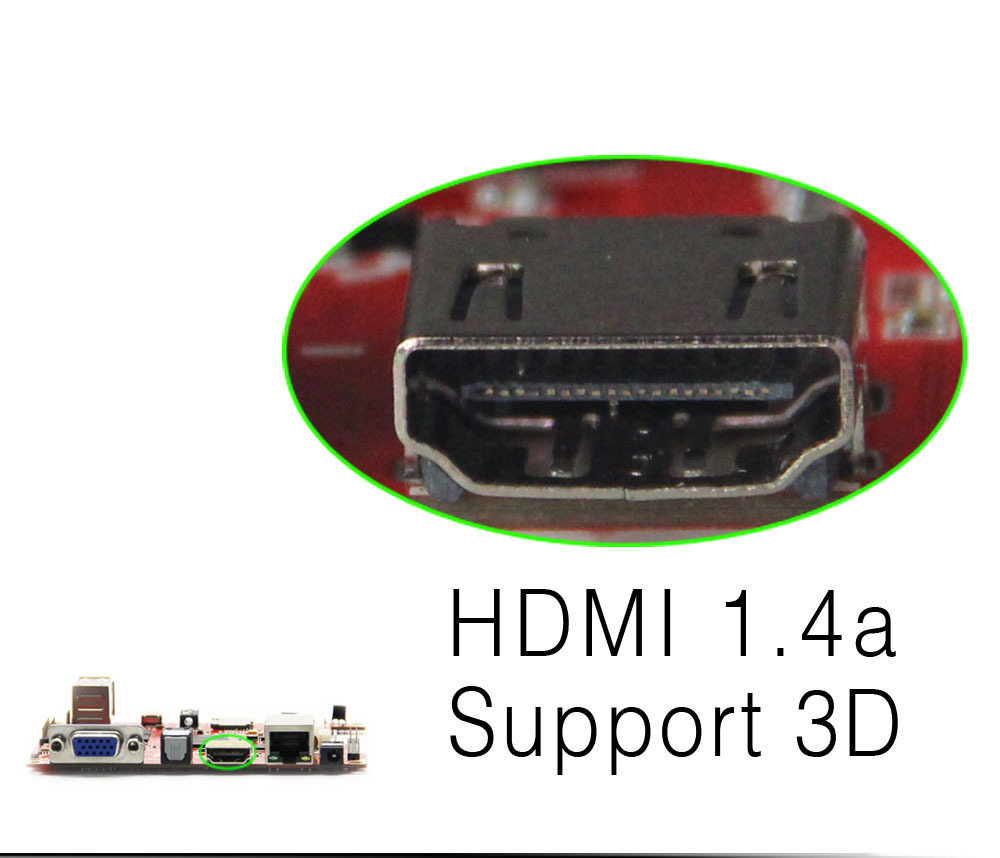

3. HDMI&VGA 1080P@60Hz display output

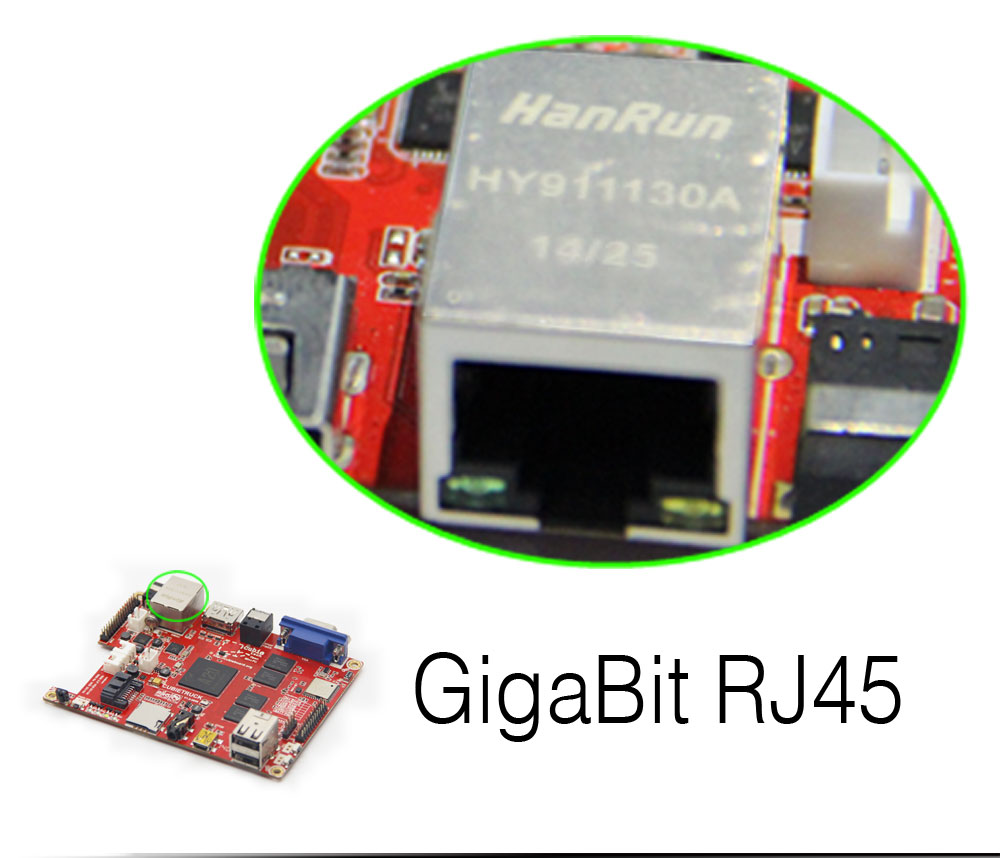

4. 100M/1000M Ethernet RJ45

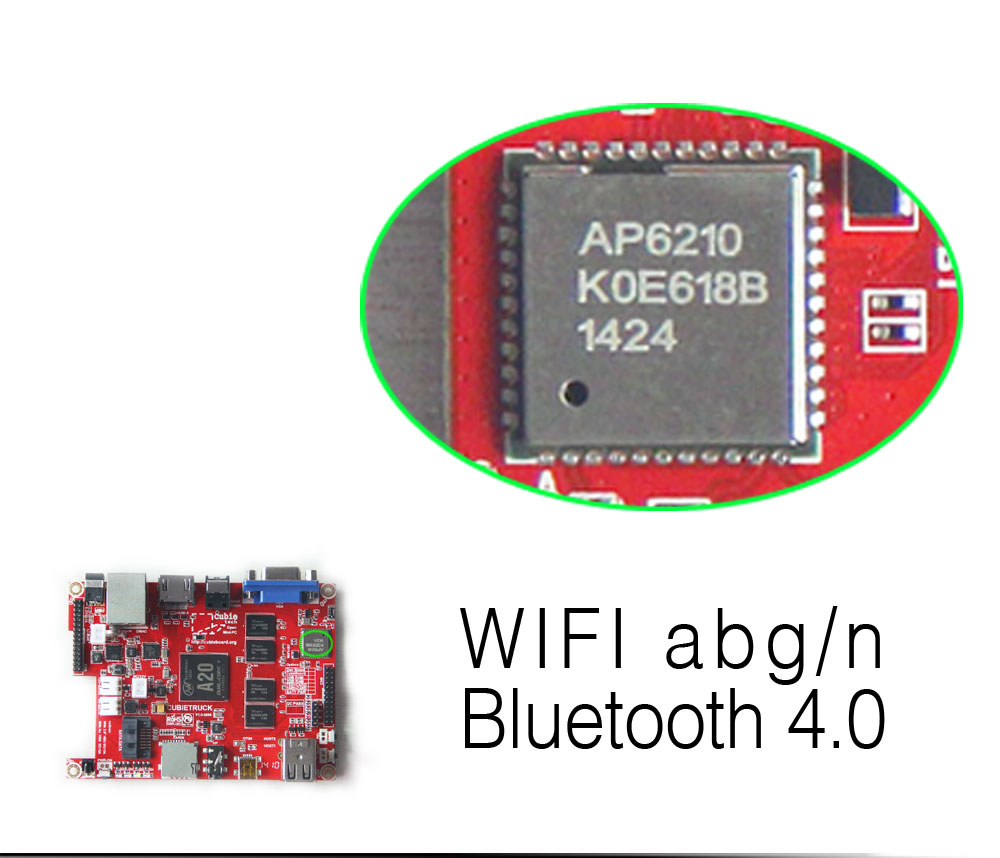

5. Wifi+BT4.0 wireless connection with antenna on-board

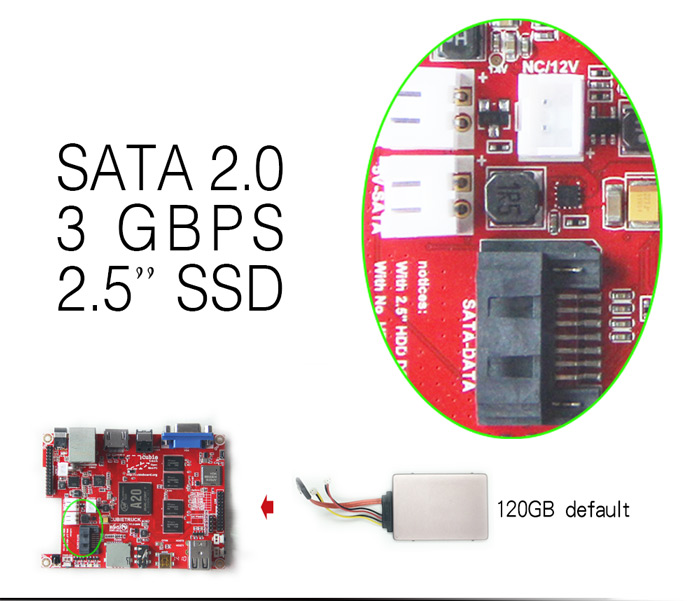

6. SATA 2.0 interface support 2.5’ HDD,(for 3.5’ HDD, need another 12V power input)

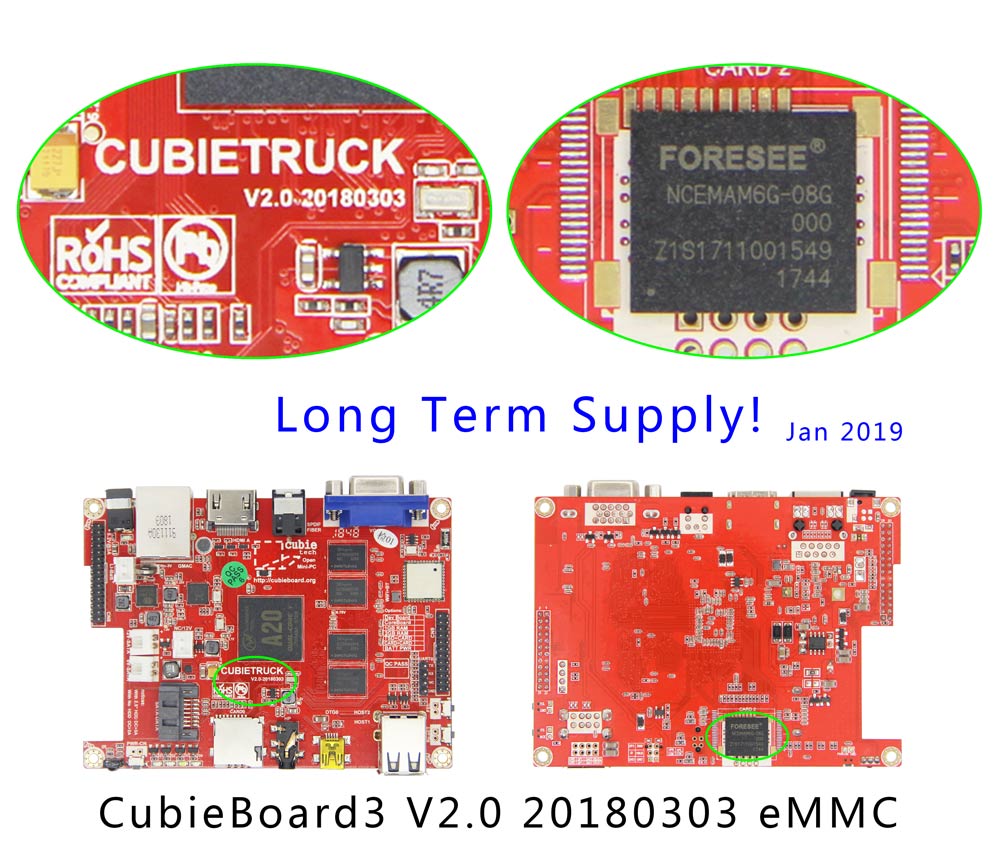

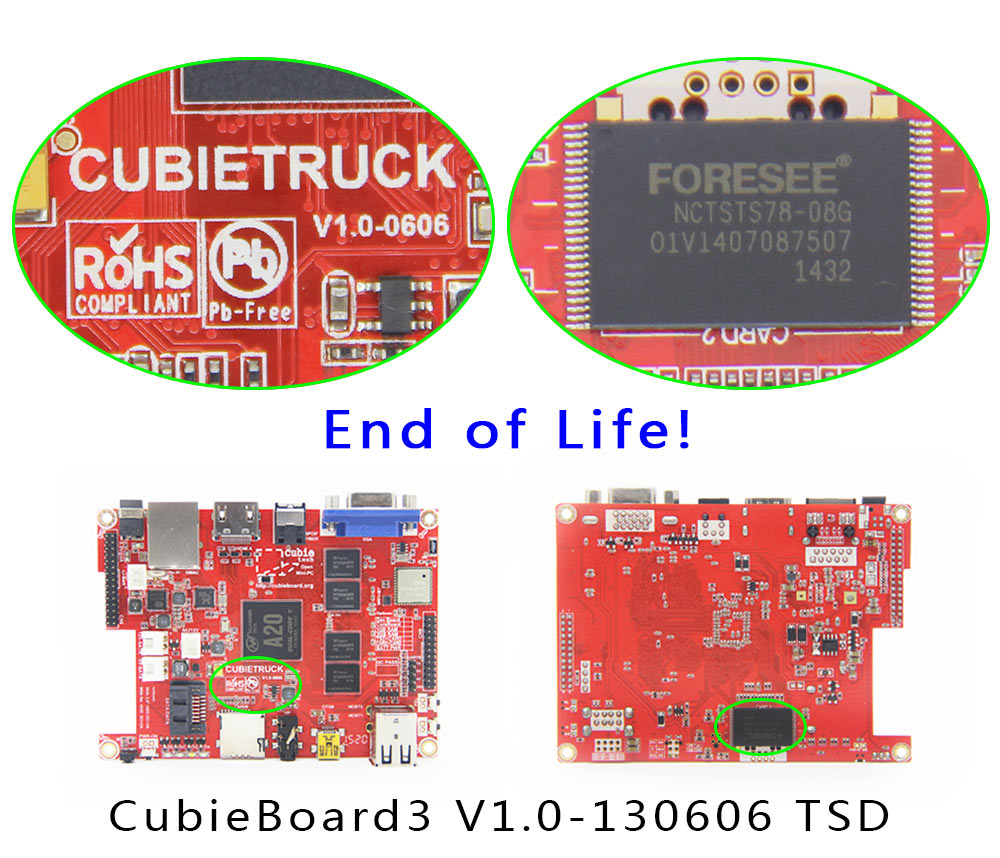

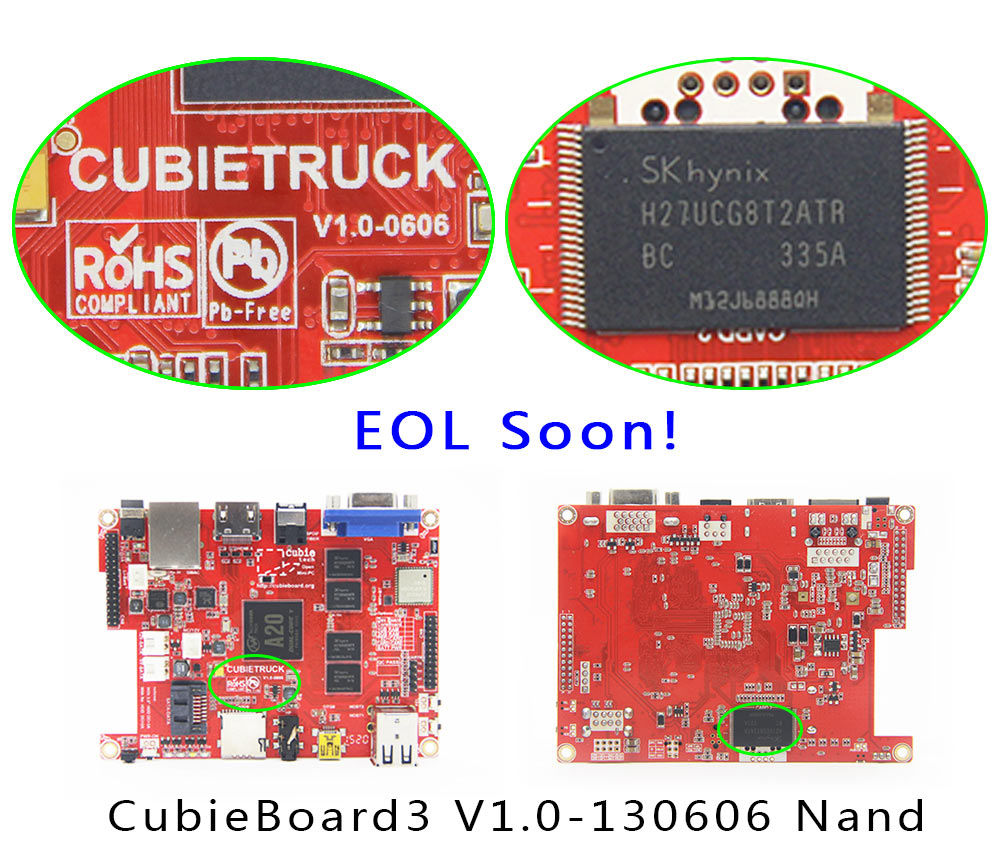

7. Storage solution:NAND Flash +MicroSD card slot / TSD + MicroSD card slot / 2*MicroSD card slot
8. 2 x USB HOST,1 x OTG,1 x Toslink (SPDIF Optical),1 x IR,4 x LEDs,1 Headphone,3 x Keys
9. Power:DC5V @ 2.5A with HDD,support Li-battery & Real Time Clock battery

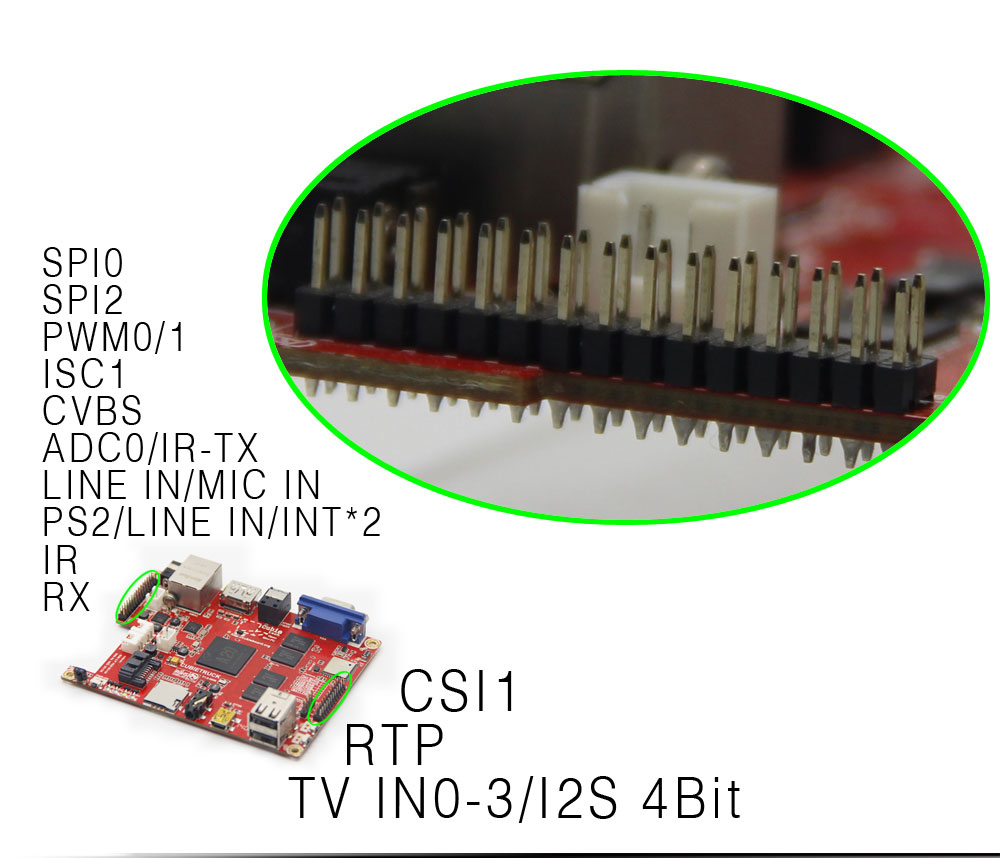

10. 54 extended pins including I2S, I2C, SPI, CVBS output, Low Resolution ADC x2,UART, PS2, PWMx2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVIN analog video signal input x4 with 2.0mm pitch header pins

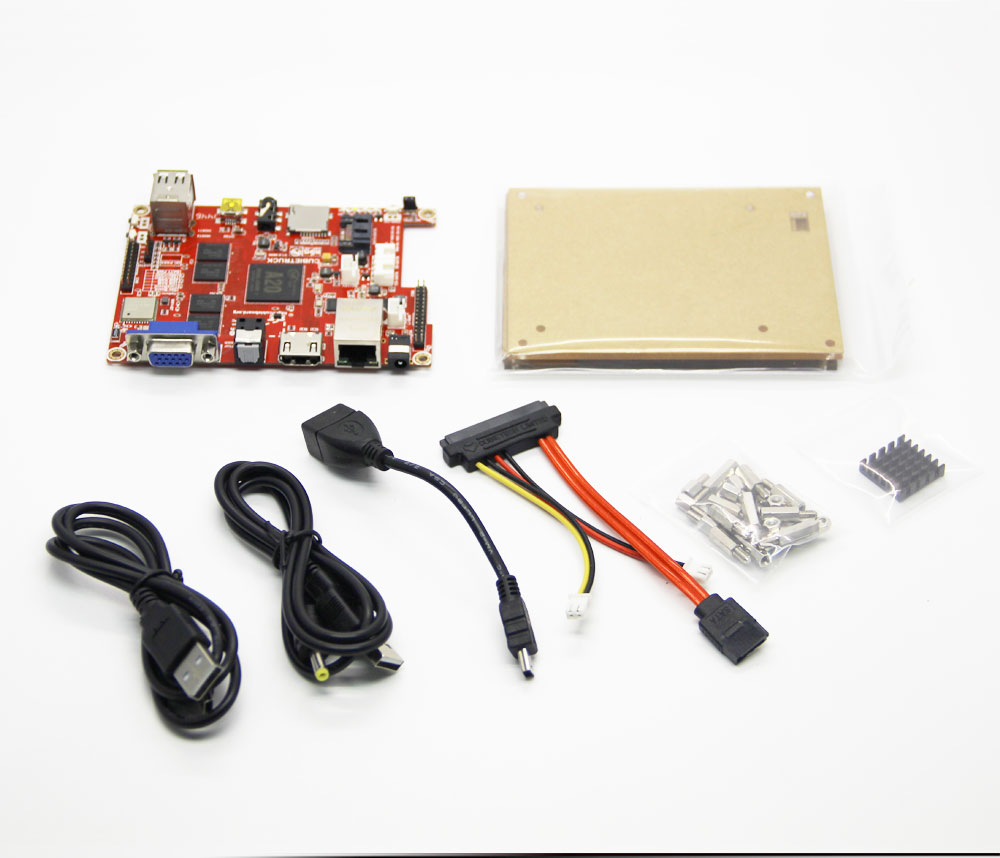

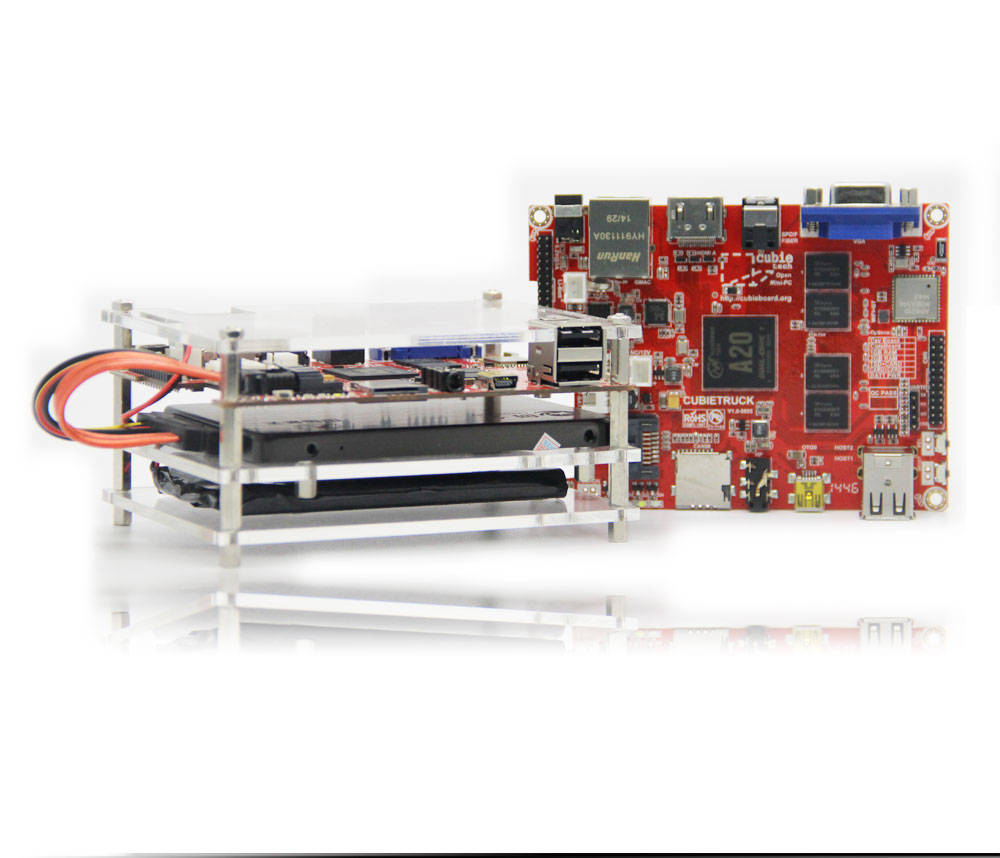

11. It’s suitable for installing a 2.5’ HDD/SSD within the enclosure


Other Specifications

Operating Temperature: -20℃~70℃
Environment Friendly: RoHS
Radio Standard:  Fcc & CE compatible

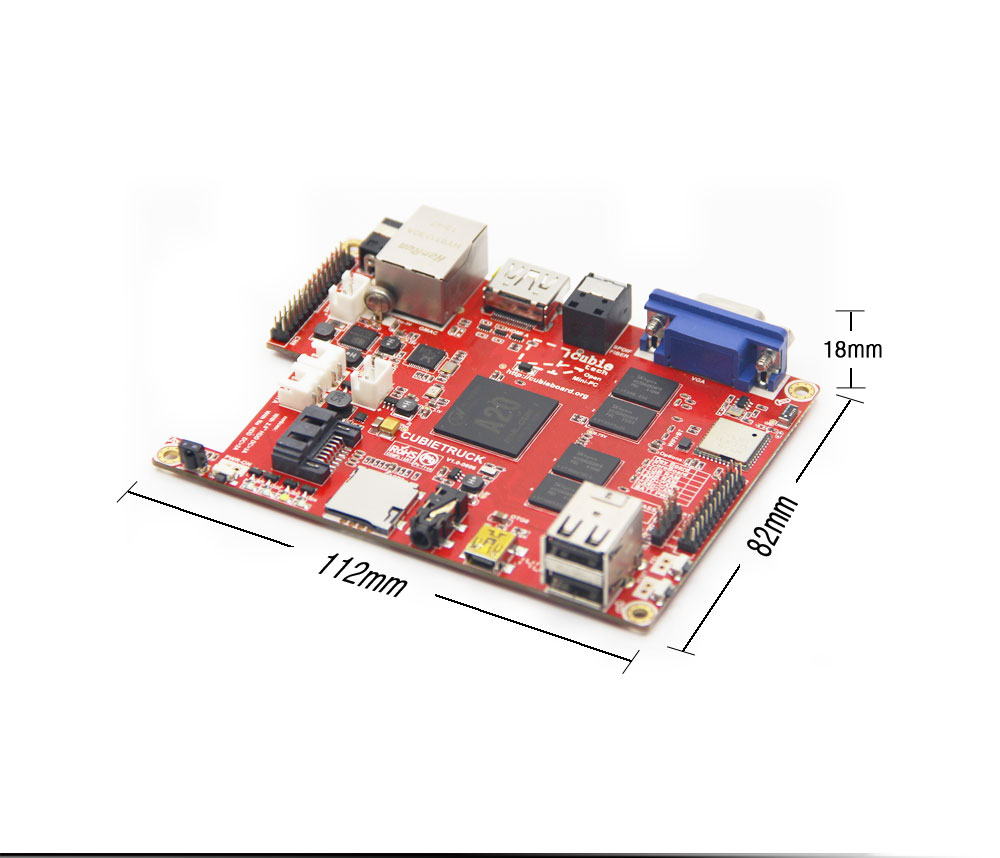

Board Size: 112mm*82mm*18mm

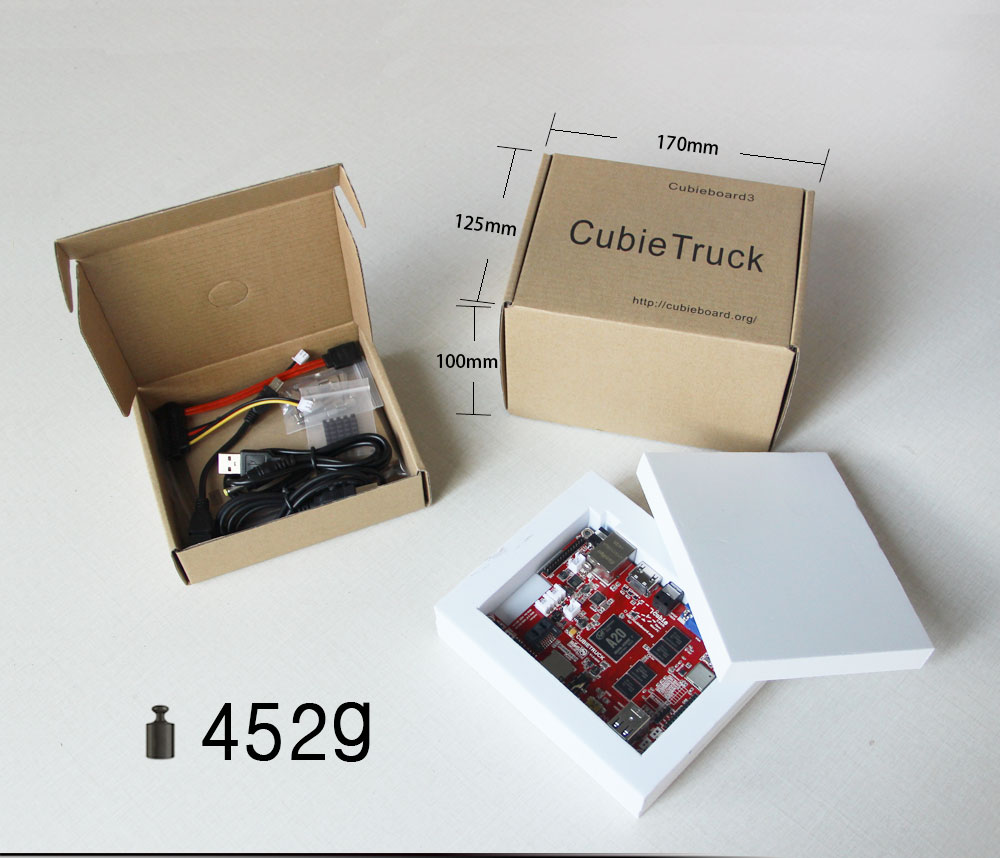

Packing Weight: 452g
Packing Size:  170mm*125mm*100mm

Development Materials

Technical Website:  http://cubieboard.org/
Resources and Materials: http://cubieboard.org/model/cb3/
Resources and Materials: http://dl.cubieboard.org/model/CubieBoard3/
Distribution contacts: sales@cubietech.com
Technical contacts: support@cubietech.com
Distributor: http://cubieboard.org/buy/
