SKU: 10000 Category:


         Cubieboard5 is the 5rd generation product of CubieBoard series from Cubietech Limited Company, and it’s the updated version of CubieBoard3. Thanks to Allwinnertech’ H8 SOC, Compared with CubieBoard3 the performance has been increased by 4 times. CubieBoard5 is open source hardware, single board computer, or development board which targets Developers, Geeks, Makers, Students…

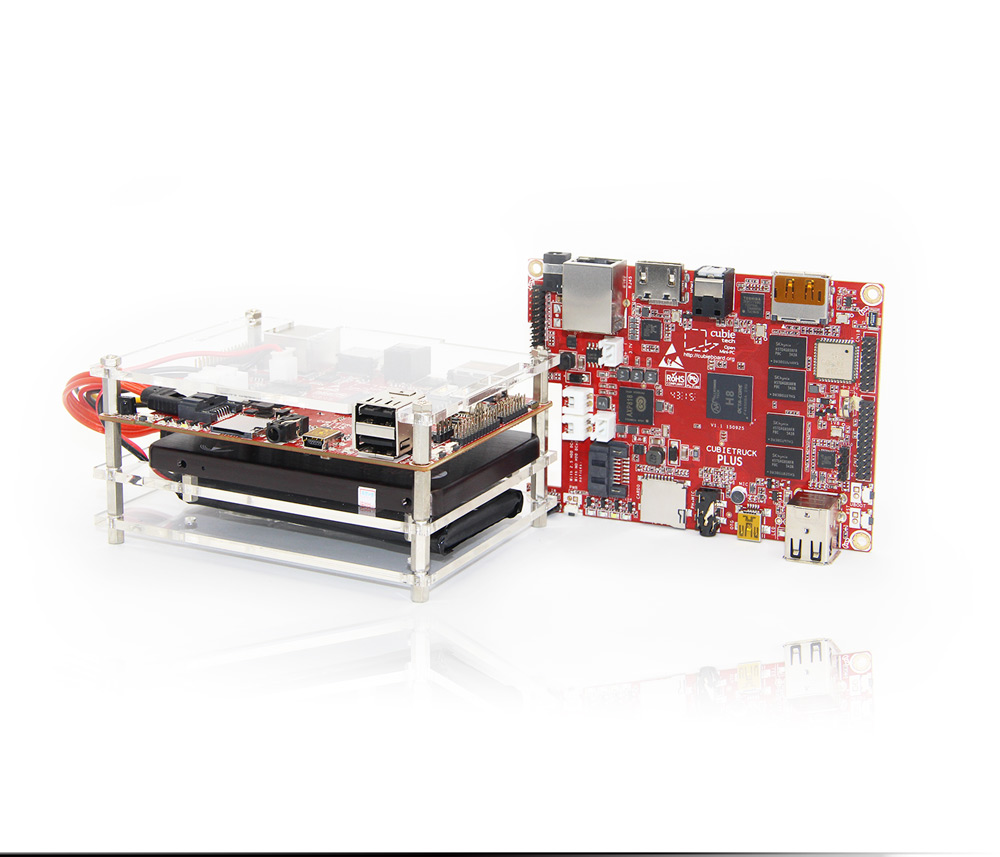

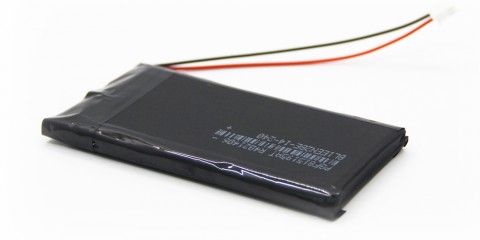

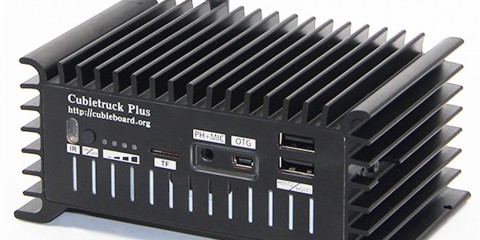

         CubieBoard5 is also can be used as low power industry computer in all works of life since we have designed a very sturdy and durable metallic enclosure for it which named CubieTruck Plus Metal case. In this case, not only the CubieBoard5 main board can be installed, but also the 2.5 inch HDD/SSD and 5300mAh Li-Po battery. With the HDD and battery, the CubieBoard5 is more suitable for industry applications.
         Because of open source strategy of our company, the CubieBoard5’s application space is more flexible, and the ecology is more perfect.
Product Information
Name:     Cubieboard5, CB5 for short, Also named CubieTruck plus as MiniPc
Property:  Software open source, Hardware open, Production materials closed
Owner:    CubieTech Limited
Chipset:   Allwinner technology H8, Arm architecture Cortex-A7 octa-core SOC

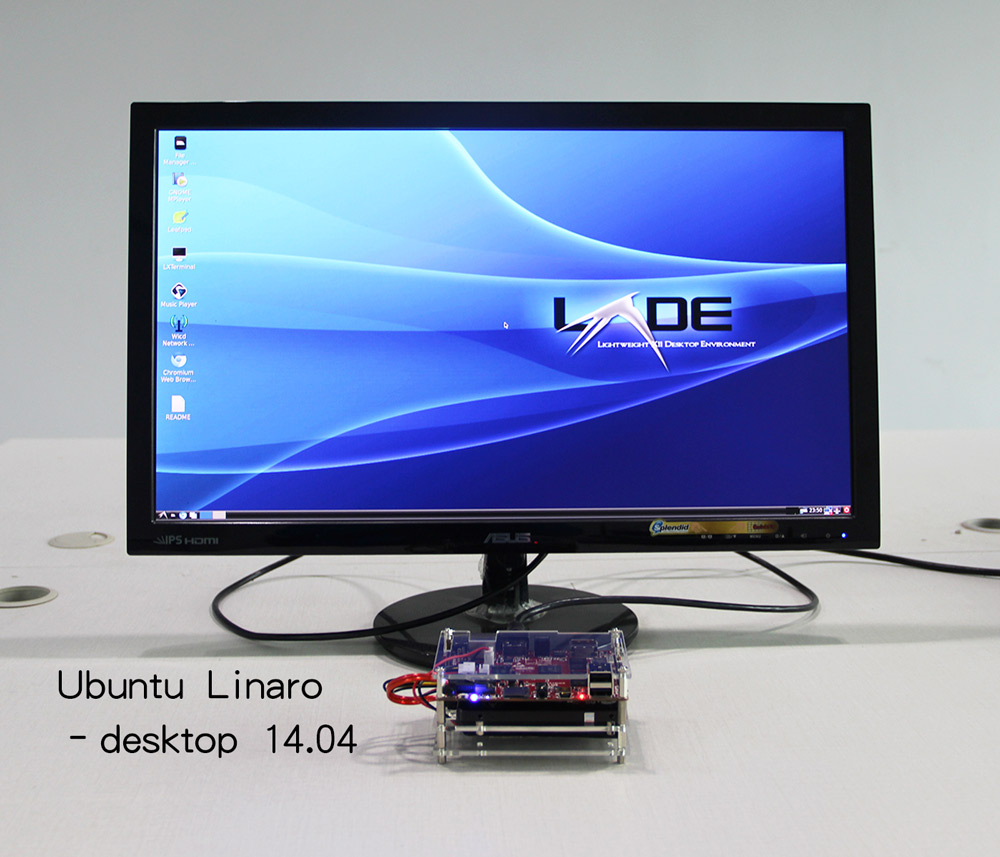

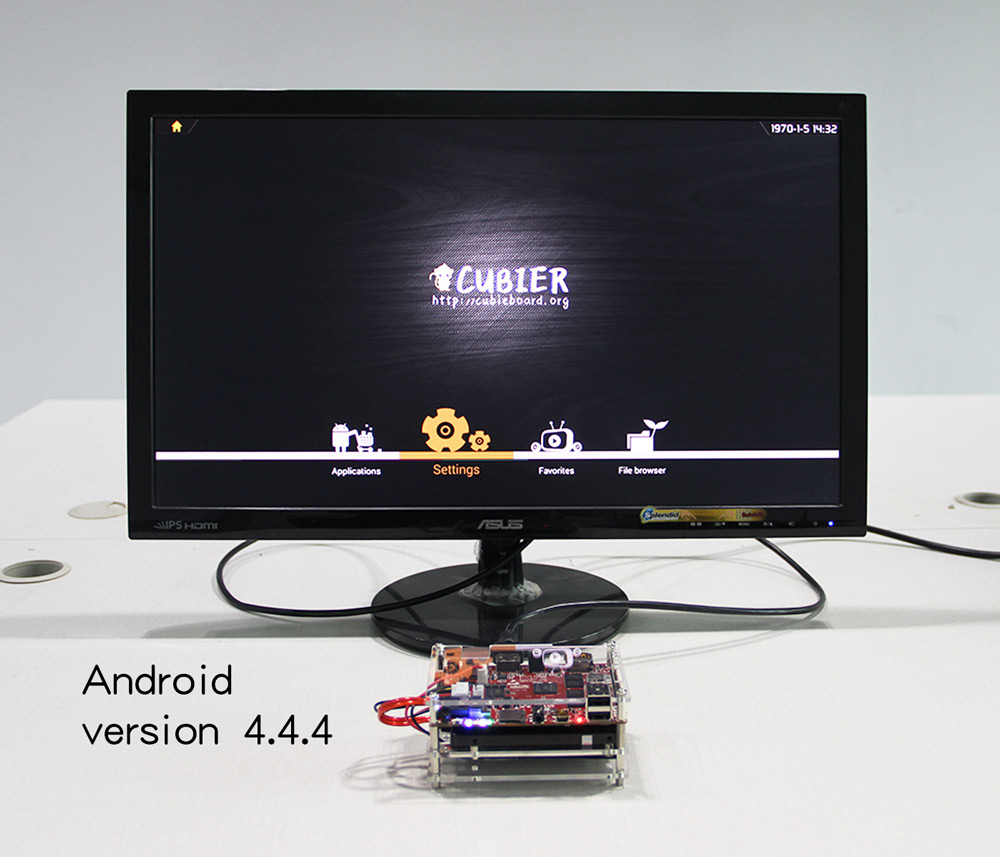

System:   Android, Ubuntu and many other open source distribution…
Target:     Developer, Geek, Maker, Scholar, Student…
Product Introduction

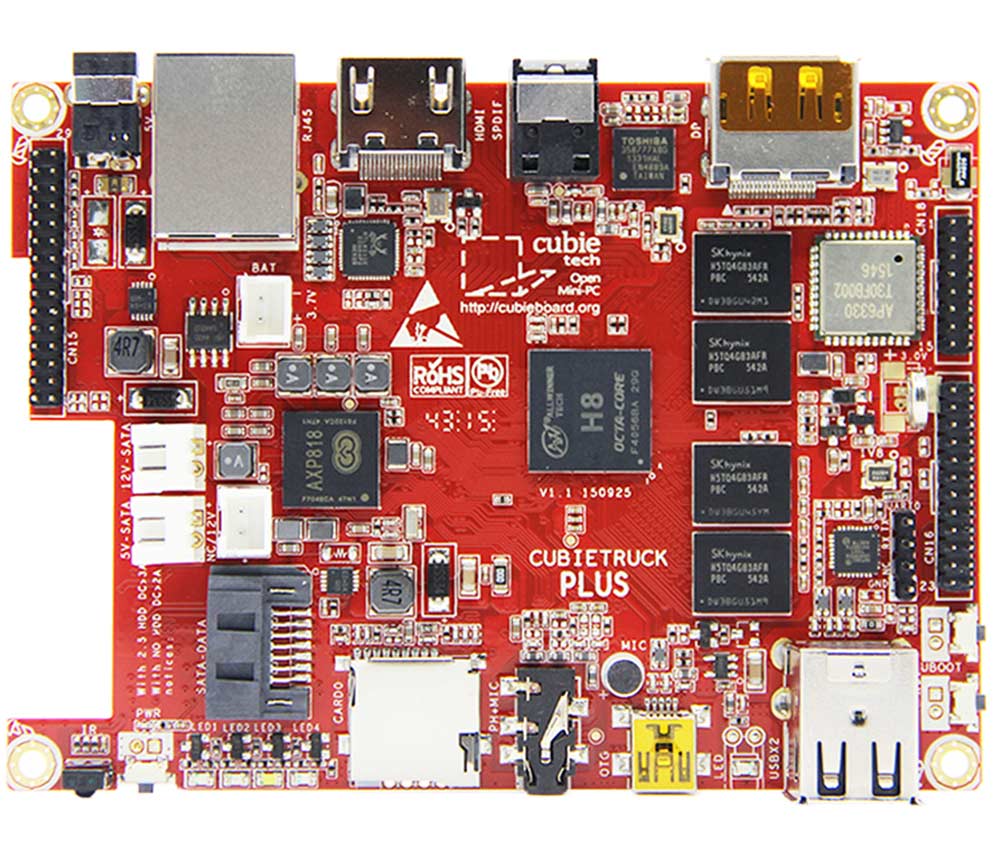

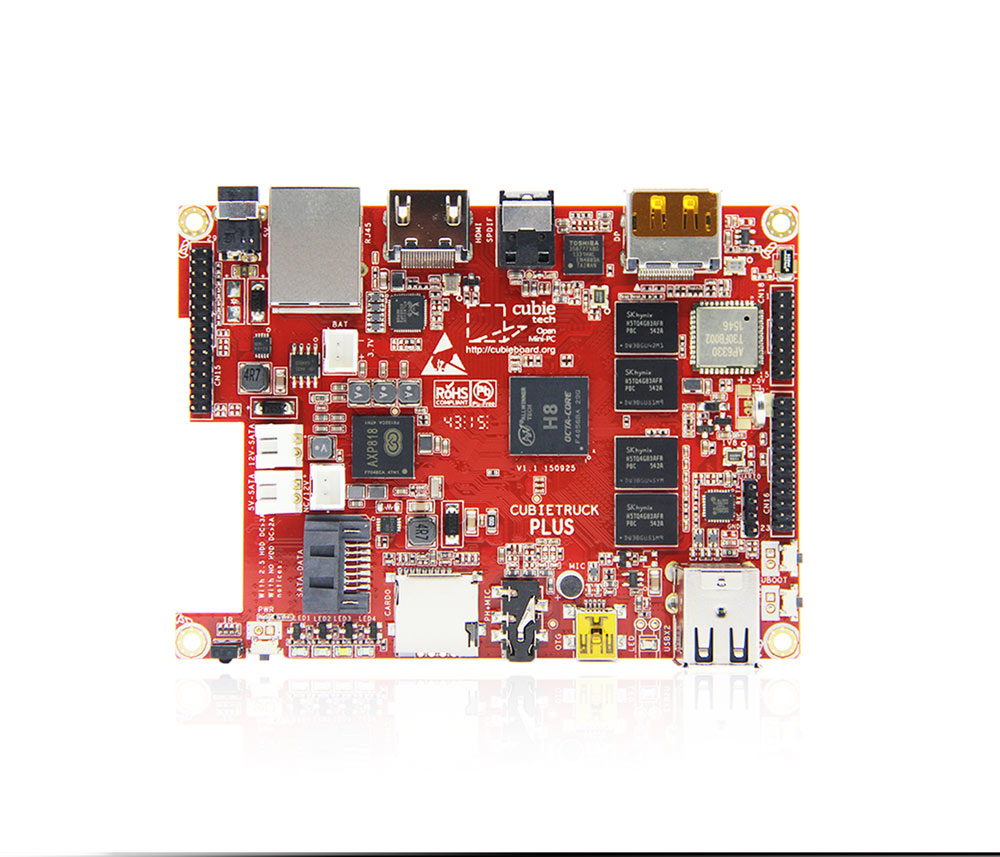

    Cubieboard5 is the updated version of CubieBoard3 open source hardware. It’s a new PCB model adopted with Allwinner H8 main chip. And it is enhanced with some features, such as 2GB DDR3 memory, DP display port on-board, 100M/1000M RJ45, WIFI+BT on-board, support Li-battery and RTC battery, SPDIF audio interface.

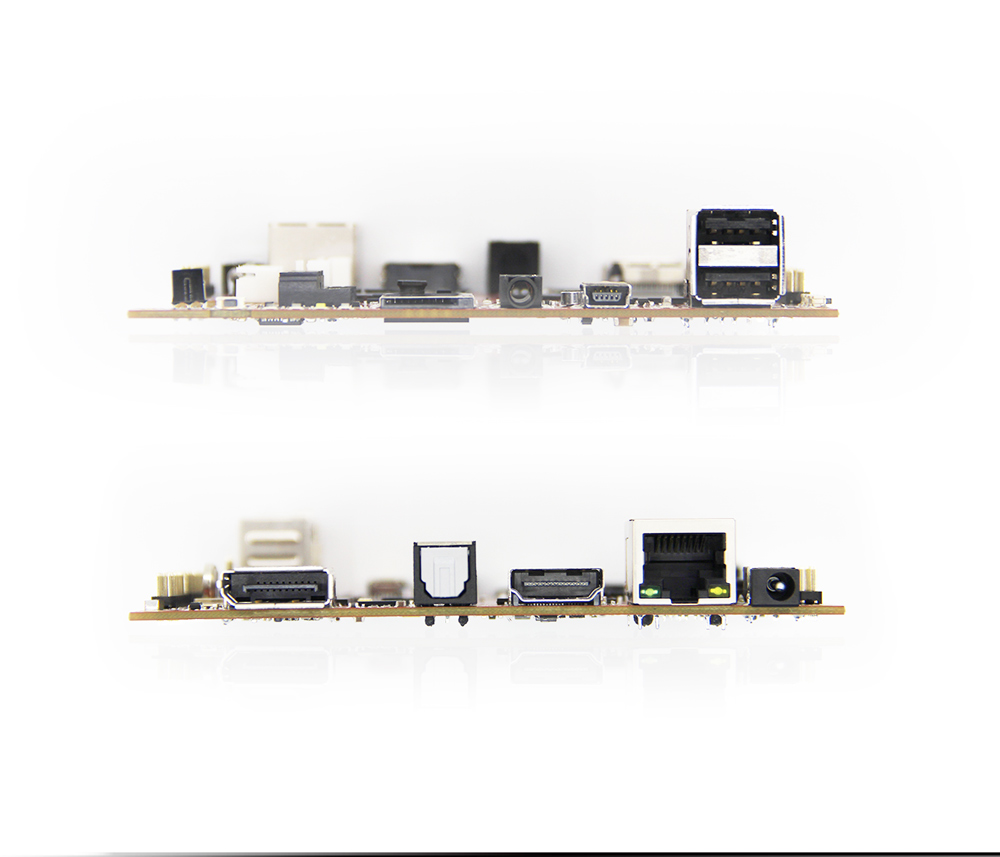

    It’s a standard single board computer and has the matching features with the X86 personal computer, such as RJ45, USB hosts, SATA Port, HDMI&DP, Audio in&out interface. Furtherly, CubieBoard5 main board integrates some mobile device features, such as micro SD card slot, Wifi&BT feature, battery as power source character. And lots of expansion pins are broken out for development, there are I2S, I2C, SPI, ADC, UART, PS2, PWM, CSI, TVIN…
     It’s not only for development, but also can used in various areas like other MiniPc products. Thanks to its rich interfaces, low costs, and good open source support ambient, more and more developers can benefit based on it and would like to do lots of promotion work for it.
Product Features

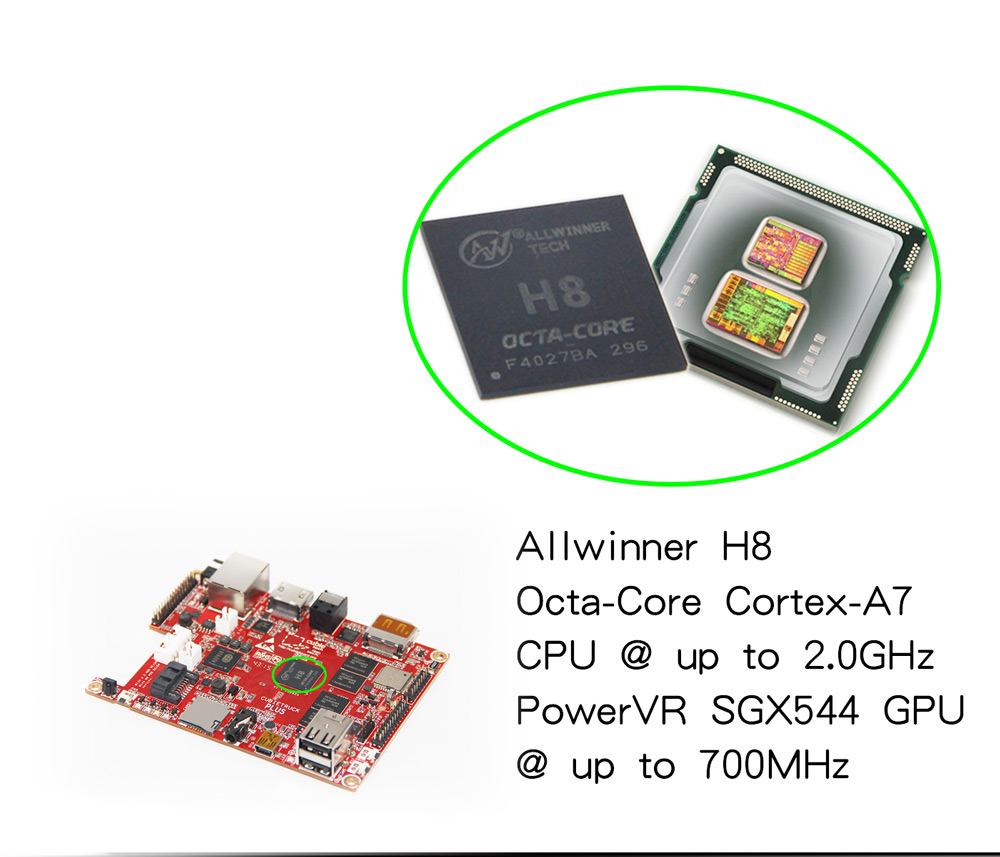

1. AllWinner SOC H8,ARM® Cortex™-A7 Octa-Core,PowerVR SGX544 GPU @ up to 700MHz Supports  OpenGL ES 2.0/1.1, OpenCL 1.1, DX 9_3

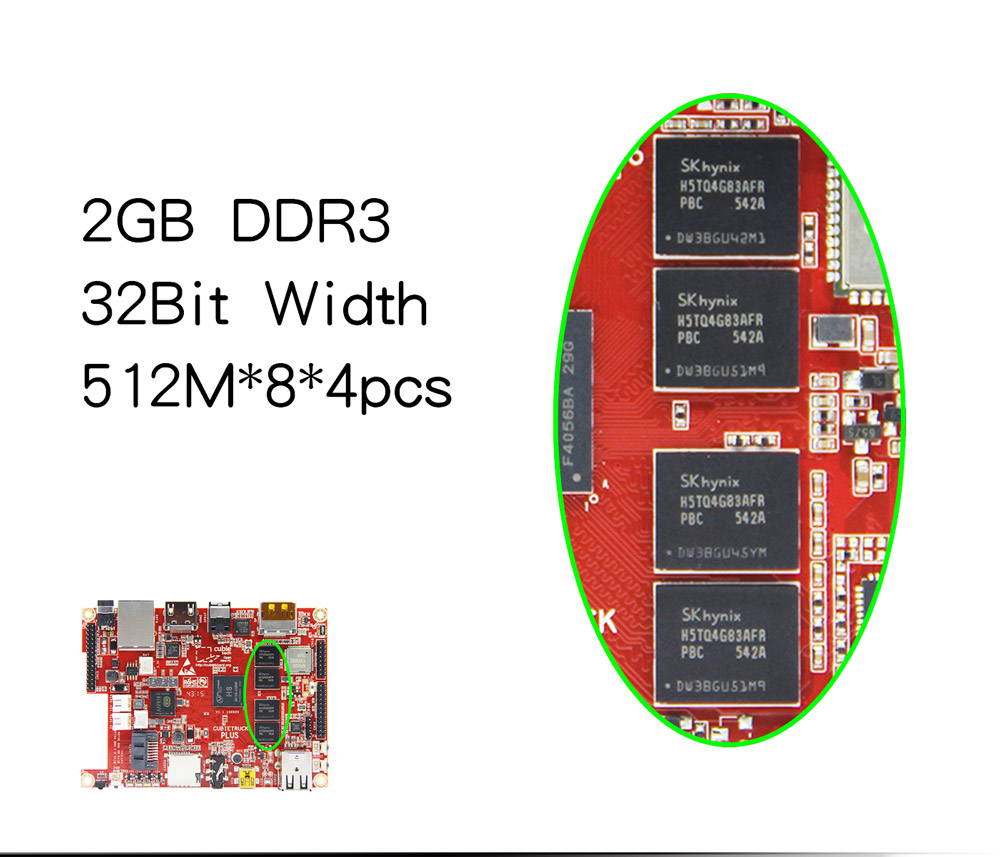

2. 1GB/2GB DDR3@480MHz (960MTPS), 2GB Default

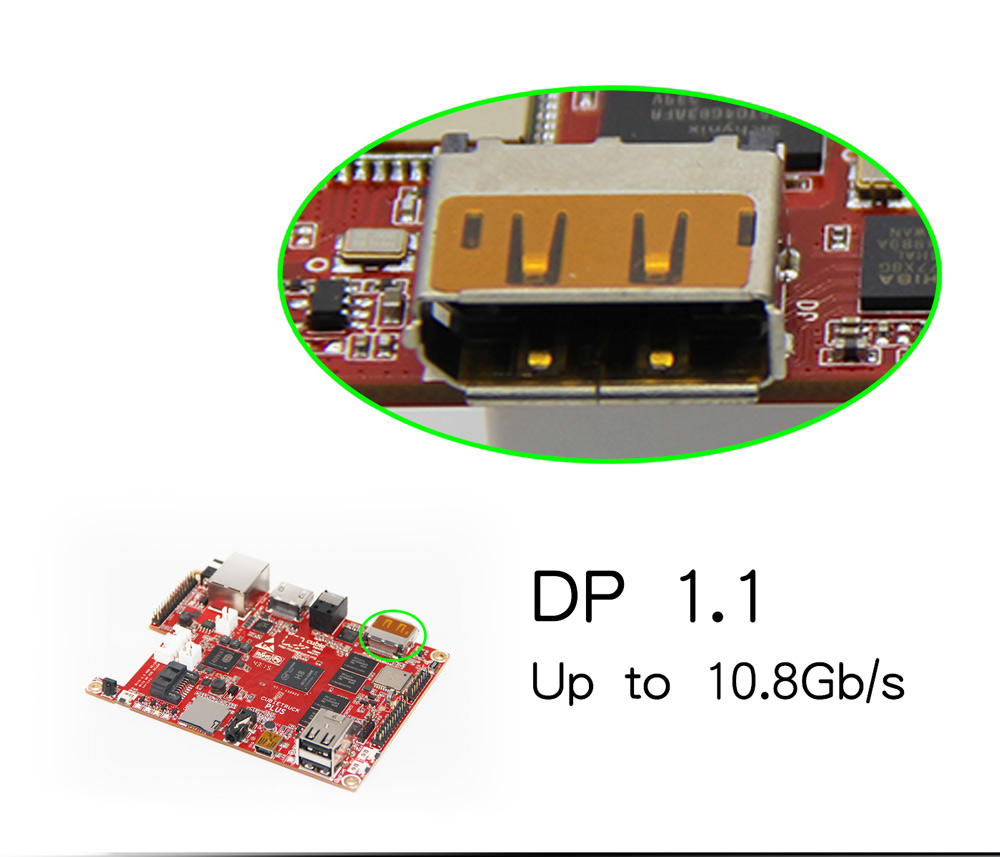

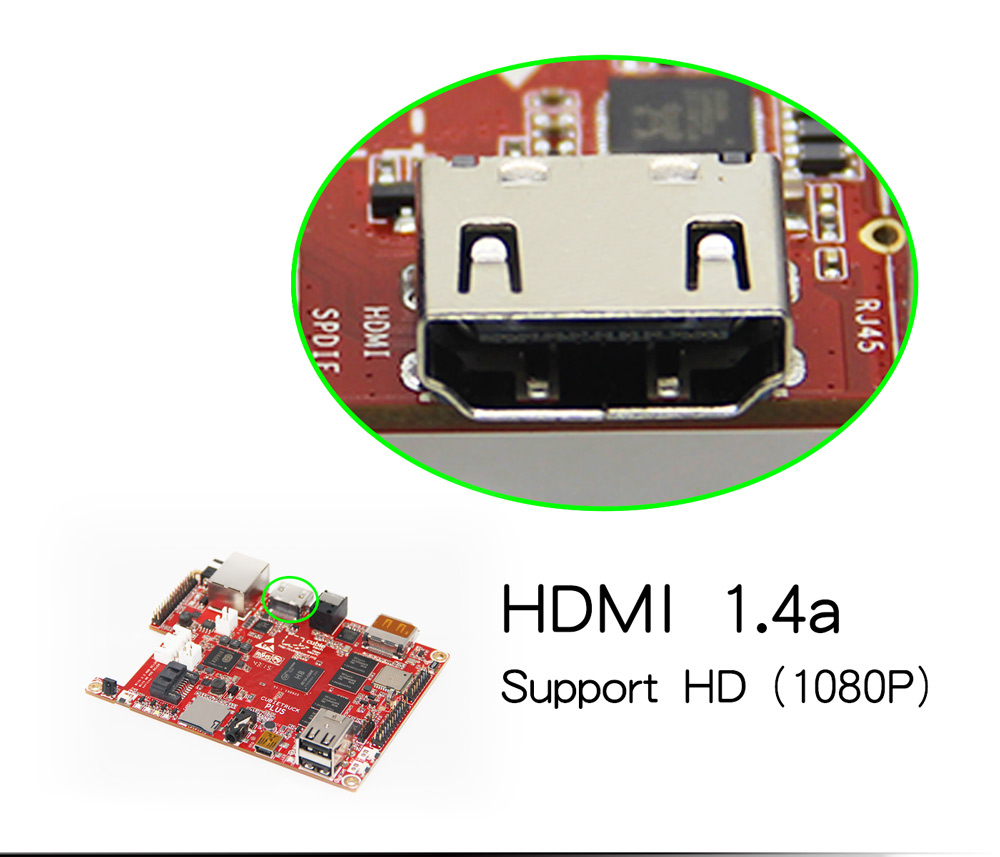

3. HDMI&DP 1080P@60Hz display output

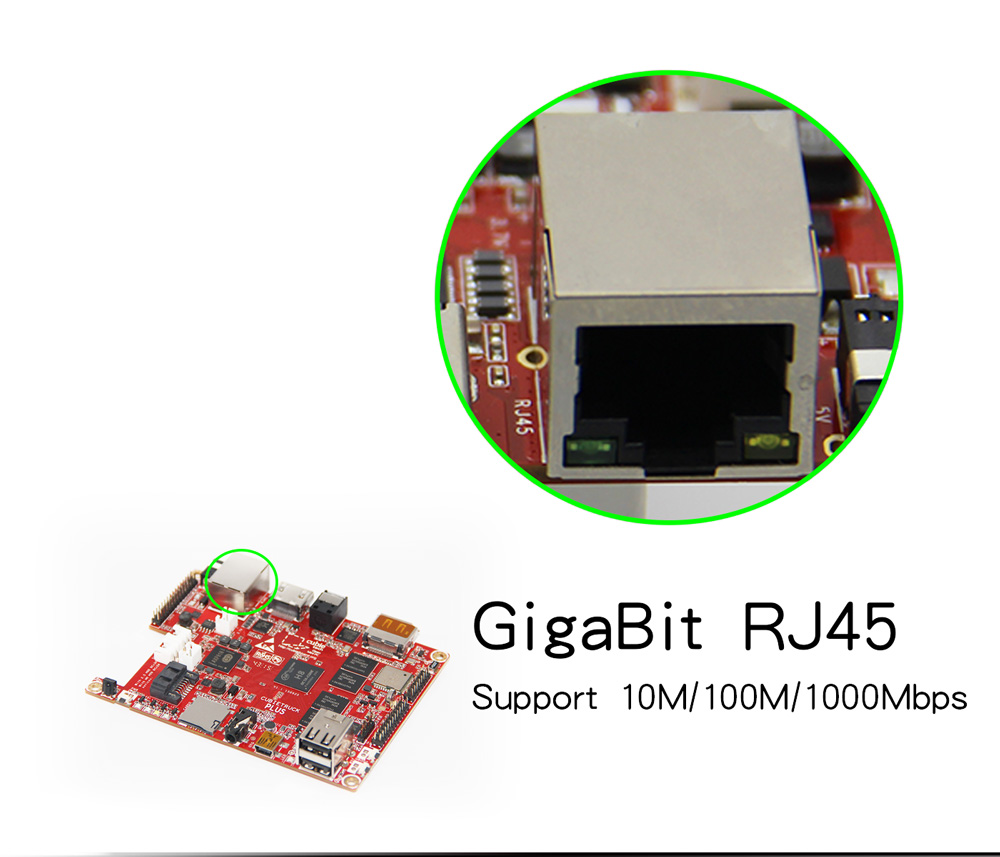

4. 100M/1000M Ethernet RJ45

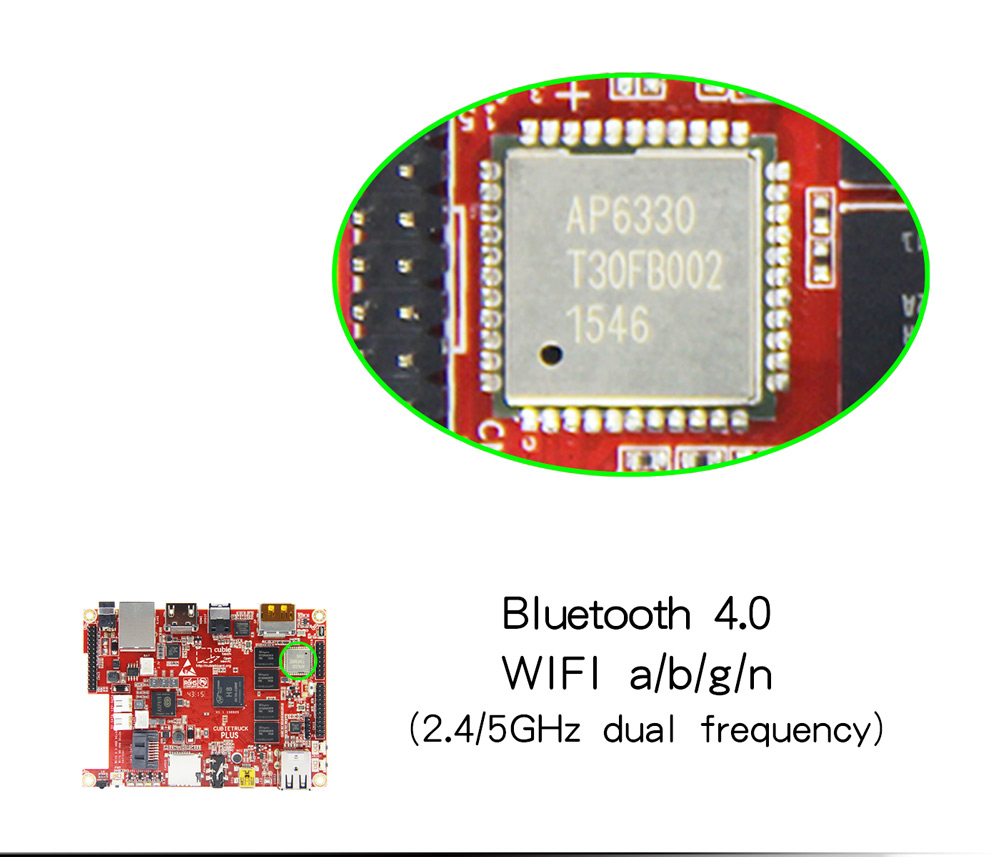

5. Wifi+BT4.0 wireless connection with antenna on-board

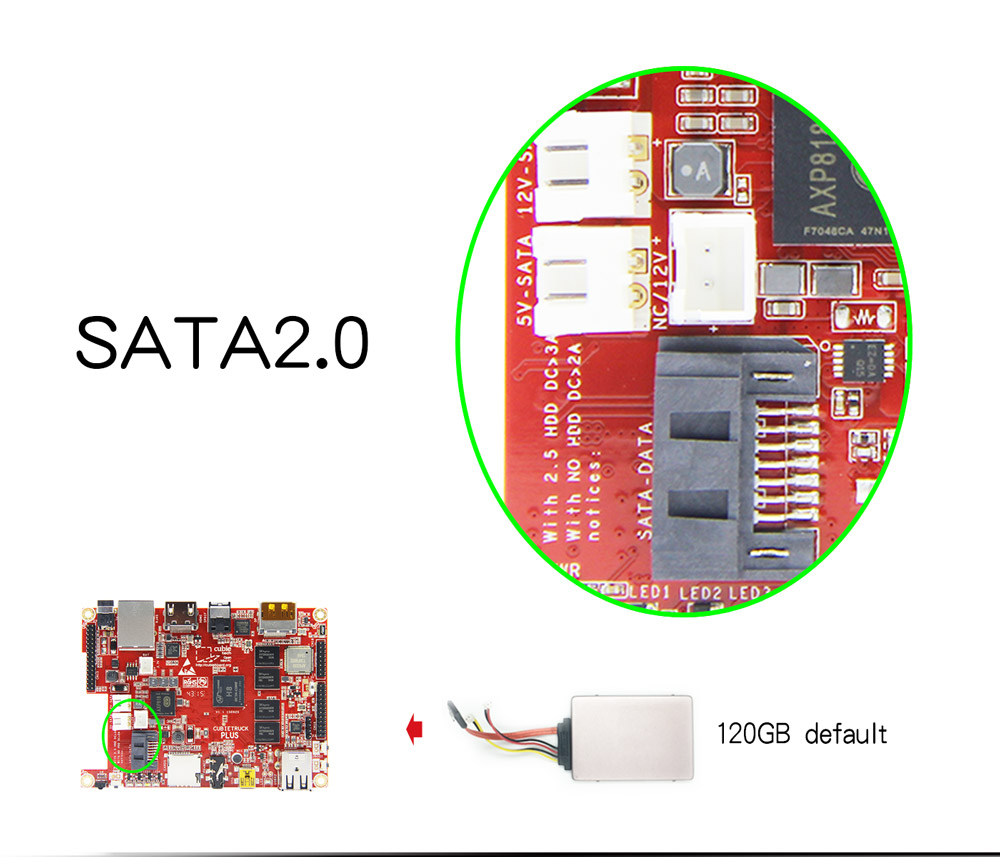

6. SATA 2.0 interface support 2.5’ HDD,(for 3.5’ HDD, need another 12V power input)
7. Storage solution:NAND Flash +MicroSD card slot / TSD + MicroSD card slot / 2*MicroSD card slot

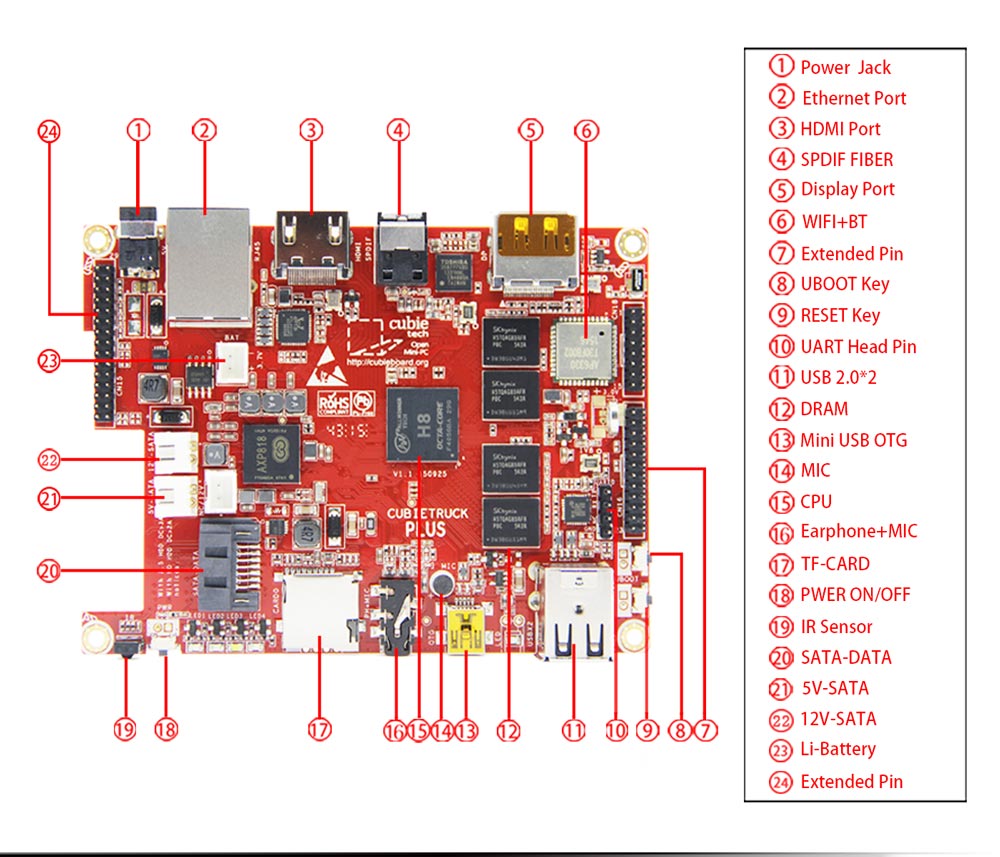

8. 2 x USB HOST,1 x OTG,1 x Toslink (SPDIF Optical),1 x IR,4 x LEDs,1 Headphone,3 x Keys

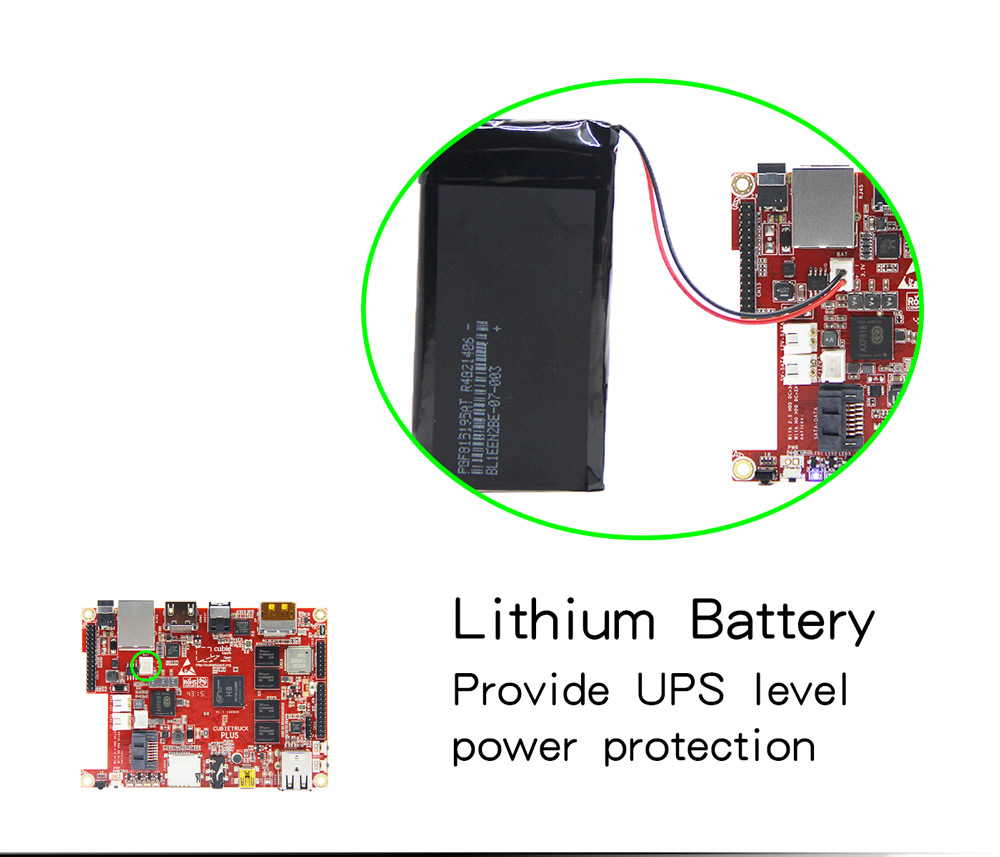

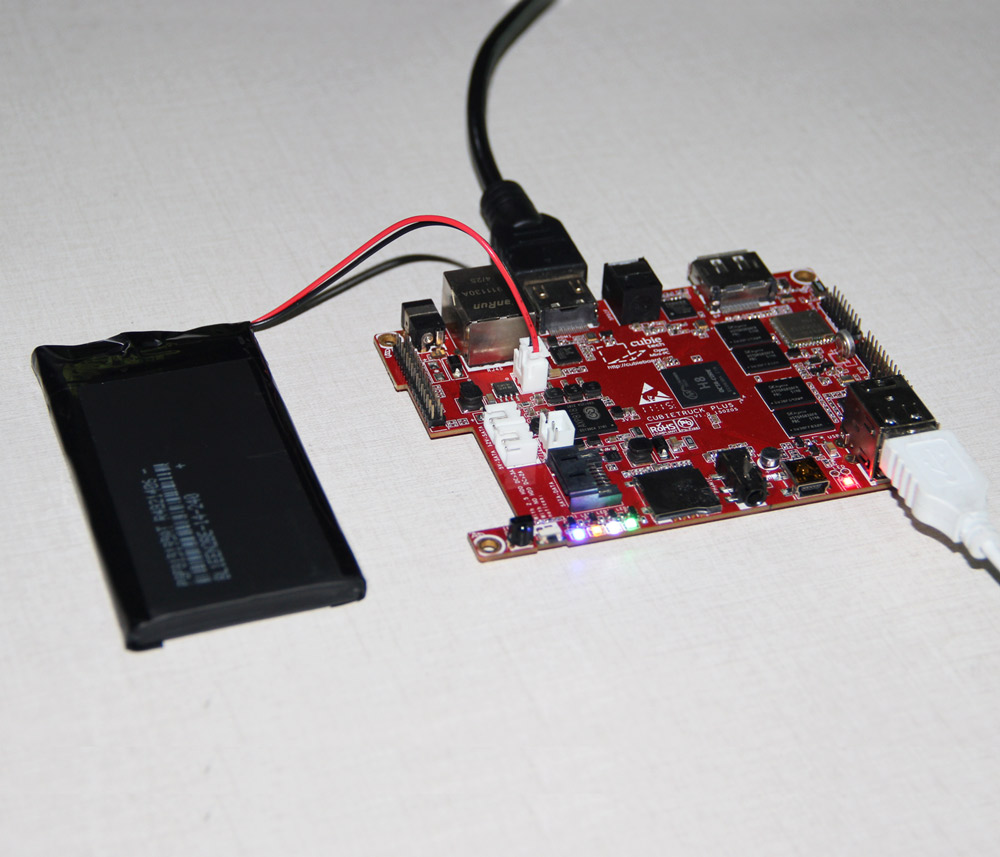

9. Power:DC5V @ 2.5A with HDD,support Li-battery & Real Time Clock battery

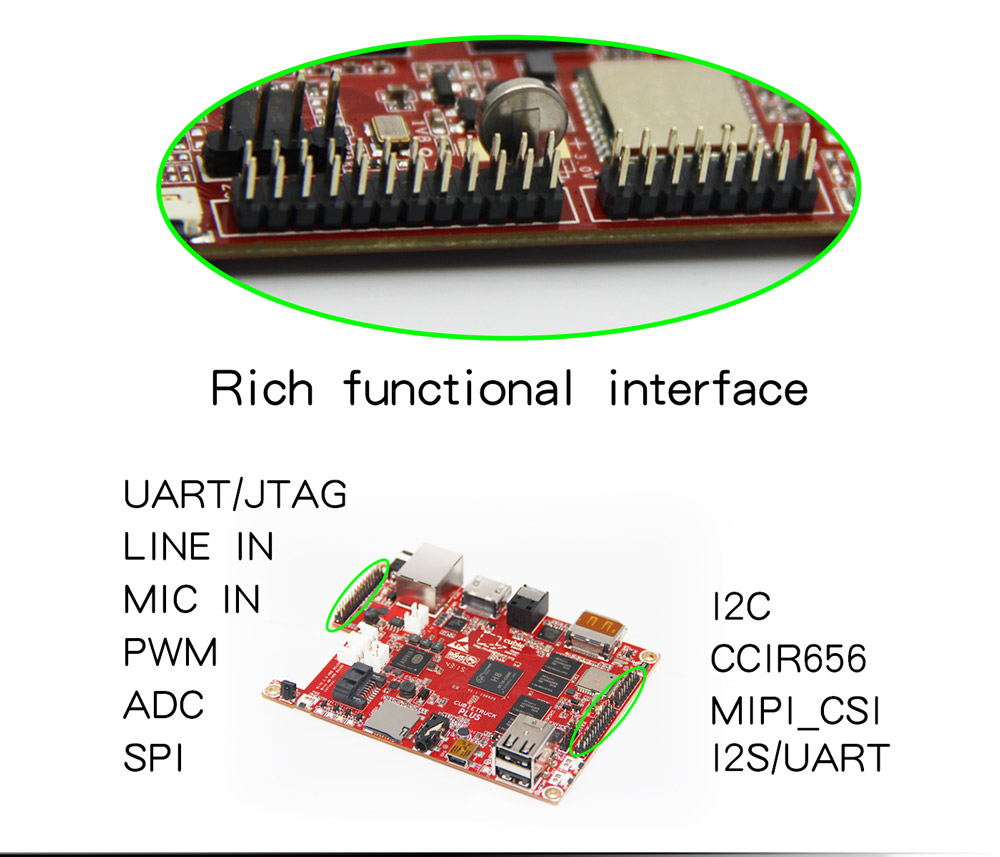

10. Extended pins including I2S, I2C, SPI, CVBS output, Low Resolution ADC x2,UART, PS2, PWMx2,
       TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVIN analog video signal input x4 with 2.0mm pitch header pins
11. It’s suitable for installing a 2.5’ HDD/SSD within the cases
Other Specifications
Operating Temperature:   -20℃~70℃
Environment Friendly:        RoHS
Radio Standard:                Fcc & CE compatible

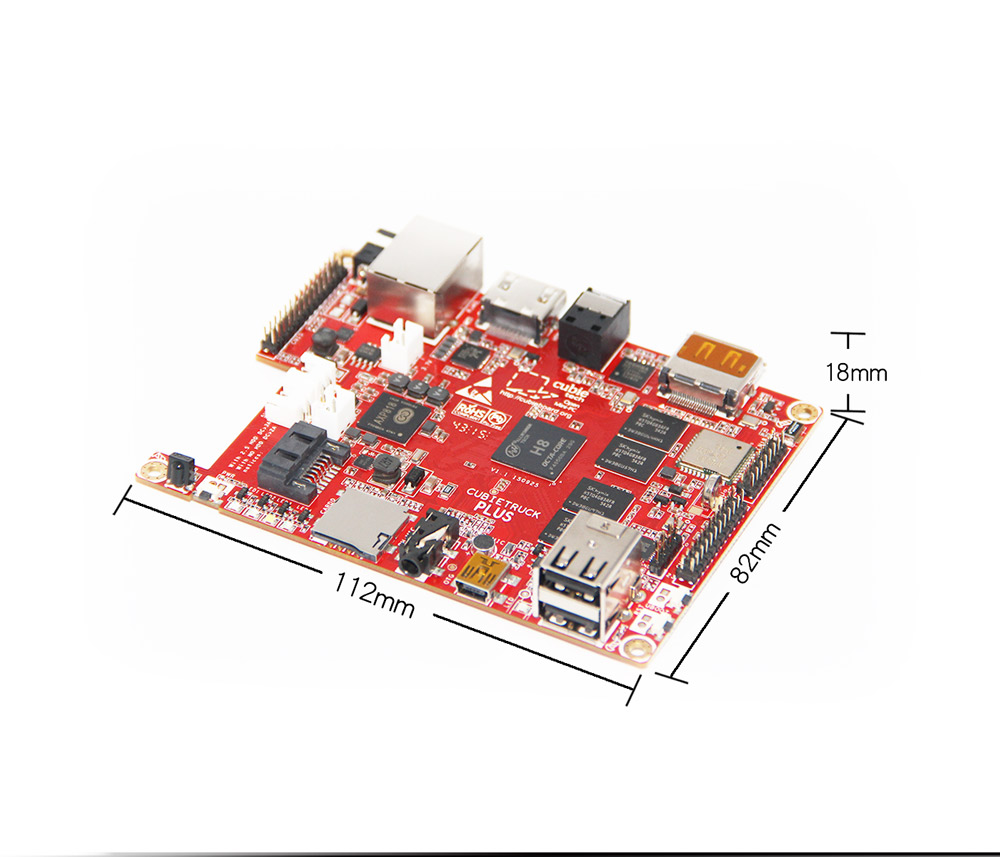

Board Size:                       112mm*82mm*18mm

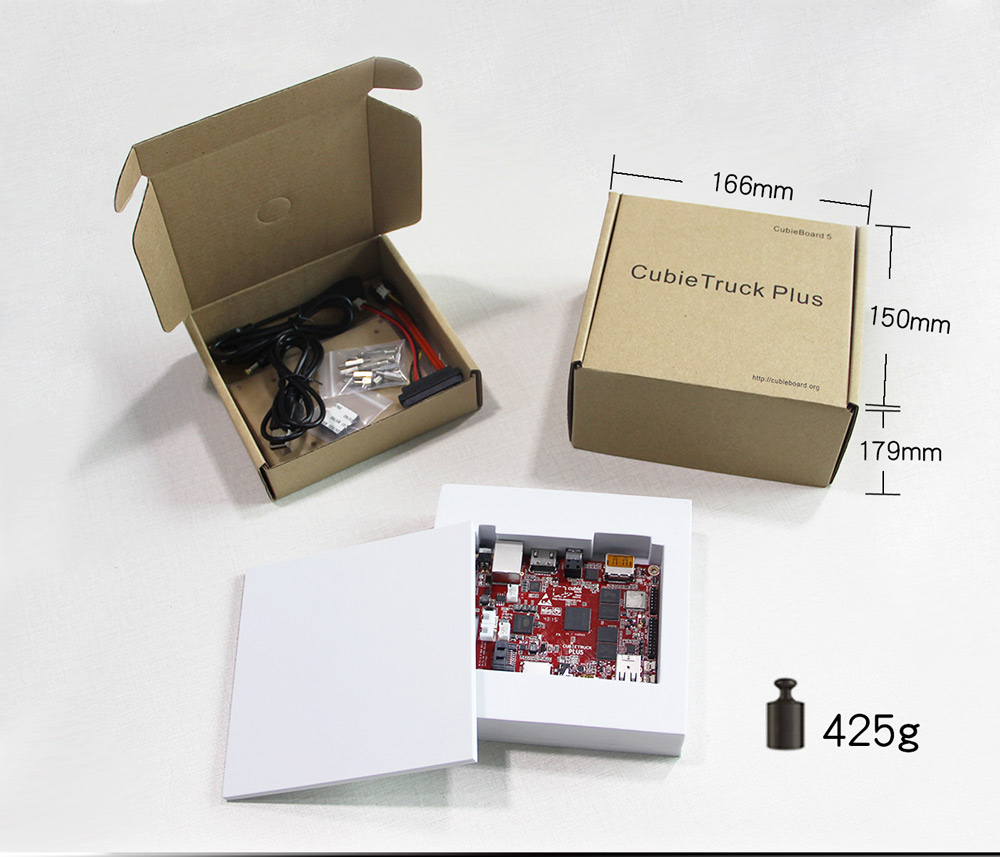

Packing Weight:                425g
Packing Size:                     170mm*125mm*100mm
Development Materials
Technical Website:
Resources and Materials:!A54iBKZZ!HKk2a-Qt3pfQ668woM6Fyw
Distribution contacts:
Technical contacts:

CubieBoards Download Main Entrance:


Enter the download server, then choose the related folder:

Root folder -> Board/Model -> CubieBoard5
