CubieTruck Plastic

SKU: 10000 Category:

cubietruck-plastic cubietruck-plastic1 cubietruck-plastic2 cubietruck-plastic3 cubietruck-plastic5 cubietruck-plastic6 cubietruck-plastic7 cubietruck-plastic8 cubietruck-plastic9 Block-Diagram-A20
cubietruck-plastic10 cubietruck-plastic11 cubietruck-plastic12 cubietruck-plastic13 cubietruck-plastic14 cubietruck-plastic15 cubietruck-plastic16 cubietruck-plastic17

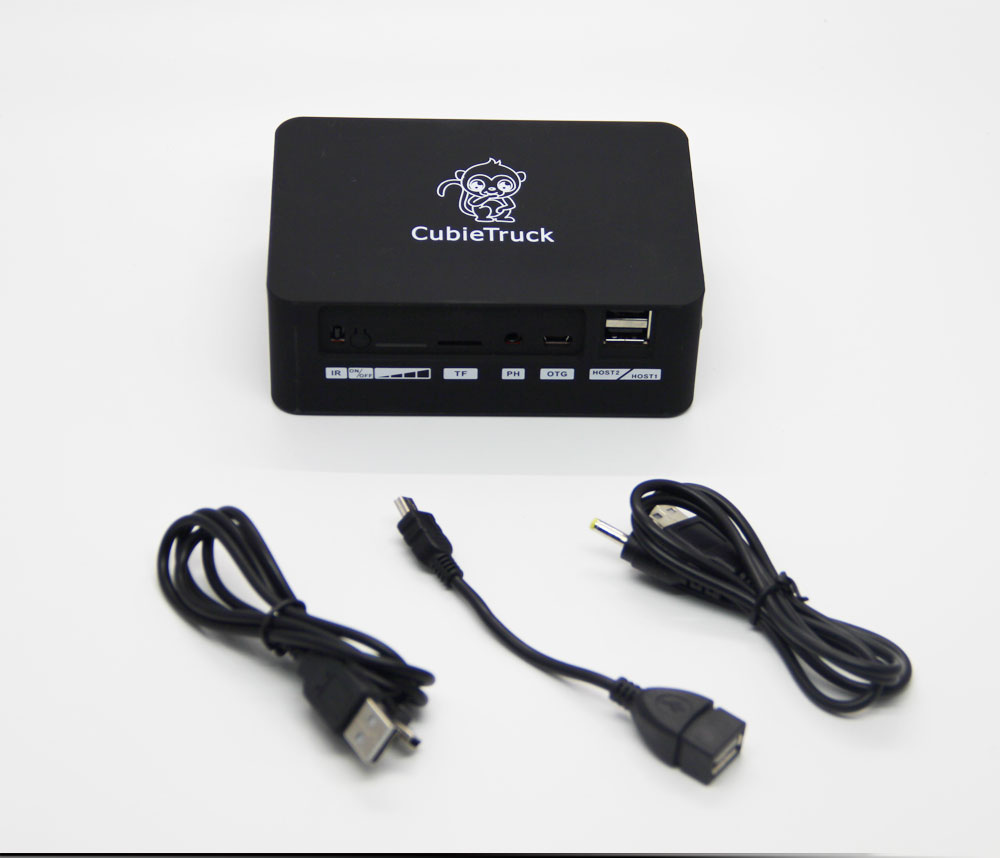

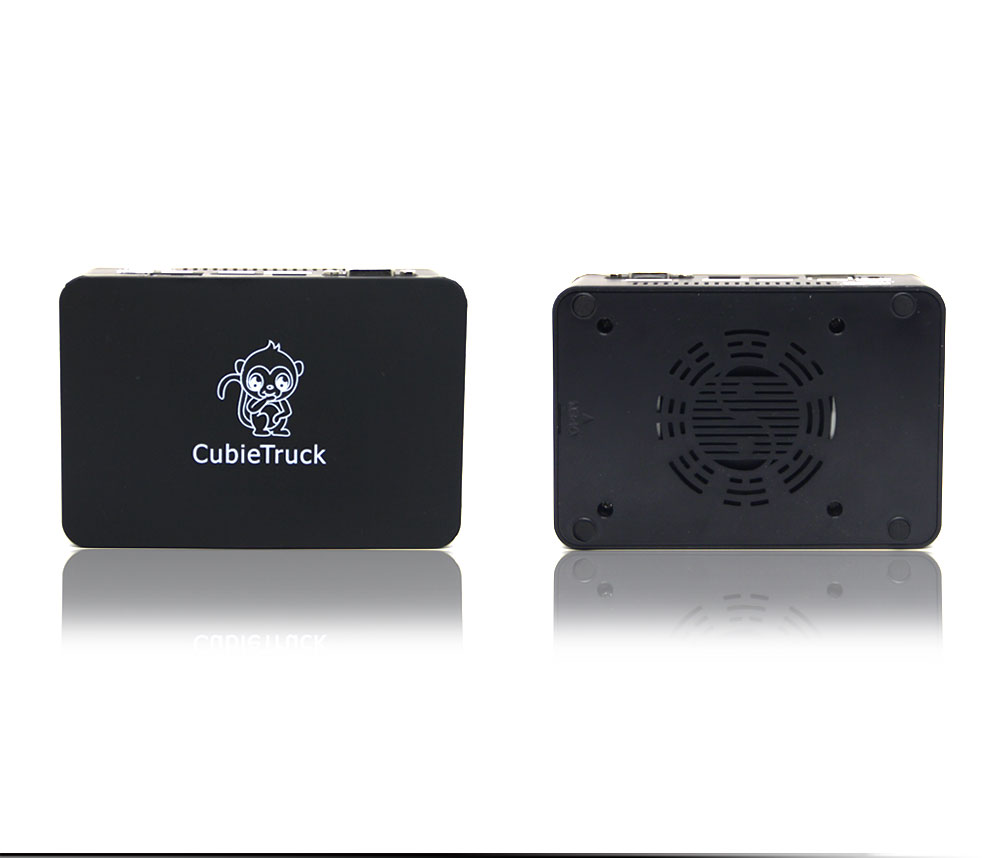

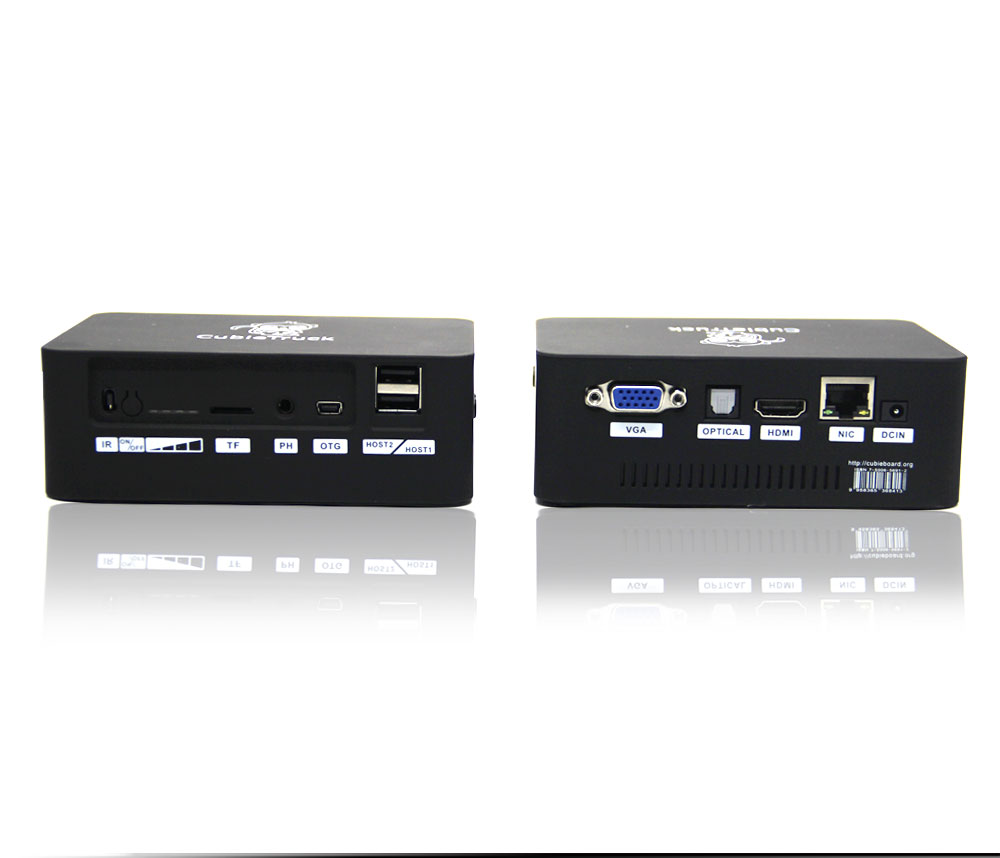

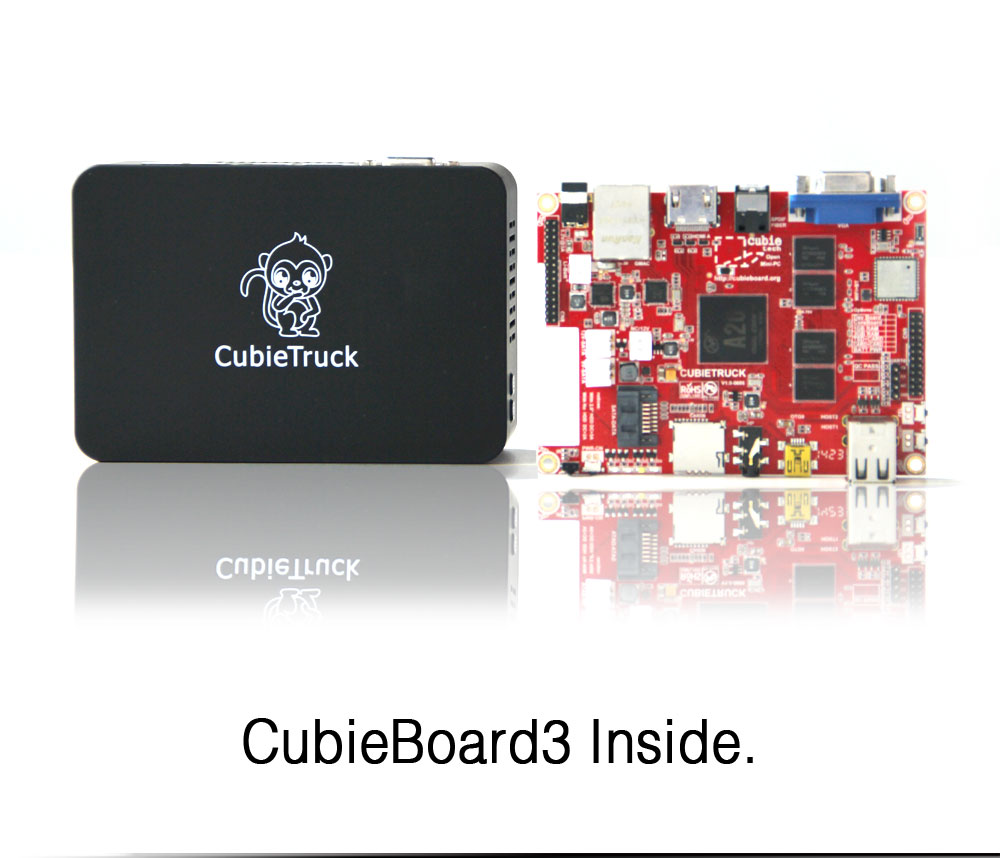

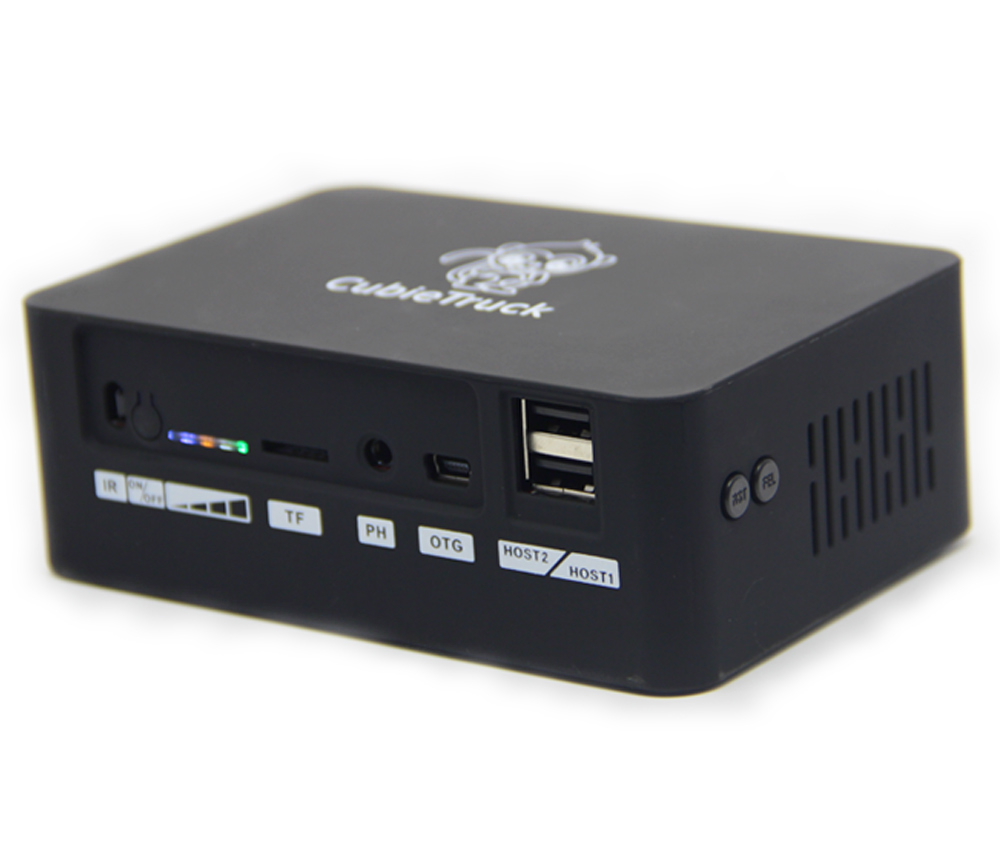

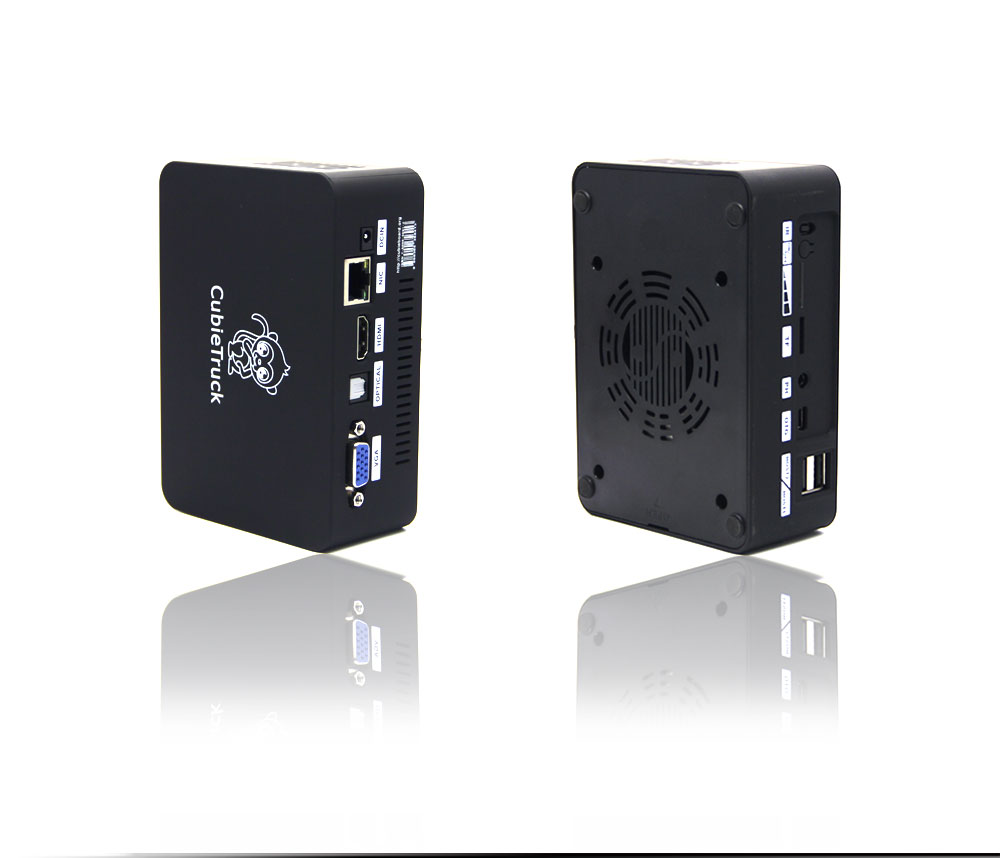

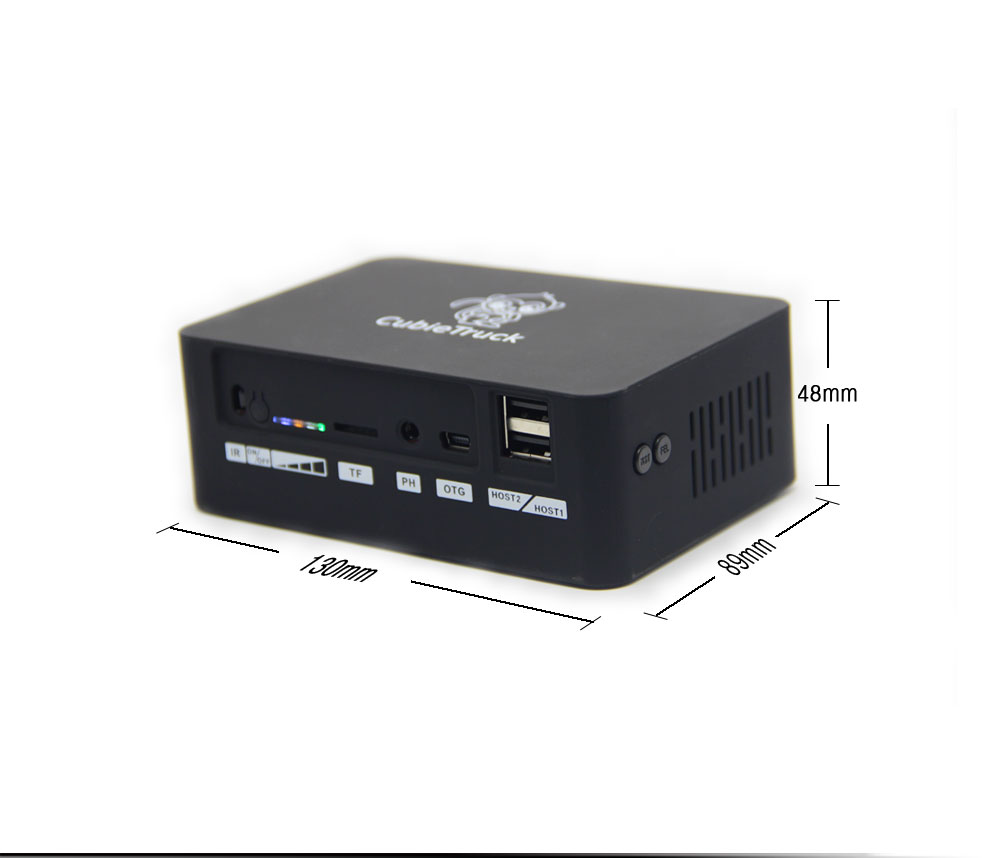

    Cubietruck Plastic is a whole device with a plastic case for CubieBoard3. CubieBoard3  which is also named CubieTruck is open source Mini PC or development board especially targets Android household entertainment area and Linux low power mini PC. It has 2 USB host ports, 1 USB OTG port, 1 earphone port, a micro SD card slot, VGA and HDMI display port, optical SPDIF port for HD audio, a 100/1000M RJ45 port, a IR receiver sensor. It has a on board ceramic antenna for WIFI and Bluetooth. It also includes 3 keys for power On/Off, Reset and Reflash the ROM/image. And 4 user Leds are available for indicating some system information.
    CubieBoard3 is a famous open source hardware. Many open source organizations will support it as a standard device, such as Android, Unbuntu, Fedora, Dabian, openWrt and so on…

Product Information

Name:       Cubietruck Plastic, CubieBoard3 inside

Property:  Software open source, Hardware open, Production materials closed

Owner:      CubieTech Limited

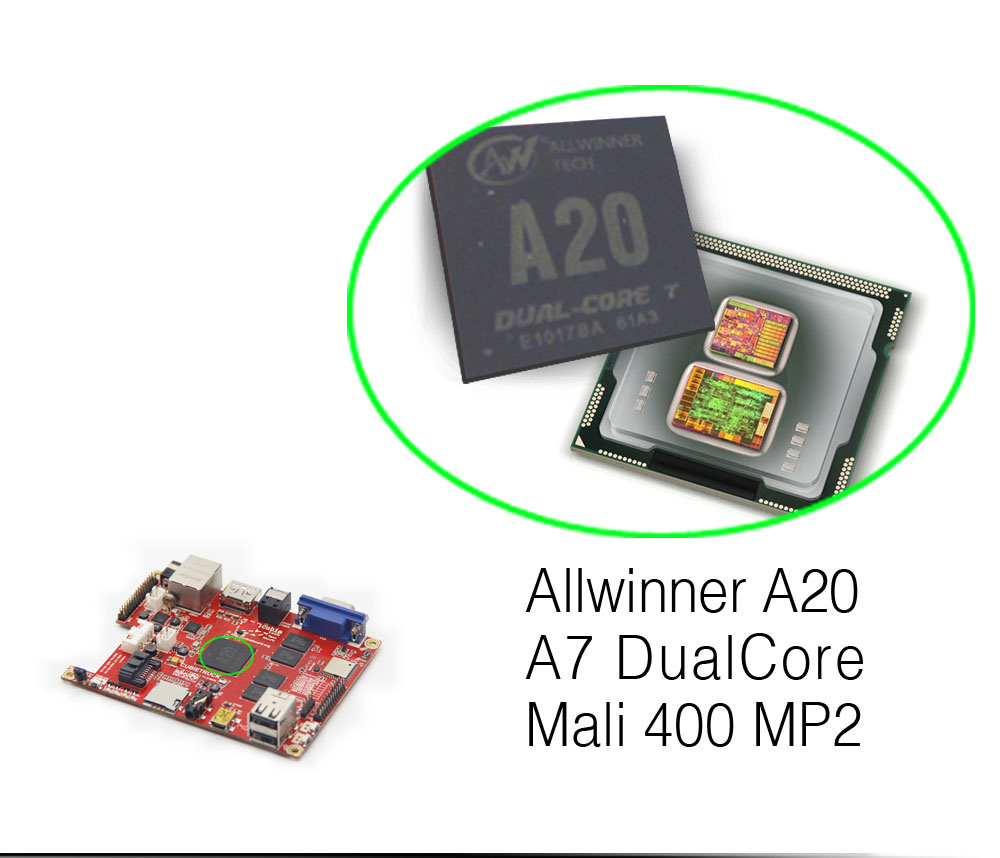

Chipset:    Allwinner technology A20, Arm architecture Cortex-A7 dual core

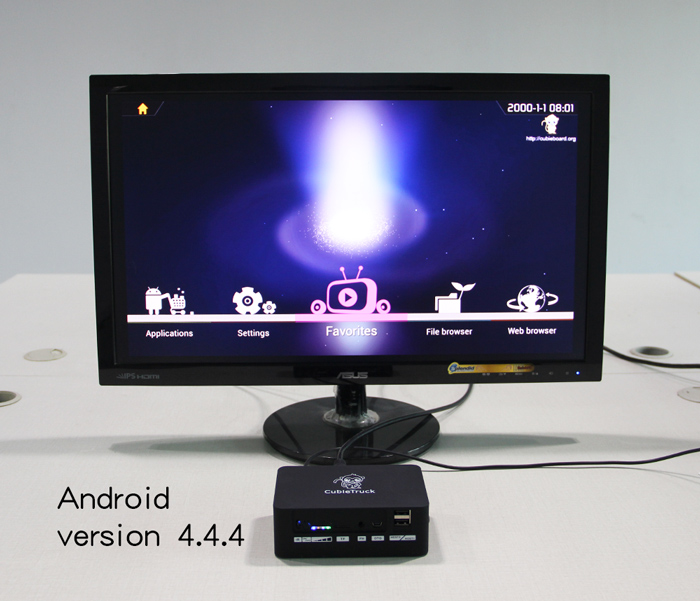

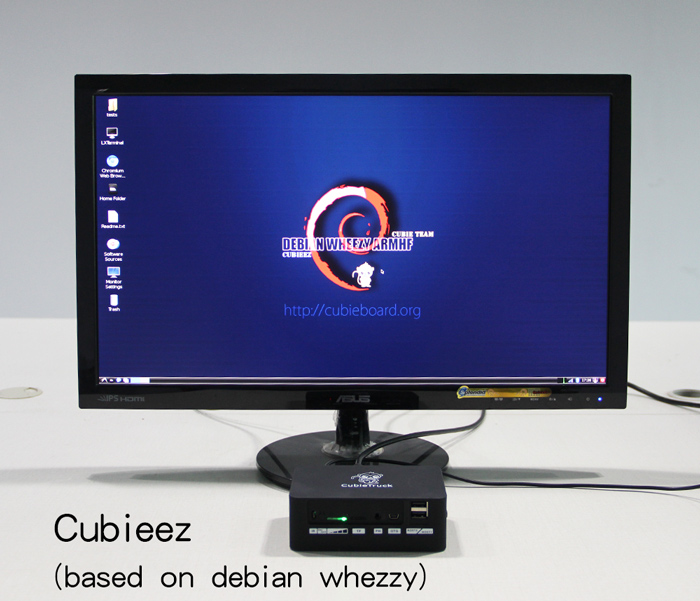

System:    Android, Debian, Ubuntu and many other open source distribution…

Target:      Developer, Geek, Maker, Scholar, Student…

Product Introduction

       Cubietruck-Plastic is the 3rd generation product of Cubieboard series from Cubietech Limited. CubieBoard is open source hardware which targets Developer, Geek, Maker…
      It’s a new PCB model adopted with Allwinner A20 main chip just like Cubieboard2. But it is enhanced with some features, such as 2GB DDR3 memory, VGA display port on-board, 100M/1000M RJ45, WIFI+BT on-board, support Li-battery and RTC battery, SPDIF audio interface.

      It’s not only for development, but also can used in various areas like other MiniPc products. Thanks to its rich interfaces, low costs, and good open source support ambient, more and more developers can benefit based on it and would like to do lots of promotion work for it.

Product Features

1. AllWinner SOC A20,ARM® Cortex™-A7 Dual-Core,ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1

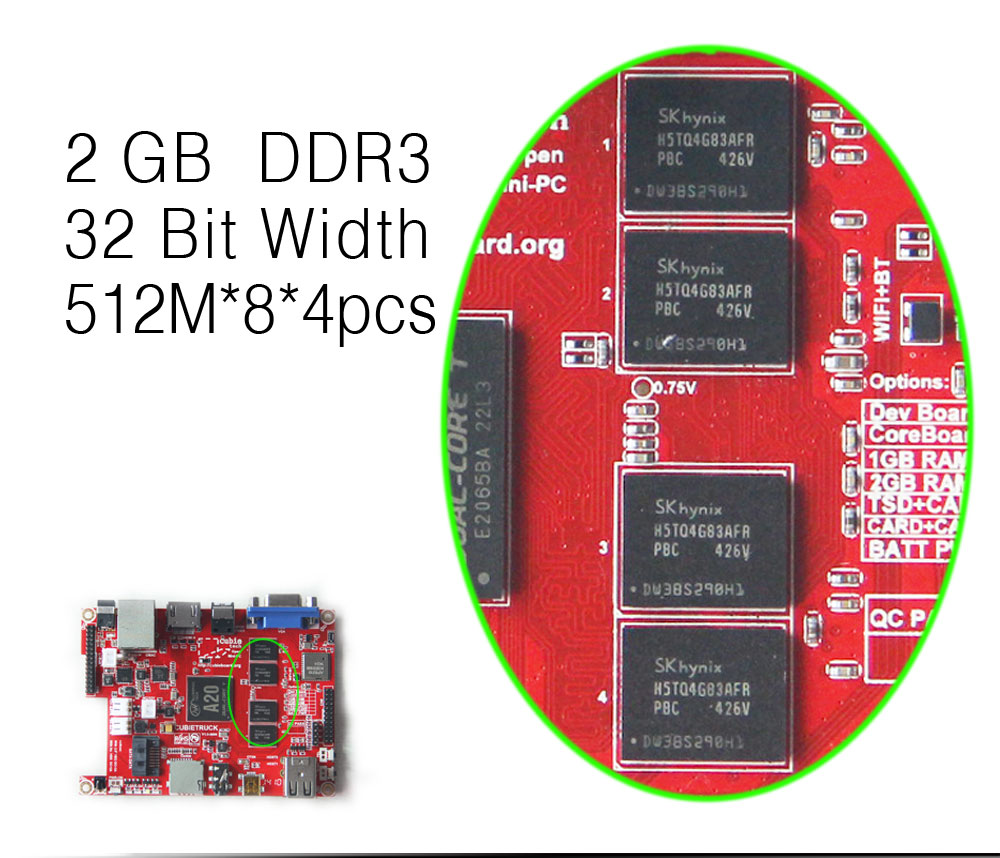

2. 1GB/2GB DDR3@480MHz (960MTPS), 2GB Default

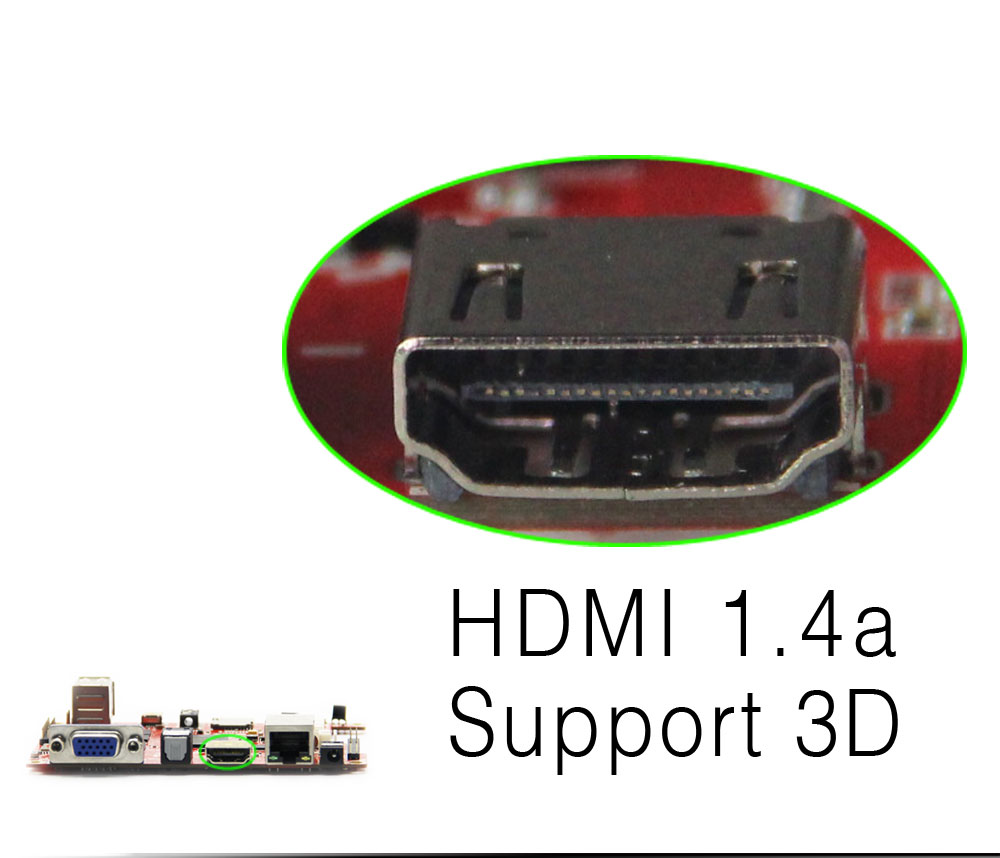

3. HDMI&VGA 1080P@60Hz display output

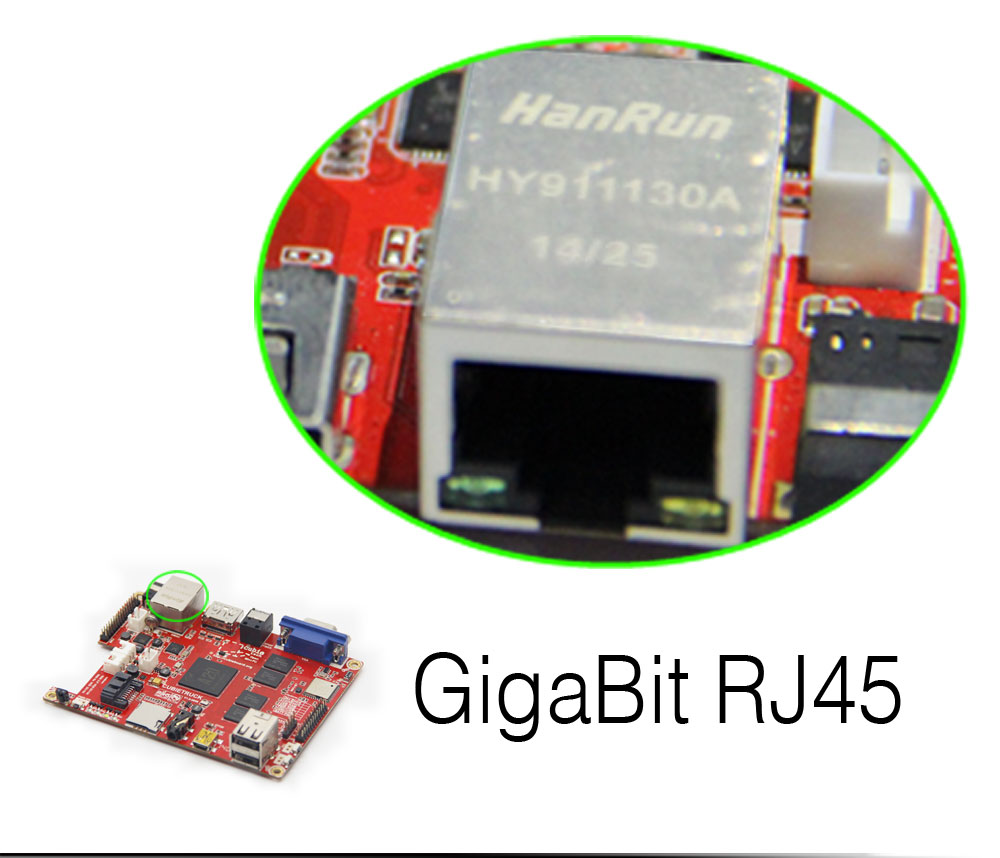

4. 100M/1000M Ethernet RJ45

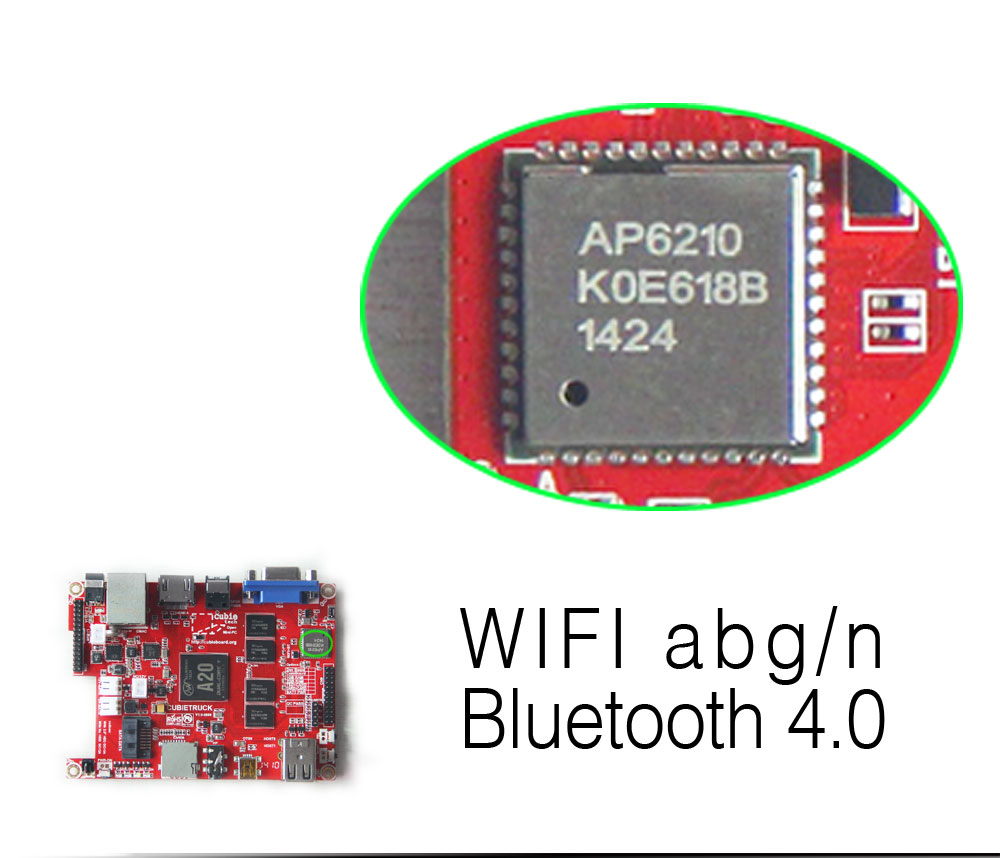

5. Wifi+BT4.0 wireless connection with antenna on-board

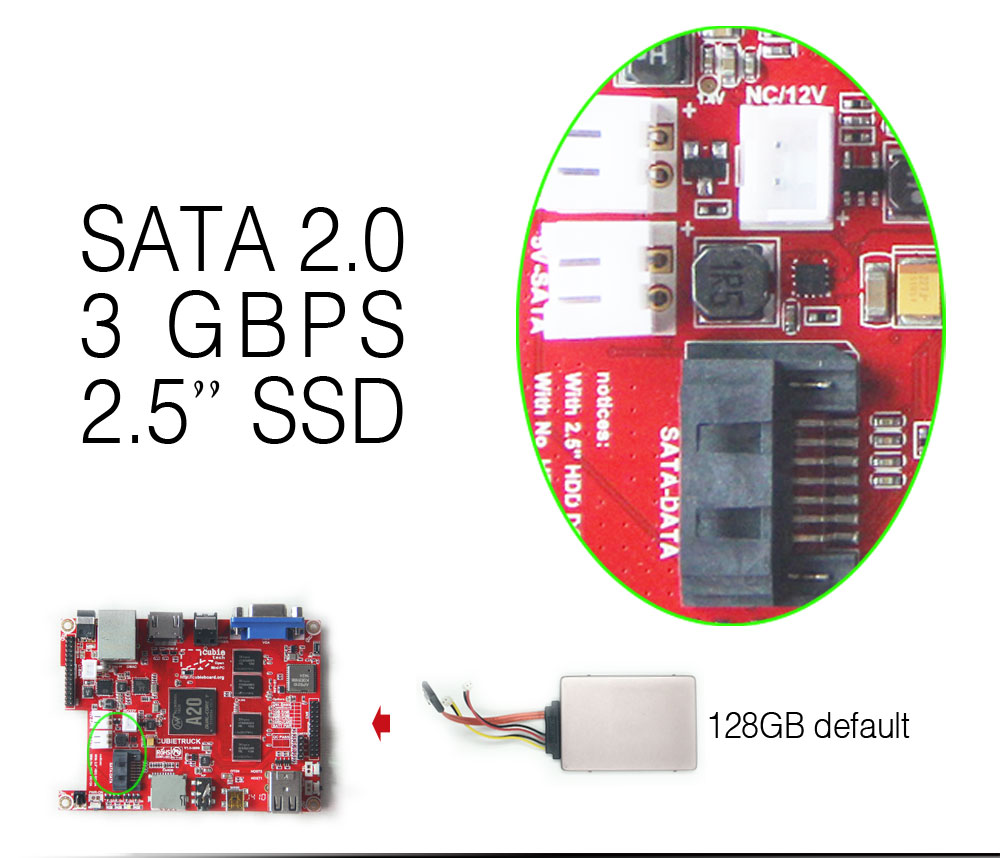

6. SATA 2.0 interface support 2.5’ HDD,(for 3.5’ HDD, need another 12V power input)

7. Storage solution:NAND Flash +MicroSD card slot / TSD + MicroSD card slot / 2*MicroSD card slot

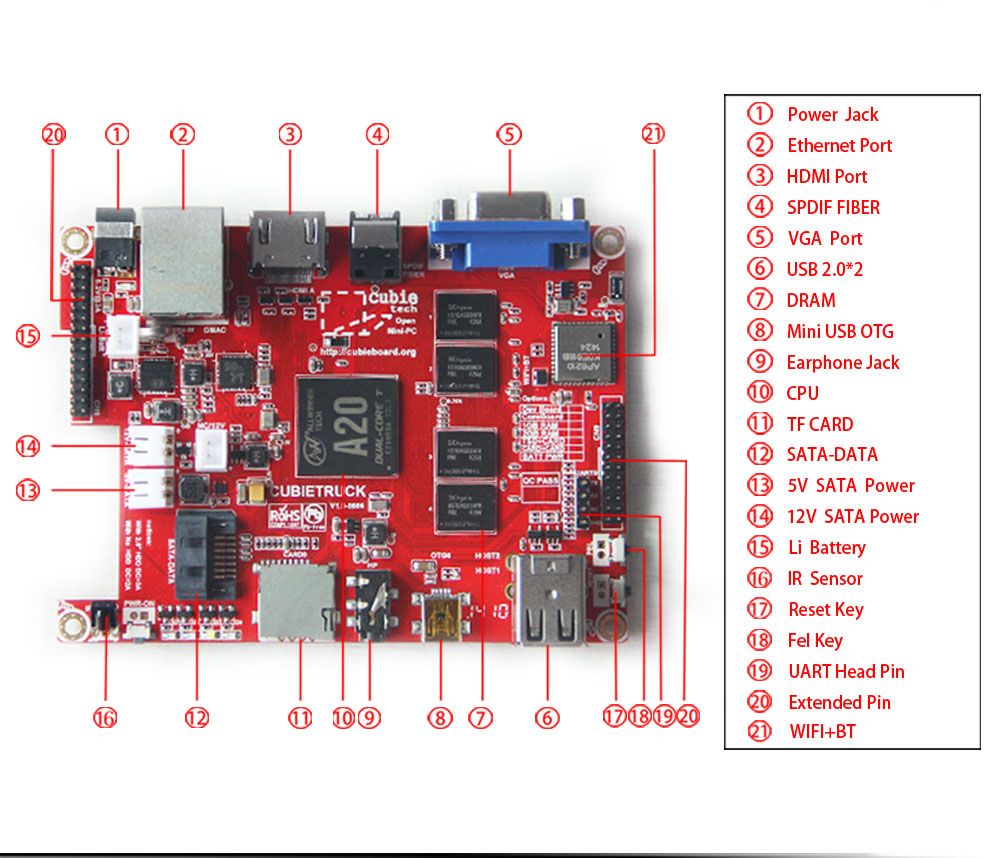

8. 2 x USB HOST,1 x OTG,1 x Toslink (SPDIF Optical),1 x IR,4 x LEDs,1 Headphone,3 x Keys

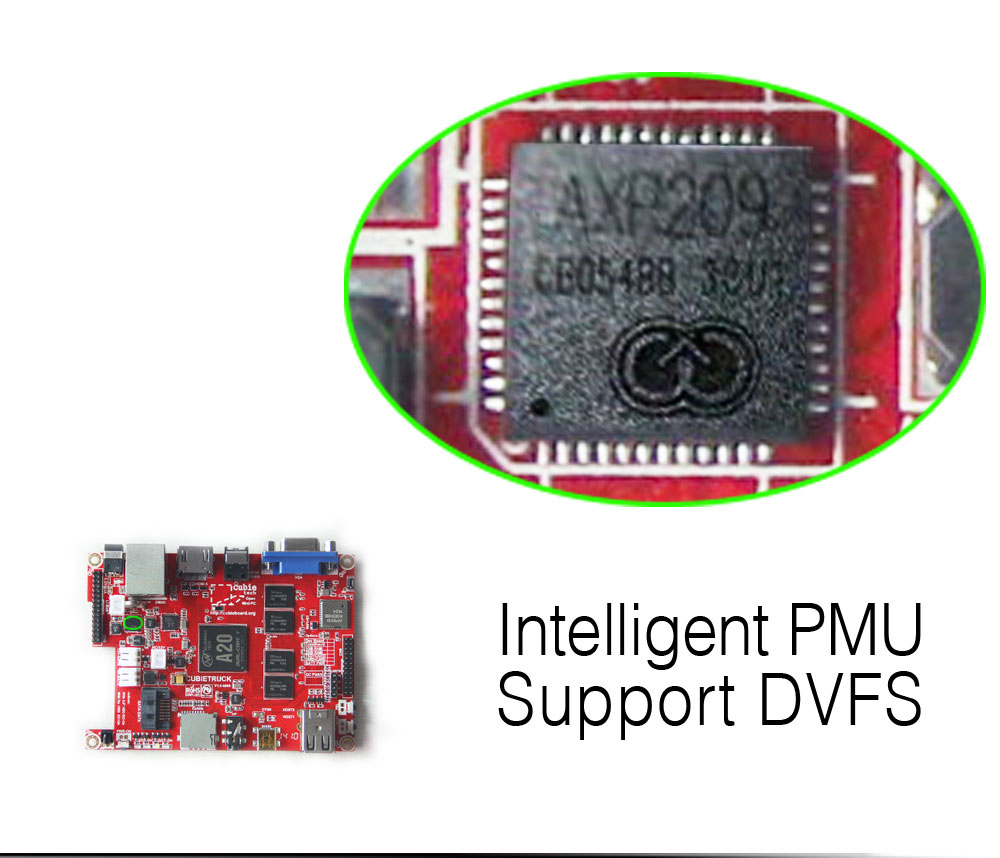

9. Power:DC5V @ 2.5A with HDD,support Li-battery & Real Time Clock battery

10. 54 expansion pins including I2S, I2C, SPI, CVBS output, Low Resolution ADC x2,UART, PS2, PWMx2, TS/CSI, IRDA,

    LINEIN&FMIN&MICIN, TVIN analog video signal input x4 with 2.0mm pitch header pins

11. It’s suitable for installing a 2.5’ HDD/SSD within the cases


Other Specifications

Operating Temperature:   -20℃~70℃

Environment Friendly:       RoHS

Radio Standard:                Fcc & CE compatible

Board Size:                       112mm*82mm*18mm

Packing Weight:                452g

Packing Size:                    170mm*125mm*100mm

Development Materials

Technical Website:              http://cubieboard.org/

Resources and Materials:     http://cubieboard.org/model/cb3/

Distribution contacts:          sales@cubietech.com

Technical contacts:             support@cubietech.com

Distributor:                         http://cubieboard.org/buy/

CubieBoards Download Main Entrance:

link:  http://cubieboard.org/download/

Enter the download server, then choose the related folder:

Root folder -> Board/Model -> CubieBoard3
