CubieTruck Metal

SKU: 10000 Category:

cubietruck-metal1 cubietruck-metal2 cubietruck-metal3 cubietruck-metal4 cubietruck-metal5cubietruck-metal6cubietruck-metal7cubietruck-metal8cubietruck-metal9
Block-Diagram-A20
cubietruck-metal10cubietruck-metal11cubietruck-metal12cubietruck-metal13cubietruck-metal14 cubietruck-metal15cubietruck-metal16cubietruck-metal17

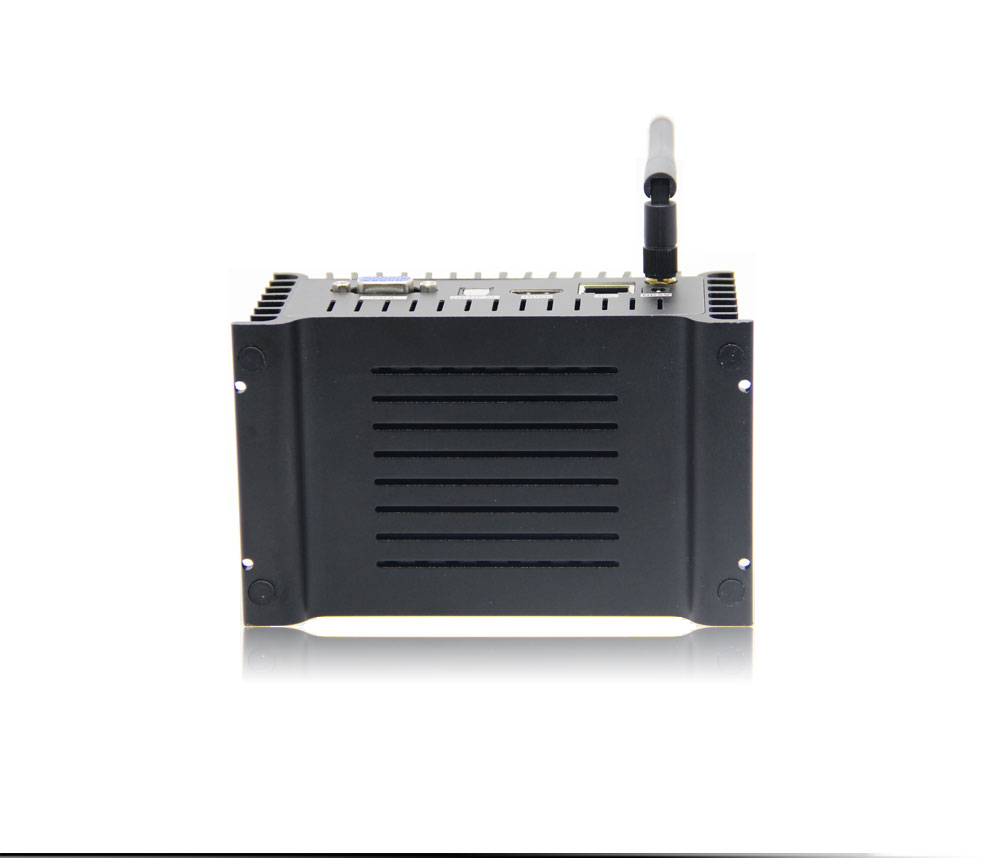

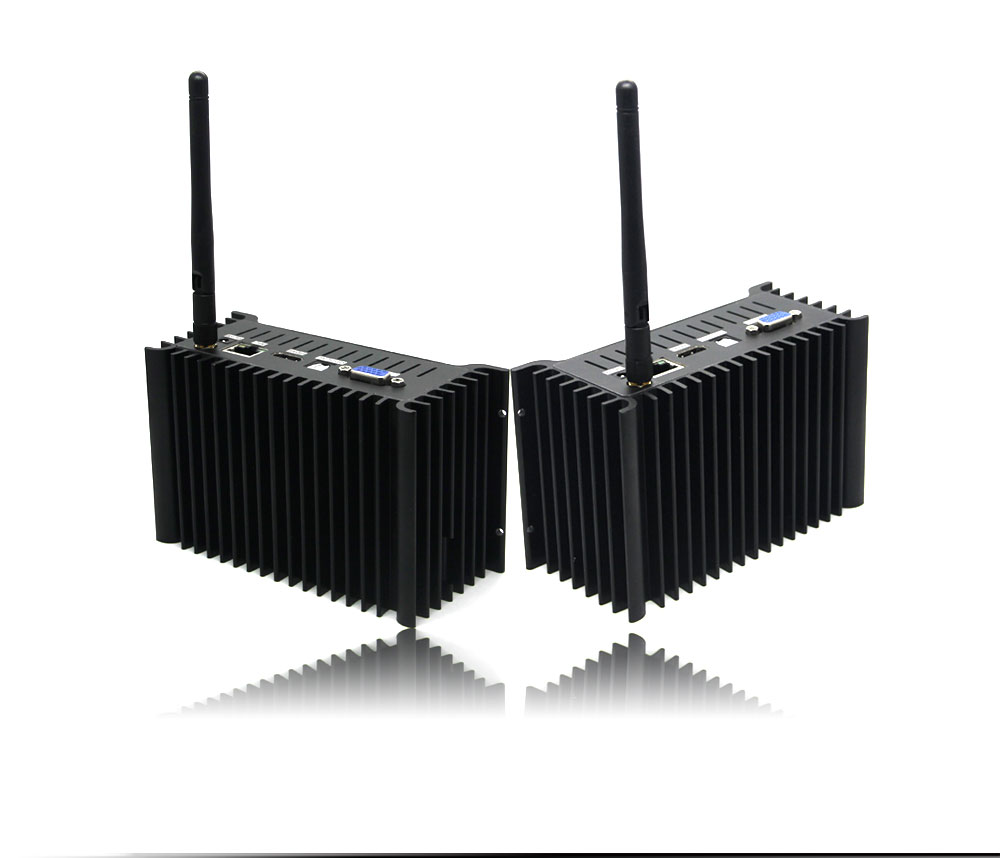

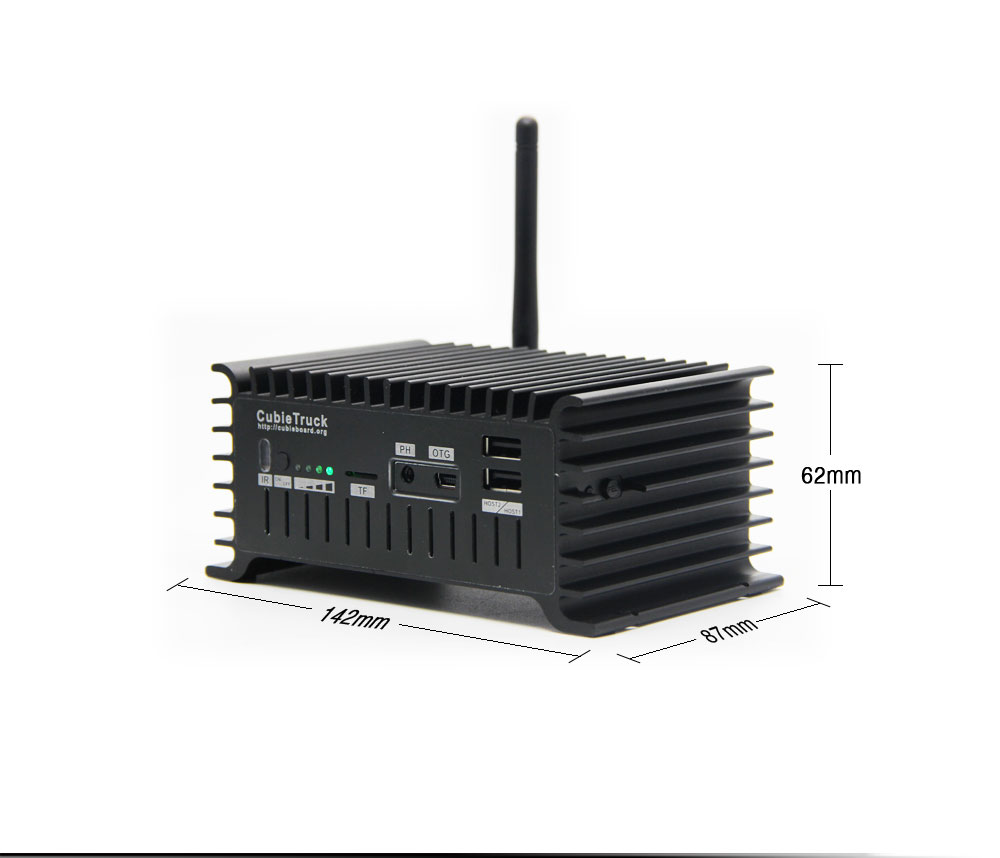

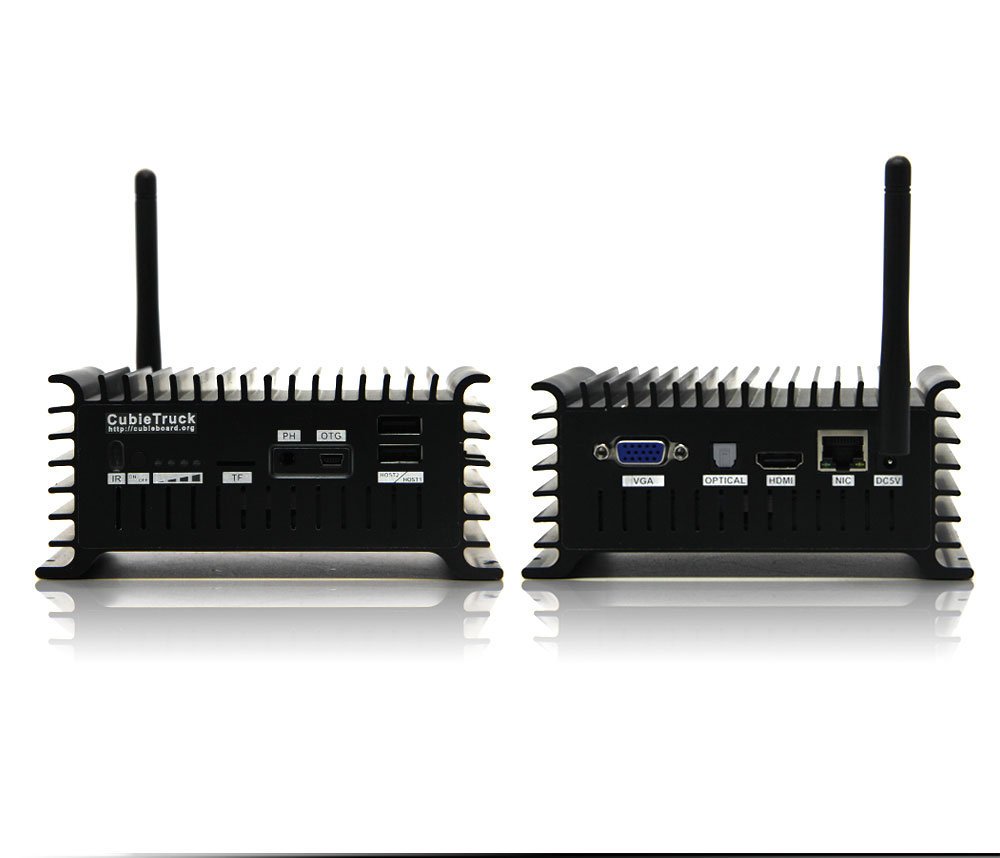

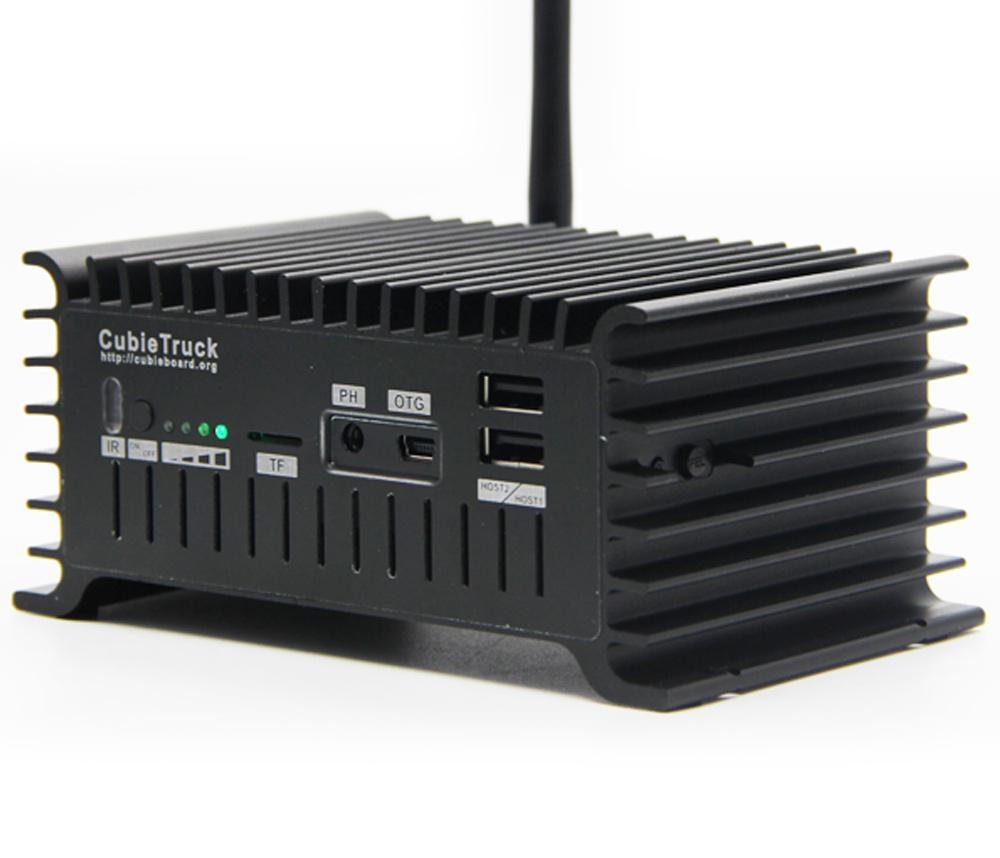

CubieTruck Metal is a whole device with a metal case for CubieBoard3 that especially is Built for industrial applications. CubieTruck which also named CubieBoard3 is open source SBC or development board especially targets Android household entertainment area and Linux low power mini PC. It has 2 USB host ports, 1 USB OTG port, 1 earphone port, a micro SD card slot, VGA and HDMI display port, optical SPDIF port for HD audio, a 100/1000M RJ45 port, a IR receiver sensor. It has a on board ceramic antenna for WIFI and Bluetooth. It also includes 3 keys for power On/Off, Reset and Reflash the ROM/image. And 4 user Leds are available for indicating some system information.

CubieBoard3 is a famous open source hardware. CubieBoard team would continually maintain the open source Android and Debian source code and images. Many open source organizations also support it as a standard device, such as Android, Unbuntu, Fedora, Dabian, openWrt… It becomes a very huge hardware and software echosystem after many years development.

Product Information

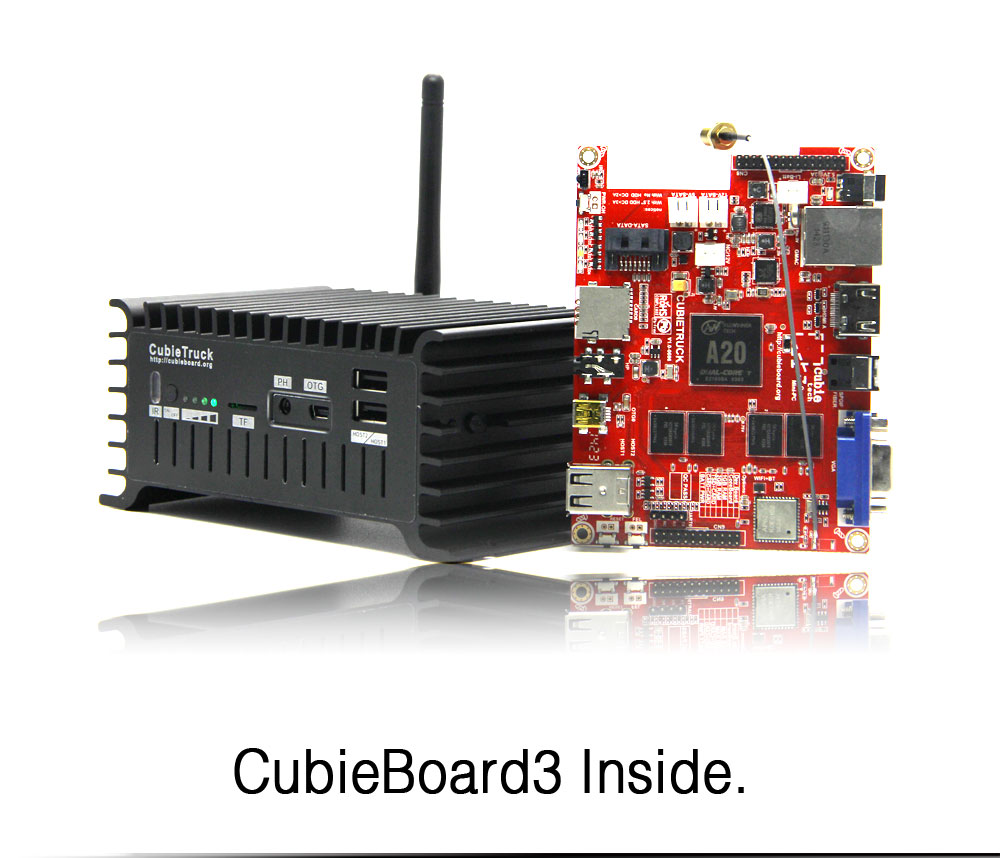

Name:   CubieTruck Metal, CubieBoard3 inside
Property:   Software open source, Hardware open, Production materials closed
Owner:   CubieTech Limited

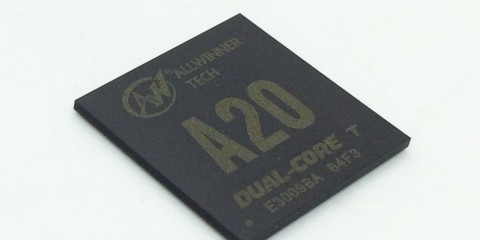

Chipset:    Allwinner technology A20, Arm architecture Cortex-A7 dual core

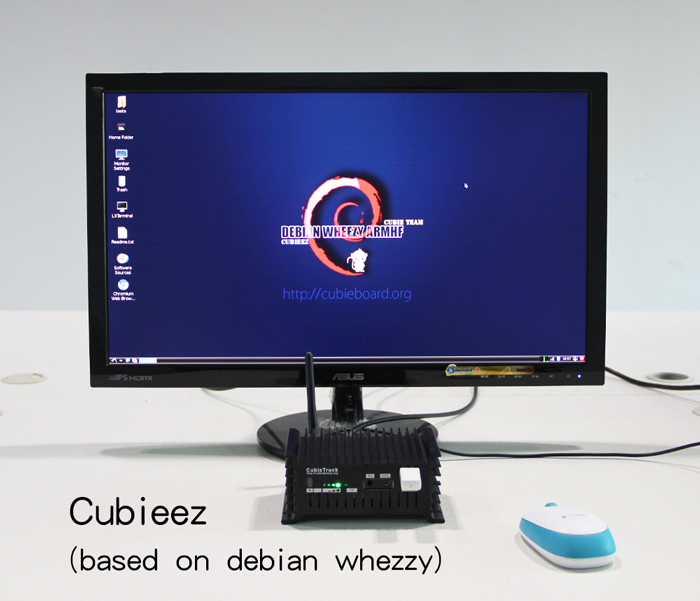

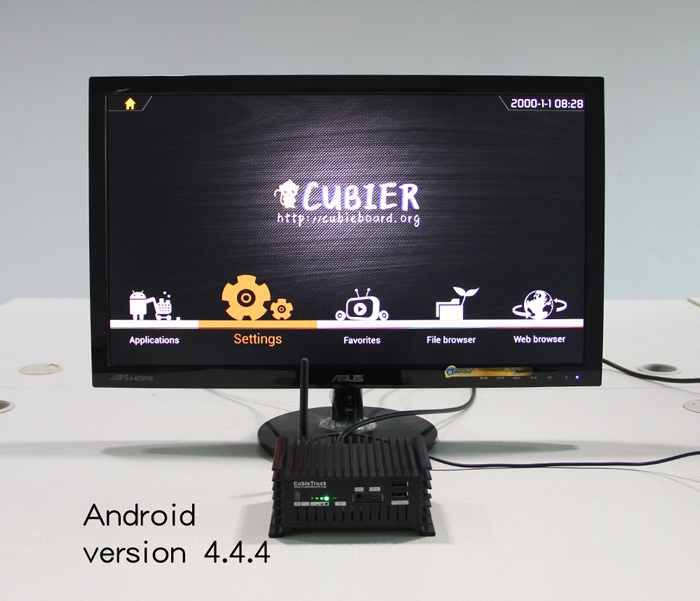

System:    Android, Debian, Ubuntu and many other open source distribution…
Target:    Developer, Geek, Maker, Scholar, Student…

Product Introduction
CubieTruck Metal is the 3rd generation product of CubieBoard series from Cubietech Limited. CubieBoard is open source hardware which targets market of Developer, Geek, Maker …

It’s a new PCB model adopted with Allwinner A20 main chip just like CubieBoard2. But it is enhanced with some features, such as 2GB DDR3 memory, VGA display port on-board, 100M/1000M RJ45, WIFI+BT on-board, support Li-battery and RTC battery, SPDIF audio interface.

It’s not only for development, but also can used in various areas like other MiniPc products. Thanks to its rich interfaces, low costs, and good open source support ambient, more and more developers can benefit based on it and would like to do lots of promotion work for it.

Product Features

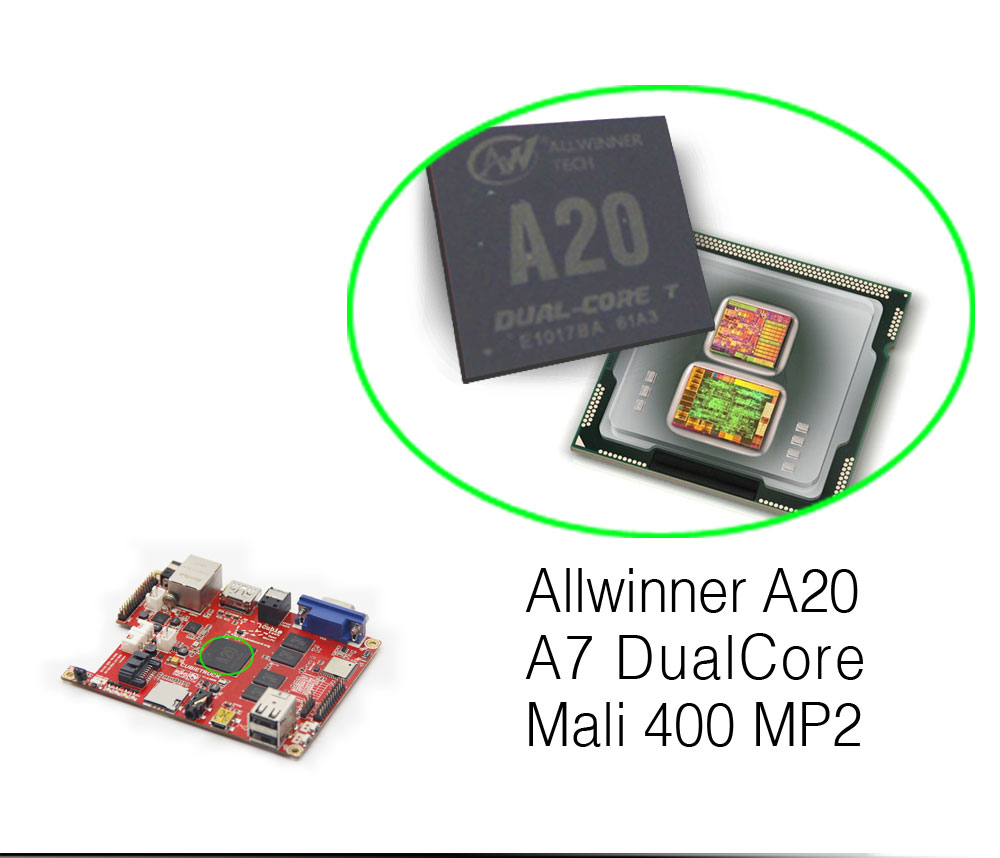

1. AllWinner SOC A20,ARM® Cortex™-A7 Dual-Core,ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1

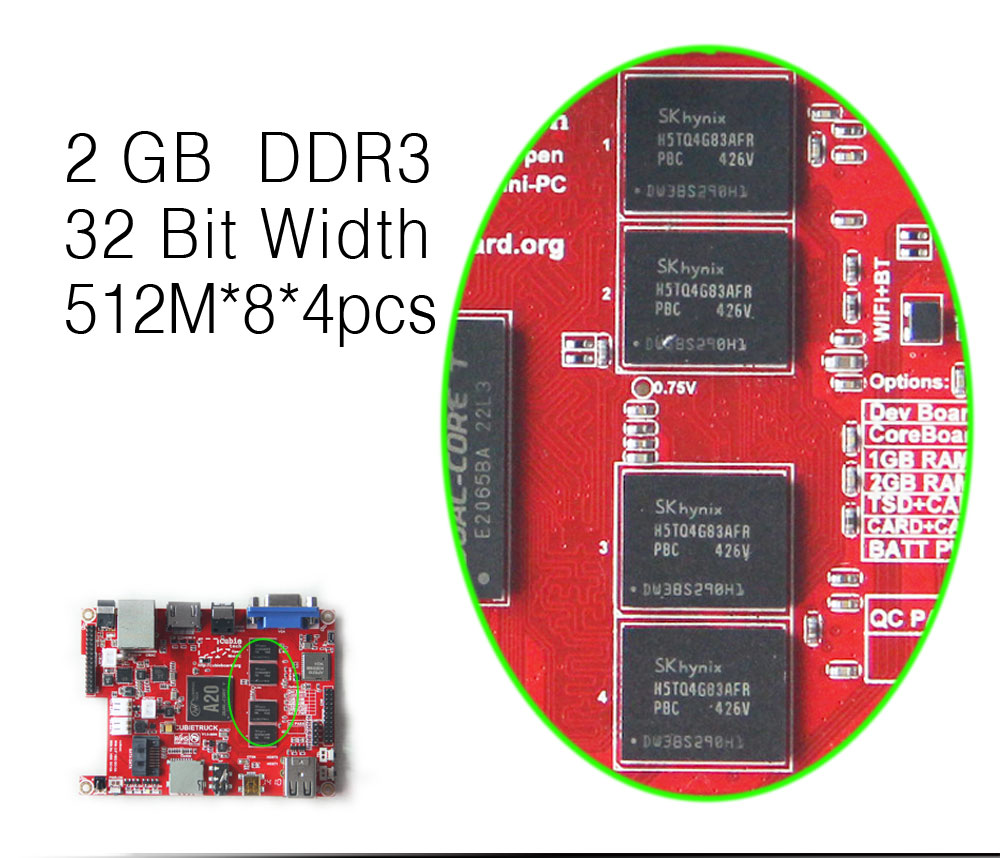

2. 1GB/2GB DDR3@480MHz (960MTPS), 2GB Default

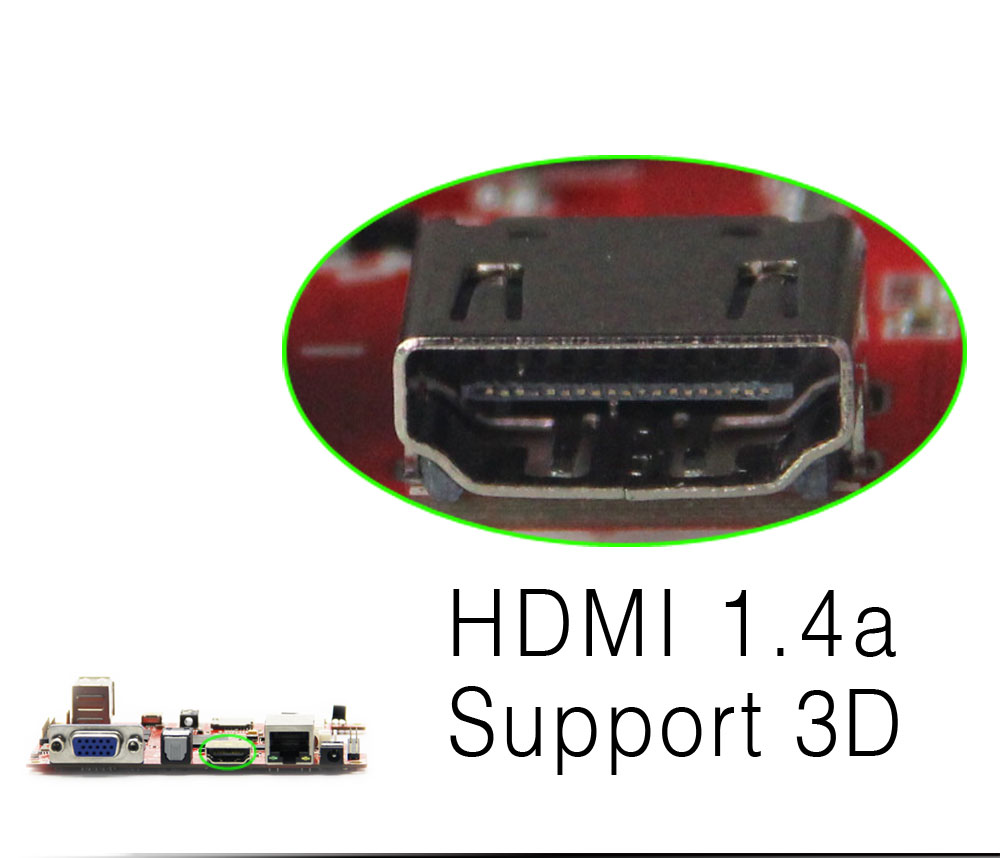

3. HDMI&VGA 1080P@60Hz display output

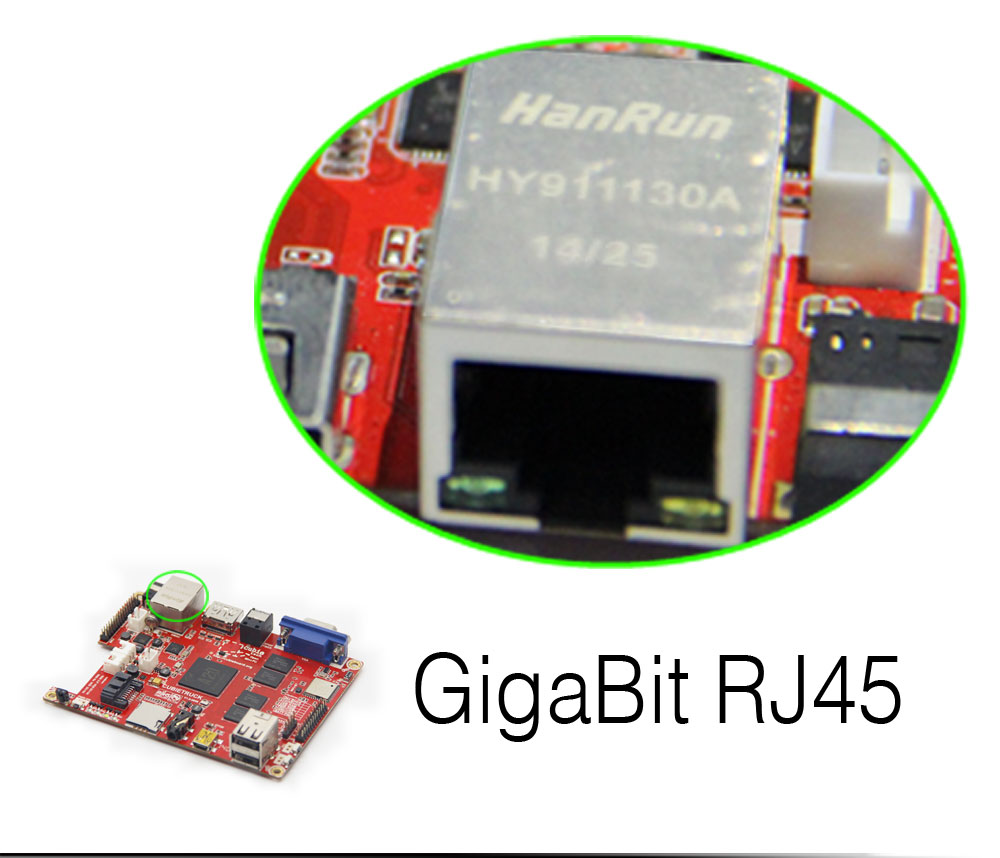

4. 100M/1000M Ethernet RJ45

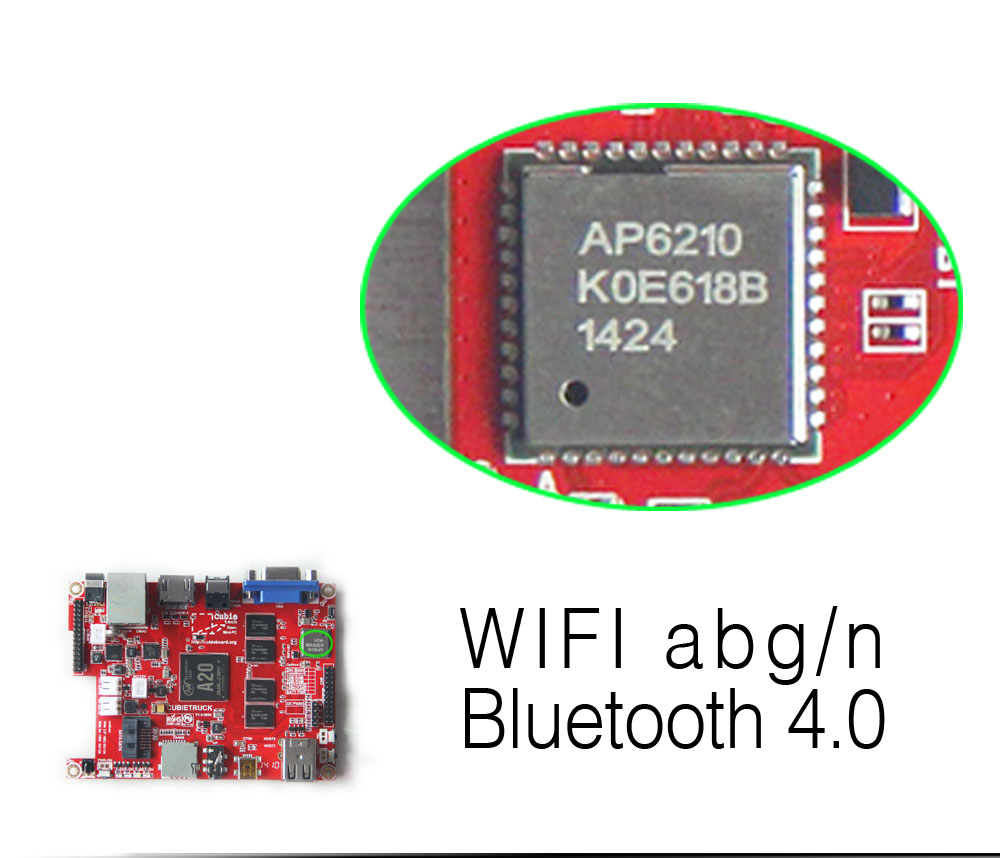

5. Wifi+BT4.0 wireless connection with antenna on-board

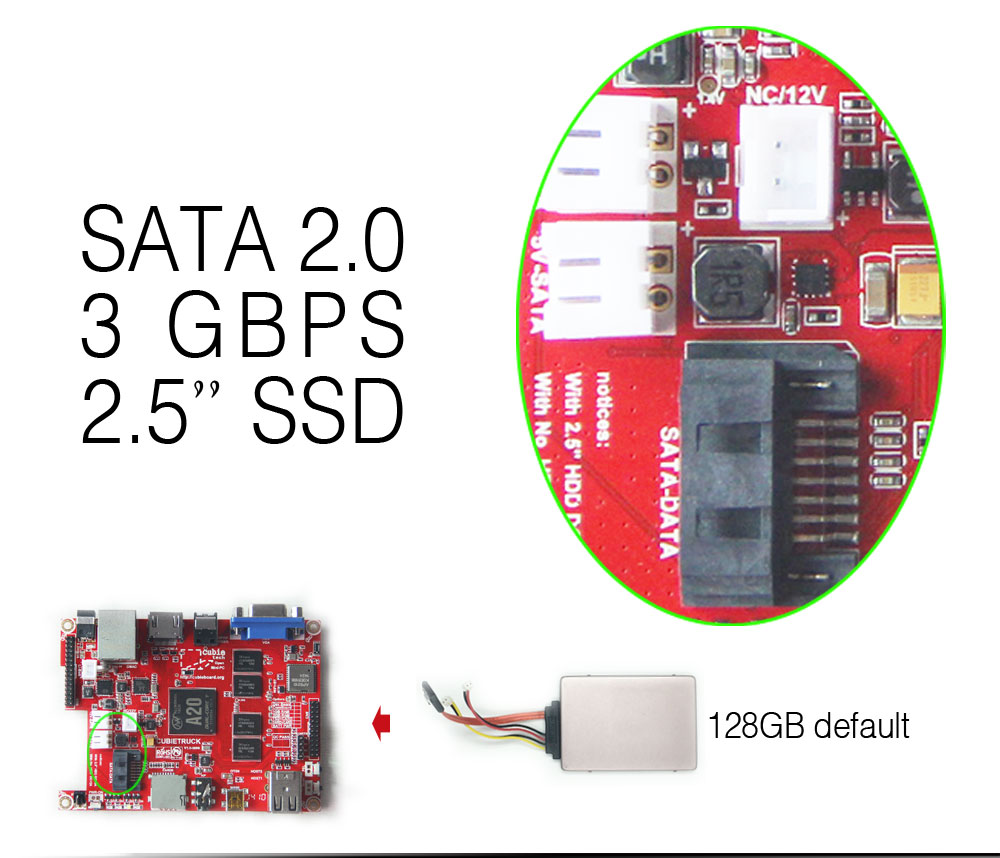

6. SATA 2.0 interface support 2.5’ HDD,(for 3.5’ HDD, need another 12V power input)
7. Storage solution:NAND Flash +MicroSD card slot / TSD + MicroSD card slot / 2*MicroSD card slot

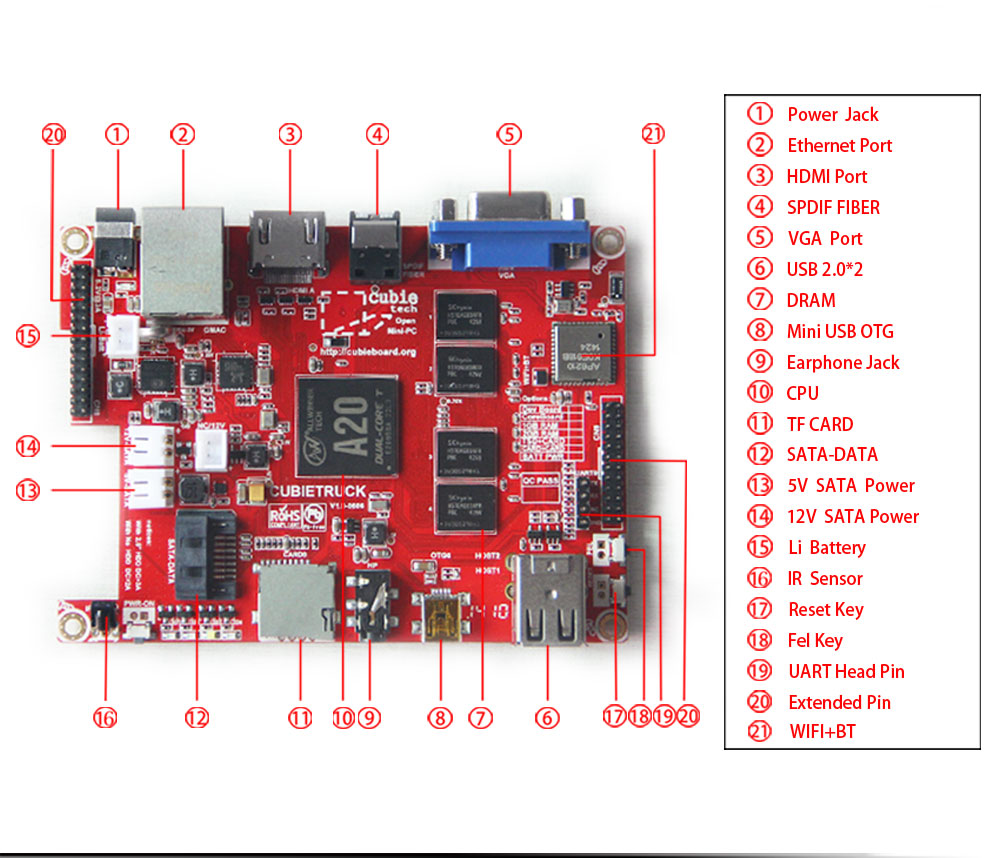

8. 2 x USB HOST,1 x OTG,1 x Toslink (SPDIF Optical),1 x IR,4 x LEDs,1 Headphone,3 x Keys
9. Power:DC5V @ 2.5A with HDD,support Li-battery & Real Time Clock battery
10. 54 expansion pins including I2S, I2C, SPI, CVBS output, Low Resolution ADC x2,UART, PS2, PWMx2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVIN analog video signal input x4 with 2.0mm pitch header pins
11. It’s suitable for installing a 2.5’ HDD/SSD within the cases

Other Specifications
Operating Temperature:    -20℃~70℃
Environment Friendly:   RoHS
Radio Standard:    Fcc & CE compatible
Board Size:    112mm*82mm*18mm
Packing Weight:    452g

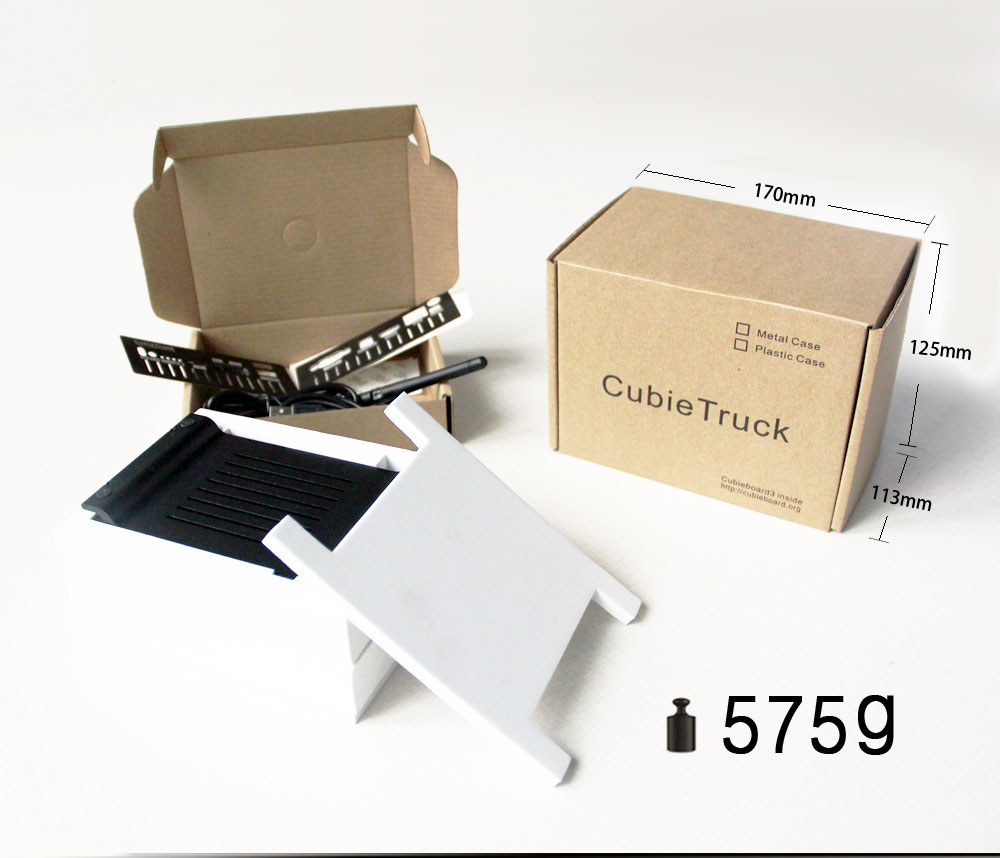

Packing Size:    170mm*125mm*100mm

Development Materials
Technical Website:    http://CubieBoard.org/
Resources and Materials:    http://CubieBoard.org/model/cb3/
Distribution contacts:    sales@cubietech.com
Technical contacts:    support@cubietech.com
Distributors:    http://CubieBoard.org/buy/

CubieBoards Download Main Entrance:

link:  http://cubieboard.org/download/

Enter the download server, then choose the related folder:

Root folder -> Board/Model -> CubieBoard3
